Raptor
•

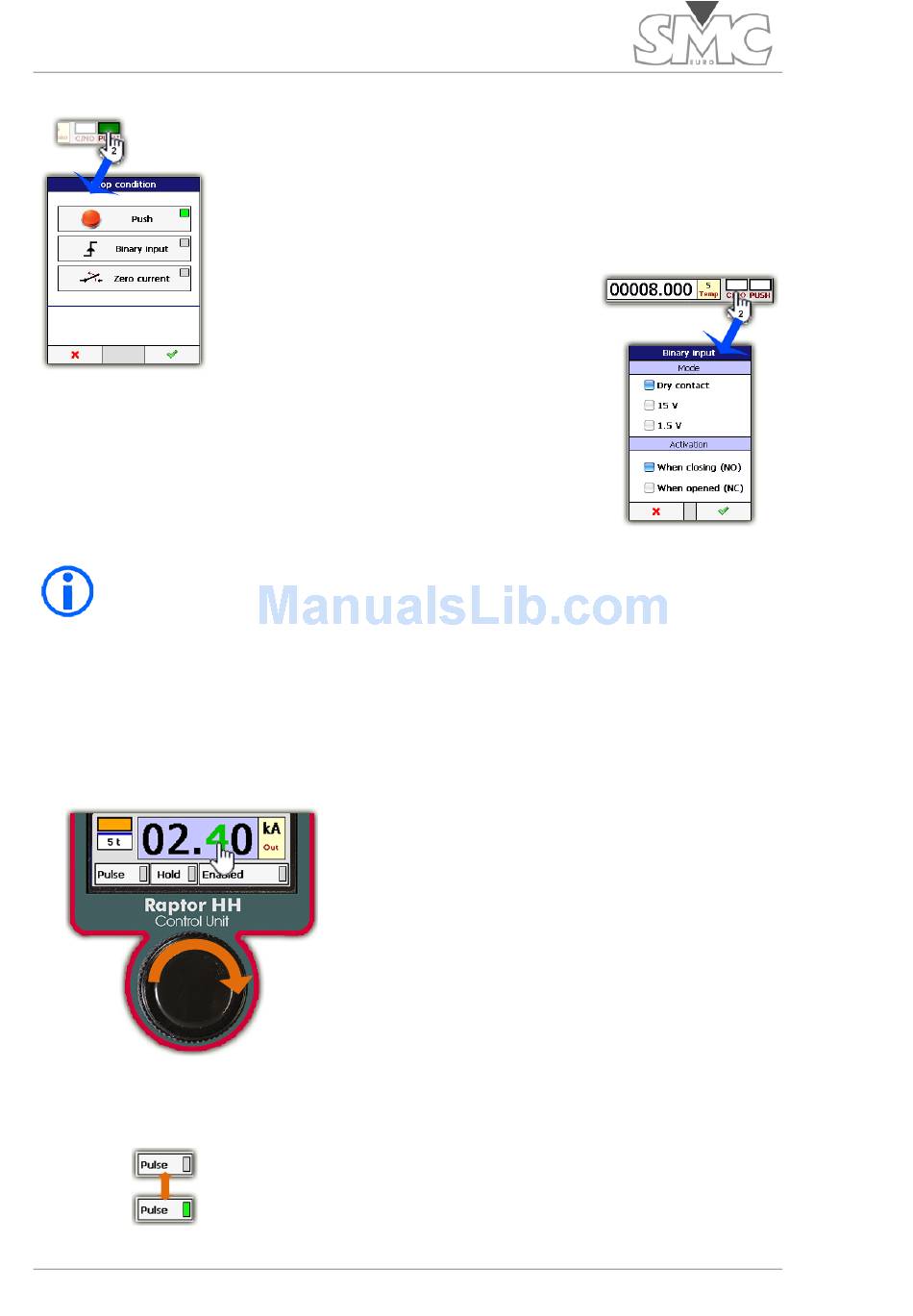

If the selected stop is by binary input, configure the
action mode.
Important – If the pre-injection software LED is illuminated when ON is
pressed, the level requested by the user will be preceded by a transient
(~100 ms.) to detect the connected load and to be able to SELF-
REGULATE. The Raptor System will not compute the times in these cases.
4. Selecting the value.
5. Decide on the injection control mode.
You can choose between Pulse mode activated or deactivated. In the
32
• If it will work as a chronometer, decide if the
test will stop by pressing the dial, or with the binary input or when
the current circuit is opened. This stop will also cause a hold of
the measurements.
By tapping on the digit you would like to change
and using the dial, select the current value that you
want to inject.
activated mode, injection takes place while the dial is pushed and
held. In the deactivated mode, injection begins when the control is
pressed and ends when it is pressed again (or when the
chronometer stops).
