TURNING ON THE SYSTEM

Raise the main switches of each one of the units forming your Raptor system. The correct
polarity and power supply status can be checked through the indicators on the control
panel of each unit.
AC in
green LED must remain On from the moment you power up the unit with the circuit
breaker. Otherwise should check the line power, breaker, fuses etc.
Fault
yellow indicator, when remain On, indicating a fault in one of the machine's
internal supplies or line level too low for proper operation of the unit.

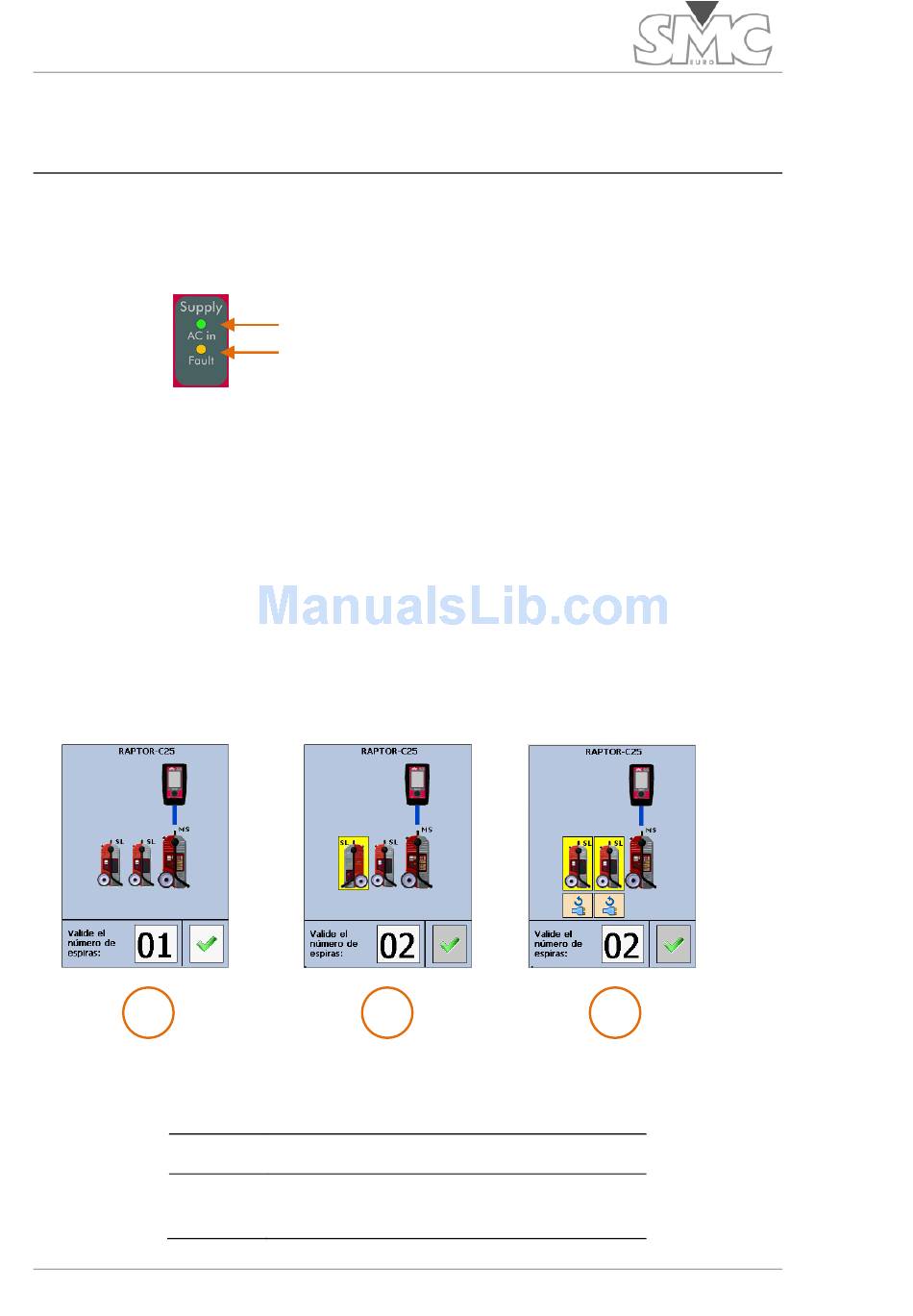

After turning on the system, it begins with system identification by the Raptor-HH unit. The
identification screen graphically shows how the system is connected. If any unit has been
connected erroneously, with the polarity of the line inverted or the polarity of the unit
inverted, this will be shown in the system's detection window. This error is also indicated
by flashing of the Fault indicator on the case where the polarity is inverted with respect to
the master case. Any connectivity error will not allow working with the system until the
correct connection is made.
1
1
2
3
22
Green LED -> Right
LED off -> Right
2
Units connected correctly.
Orientation error of a unit.
Polarity error in the power supply of two
units.
