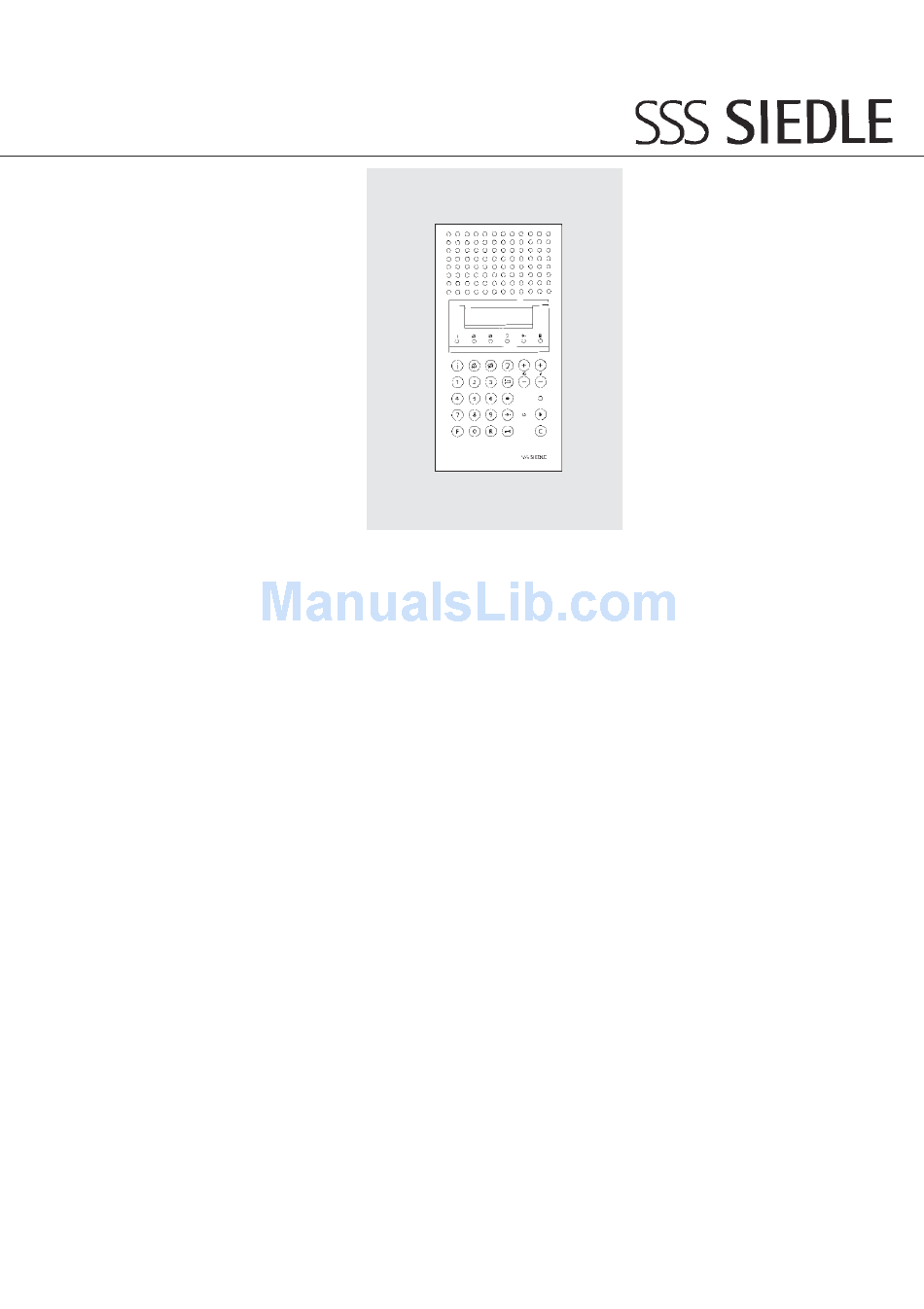

- Page 1 Programming Instruc- tions Siedle Intercom SIC 3000-01 ICI 3000-01...
-
Page 2: Table Of Contents
Contents Siedle Intercom SIC /ICI 3000-01 Door call follow-me function General remarks Door release call number Programming interface Two-digit call number Programming remarks With monitor Programmable menu points Movement sensor Number of speech circuits Commissioning Clear speech circuit Own call number Speech time limitation Programming structure Door communication only... -
Page 3: Siedle Intercom Sic /Ici 3000-01
MFM 611-10. The pro- entire Intercom system, i.e. all the gramming instructions for this are components connected to the provided in the SIC 3000-01 bus, can be programmed from operating instructions. any optional SIC/ICI 3000-01, whereby every call station can be... -
Page 4: Programming Interface Programming Remarks
Programming interface Programming remarks Numerical buttons for entering numerical values and call numbers Call silencing button; used in conjunction with the F button, this takes you into the service menu Listen-in button; used in conjunction with the F button, this takes you out of the service mode C button;... -
Page 5: Programmable Menu Points
Programming point only appears Programming point does not Programming point appears only in call stations connected to the appear unless ”Receive group with the SIC 3000-01 not with global bus calls“ has been activated ICI 3000-01. Programming point does not Programming point only appears appear when “door communi-... -
Page 6: Commissioning Own Call Number
Commissioning Own call number Own call number Remark: With a new appliance, no call Allocating call numbers as number has been set in the facto- described below applies only to ry. In order to program an Inter- SIC / ICI 3000-01 appliances. com system, each call station Supplementary devices such as must first receive its own call... -
Page 7: Programming Structure Sic / Ici 3000-01
Programming structure SIC / ICI 3000-01 Initial status 9:23 and code word Quit service mode Service mode 9:23 No access con- and call number of trol the appliance Service functions Programming menu of selected call station Programming Programming Programming SIC 3000-0 TLC 3000-0 BC 3000-0 ... -
Page 8: Service Mode On/Off
Service mode on/off To execute the service functions Access to the service mode is pro- Caution: described below, or to branch tected by a code word. If you enter the wrong code into the call station programming On delivery, the code word 1000 word three times in succession, level, you must first change into is defined. -
Page 9: Service Functions
Service functions If the call station is in the service Caution: The reset functions deactivated. However, call sta- mode, it is possible to execute return the targeted call stations tion-specific programming is the following functions. to the basic status, i.e. all current retained. -
Page 10: Remote Programming Programming Remarks
Remote programming Programming remarks Remote programming only possible as long as a number has a power failure during remote Using any optionally selected has been allocated to every appli- programming, both call stations intercom SIC/ICI 3000-01 call sta- ance in the system. This is of par- are returned to the basic status tion, it is possible to program any ticular importance during initial... -
Page 11: Programming Mode On/Off
Programming mode on/off If you wish to change an appli- menu if every appliance you wish the programming mode, first ance setting, this can only be to program has been allocated the SIC/ICI 3000-01 has to be done in the programming mode. its own call number for unam- switched to the service mode. -
Page 12: Language
Language Language The display changes continuously Deutsch = 0 To select the appropriate langua- between Pres. extn: 0 ge, enter the required code num- ber. English = 1 Pres. extn: 0 Français = 2 Pres. extn: 0 Nederlands = 3 Pres. -
Page 13: Basic Status Own Call Number
Basic status Own call number Basic status The display changes continuously Basic status If you activate the basic status by between Pres. extn: 0 entering “1“ and then leaving the programming mode using the C button, all menu points of the 1 = yes, 0 = no appliance are turned to their Pres. -
Page 14: Code Word
Code word Code word tem from unauthorized access. tem at a later date (new or used) This prevents unauthorized access Remark: Entering the code word must be checked to ascertain to the appliance configuration. In at one SIC/ICI 3000-01 alters the their code word and corrected if the delivered status, the default code word of all the appliances... -
Page 15: Music Play-In Receiving An Alarm Entitlement To Receive Alarm
Music play-in Receiving an alarm Entitlement to receive alarm 1– 3 Music play-in The display changes continuously MUSiIC PLAY-IN In this menu point, the music from Pres. extn: 0 play-in function is enabled for the respective unit. 1 = yes, 0 = no Remark Pres. -
Page 16: Emergency Call Door Loudspeaker Parallel Call
Emergency call Door loudspeaker parallel call Emergency call The display changes continuously RECEIVE EMERGENCY CALL Emergency calls transmitted by from Pres. extn: 0 a special function module can be received provided the SIC/ICI 3000-01 has been pro- 1 = yes, 0 = no grammed for entitlement. -
Page 17: Doormatic Caretaker
Doormatic Caretaker Doormatic The display changes continuously DOORMATIC The doormatic function permits from Pres. extn: 0 automatic actuation of the door release following a door call. This omits the need for manual door ENTITLEMENT release, for example during con- Pres. extn: 0 sulting hours in doctors’... -
Page 18: Door Call Follow-Me Function Door Release Call Number
Door call follow-me function Door release call number Door call follow-me function The display changes continuously DOOR CALL FOLLOW-ME At call stations with entitlement from Pres. extn: 0 to use the door call follow-me function, it is possible to fetch door calls intended for another ENTITLEMENT? call station. -
Page 19: Two-Digit Call Number With Monitor
Two-digit call number With monitor Two-digit call number The display changes continuously CALL NUMBER This function is used to optimize from Pres. extn: 0 the dialling speed in single-bus intercom systems, i.e. those with- out bus coupler. 2-DIGIT? As only two-digit numbers can be Pres. -
Page 20: Movement Sensor Number Of Speech Circuits Clear Speech Circuit
Movement sensor Number of speech circuits Clear speech circuit Movement sensor The display changes continuously BMM ENTITLEMENT Movement sensor entitlement is from Pres. extn: 0 only significant in conjunction video and a monitor. If this function is activated, the 1 = yes, 0 = no camera and monitor are activated Pres. -
Page 21: Speech Time Limitation Door Communication Only
Speech time limitation Door communication only Speech time limitation The display changes continuously SPEECH To ensure that the Intercom from Pres. extn: 1 system is available for fast, short internal communication at any time, the speech time is limited as SPEECH LIMIT? standard to 6 minutes. -
Page 22: Entitlement To Transmit Group Paging Calls Receiving Group Paging Calls
Entitlement to transmit group paging calls Receiving group paging calls Entitlement to transmit group The display changes continuously GROUP PAGING CALL paging calls from Pres. extn: 0 A group paging call is an announcement made only to a previously defined group of call TRANSMIT ENTITLEMENT stations. -
Page 23: Receiving Group Paging Calls In Group (Defining Own 10 Group Number)
Receiving group paging calls in group (Defining own group number) Receiving group calls in group All appliances connected to the group is unlimited. However, each If you programmed the call sta- Intercom system can be classified individual appliance may only tion not to receive group paging into up to 9 different groups. -
Page 24: Receiving Collective Paging Calls
Receiving collective paging calls Transmitting collective paging calls Receiving collective The display changes continuously COLLECTIVE PAGING CALL paging calls from Pres. extn: 1 To enable you to receive collective paging calls, the rele- vant entitlement must RECEIVE? be programmed. Pres. extn: 1 1 = yes, 0 = no Pres. -
Page 25: System Sic / Ici 3000-01
System SIC / ICI 3000: Transmitting /receiving messages Receiving messages The SIC / ICI 3000 evaluates the (alarm, emergency call, text received message types and dis- messages) plays them depending on receive Every SIC / ICI 3000 can be pro- entitlement. -
Page 26: Message Text / Quickdial / External Button Programming
Message text / quick dial / external button programming At each SIC/ICI 3000, up to Alarms and emergency calls for Remark 23 message texts comprising which no text has been entered It is possible to leave the message 16 characters each can be are displayed showing the mes- text programming mode at any entered individually for all types... -
Page 27: Programming Message Texts
Programming message texts Display Programming message texts Not assigned If there are already message texts stored, it is possible to scroll through these using the R button Use the R button to scroll for- for forwards, the F button for wards and the F button to scroll backwards. - Page 28 Programming message texts Using the call forwarding and fol- Press the call forwarding or fol- low-me buttons, type in letters, low-me button numbers and symbols. Holding the button down effects an auto- Display, e.g. the letter G Message text matic scroll through. Using the R button, you will jump Press the R or F button to the next position, with the F...
-
Page 29: Programming
Programming message texts You wish to confirm the pro- Press the door release button grammed input. The display changes from Message is being programmed The programming for this chan- Channel 200, Alarm nel with the message “Oil tank OIL TANK LEAKING leaking“... - Page 30 Programming message texts Cancelling message texts Press R or F If you wish to cancel an existing message text, branch as described into the message text programming mode and select the text you wish to cancel using the R or F button. Using the door release button, Press the door release button sev- scroll through until the menu...
-
Page 31: Index Of Key Words
Index of key words Basic status 5/13 Number of speech circuits Call number assignment 6/13 Own call number 6/13 Caretaker Clearing speech circuits Code word Parallel call Collective paging call Programming interface Commissioning Programming menu Programming mode Programming points Delivery status Programming remark 4/10 Door call follow-me function 18... - Page 32 S. Siedle & Söhne © 1996/4.97 Telefon- und Telegrafenwerke Printed in Germany Stiftung & Co Best.-Nr. 0-1106/114627-GB Postfach 1155 D-78113 Furtwangen Bregstrasse 1 D-78120 Furtwangen Telefon ++49 (0) 77 23 / 63-0 Telefax ++49 (0) 77 23 / 6 33 00...
