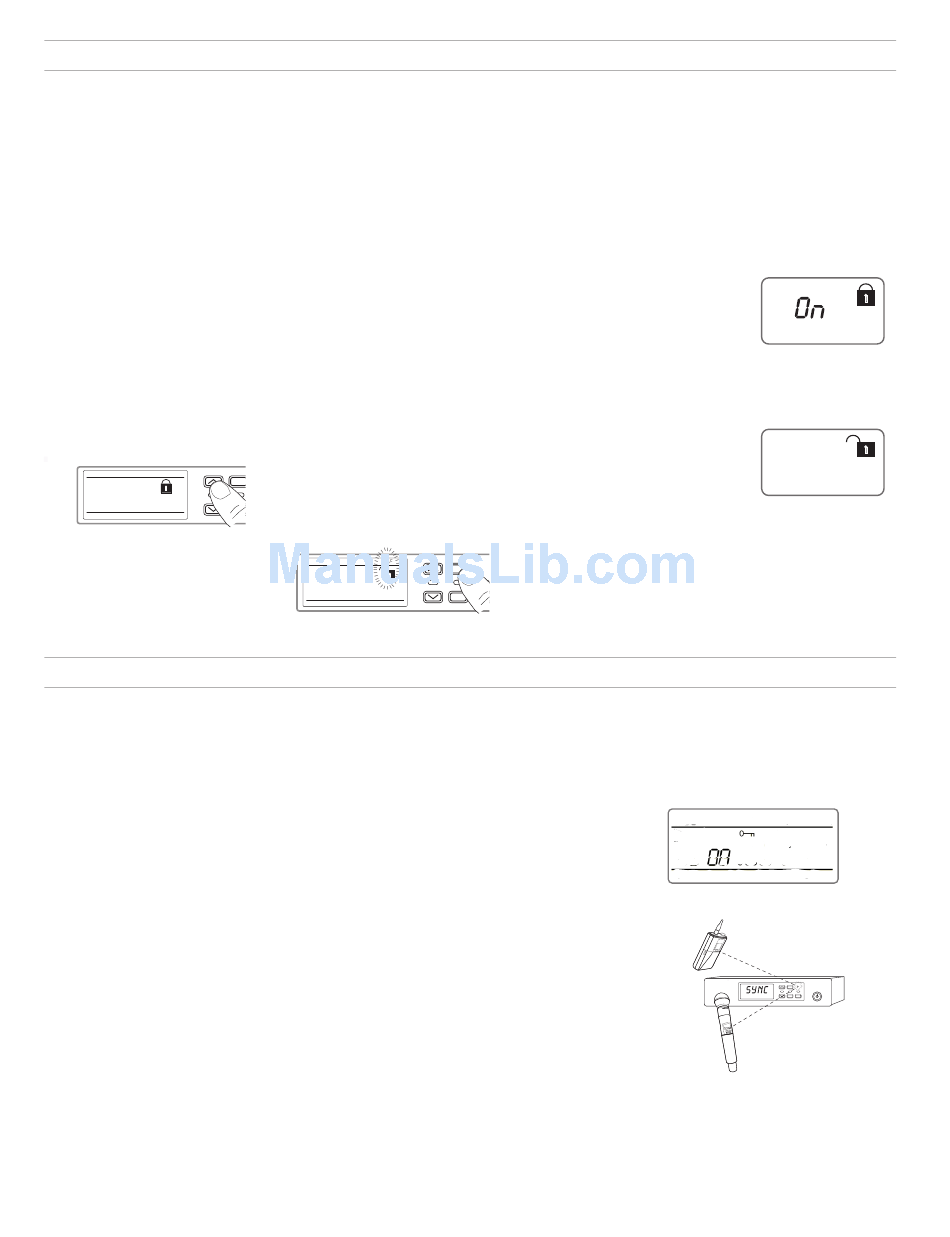

Control Lock Options for the Receiver and Transmitter

Control lock options are available for both the receiver and the transmitter to protect against accidental or unauthorized changes to the settings. Locks
can be directly set from the component menu, or remotely set from WWB6. To maintain protection, controls remain locked when the transmitter is turned
off and turned on.
Locking and Unlocking the Receiver Controls
The receiver has the following control lock options which can be used sepa-
rately or in any combination:
• gain: locks the arrow buttons to prevent changes to the audio gain
settings.
• menu: prevents access to menu items and IR sync (gain controls and
power switch remain active)
• power: disables power switch (gain and menu controls remain active)
To lock a receiver control:
1. Use the menu button to navigate
to the lock settings.
2. Press the arrow buttons to add or
remove the lock options shown
next to the lock icon.
3. Press enter save the lock
settings.
gain

Audio Signal Encryption

The QLX-D receiver features Advanced Encryption Standard (AES-256) to protect the audio signal. When encryption is enabled, the receiver generates
a unique encryption key which is shared with a the transmitter during an IR sync. Transmitters and receivers that share an encryption key form a pro-
tected audio path, preventing unauthorized access from other receivers. To maintain security, components remain encrypted when turned off and on.
Creating an Encrypted Audio Channel
1. Press the menu button to navigate to the encryption menu, indicated by the key icon.
2. Use the arrow buttons to select an encryption option:
• on = encryption enabled
• OFF = encryption disabled
3. Press enter to save. The key icon will be shown on the receiver display.
4. Press the sync button and align the IR sync windows of the transmitter and receiver. The encryption key
icon will appear on the transmitter screen when the IR sync is complete and the encryption key has been
transferred from the receiver.
Additional transmitters can share the same encryption key with a single receiver. Perform an IR sync to en-
crypt each additional transmitter.
Note: When OFF is selected from the receiver menu to disable encryption, perform an IR sync to clear the encryption key
from the transmitter and allow free reception by other receivers.
Removing Encryption
1. Press the menu button to navigate to the encryption menu.
2. Select OFF.
3. Press enter to save.
4. IR sync the transmitter and receiver to clear the encryption key from the transmitter and allow free recep-
tion by other receivers.
Note: If encryption is set from off to on, the receiver will generate a new encryption key and must be IR synced to the
transmitter to share the new key.
To unlock a receiver:
Tip: To unlock the menu and clear all
locks, press and hold the menu button
while in the home screen until the unlock
icon appears. Press enter to confirm and
save change.
1. To unlock gain or power settings,
navigate to the lock settings by
pressing the menu button.
2. Press the arrow buttons to de-
select a lock option.
menu
3. Press enter to confirm and save
enter
sync
change.
Do Not Duplicate or Redistribute
Locking and Unlocking Transmitter Controls
The transmitter controls can be locked or unlocked by selecting On
(locked) or OFF (unlocked) from the transmitter lock menu.
If an attempt is made to access a locked control, the lock icon will
flash, indicating that the transmitter controls are locked.
To set a transmitter lock:
1. Use the menu button to navigate
to the lock settings.
2. Press the ⋀⋁ buttons to select on.
3. Press enter to save. The lock icon
displayed on the screen, indicates
that the control locks are enabled
To unlock the transmitter:
1. Press and hold the menu until
OFF and the unlock icon appear
on the display
2. Press enter to confirm the change
and unlock the transmitter.
menu
enter
sync
OFF
<15 cm (6 in.)
menu
enter
sync
13
