Linking Two Transmitters to a Receiver

Linking two transmitters to a receiver offers the flexibility to provide a performer with either a handheld or bodypack transmitter to meet their preference.
Two instruments with bodypack transmitters can also be linked to a single receiver.
Note: Only turn on and operate one transmitter at time to prevent interference between the transmitters.

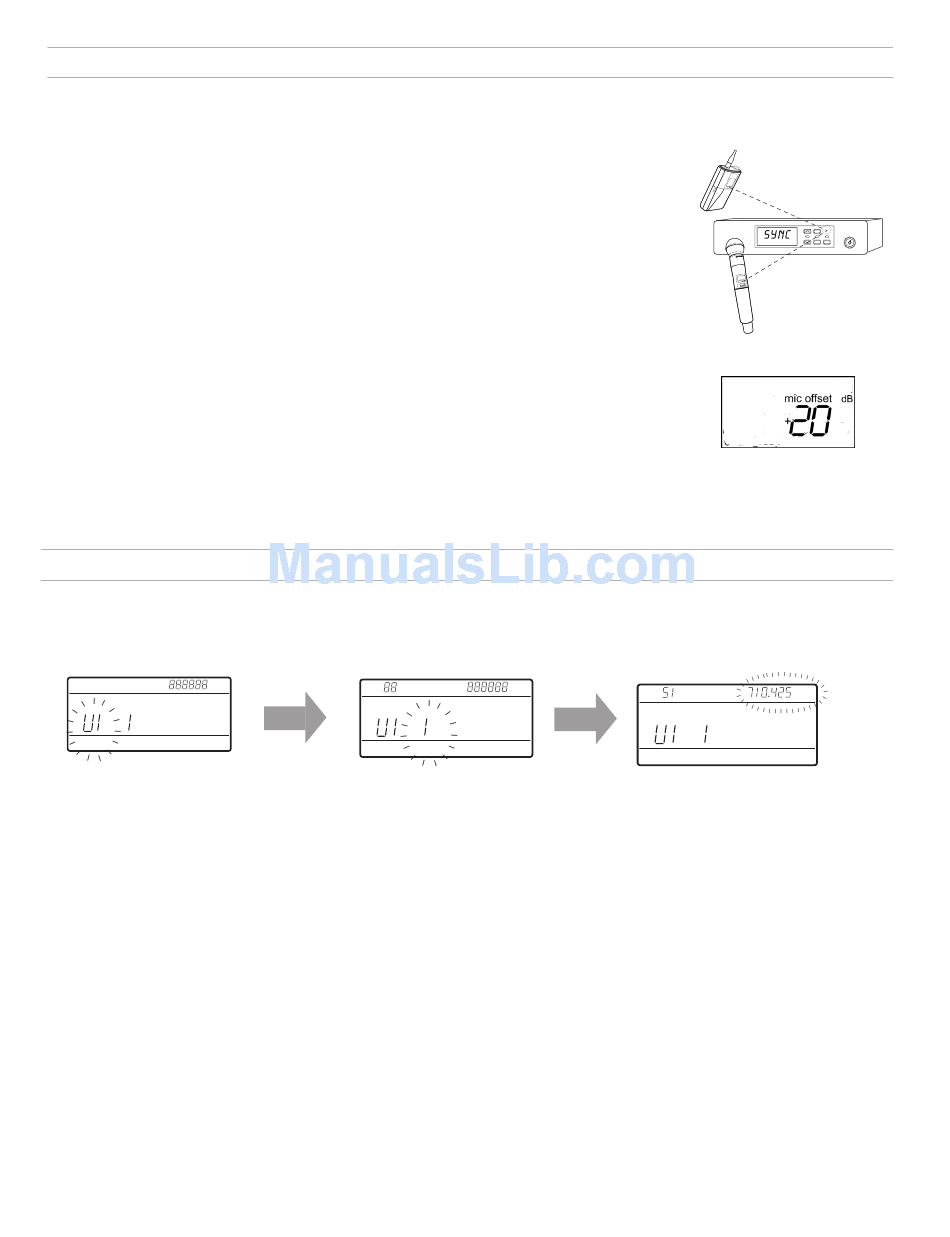

Syncing the Transmitters to the Receiver
Both transmitters must be individually linked to the receiver by performing an IR Sync.
1. Turn on the first transmitter and perform an IR Sync with the receiver.
2. Perform a sound check and adjust the transmitter gain if necessary. When finished, turn off the transmitter.
3. Turn on the second transmitter and perform an IR Sync with the receiver.
4. Test the transmitter at performance conditions and adjust the transmitter gain if necessary. When finished,
turn off the transmitter.
Matching Transmitter Audio Levels with Mic Offset
Balance the audio levels with Mic Offset to eliminate audible volume differences between transmitters. If using
a single transmitter, set Mic Offset to 0 dB.
1. Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when
finished.
2. Turn on the second transmitter and perform a sound check to test the audio level.
3. If there is an audible difference in the sound level between the transmitters, navigate to the Mic Offset menu
on the transmitter to increase or decrease the Mic Offset in realtime to match the audio levels.

Custom Groups

Specific channels and frequencies can be selected and placed into custom groups. Custom groups are commonly used to assign networked receivers to
specific range of frequencies or to pre-configure receivers for rental applications. Once a custom group is loaded, only frequencies within the group will
be available for audio channels.
Creating Custom Groups
M H z
gro u p cha nne l
Selecting A Custom Group
The receiver has 6 custom groups available
named U1, U2, U3, U4, U5, and U6.
Press menu while holding the enter button to ac-
cess the Custom Group screen.
Press enter to enable editing of a group (indicated
by the group flashing).
User the arrow buttons to select a group (U1 to U6).
Press enter to advance to channel selection.
Loading Custom Groups to Networked Receivers
Deleting a Custom Group
1. Press menu while holding the enter button to access the Custom Group screen.
2. Press enter to enable editing of a group (indicated by the group flashing).
3. User the arrow buttons to navigate to display the group number and the words DEL.
4. Press enter to delete the group.
Creating Custom Groups using Wireless Work Bench 6
Custom groups can be created in WWB6 by accessing the Frequency Coordination tab. Refer to the WWB6 help system for detailed instructions for con-
figuring Custom Groups.
14
T V
gro up c hann el
Selecting a Channel
Use the arrow buttons to select a channel
(1-60). Each group can contain up to 60
channels (frequencies).
Press enter to save the selected channel
and advance to frequency assignment.
Do Not Duplicate or Redistribute
MH z
T V
gro u p
Assigning a Frequency to a Channel
Use the arrow buttons to assign a frequency to the
selected channel.
Press enter to save.
After pressing enter, the channel will flash
to allow for adding more channels and
frequencies to the custom group. To add more
channels and frequencies, repeat steps 1
and 2. When finished, press the menu button
several times to return to the main menu.
<15 cm (6 in.)
menu
enter sync
M H z
c ha nnel
