Operating Instructions and Parts Manual

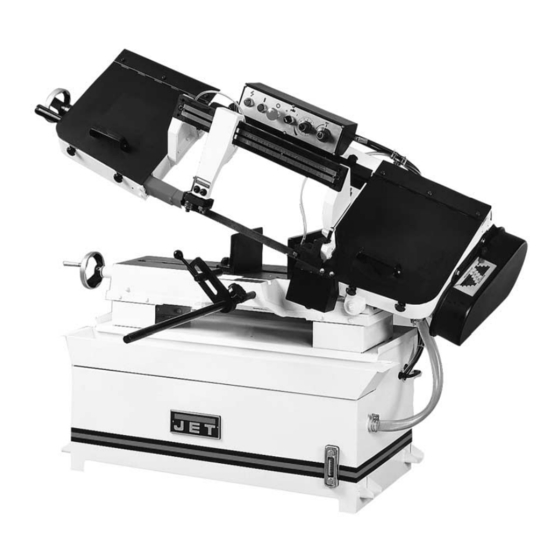

Horizontal Band Saw
Models HBS-916W; HBS-1018W
WALTER MEIER (Manufacturing) Inc.
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-414468
Ph.: 800-274-6848
Revision G1 06/2010
www.waltermeier.com
Copyright © 2010 Walter Meier (Manufacturing) Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JET HBS-1018W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jet JET HBS-1018W

Summary of Contents for Jet JET HBS-1018W

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal Band Saw Models HBS-916W; HBS-1018W WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-414468 Ph.: 800-274-6848 Revision G1 06/2010 www.waltermeier.com Copyright © 2010 Walter Meier (Manufacturing) Inc.

  • Page 2: Warranty And Service

    Warranty and Service Walter Meier (Manufacturing) Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.

  • Page 3: Table Of Contents

    Table of Contents Warranty and Service ........................2 Table of Contents..........................3 Warning .............................4 Introduction ............................6 Specifications .............................6 Uncrating and Cleanup........................7 Installation ............................7 Assembly ............................7 Electrical Connections .........................8 Controls .............................9 Prior to Operation ..........................9 Adjustments ............................. 10 Adjusting Vise Square to the Blade ....................10 Changing Blade Speeds ........................

  • Page 4: Warning

    Warning 1. Read and understand the entire owner’s manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.
  • Page 5 21. Provide for adequate space surrounding work area and non-glare, overhead lighting. 22. Keep the floor around the machine clean and free of scrap material, oil and grease. 23. Keep visitors a safe distance from the work area. Keep children away. 24.

  • Page 6: Introduction

    Introduction This manual is provided by Walter Meier (Manufacturing) Inc., covering the safe operation and maintenance procedures for a JET Model HBS-916W or HBS-1018W Band Saw. This manual contains instructions on installation, safety precautions, general operating procedures, maintenance instructions and parts breakdown. This machine has been designed and constructed to provide years of trouble free operation if used in accordance with instructions set forth in this manual.

  • Page 7: Uncrating And Cleanup

    Uncrating and Cleanup Note: Read and understand the entire manual before attempting setup or operation. 1. Finish uncrating the saw and inspect for damage. Should any have occurred, contact your local distributor. 2. Remove all bolts attaching machine to shipping base. 3.

  • Page 8: Electrical Connections

    Figure 2 4. Carefully lift motor and line up holes in the motor mounting plate and the motor bracket. 5. Slide motor support shaft into motor mount bracket to hold the motor in place. 6. Fasten shaft with nut and washer. 7.

  • Page 9: Controls

    To convert the HBS-916W from 115V to 230V, the following items will have to be changed: Main Motor – follow diagram inside junction box cover. Coolant Pump – Remove chip pan on front of saw, remove junction box cover on pump, and follow diagram inside junction box cover.

  • Page 10: Adjustments

    7. Material to be cut must be securely held in vise. 8. Check to see that coolant level is adequate and turn on coolant pump if material to be cut requires it. Machine should be filled with four gallons of the proper coolant mixture. Follow the directions on the product maker’s label and fill the coolant tank through the chip tray area.

  • Page 11: Adjusting Feed Rate

    Adjusting Feed Rate Rate of feed is adjusted by turning the cutting pressure control knob on the control panel. Rate of feed is important to band saw performance; excessive pressure may break the blade or stall the saw. Insufficient pressure rapidly dulls the blade.

  • Page 12: Blade Tracking Adjustment

    9. Tension blade to approximately 25,000 lbs. of blade tension, as indicated on the blade tension indicator found on the tension wheel shaft housing. 10. Attach wire brush to the wire brush post with screw and washer. Adjust wire brush post so that brush just comes into contact with blade teeth.

  • Page 13: Automatic Shut-Off Adjustment

    Automatic Shut‐Off Adjustment The motor should shut off immediately after the blade has cut through the material and just before the head comes to rest on the horizontal stop bolt. If the machine continues to run after the workpiece has been fully cut, locate and adjust the micro switch mounting plate down.

  • Page 14: Bow Weight Adjustment

    Bow Weight Adjustment Bow weight is one of the most important adjustments of the saw. If the bow weight is not set properly, one can expect poor performance, crooked cuts, tooth stripping, stalling, and the blade popping off the blade wheels. The hydraulic feed rate unit will not compensate for improper bow weight.

  • Page 15: Maintenance

    Maintenance Before doing maintenance on the machine, disconnect it from the electrical supply by pulling out the plug or switching off the main switch! Failure to comply may cause serious injury. Keep the band saw and the motor clean. If the power cord is worn, cut, or damaged in any way, have it replaced immediately.

  • Page 16: Base And Bed Assembly

    Base and Bed Assembly...

  • Page 17: Saw Arm Assembly - Hbs-916W

    Saw Arm Assembly – HBS‐916W...

  • Page 18: Saw Arm Assembly - Hbs-1018W

    Saw Arm Assembly – HBS‐1018W...

  • Page 19: Parts List For Hbs-916W, Hbs-1018W

    Parts List for HBS-916W, HBS-1018W Index No. Part No. Description Size 1 ....HBS916W-01 ..Base (S/N 8081108 and lower) ............1 ....HBS916W-01A ..Base (S/N 8081109 and higher) ............1 ....HBS1018W-01..Base (S/N 808718 and lower) .............. 1 ....HBS1018W-01A ..Base (S/N 808719 and higher)............. 1 2 ....
  • Page 20 Index No. Part No. Description Size 39 .... TS-1490041 ....Hex Cap Bolt ............M8x25......1 39-1 ..TS-1551081 ....Lock Washer ............8mm ......1 39-2 ..TS-1550061 ....Washer ............8mm ......1 40 .... HBS916W-40 ..Motor Tilt Plate ................... 1 ....HBS1018W-40..Motor Tilt Plate ................... 1 40-1 ..
  • Page 21 Index No. Part No. Description Size ....HBS916W-70A ..Electrical Panel Cover (S/N 8081109 and higher HBS-916W) ....1 ....HBS1018W-70A ..Electrical Panel Cover (S/N 808719 and higher HBS-1018W) ....1 71 .... HBS916W-71 ..Fuse Block ..................2 ....HBS916W-71A ..Fuse 3A ..................... 1 72 ....
  • Page 22 Index No. Part No. Description Size 100-2 ..TS-1551061 ....Lock Washer ............M8 ......2 101 ..HBS916W-101..Hose ....................1 101-1 ..HBS916W-101-1..Hose ....................1 102 ..HBS916W-102..Support Shaft ..................1 102-1 ..TS-1550081 ....Washer ............M12 ......1 102-2 ..TS-1540081 ....Hex Nut............M12 ......1 102-3 ..
  • Page 23 Index No. Part No. Description Size 127-1 ..HBS916W-127-1..Eccentric Sleeve (inside)(HBS-916W) ..........2 ....HBS1018W-127-1 ..Eccentric Sleeve (inside)(HBS-1018W) ..........2 128 ..TS-1551061 ....Lock Washer ............M8 ......4 129 ..TS-1504091 ....Hex Socket Cap Screw ........M8x45......4 130 ..TS-1503071 ....Hex Socket Cap Screw ........M6x30......4 130-1 ..
  • Page 24 Index No. Part No. Description Size 157 ..HBS916W-157..Blade Guard ..................1 ....HBS1018W-157A ..Blade Guard ..................1 157-1 ..HBS1018W-157-1 ..Blade Guard - down ................1 157-2 ..TS-1482021 ....Hex Cap Bolt ............M6x12......2 157-3 ..TS-1550041 ....Washer ............M6 ......2 158 ..
  • Page 25 Index No. Part No. Description Size 188 ..TS-1524021 ....Set Screw ............M8x10......1 189 ..HBS916W-189..Extension Bar ..................1 190 ..HBS916W-190..Wheel Shaft ..................1 191 ..HBS916W-191..Nut w/Hole For Set Screw .........M14 ......1 191-1 ..TS-1523021 ....Set Screw ............M6x8 ......1 192 ..

  • Page 26: Gear Speed Reducing Box Assembly

    Gear Speed Reducing Box Assembly...

  • Page 27: Parts List For Gear Speed Reducing Box Assembly

    Parts List for Gear Speed Reducing Box Assembly Index No. Part No. Description Size 1 ....HBS916W-94-01..Oil Seal ............35x55x8 mm....1 2 ....HBS916W-94-02..Bearing ............30207 ......1 3 ....HBS916W-94-03..Bearing ............6207 ......1 4 ....HBS916W-94-04..Shaft ....................1 5 ....HBS916W-94-05..Key ..............8x7x30 mm ....1 6 ....

  • Page 28: Electrical Connections - Hbs-916W

    Electrical Connections – HBS-916W...

  • Page 29: Electrical Connections - Hbs-1018W

    Electrical Connections – HBS-1018W...
  • Page 30 NOTES...
  • Page 32 WALTER MEIER (Manufacturing) Inc. 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.waltermeier.com...
