Unfolding:

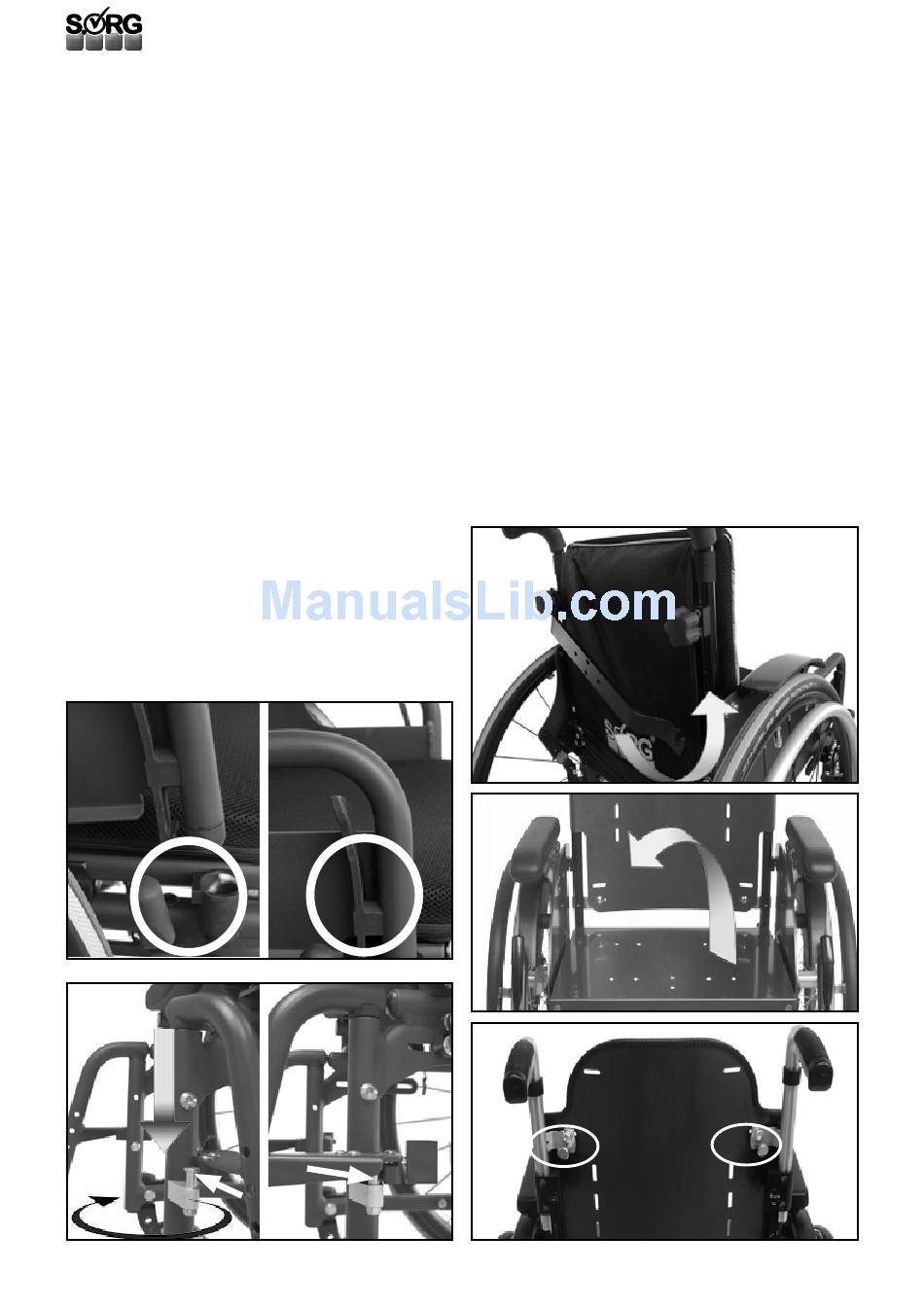

• (1) If necessary, place the side guards (Jump
beta BSA) in and make sure that they are
tightly in place,
• If necessary, put the rear wheels and casters
back on and be sure of a firm fit.
• Tip the wheelchair sideways toward you
(the opposite rear wheel is not touching the
ground),
• Loosen the fold fixation band (see 3.4.1
picture 4),
• push the crossbar apart until they have
snapped into the bearing blocks,
• place the wheelchair on both wheels and
secure it from rolling away,
• if necessary, close the stabilizing rod tightly,
• place the Velcro connection back/seat on the
seat,
• put on the seat and back cushion,
• (2) if necessary, replace the leg supports
(Jump beta DLS), make sure that the locking
pins (A) have locked tightly in to place (the leg
support cannot be removed, also see 3.12.3),
• get in and close the footrest/s (if necessary
lock them).
(1)
(2)
26
(A)
(A)

3.6.2 with SeatFix and/or curved back plate

With the equipment with SitzFix and/or firm curved
back plate, to fold/unfold precede analog:
• Secure the wheelchair from rolling away,
• (3) if necessary, loosen the stabilizing rod,
• (4) unlock the curved back plate and remove
it,
• (5) if necessary, unlock the SitzFix and
remove it,
• open footrest/s,
• grab the cross brace rods on both side at the
front end and pull them up until the Jump is
folded,
• fixate the folded Jump with the fold fixation
band,
• If necessary, remove the casters at the quick
release axle.
• Secure ALL parts in the car so that they do
not fly around in case of sudden braking.
To unfold the Jump with SitzFix and/or curved back
plate, precede anolog.
(3)
(4)
(5)
