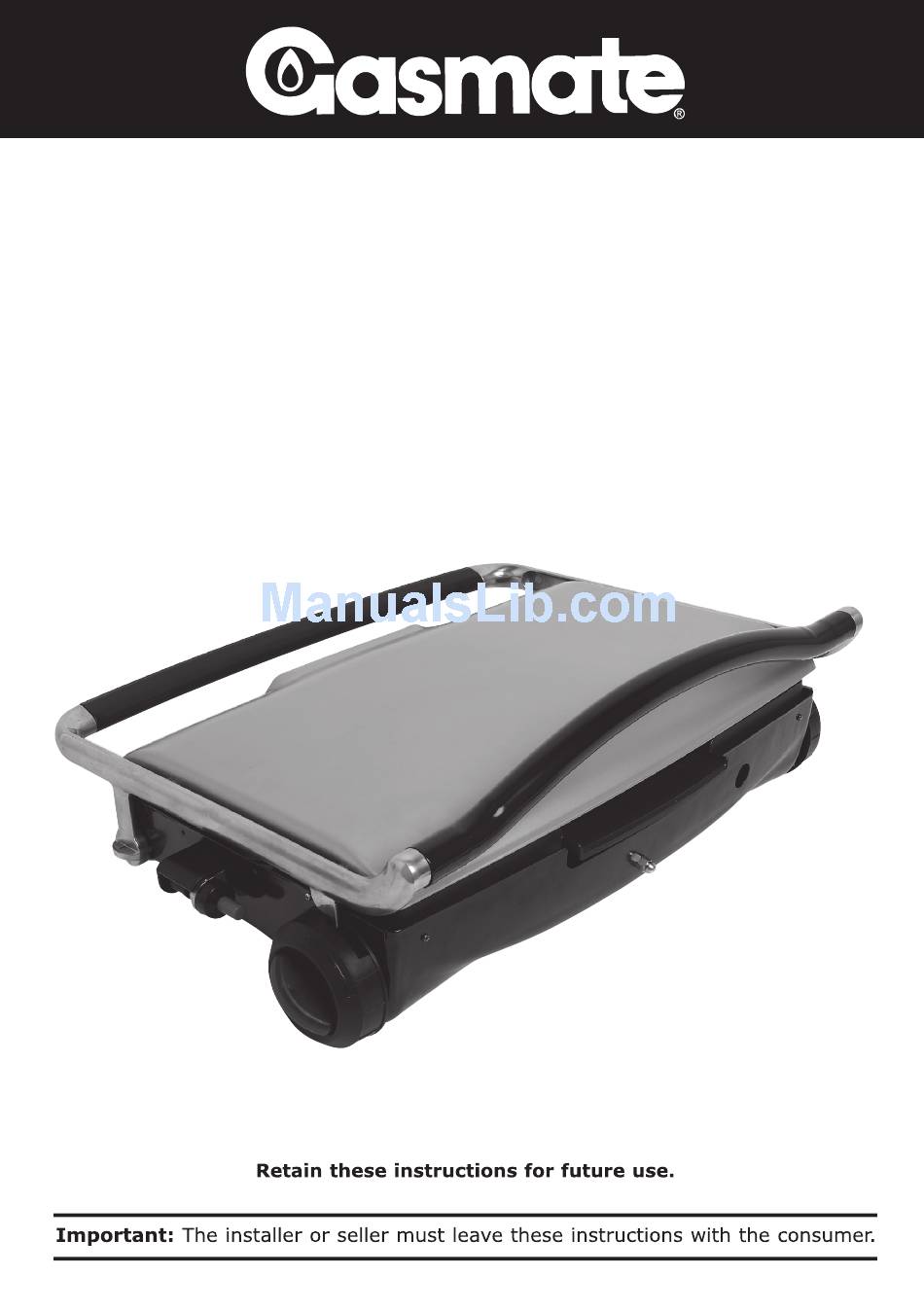

Adventurer Barbecue – G2727

FEATURES

• Compact portable unit with generous 460mm x
240mm cooking surface
• Use at home, picnics or camping
• Quick and easy set-up
• Folds down into a compact size - 440mm x
590mm for easy transport and storage
• Carry strap included
• Easy clean, non-stick cooking surface
• Reversible flat or grill cooking plate increases
cooking options
02501 02/15
• Tilt setting promotes fat run-off for healthier
cooking
• Powerful 9MJ/h stainless steel burner with piezo
ignition
• Weighs only 7.5Kg (without gas cylinder)
• Operates on propane gas
• Combined control valve and regulator
• For outdoor use only
• AGA certified

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2727 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gasmate G2727

Summary of Contents for Gasmate G2727

  • Page 1 Adventurer Barbecue – G2727 FEATURES • Compact portable unit with generous 460mm x • Tilt setting promotes fat run-off for healthier 240mm cooking surface cooking • Use at home, picnics or camping • Powerful 9MJ/h stainless steel burner with piezo ignition •...

  • Page 2: General Information

    GENERAL INFORMATION Gas Installation Codes • Barbecues must be used in accordance with the If you are unable to correct the leak by tightening the installation requirements of your gas supply authority, connections, turn off the gas and contact the supplier or the appropriate installation code issued by Standards immediately.
  • Page 3 Location of your Barbecue Tools You Will Need DO NOT use your barbecue in garages, porches, sheds, Adjustable spanner breezeways, or other enclosed areas. Your barbecue is to be used OUTDOORS. The barbecue is not intended to be Ensure the barbecue is set up on a level and installed in or on recreational vehicles and/or boats and stable surface.
  • Page 4 BARBECUE COMPONENTS Barbecue Components Combination Regulator & Control Knob Flexible Hose Injector Pipe Carry Handle Side Panels Piezo Ignition Adjustable Wheel with Locking Handle Removable Drip Tray Overall Barbecue Dimensions Length Width Height Folded 590 mm 440 mm 165 mm Open 590 mm 410 mm...
  • Page 5 BARBECUE ASSEMBLY Barbecue Assembly NOTE: REMOVE ANY TRANSIT PROTECTION MATERIAL. 1. Place the barbecue on the table with the wheels facing toward you. 2. To unlock the lid, pull out both handles and turn the wheel from ‘HIGH’ to ‘LOW’. 3.

  • Page 6: Lighting Procedure

    GENERAL ASSEMBLY LIGHTING PROCEDURE Connecting & Disconnecting to Gas Source Burner Operation & Ignition System Check 1. With cylinder valve in ‘OFF’ position check the piezo igniter. Lift the cooking plate up and check for sparking IMPORTANT: Before connecting and disconnecting to the burner.

  • Page 7: Operating Procedure

    OPERATING PROCEDURE The hood must be in the open position for lighting and during use. Burn-off Do not smoke at any time when attempting to The cooking surface does not need any burn-off time. Due ignite the barbecue burners. to the nature of the coating, DO NOT use sharp or metallic Caution: Do not move the barbecue while it is in objects on the surface, as these will scratch the surface.
  • Page 8 The following figures are diagrammatic representations of outdoor areas. Rectangular areas have been used in these figures – the same principles apply to any other shaped area. ® Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.gasmate.com.au Aber, Hamilton, N.Z...
