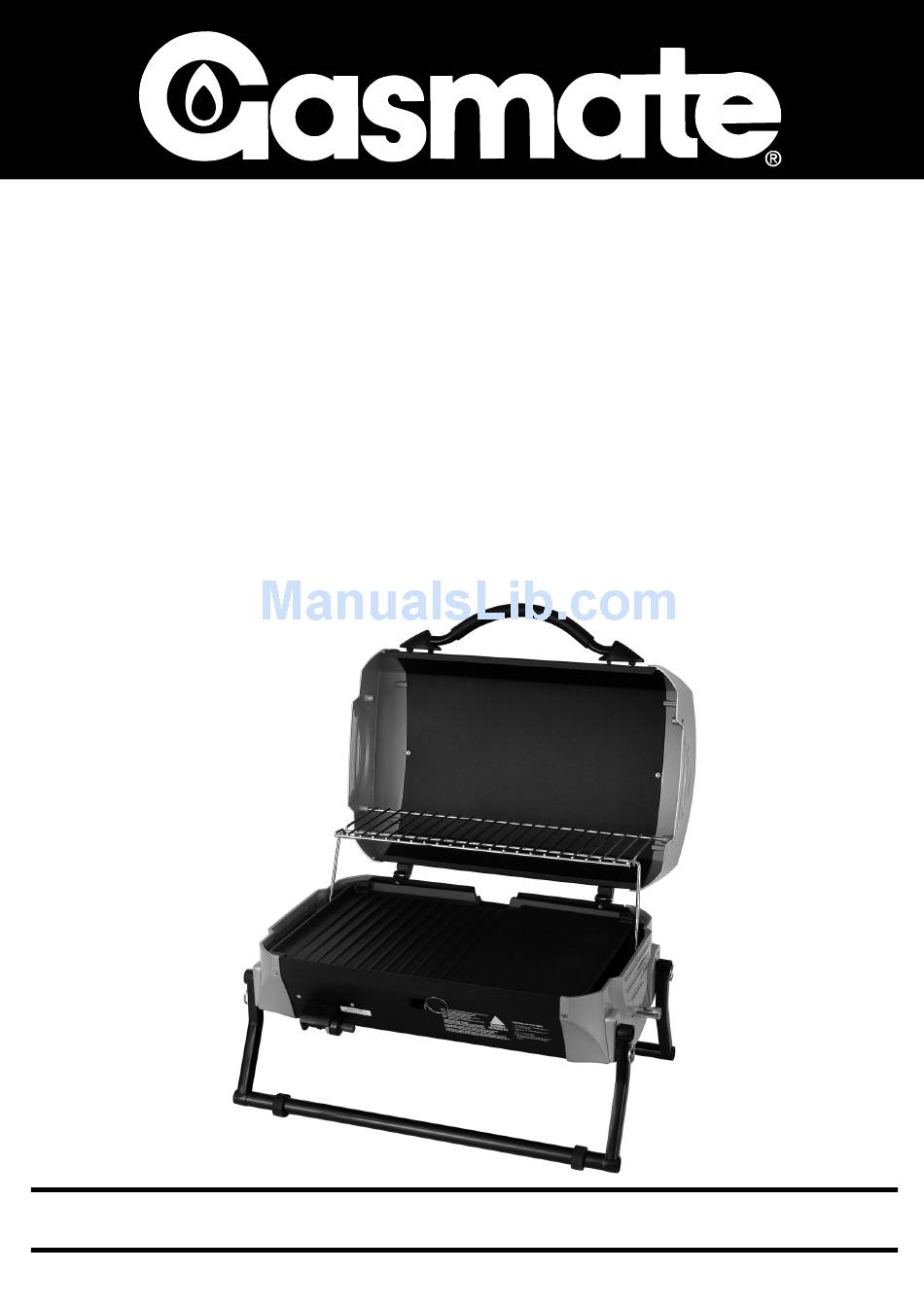

Gasmate G2017 Instructions Manual

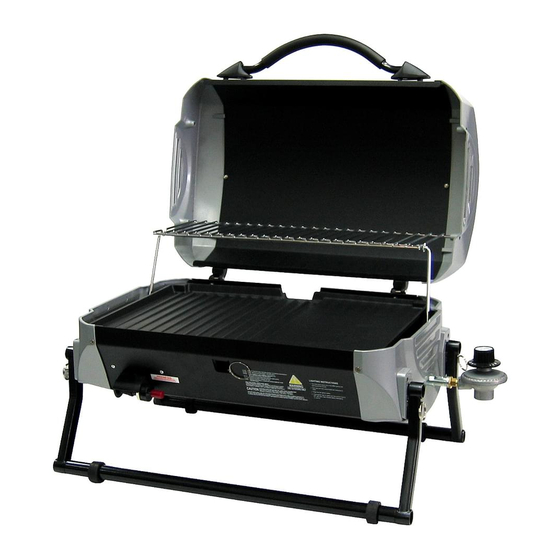

Cruiser barbecue
Hide thumbs Also See for G2017:
Table of Contents

Advertisement

Quick Links

FEATURES:
• Portable, stylish and modern design
• Use it anywhere - at home, camping or picnics
• Quick and easy set-up
• Compact and lightweight for easy transport
and storage
• Easy clean, 445mm x 310mm non-stick
cooking surface
• Includes warming rack
Important: Retain these instructions for future use.
3293-04/12
Cruiser Barbecue
Model No. G2017 & G2017SS
• Easy drain flat and ribbed hotplate for healthier
cooking with easy access detachable drip tray
• Powerful 7.5MJ/hr stainless steel burner with
piezo ignition
• Combined control valve and regulator with hose
• Operates on an LPG Cylinder (hose and regulator
included) or Non-Refillable Propane Canister
(PROCAN1)
• For outdoor use only
• AGA approved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2017 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gasmate G2017

Summary of Contents for Gasmate G2017

  • Page 1 Cruiser Barbecue Model No. G2017 & G2017SS FEATURES: • Easy drain flat and ribbed hotplate for healthier • Portable, stylish and modern design cooking with easy access detachable drip tray • Use it anywhere - at home, camping or picnics •...

  • Page 4: General Assembly

    GENERAL ASSEMBLY Gas Source Use & Safety Fitting the Regulator Your barbecue is designed for use with a Propane Gas The gas regulator screws into the venturi pipe located at disposable canister certified to EN417 or DOT39 or for use the side of the BBQ. Screw in hand-tight then tighten gently with 9kg LPG cylinder with approved connection. It may be with an adjustable spanner.
  • Page 5 GENERAL ASSEMBLY Connect to a Propane Fuel Canister Connect to an LPG Cylinder CAUTION: When the barbecue is not in use, the ONLY connect directly to an EN417 or DOT-39 gas must be turned off at the cylinder. The gas approved 468-gram non-refillable propane fuel cylinder should be filled by a reputable gas canister. It may be hazardous to attempt to fit supplier and visually inspected and re-qualified other types of gas canisters. at each filling. Always keep cylinder in an upright position.
  • Page 6 Control Knob and Temperature Settings The gas regulator is fi tted to the BBQ as shown on page 5. If you have not already fitted the regulator, go back to page 5 and attach it to the BBQ as shown. LOCK OFF.

  • Page 7: Lighting The Bbq

    Lighting the BBQ Read the entire general information section of this instruction manual before operating the BBQ. Failure to do so may result in improper use of the BBQ and cause property damage, serious personal injury, or even death. 1 . From the LOCK OFF position, turn the control knob anti-clockwise to the OFF position. PUSH DOWN 2 .

  • Page 8: Cooking Instructions

    Cooking Instructions See “Lighting the BBQ” section to light the BBQ. The canister may be disconnected even if some fuel remains. When storing or transporting the BBQ, the To preheat: Turn BBQ on HIGH for about 8 minutes. propane fuel canister must always be disconnected During the first use, you may notice a slight odour and the canister cap must be put back on the screw-in caused by the curing of paint and parts.

  • Page 9: Cleaning The Drip Tray

    Cleaning Packing up 1. Before packing up barbecue wait until the hot plate is • All cleaning and maintenance should be done when cool to the touch. BBQ has cooled down and with the canister/cylinder disconnected. 2. Remove and clean out the drip tray (store under cooking plate).

  • Page 10: Care And Maintenance

    CARE & MAINTENANCE If you suspect a gas leak or malfunction, turn DO NOT modify this BBQ in any way. Modifying control knob to LOCK OFF position immediately, the BBQ may result in fire or explosion resulting stop using BBQ, extinguish any flame, and in property damage, serious personal injury, or disconnect the propane canister or turn off gas even death.

  • Page 11: Safe Appliance Locations

    DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS The following figures are diagrammatical representations of outdoor areas. Rectangular areas have been used in these figures – the same principles apply to any other shaped area. Gasmate is a registered trademark of: Sitro Group Australia Pty Ltd www.sitro.com.au...

This manual is also suitable for:

G2017ss
