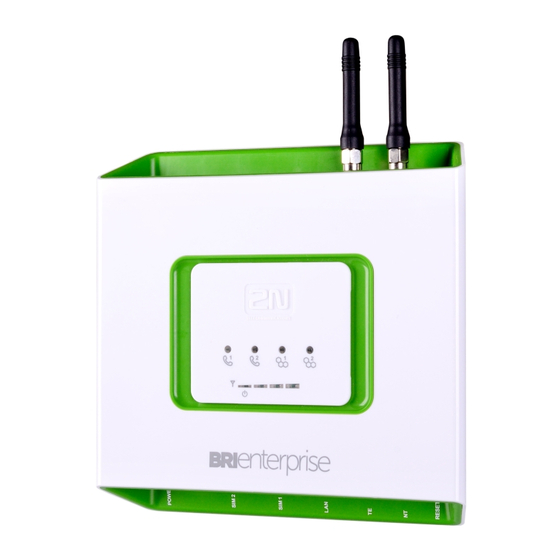

2N BRI Lite/Enterprise
User Manual
Version:
1.16
www.2n.cz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BRI Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 2N BRI Lite

Summary of Contents for 2N BRI Lite

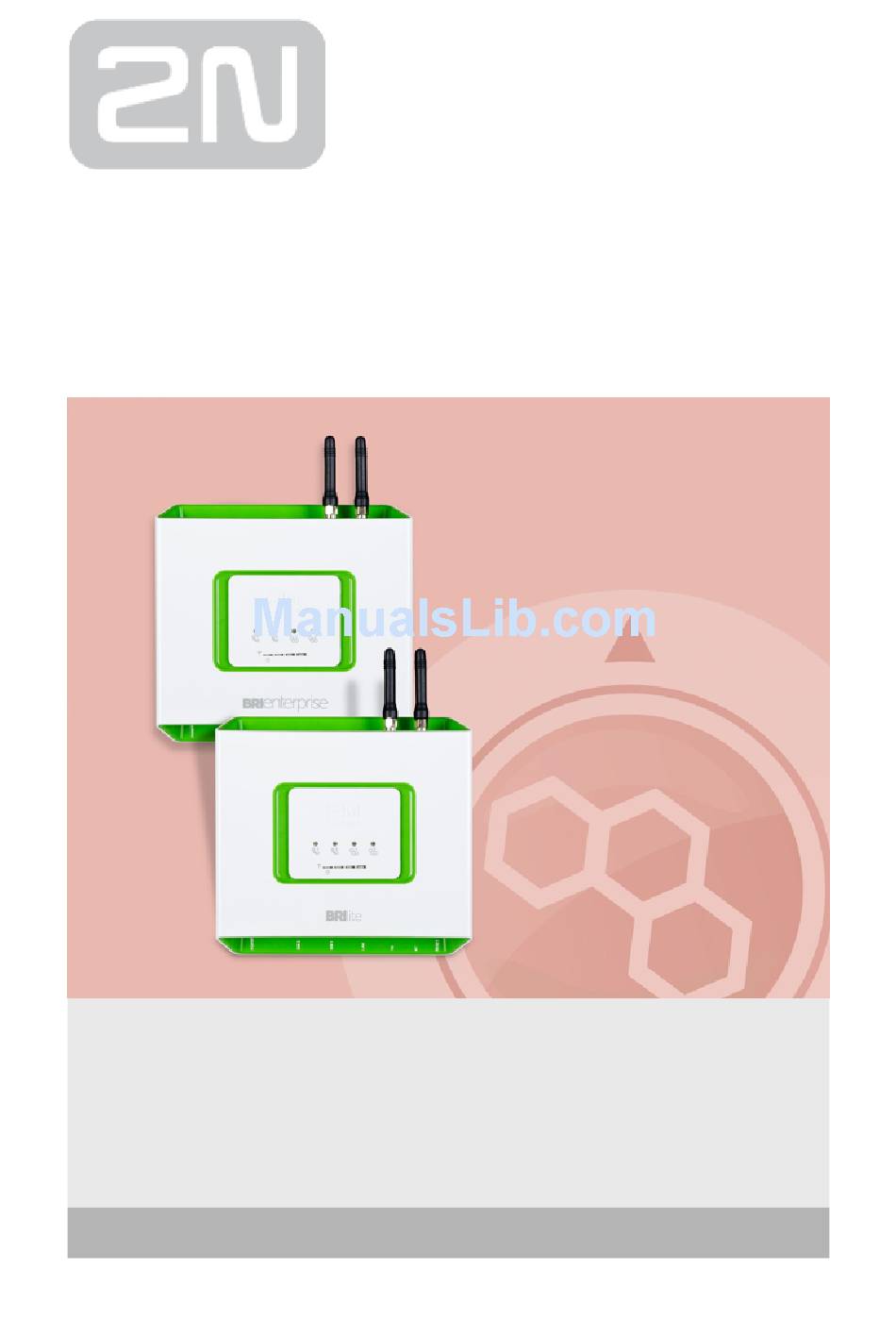

  • Page 1 ® 2N BRI Lite/Enterprise User Manual Version: 1.16 www.2n.cz...
  • Page 2 2N TELEKOMUNIKACE a.s. administers the FAQ database to help you quickly find information and to answer your questions about 2N products and services. On www. faq.2n.cz you can find information regarding products adjustment and instructions for optimum use and procedures „What to do if...".

  • Page 3: Table Of Contents

    2.1 Before You Start 2.2 Brief Installation Guide 2.3 Available ISDN BRI Extension Configurations 2.4 IP Voice Transmission 2.5 Types of 2N® BRI Enterprise Connection 3. Making Calls via BRI Gateway 3.1 Supported 2N BRI Gateway Functions 3.2 Call Routing Principles 4.
  • Page 4 6.6 Call Data Records (CDR) 6.7 SMS Data Records (SDR) 6.8 Statistics - Description 7. Technical Parameters 8. Supplementary Information 8.1 Troubleshooting 8.2 List of Abbreviations 8.3 Directives, Laws and Regulations 8.4 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz 4/152...

  • Page 5: Product Overview

    1. Product Overview ® In this section, we introduce the BRI Lite / Enterprise product, outline its application options and highlight the advantages following from its use. Here is what you can find in this section: 1.1 Product Description 1.2 Safety Precautions 1.3 Changes...

  • Page 6: Product Description

    (on an enclosed CD), or using the AT commands. Programmable parameters are pre-set to make it possible to make calls as soon as the supply cable, antenna a SIM cards are connected. 2N ® BRI Enterprise / 2N ® BRI Lite Differences ® ®...
  • Page 7 As all gateway user calls are added up for billing purposes, you are advised to use the most advantageous tariff offered by your provider. 2N ® BRI Enterprise / 2N ® BRI Lite Basic Features Integration of the best features of two communication technologies: ISDN and VoIP–SIP telephony support with G.711a/u and G.729ab codecs [1]...
  • Page 8 GSM gateway contains just one ISDN BRI port and thus cannot work in the DialThru mode. It can be connected to a PBX on a trunk line or extension and route calls to the GSM/UMTS networks only – see the figure below. 2N TELEKOMUNIKACE a.s., www.2n.cz 8/152...

  • Page 9: Safety Precautions

    ® It is prohibited to use the BRI Enterprise / BRI Lite GSM gateways at petrol stations where mobile telephones are also prohibited. GSM phones may affect sensitive life-saving devices in medical centres. Therefore, it is forbidden to use GSM/UMTS devices, including the GSM gateways, in such facilities.

  • Page 10: Changes

    Enterprise / BRI Lite firmware upgrade. Manual Changes Version ® The User Manual relates to the BRI Enterprise / BRI Lite firmware version 1.5.0 ® The User Manual relates to the BRI Enterprise / BRI Lite firmware version 1.5.0 Text correction.
  • Page 11 ® The User Manual relates to the Enterprise / BRI Lite firmware version 1.22.0 1.10 ® The User Manual relates to the Enterprise / BRI Lite firmware version 1.22.0 . Text correction. 1.11 ® The User Manual relates to the...

  • Page 12: Terms And Symbols Used

    Useful information for quick and efficient functionality. Note Routines or advice for efficient use of the device. Future Functions, Innovations grey-marked text in this document designates the functions that are under preparation or development at present. 2N TELEKOMUNIKACE a.s., www.2n.cz 12/152...
  • Page 13 Here is what you can find in this section: 2.1 Before You Start 2.2 Brief Installation Guide 2.3 Available ISDN BRI Extension Configurations 2.4 IP Voice Transmission 2.5 Types of 2N® BRI Enterprise Connection 2N TELEKOMUNIKACE a.s., www.2n.cz 13/152...

  • Page 14: Before You Start

    BRI ISDN cable Wall mounting set *depends on the Part No. Connector Lay-Out – Lower Side The following connectors are available on the BRI gateway bottom: Connector type BRI Lite BRI Enterprise DC Jack 2.1mm supply connector 2N TELEKOMUNIKACE a.s., www.2n.cz 14/152...
  • Page 15 (NT/TE) and the interconnecting cable (cross/straight). Connector Lay-Out – Upper Side ® There are SMA female antenna connectors to each GSM/UMTS module on the 2N Enterprise / Lite upper side. 2N TELEKOMUNIKACE a.s., www.2n.cz...
  • Page 16 Status LED Indicators – 2N ® BRI Lite ® BRI Lite status is indicated by five LEDs on the front side. BRI 1 and BRI 2 indicate the status of ISDN BRI B-channels and CH 1 and CH 2 indicate the status of each GSM/UMTS module.
  • Page 17 Status LED Indicators – 2N ® BRI Enterprise ® BRI Enterprise status is indicated by five LEDs on the front side. BRI 1 and BRI 2 indicate the status of ISDN BRIs and CH 1 and CH 2 indicate the status of each GSM/UMTS module.
  • Page 18 The manufacturer shall not be held liable for any SIM card or provider service unavailability in the case of a breach of the provider's SIM terms and conditions for the SIM card use. 2N TELEKOMUNIKACE a.s., www.2n.cz 18/152...

  • Page 19: Brief Installation Guide

    It is possible to operate the gateway in another working position too, e.g. on a desk, for a short time for servicing and testing purposes, for example. ® Any excess of the allowed working temperature may not affect the 2N Enterprise / BRI Lite function immediately but may result in faster ageing and lower reliability.
  • Page 20 BRI Enterprise / BRI Lite for cabling and air flow to carry off the heat. ® A sufficient GSM/UMTS signal intensity has to be provided for 2N Enterprise / BRI Lite An adequate capacity of the GSM/UMTS network has to be ensured (no BTS overload).

  • Page 21: Antenna Connection

    SMS centre, etc. in your mobile phone ® before inserting the SIM card into BRI Enterprise / BRI Lite If two SIM cards are used, make sure that both the SIM cards have one and the same PIN PIN code request disable ®...
  • Page 22 Warning Tighten the antenna connector gently with your hand – never use a wrench ® Being a source of radio frequency emissions, the 2N BRI Enterprise / BRI Lite antenna should not be very close to the human body. The...

  • Page 23: Power Supply Connection

    Connecting a defective or inappropriate power supply adapter may lead ® to a temporary or permanent BRI Enterprise / BRI Lite error! Check whether the antenna is connected before plugging the adapter. Feeding the device without antenna connection may result in the GSM module transmitter damage.

  • Page 24: Nt And Te Connectors

    ISDN devices are connected to the NT/TE connectors depending on the configuration of your telecommunications equipment. They are connected via a 4-wire passive bus with the aid of RJ-45 connectors. Refer to the figure below for the NT/TE connector pin lay-out. 2N TELEKOMUNIKACE a.s., www.2n.cz 24/152...
  • Page 25 ® TE connector The figure below shows BRI Enterprise / BRI Lite connected as network termination (NT) – extension for your ISDN PBX or ISDN phone, i.e. your own equipment. ® The figure below shows BRI Enterprise / BRI Lite connected as terminal equipment (TE) –...
  • Page 26 2N TELEKOMUNIKACE a.s., www.2n.cz 26/152...

  • Page 27: Available Isdn Bri Extension Configurations

    You have to know the way of connection of your ISDN devices in order to configure ® your BRI Enterprise / BRI Lite GSM gateway correctly. For information on your ISDN type, check your ISDN extension provider's registration form or contact your telephone network administrator.

  • Page 28: Ip Voice Transmission

    12 bits and then compressed using a non-linear scheme into the resultant 8 bits. Europe uses the A-law compression system while North America and Japan obey the µ-law. The resultant data flow is 64 kbps. 2N TELEKOMUNIKACE a.s., www.2n.cz 28/152...
  • Page 29 (Session Initiation Protocol) signalling. ® In the case of separated direct connection of your SIP Proxy and 2N VoiceBlue Next , use the G.711 codec to achieve a high voice quality. SIP Components The following components are involved in the SIP message exchange: UAC (User Agent Client) –...
  • Page 30 3XX – request forwarding needed (302 – temporarily moved, 305 – use Proxy); 4XX – error (403 – forbidden, 486 – busy here); 5XX – server error (500 – Server Internal Error, 501 – not implemented); 6XX – global failure (606 – not acceptable). 2N TELEKOMUNIKACE a.s., www.2n.cz 30/152...
  • Page 31 2N TELEKOMUNIKACE a.s., www.2n.cz 31/152...
  • Page 32 ISDN BRI extension. ISDN TE – 2N ® BRI Enterprise Connection The connection type shown in the figure below provides communication via a GSM /UMTS gateway without PSTN connection. The ISDN telephone sets are connected to the NT port of the GSM gateway, while a mains adapter simulating power supply from the PSTN is connected to the TE port.
  • Page 33 With multiple GSM gateways, the connection lay-out is as follows: 2N ® BRI Enterprise Connection as DialThru Router This type of connection saves one BRI port to the PBX. Incoming PSTN calls are treated by the GSM/UMTS gateway in the DialThru mode while outgoing calls are routed according to the LCR table.

  • Page 34: Making Calls Via Bri Gateway

    This section describes the call routing techniques via an ISDN BRI GSM gateway. The purpose of the settings is to improve your call efficiency and cut your call costs. Here is what you can find in this section: 3.1 Supported 2N BRI Gateway Functions 3.2 Call Routing Principles 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 35: Supported 2N Bri Gateway Functions

    3.1 Supported 2N BRI Gateway Functions Time/destination based call routing B-channel based call routing Intelligent incoming CLIP routing (based on Calling Line Identification Presentation) Auto CLIP routing (automatic incoming call routing to a line stored in the AutoCLIP table) Time LCR (Least Cost Router) based outgoing call routing...

  • Page 36: Call Routing Principles

    3.2 Call Routing Principles 2N ® BRI Lite The gateway is equipped with one BRI ISDN and one VoIP-SIP ports. You can select one of the following incoming call processing modes for each of the ports via the web interface: Use LCR table –...
  • Page 37 2N ® Mobility Extension ® Mobility Extension (ME) is a function that turns your mobile phone into an SIP ® phone taking advantage of all the PBX functions. To make your 2N Mobility Extension ® work efficiently, use the BRI Lite/Enterprise...
  • Page 38 This function is called “SMS at no answer”. Like with call forwarding, it is possible to use the DTMF option to activate and deactivate the service of sending text announcements for missed calls. 2N TELEKOMUNIKACE a.s., www.2n.cz 38/152...
  • Page 39 SIP Proxy to a mobile telephone. The description of this function is shown in Fig. 3. Figure 3: Call Forwarding Function ® In Fig. 3 subscriber A is talking to subscriber B, for whom the 2N Mobility Extension has been permitted. Subscriber A would like to be forwarded to subscriber C. For this...
  • Page 40 The LCR (Least Cost Routing) table is the key telephone cost cutting tool. It helps you select call routes according to the called subscriber’s number, daytime and weekdays. By adding bank holidays (with routing rules as on Sundays) to the LCR table you achieve even higher call cost savings. 2N TELEKOMUNIKACE a.s., www.2n.cz 40/152...
  • Page 41 If the selected GSM/UMTS module is busy, the call is routed according to the next routing rule included in the Groups and defined by the GSM outgoing groups table. Again, the GSM outgoing group is assigned to a GSM module in the GSM groups assignment table. 2N TELEKOMUNIKACE a.s., www.2n.cz 41/152...
  • Page 42 Incoming GSM Call Routing Incoming GSM calls are routed by the algorithm described in the following steps. Incoming calls are processed according to the Mode parameter in the Incoming GSM calls table. The following options are available: 2N TELEKOMUNIKACE a.s., www.2n.cz 42/152...
  • Page 43 . You can upload the DISA message using the GSM gateway web interface. disa.wav Or, you can record the message using your PC as and load it into the gateway using the configuration program via the web interface. 2N TELEKOMUNIKACE a.s., www.2n.cz 43/152...
  • Page 44 8kHz. Name the file Disa.wav and load it via the Gateway control Voice messages web interface into the gateway. DISA voice message parameters Sound format : WAV Sampling frequency : 8 kHz Channels : 1 mono Codec : ISDN A-law 2N TELEKOMUNIKACE a.s., www.2n.cz 44/152...

  • Page 45: First Launch

    4. First Launch Having completed the physical installation, get acquainted with the factory settings ® and operation of the BRI Enterprise / BRI Lite gateway. Here is what you can find in this section: 4.1 Ethernet Interface 4.2 Licence 4.3 Firmware Version 4.4 Factory Reset...

  • Page 46: Ethernet Interface

    Use the web configuration interface in the Gateway configuration – Ethernet configuration section to set the Ethernet interface. Ethernet Interface Factory Settings IPv4 address 192.168.1.2 IP mask 255.255.255.0 Gateway 192.168.1.1 User name Admin User password Caution 2N TELEKOMUNIKACE a.s., www.2n.cz 46/152...

  • Page 47: Mac Address

    If you use DHCP, you are advised to set permanent assignment of one and the same IPv4 address to the defined MAC address to avoid unexpected change of the gateway IPv4 address and subsequent VoIP- SIP setting errors. 2N TELEKOMUNIKACE a.s., www.2n.cz 47/152...
  • Page 48 Use this section to download a new licence key into your gateway in order to change the current software licence status. Caution ® BRI Enterprise / BRI Lite gateway can contain time-limited software licences (for SIP signalling, Mobility Extension, etc.). Such licences are limited to a certain period of time (hours) during which the gateway provides its services.
  • Page 49 GSM/UMTS networks. This state is signalled by a red LED in the given GSM/UMTS module and a 'netw-err' cause in the diagnostics. Contact your dealer please for more information. Contact your dealer please for more information. 2N TELEKOMUNIKACE a.s., www.2n.cz 49/152...
  • Page 50 4.3 Firmware Version ® Upgrade your BRI Enterprise / BRI Lite gateway with the latest firmware version available for this GSM gateway type before installation. Refer to www.2N.cz for the latest firmware version. Warning Use the firmware certified for this GSM gateway type only to avoid...

  • Page 51: Factory Reset

    Note To reset the factory values, press the Reset button until the LED indicators start flashing red. Note Press the Reset button for a short time (0.5 s) to restart the GSM gateway. 2N TELEKOMUNIKACE a.s., www.2n.cz 51/152...
  • Page 52 PIN code of the SIM cards used. Set new login data in the Gateway configuration – Login configuration menu. Switch off the GSM gateway and insert the SIM cards. Connect the antenna to the GSM gateway and switch the gateway on. 2N TELEKOMUNIKACE a.s., www.2n.cz 52/152...
  • Page 53 Find answers to your questions at http://faq.2n.cz (Frequently Asked Questions). Contact your servicing centre. It is recommended that you should attend certified training courses at 2N to be able to install the whole system successfully. 2N TELEKOMUNIKACE a.s., www.2n.cz 53/152...
  • Page 54 5. Představení konfiguračního rozhraní ® This section introduces the configuration interface of the 2N BRI Enterprise / BRI Lite product. Here is what you can find in this section: 5.1 Configuration Web Interface 5.1.1 Gateway Control 5.1.2 Gateway Configuration 5.1.3 Messaging 5.1.3.1 SMPP Basic Configuration - Step by Step...

  • Page 55: Configuration Web Interface

    5.1 Configuration Web Interface Essential Data ® BRI Enterprise / BRI Lite web interface supports the following web browsers: MS Internet Explorer v9 Mozilla Firefox v4 and higher Any other web browsers may cause troubles. The recommended screen resolution is 1280x1024 and colour quality 32bit and higher.
  • Page 56 Save settings button to save the changes in order to avoid loss of new data after leaving the current configuration window! Gateway – Web configuration – Auto logout [4]Set the time limit value in the section. 2N TELEKOMUNIKACE a.s., www.2n.cz 56/152...

  • Page 57: Home Page

    Management – for firmware update, license upload and configuration upload /download. The main window also provides information on the gateway licence status, firmware and bootware versions and BRI gateway Ethernet interface MAC address. You can download a new licence here too. 2N TELEKOMUNIKACE a.s., www.2n.cz 57/152...
  • Page 58 SNMP – SNMP monitoring support. Gateway limitation – displays the gateway operation limit (or licence limitation). Licence status – displays the current licence status (unlocked/locked). Caution When the licence code expires, the licence–based protocols will be locked! 2N TELEKOMUNIKACE a.s., www.2n.cz 58/152...
  • Page 59 Therefore, check the current gateway date and time after long BRI gateway disconnection! Voice Messages This window is used for recording, checking and downloading voice messages. Supported format is PCM–Alaw, Mono, 8000 Hz, 8 bits. 2N TELEKOMUNIKACE a.s., www.2n.cz 59/152...
  • Page 60 Calls via Out. GSM group 6 GSM outgoing group 7 Calls via Out. GSM group 7 GSM outgoing group 8 Calls via Out. GSM group 8 Message 30 Voice message detector Message 31 Voice message detector 2N TELEKOMUNIKACE a.s., www.2n.cz 60/152...
  • Page 61 Voice message detector settings for details. LOG file The LOG file helps you read out the gateway LOG file. There are LOG file saving and LOG listing updating icons in the lower part of the window. 2N TELEKOMUNIKACE a.s., www.2n.cz 61/152...

  • Page 62: Module Status

    Downloading of a high amount of SDR may take up to several tens of seconds. Module status The window displays the current status of each GSM/UMTS channel. Refer to Subs. 6.4 , page for more details. Module control The window helps you control the selected GSM/UMTS module manually. 2N TELEKOMUNIKACE a.s., www.2n.cz 62/152...

  • Page 63: Online Report

    The window displays the current state of the gateway SIP registration. ISDN lines The window shows the state of each ISDN BRI interface of the gateway. Online report The window provides online GSM gateway tracing. 2N TELEKOMUNIKACE a.s., www.2n.cz 63/152...

  • Page 64: Gateway Configuration

    SMS at no answer function for a registered user. The default value is *33. 'SMS at no answer' deactivation – deactivate the SMS at no answer function for a registered user. The default value is #33. 2N TELEKOMUNIKACE a.s., www.2n.cz 64/152...
  • Page 65 The ' }'_ placeholder means the rest of the number. For example: Format Allowed numbers 123 only 14x0 1400,1410,1420,…1490 999_ All numbers starting with 999 2N TELEKOMUNIKACE a.s., www.2n.cz 65/152...

  • Page 66: Led Indication

    Send 200 OK instead of 180/183. Send 200 OK and BYE when rejected from GSM. ® Send 200 OK on REGISTER request – virtual registration of device in 2N gateway (for registration requiring equipment). Replace CLIP from GSM with Caller ID.

  • Page 67: Voice Parameters

    IP address. ® SIP proxy (GSM / IP) – the SIP proxy IP address to which gateway turns in the case of GSM incoming calls. SIP registrar – SIP registration server IP address. 2N TELEKOMUNIKACE a.s., www.2n.cz 67/152...
  • Page 68 Internet via NAT or firewall. The pre–set port for sending requests to STUN is 3478. ® Next STUN request (60–6553, 0=off) [s] – update of information on the 2N gateway public IP address. Use this parameter to configure the frequency of queries routed to the STUN server.

  • Page 69: Isdn Parameters

    Progress element is not sent in the message Connection is not end–to–end ISDN, following progress messages will be sent in the speech band Call destination address is not ISDN Call initiator address is not ISDN Call is returning to ISDN 2N TELEKOMUNIKACE a.s., www.2n.cz 69/152...
  • Page 70 Generate busy tone to BRI1 – set the busy tone type to be generated by the BRI gateway into the BRI 1 interface. Generate busy tone to BRI2 – set the busy tone type to be generated by the BRI gateway into the BRI 2 interface. 2N TELEKOMUNIKACE a.s., www.2n.cz 70/152...
  • Page 71 Still activated ISDN layer 1 – enable/disable keeping of ISDN layer 1 active. Still activated ISDN layer 2 (SABME/UA) – enable/disable keeping of ISDN layer 2 active. Send SMS at state changes – enable/disable alert sending upon BRI1 state change. 2N TELEKOMUNIKACE a.s., www.2n.cz 71/152...
  • Page 72 Numbers where SMS will be sent to – list of numbers to which the ALIVE SMS shall be sent. Text of SMS – ALIVE SMS text. GSM Basic Parameters GSM selection Assignment of GSM-channel Cyclical Locked - peer to ISDN channel 2N TELEKOMUNIKACE a.s., www.2n.cz 72/152...
  • Page 73 Delay for fast CallBack [s] – set the delay between the CallBack request and outgoing call if Auto end to CallBack request is active. Holiday list List of days on which calls will be routed like on weekends in the LCR. 2N TELEKOMUNIKACE a.s., www.2n.cz 73/152...

  • Page 74: Dtmf Settings

    Enable AMR codec – enable the Adaptive Multi-Rate codec for the GSM network. Telit Module Settings Transmission volume [dB] – set the module volume for the outgoing direction. Reception volume [dB] – set the module volume for the incoming direction 2N TELEKOMUNIKACE a.s., www.2n.cz 74/152...
  • Page 75 Dial tone – set the dial tone for incoming calls from GSM/UMTS. Ring tone – set the ring tone for incoming calls from GSM/UMTS. Generate busy tone to GSM/UMTS – enable busy tone generation for call termination. 2N TELEKOMUNIKACE a.s., www.2n.cz 75/152...
  • Page 76 Conversion table: ISDN cause value Description SIP code Description Unallocated number Gone No route to destination Not found Channel unacceptable Service unavailable Normal call clearing   User busy Busy here No user responding Temporarily unavail. 2N TELEKOMUNIKACE a.s., www.2n.cz 76/152...
  • Page 77 Requested facility not subscribed Service unavailable Incoming class barred within CVG Decline Bearer capability not authorised Not implemented Bearer cap, unavailable at present Not implemented Service or option unavailable Service unavailable Bearer cap, not implemented Not implemented 2N TELEKOMUNIKACE a.s., www.2n.cz 77/152...
  • Page 78 GSM Outgoing Groups ® gateway allows you to work with two groups of outgoing calls. You can set different values (call setup, called minutes and sent SMS per period, etc.) for each of them. 2N TELEKOMUNIKACE a.s., www.2n.cz 78/152...
  • Page 79 Thus, the resultant time is the sum of the two above mentioned parameters. Network settings BTS lock – identify the BTS to which the GSM modules shall log in. Restart the selected GSM modules to execute the changes. 2N TELEKOMUNIKACE a.s., www.2n.cz 79/152...
  • Page 80 Transfer CLIP to GSM/UMTS – enable/disable the function. Separating char – define the CDN/CLIP separating character. Modify (‘–’ remove one digit) – change the CLIP. The ‘–’ character is used for deleting one character from the left. 2N TELEKOMUNIKACE a.s., www.2n.cz 80/152...
  • Page 81 Roaming enabled for the 00001 – 99001 (MCC+MNC) network XXXXX Roaming enabled for any network Note Before enabling roaming, please use your mobile phone to make sure that the GSM/UMTS searching priorities have been set properly on the SIM card. 2N TELEKOMUNIKACE a.s., www.2n.cz 81/152...
  • Page 82 Day limit of called minutes – set the maximum count of minutes to be called within a day via the selected SIM card. AOC sending interval – set the interval to send AOC messages Time limits There are two SIM use time limits in a GSM group. 2N TELEKOMUNIKACE a.s., www.2n.cz 82/152...
  • Page 83 You can set different values for each of them. General settings Mode – set how the gateway shall process incoming calls from the GSM network. 2N TELEKOMUNIKACE a.s., www.2n.cz 83/152...
  • Page 84 '+' will be removed automatically. Use '–' to remove a digit. Examples (CLIP in GSM: +420600123456): Parameter CLIP to VoIP/PRI 1 Note Null 420261301500 No CLIP change +420261301500 Add + before CLIP 00420261301500 Add 00 before CLIP 2N TELEKOMUNIKACE a.s., www.2n.cz 84/152...
  • Page 85 List of called numbers List of numbers to be dialled if DTMF dial–in was not made. Search the table from top to bottom. If the called user is inaccessible, use the following table record Prefixes 2N TELEKOMUNIKACE a.s., www.2n.cz 85/152...
  • Page 86 Note The maximum count of records in the Table of replaced prefixes is 14 for each prefixlist. The maximum table record size is 9 characters for the prefix and 9 characters for the replaced number. 2N TELEKOMUNIKACE a.s., www.2n.cz 86/152...
  • Page 87 Number of digits – all the prefixes are permitted. Routing is only limited by the count of digits to be dialled. Time limitation – time validity limitation for a selected LCR row. Weekend usage – enable/disable a row on weekends. 2N TELEKOMUNIKACE a.s., www.2n.cz 87/152...
  • Page 88 CLIP list in the GSM network for which CallBack is enabled. GSM number (CLIP) – user Id in GSM/UMTS. Used service Autodial – enable/disable CLIP routing for the selected CLIP. Reject call – reject call for the selected CLIP. 2N TELEKOMUNIKACE a.s., www.2n.cz 88/152...

  • Page 89: Ethernet Configuration

    SMS at no answer function – enable/disable sending of SMS on missed calls. Ethernet Configuration Use this window to set the gateway Ethernet interface. ® Use DHCP – enable/disable the DHCP client function for gateway. 2N TELEKOMUNIKACE a.s., www.2n.cz 89/152...

  • Page 90: Web Configuration

    DNS server2 – secondary DNS server. Used as a back-up when DNS server 1 is not functional. Caution ® Saving wrong values, e.g. DHCP enable, may result in making the 2N gateway configuration part inaccessible. In that case, reset the GSM gateway to factory values; refer to Subs. 4.1...
  • Page 91 Automatically switch to summer/winter time - enable/disable automatic winter /summer time transition. Switch to summer time - set the summer time transition date and time. Switch to winter time - set the winter time transition date and time. 2N TELEKOMUNIKACE a.s., www.2n.cz 91/152...

  • Page 92: Global Settings

    0=off means disabled expiry, i.e. records are saved into the AutoCLIP routing table for an indefinite period of time. Therefore, make sure that the routing priorities are set properly for incoming SMS. Refer to Incoming SMS routing for details. 2N TELEKOMUNIKACE a.s., www.2n.cz 92/152...
  • Page 93 This section helps you assign SMS groups to User groups for SMS sending/receving purposes. The GSM gateway can contain up to four User groups. Caution The count of user accounts is file-licensed. Refer to Management / Licence key for the current GSM gateway licence details. Users 2N TELEKOMUNIKACE a.s., www.2n.cz 93/152...

  • Page 94: Add User

    SMPP timeout – set the EnquireLink timeout for active connection keeping. Delivery status required – set the SMS sending request for outgoing SMS delivery confirmation Send message as Flash SMS – activate the Flash SMS function for outgoing SMS messages. 2N TELEKOMUNIKACE a.s., www.2n.cz 94/152...

  • Page 95: Email Settings

    Identical SMS limit – set the check of identical SMS messages, i.e. sequentially sent messages with identical SMS PDUs. When the set limit is exceeded, the excessive SMS messages are discarded without being sent. Email settings 2N TELEKOMUNIKACE a.s., www.2n.cz 95/152...
  • Page 96 SMS. The sender information will be displayed at the beginning of the SMS message. SMTP - Add "Subject" to SMS – add 'Subject' from the Email message to the outgoing SMS. The subject information will be displayed at the beginning of the SMS message. 2N TELEKOMUNIKACE a.s., www.2n.cz 96/152...
  • Page 97 TON – type of number NPI – numbering plan indicator Destination address of message outgoing to SMPP – set how to modify the message addressee telephone number to be sent via SMPP. Never replace original address 2N TELEKOMUNIKACE a.s., www.2n.cz 97/152...
  • Page 98 (789789789=789*, e.g.). The ? character replaces any character (789789789=789??????, e.g.). Text begin – set the string to be matched against the SMS text beginning. If a match is found, the SMS will be routed according to the rules set above. 2N TELEKOMUNIKACE a.s., www.2n.cz 98/152...
  • Page 99 Submit from user – select the user in case Action type = Submit from user is selected. Time limitation – set the rule validity time. Days limitation – set the days in a week on which the rule shall be valid. 2N TELEKOMUNIKACE a.s., www.2n.cz 99/152...
  • Page 100 If all the set rules are met in a row, the SMS is routed according to the row. Control This section helps you monitor the system. It includes storage filling information and AutoCLIP records. SMS queues The subsection displays the current SMS storage state. 2N TELEKOMUNIKACE a.s., www.2n.cz 100/152...
  • Page 101 Outgoing SMS count – Waiting / Sending /Sent Waiting – count of waiting SMS messages Sending – count of currently sent SMS messages Sent – count of sent SMS messages waiting for delivery acknowledgement 2N TELEKOMUNIKACE a.s., www.2n.cz 101/152...

  • Page 102: Send Sms

    Phone number – enter the SMS recipient's phone number. Message – enter the SMS text to be sent. Note The maximum message length is 10 SMS. The message can use 7-bit encoding (up to 1520 characters) or 16-bit encoding (up to 670 characters). 2N TELEKOMUNIKACE a.s., www.2n.cz 102/152...
  • Page 103 . Read the Messaging subsection carefully before setting details. ® Figure 1 shows sending/receiving SMS via SMPP. Having created user accounts in 2N , the users can send/receive SMS via SMPP. The figure shows an example with two ® ®...
  • Page 104 Read the User Manual carefully and check all parameters. Find answers to the frequently asked questions at http://faq.2n.cz Consult your servicing partner. You are recommended to attend a 2N certified training to improve your installation chances. 2N TELEKOMUNIKACE a.s., www.2n.cz 104/152...
  • Page 105 Take the following basic steps in to enable SMS sending/receiving: In the Messaging / SMS grouping menu: Assign the selected GSM modules to the SMS groups (according to the GSM provider and SIM cards with identical tariffs, for example). 2N TELEKOMUNIKACE a.s., www.2n.cz 105/152...
  • Page 106 SMS sending user. Should you get in troubles, follow the steps below please: Read the User Manual carefully and check all parameters. Find answers to the frequently asked questions at http://faq.2n.cz Consult your servicing partner. 2N TELEKOMUNIKACE a.s., www.2n.cz 106/152...

  • Page 107: Common Settings

    You are recommended to attend a 2N certified training to improve your installation chances. 5.1.4 Monitoring This section helps you configure sending of SNMP requests and traps. Download the list of available requests and traps, i.e. the MIB table, from the gateway web interface.
  • Page 108 It is possible to configure following contact details in this section: Contact Name Location Download MIB files This section helps you download the MIB files that are necessary for a proper function of your MIB browser. 2N TELEKOMUNIKACE a.s., www.2n.cz 108/152...
  • Page 109 BRI 1 link plugged in, layer1 activated   BRI 1 link layer 2 not established   BRI 1 link layer 2 established   BRI 2 link unplugged, layer1 deactivated   BRI 2 link plugged in, layer1 activated 2N TELEKOMUNIKACE a.s., www.2n.cz 109/152...
  • Page 110   Number of SMS/SMPP messages in memory decreased under defined max level   Number of SMS/SMPP messages in memory exceeds defined max level   Number of SMS/SMPP messages in memory decreased under defined max level 2N TELEKOMUNIKACE a.s., www.2n.cz 110/152...

  • Page 111: Test Call

    Call status Connection channel – display the channel for the selected interface for outgoing test calls. NULL – no action. CPRES – call setup request. IPROC – call setup initiation. CRECV – called user ringing. ACTIVE – active call. DISREQ – call end request. 2N TELEKOMUNIKACE a.s., www.2n.cz 111/152...

  • Page 112: Firmware Update

    Use the firmware certified for this GSM gateway type only to avoid irreversible damage to your system! When the new firmware file has been uploaded successfully, the GSM gateway will be restarted automatically. Licence key 2N TELEKOMUNIKACE a.s., www.2n.cz 112/152...
  • Page 113 Use this window to upload new configuration to the BRI gateway. The Ethernet interface values and access data remain unchanged! Warning Upload a well–known configuration file intended for the selected GSM gateway to avoid GSM gateway error and subsequent factory restart. 2N TELEKOMUNIKACE a.s., www.2n.cz 113/152...
  • Page 114 Web Configuration subsection for SMS user configuration details. Note This menu is inactive if the SMTP/POP3 or SMPP messaging licence is active. In this case, use the Messaging / Send SMS menu for sending SMS via the web interface. 2N TELEKOMUNIKACE a.s., www.2n.cz 114/152...

  • Page 115: Advanced Configuration

    6. Advanced Configuration ® Communication with the BRI Enterprise / BRI Lite gateway is via the LAN. This connection provides uniform gateway configuring by AT commands. Here is what you can find in this section: 6.1 LAN Communication Setting 6.2 GSM Gateway Behaviour 6.3 List of Terminal AT Commands...

  • Page 116: Lan Communication Setting

    LAN successfully. To do so, configure the Ethernet interface; refer to Subs.4.1 . Use any of the available programs (HyperTerminal, Telnet, Putty, etc.) for communication and configuration with the following data: IP address:address set by you Port:23 (Telnet) 2N TELEKOMUNIKACE a.s., www.2n.cz 116/152...

  • Page 117: Gsm Gateway Behaviour

    <ENTER>. A correctly connected gateway should answer . In such case, the gateway starts communicating with a dialogue shown in the figure below. Enter the user name, press <ENTER> and, when being asked so, enter the access Password 2N TELEKOMUNIKACE a.s., www.2n.cz 117/152...

  • Page 118: List Of Terminal At Commands

    &G##=xtcommand – send at command to module 0..1 (ended by <CR> from user) &G##=cmd – cmd for module 0..1 (RESET,BLOCK,OFF,DOWN,ON), (ATBAUD) &GALL=cmd – cmd for module 0..1 (RESET,BLOCK,OFF,DOWN,ON) &S – view aux, bris, modules status 2N TELEKOMUNIKACE a.s., www.2n.cz 118/152...

  • Page 119: System Settings

    %X10=tsec – external routing tout in sec/10 (5..60,255) %X20=mmdd,mmdd – date of hour+1,hour–1 time change (0=off,0101..1231) %X22=hh:mm – 0:01..23:59...time of reset of GSM gateway, 0:00 – no reset %X80=login/pass – login name / password (max 15 chars all) 2N TELEKOMUNIKACE a.s., www.2n.cz 119/152...

  • Page 120: System Control

    %I11=xxx – dial for dig.call from pri1 (max 15 chars) %I21=xxx – dial for dig.call from pri2 (max 15 chars) %I127=msn – MSN number for TE mode %i28=pin (max 15chars) – PIN (password) for TE–>GSM calls GSM Settings 2N TELEKOMUNIKACE a.s., www.2n.cz 120/152...
  • Page 121 0..255, b0=(unused), b1=min––>calls, b2=(unused) b3=(unused), nasms tout (0=off, 1..20sec) %G9#=mode,min,max,tout,day,dial,clip – inc.module 1..2 params mode (0=reject,1=ignore,2=ok–message,3=ok–tone) mode (4..7=0..3 + autocallback, 6..7= + ext.callback) min(0..20), max(0..20) tout (0..20 sec) dtmf dial–in day (0=off,1..31) of clearing inc.group stat 2N TELEKOMUNIKACE a.s., www.2n.cz 121/152...

  • Page 122: Routing Parameters

    ; ri,ro – redirected inc,out calls %TB#=m,c,m,c – init minutes,calls in bri # (0..65535) %TBALL=m,c,m,c – init minutes,calls in all bris (0..65535) %TG#=m,c,ri,ro – init minutes,calls,rin,rout in group # (0..65535) %TGALL=m,c,ri,ro – init minutes,calls,rin,rout in all groups (0..65535) 2N TELEKOMUNIKACE a.s., www.2n.cz 122/152...
  • Page 123 AT^SR=ch,ix – (sms read) request to read SMS or status SMS saved in SIM card. Possible answers: *smserr (busy,read) or *smspdu AT^SD=ch,ix – (sms delete) request to delete SMS message (or status SMS message). Possible answers: *smserr (busy,delete) or *smsdel 2N TELEKOMUNIKACE a.s., www.2n.cz 123/152...
  • Page 124 Len…SMS length (number of bytes in PDU) Pdu…message content in PDU format Csum…Checksum of all PDU bytes (2 hexa digits) calculated without carry *smsdel: ch,ix – SMS message or status confirmation was deleted from position 2N TELEKOMUNIKACE a.s., www.2n.cz 124/152...

  • Page 125: Status Messages

    ISDN Layer 2 Message Status Name Name acc. to ITU–T Q.921 NOTEI TEI Unassigned AWTEI Assigned Awaiting TEI AWTEST Establish Awaiting TEI OKTEI TEI Assigned AWEST Awaiting Establishment AWREL Awaiting Release OKEST Multiple Frame Established TIMREC Timer Recovery 2N TELEKOMUNIKACE a.s., www.2n.cz 125/152...
  • Page 126 End of call from BRI RELREQ Release Request Channel release request   OVRECV Overlap Receiving Gradual dialling sending Gradual dialling receiving RSTREQ Restart Request Channel restart request sent   RSTART Restart Channel restart request   received 2N TELEKOMUNIKACE a.s., www.2n.cz 126/152...
  • Page 127 Management Message Status Name Description INIT Initialization upon BRI reset IDLE Activation – rest status, necessary for layers 2 and 3 DISC Deactivation GSM Layer Statuses 2N TELEKOMUNIKACE a.s., www.2n.cz 127/152...
  • Page 128 Rest status, can start/receive call, execute AT&G command CALL /CMD CALL Call running (call establishing, connected call, call end) IDLE Communicating with module upon AT&G command IDLE INFO Information loading from module and SIM card NWAIT 2N TELEKOMUNIKACE a.s., www.2n.cz 128/152...
  • Page 129 Sim–err Defective or not inserted SIM card, next attempt in 2 minutes Log–out Temporarily logged–out according to parameter X00 Puk–req SIM card requires PUK   (undef) This position of SIM card wasn't checked by gateway 2N TELEKOMUNIKACE a.s., www.2n.cz 129/152...
  • Page 130 Disconnection request (to Layer 2) DISIND Indication of disconnection (from Layer 2) RELREQ Module release for another call (to Layer 2) OVRECV Reading of DTMF dialling from GSM (from Layer 2) RELIND Indication of module release (from Layer2) 2N TELEKOMUNIKACE a.s., www.2n.cz 130/152...
  • Page 131 Call request received from GSM or ISDN, awaiting further dialling or timeout SETUP Call request sent to opposite interface PROC Call request confirmed, awaiting call answer ACTIVE Connected call DISC Call disconnection in progress Command Shell Statuses 2N TELEKOMUNIKACE a.s., www.2n.cz 131/152...
  • Page 132 FUNCFILE Content of debug file is being written out LCRFILE (not used so far) Telnet Message Status Name Description LOGOUT User logged–out LOGIN User is entering name PASSW User is entering password IDLE User logged–in 2N TELEKOMUNIKACE a.s., www.2n.cz 132/152...
  • Page 133 GSM module layer 3 error (gate3) C4–ERR Link layer error (call4) Types of CDRs Name Description I–FD Not connected incoming call attempt I–OK Connected incoming call O–FD Not connected outgoing call attempt O–OK Connected outgoing call 2N TELEKOMUNIKACE a.s., www.2n.cz 133/152...

  • Page 134: Log Files

    Start of upgrade firmware procedure reset]   [Software Reset by AT commands (at&fres…) reset] INIT Eeprom Initialisation of eeprom (configuration)   Flash Initialization of flash memory (firmware) HW–   (##…address of chip, RD…read value/WR…expected value) 2N TELEKOMUNIKACE a.s., www.2n.cz 134/152...
  • Page 135 Received packed UA with unexpected bit F=0   E: unsol.DM(– Received packed DM with unexpected bit F=0   F: peer re–est Received packed SABME in status OKEST   G: repeated Repeated unsuccessful send of packet SABME SABME 2N TELEKOMUNIKACE a.s., www.2n.cz 135/152...
  • Page 136 Error of 3. layer isdn: timeout in status # on module g## (g##) C4–ERR tout sts # Error of 4. connecting layer: timeout in status # on call between (p##/g##) channel p## and GSM module g## 2N TELEKOMUNIKACE a.s., www.2n.cz 136/152...
  • Page 137 (to be implemented in higher firmware versions) / gateway ID (optional) Column called party number (CDN) Column 11: calling party number (CGN) Column 12: SIM card slot number / SIM card IMSI or SCID 2N TELEKOMUNIKACE a.s., www.2n.cz 137/152...
  • Page 138 First row – SMS sending time or total sending time for all parts of a long Second row – time of SMS adding to the outgoing/incoming SMS database Column 8 part number/total Column 9 gateway id 2N TELEKOMUNIKACE a.s., www.2n.cz 138/152...
  • Page 139 #m0 inc – incoming calls via m0 module – local SIM #m0 out – outgoing calls via m0 module – local SIM #m0 day – m0 module limit statistics #m0 fre – m0 module tariff statistics #m0 rem – remote SIM statistics 2N TELEKOMUNIKACE a.s., www.2n.cz 139/152...
  • Page 140 #m1 inc ( 2.01) 0 0:00:00 0 0 0 0 0 Statistics of outgoing calls on all modules [Statistics of outgoing calls on all modules] network (reset) minutes hhhh:mm:ss calls reject failed c.offs errors ----------------------------------------------------------------------------------------------- 2N TELEKOMUNIKACE a.s., www.2n.cz 140/152...
  • Page 141 #m0 rem (12.03) 0 0:00:00 0 0 module (reset) min0:ss limit min1:ss limit min2:ss limit min3:ss limit ----------------------------------------------------------------------------------------------- #m0 fre (12.03) 0:00:00 0 0:00:00 0 0:00:00 0 0:00:00 0 #m0 rem (12.03) 0:00:00 0 0:00:00 0 0:00:00 0 0:00:00 0 2N TELEKOMUNIKACE a.s., www.2n.cz 141/152...

  • Page 142: Technical Parameters

    Adapter: 110–230 V, 50/60 Hz, 12 V DC DC power supply: 12 V DC / 2 A Supply connector: DC jack, 2.1 mm ISDN ISDN NT connection type: S0, point-to-multipoint S0, point-to-point ISDN TE connection type: S0, point-to-multipoint 2N TELEKOMUNIKACE a.s., www.2n.cz 142/152...
  • Page 143 S0, point-to-point ISDN protocol: EuroISDN, DSS-1 ® BRI Lite port count + type: 1 NT/TE ® BRI Enterprise port count + type: 1 NT + 1 TE ISDN connector type: 2 RJ-45 NT interface supply: From external adapter or ISDN...

  • Page 144: Supplementary Information

    8. Supplementary Information ® This section provides supplementary information on the 2N BRI Enterprise / BRI Lite product. Here is what you can find in this section: 8.1 Troubleshooting 8.2 List of Abbreviations 8.3 Directives, Laws and Regulations 8.4 General Instructions and Cautions 2N TELEKOMUNIKACE a.s., www.2n.cz...

  • Page 145: Troubleshooting

    8.1 Troubleshooting For the most frequently asked questions refer to faq.2n.cz ® No LED is shining on 2N BRI Enterprise / BRI Lite ® BRI Enterprise / BRI Lite is disconnected from the power supply. ® 2N BRI Enterprise / BRI Lite fails to log in to the GSM network.
  • Page 146 Busy tone on None. (This is turning off busy tone generation from gateway). If call is not cut after this settings set this parameter on Disabled. (If PBX requests to keep line active in disconnection message then gateway will ignore this request and the call will be ended) 2N TELEKOMUNIKACE a.s., www.2n.cz 146/152...

  • Page 147: List Of Abbreviations

    LED (Light Emited Diod) Electric light–emitting semi–conductor component. NT (Network Termination) Network terminal for interconnecting a user line from an ISDN telephone with the provider's external network, a PBX gateway or 2N BRI Enterprise / BRI Lite gateway, for example.
  • Page 148 UMTS (Universal Mobile Telecommunication System) 3G system of the mobile phone standard, successor to GSM. UPS (Uninterruptible Power Supply) Source of continuous power supply. USSD (Unstructured Supplementary Service Data) Data transmission standard using GSM signalling channels. 2N TELEKOMUNIKACE a.s., www.2n.cz 148/152...
  • Page 149 Commission Regulation (EC) No. 1488/94 as well as Council Directive 76/769/EEC and Commission Directives 91/155/EEC, 93/67/EEC, 93/105/EC and 2000/21/EC Directive 2012/19/EC of the European Parliament and of the Council of 4 July 2012 on waste electrical and electronic equipment. 2N TELEKOMUNIKACE a.s., www.2n.cz 149/152...

  • Page 150: General Instructions And Cautions

    The consumer shall, at its own expense, obtain software protection of the product. The manufacturer shall not be held liable and responsible for any damage incurred as a result of the use of deficient or substandard security software. 2N TELEKOMUNIKACE a.s., www.2n.cz 150/152...

  • Page 151: Electric Waste And Used Battery Pack Handling

    Make sure that the devices to be disposed of are complete. Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited either. 2N TELEKOMUNIKACE a.s., www.2n.cz 151/152...
  • Page 152 2N TELEKOMUNIKACE a.s. Modřanská 621, 143 01 Prague 4, Czech Republic Phone: +420 261 301 500, Fax: +420 261 301 599 E-mail: sales@2n.cz Web: www.2n.cz v1.16 2N TELEKOMUNIKACE a.s., www.2n.cz 152/152...
