  • Page 1: Table Of Contents

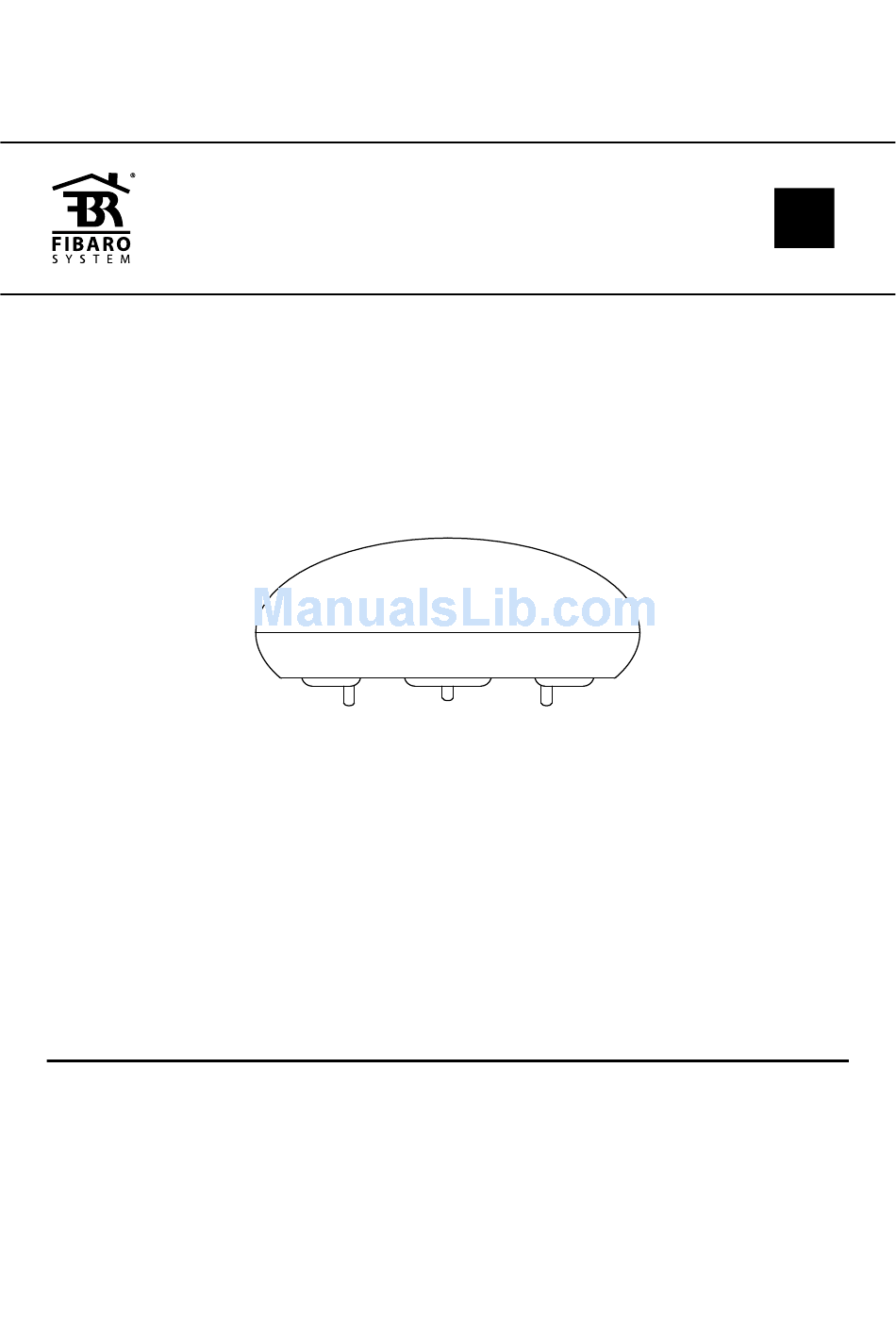

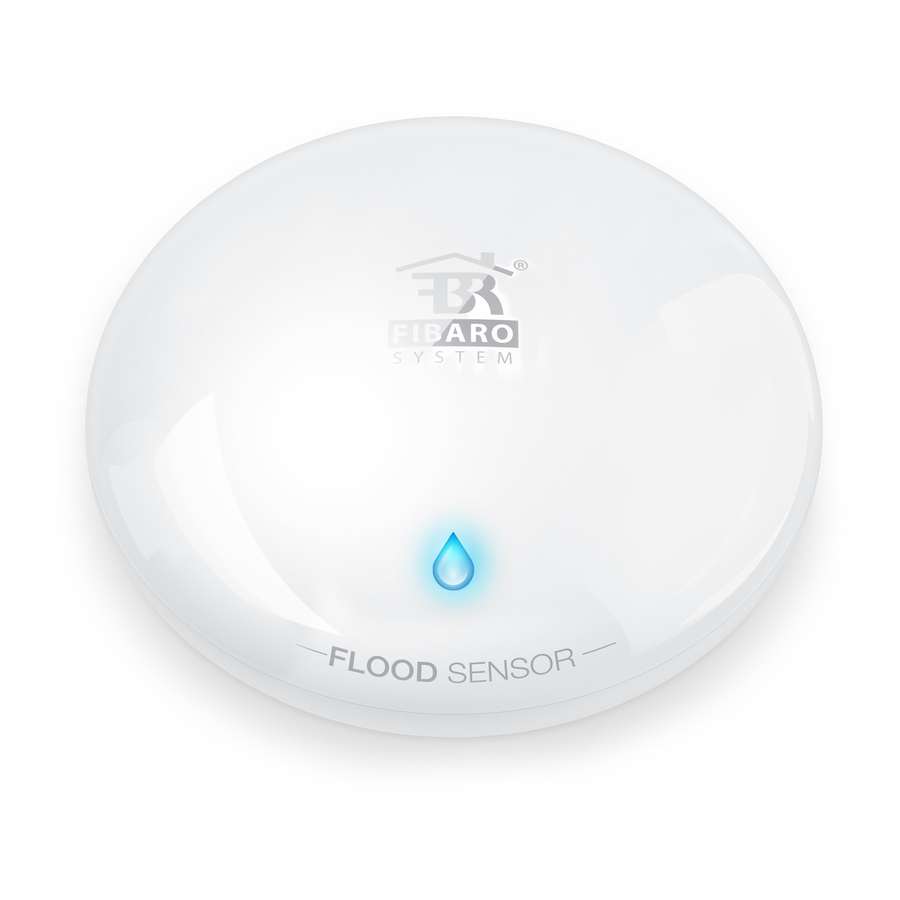

    O P E R A T I N G M A N U A L FIBARO FLOOD SENSOR FGFS-101 CONTENTS v2.0 #1: Description and features #7: Association #2: Basic activation #8: Z-Wave range test #3: Adding/removing the device #9: Advanced parameters...

  • Page 3: Important Safety Information

    General information about the FIBARO System FIBARO is a wireless smart home automation system, based on the Z-Wave protocol. All of available devices can be controlled through a computer (PC or Mac), smartphone or tablet. Z-Wave devices are not only receivers, but can also repeat the signal, increasing the Z-Wave network’s range.

  • Page 4: 1: Description And Features

    Sensor from its original location. FIBARO Flood Sensor is sink-proof, which means it drifts on the water surface and keeps on sending alarm signal in case of substantial inundation of water.

  • Page 5: 2: Basic Activation

    #2: Basic activation 1. Turn the cover counter-clockwise and open it. NOTE 2. Remove the battery blocker. When powered, the device will indicate Z-Wave status with colour of LED: • Green - the device is already added to the Z-Wave network. •...

  • Page 6: 3: Adding/Removing The Device

    #3: Adding/removing the device Adding (Inclusion) - Z-Wave device learning mode, allowing to add NOTE the device to existing Z-Wave network. Adding security To add the device to the Z-Wave network: mode must be per- 1. Open the cover. formed up to 2 meters from the controller.

  • Page 7: 4: Diagrams And Connection

    #4: Diagrams and connection Connecting the FIBARO Flood Sensor in a manner CAUTION inconsistent with manual may cause risk to health, life or material damage. Connect while observ- ing wiring diagram shown in this manual Notes for the diagrams and probes marking: only.
  • Page 8 Connection with a wired alarm system: NOTE ALARM nC and TAMP nC connectors may be used as end-of-line protective loop’s ter- minals. ALARM SYSTEM HUB AUX COM Z1 Z2 TAMP ALARM Extending Flood Sensor contacts with a wired probe: NOTE If you want the device to be mounted on a wall or in a distance from flooding source, sensor should be extended using an external probe Mounting...

  • Page 9: 5: Powering Modes

    In this mode Z-Wave signal repeating is nals is detected not possible. FIBARO Flood Sensor’s battery life is estimated at about 2 years at factory default settings. Current battery level is displayed in a Z-Wave controller interface. Red battery icon means the battery needs re- placement.

  • Page 10: 6: Operating The Device

    3x click: add/remove the device to/from a Z-Wave network Holding: enter/navigate through menu button Controlling the Flood Sensor with FIBARO Home Center controller: The Flood Sensor has two built-in sensors – flood and temperature sensors. In the home Center controller the Sensor will be shown as two devices.
  • Page 11 Menu allows to perform Z-Wave network actions. In order to use the menu: 1. Press and hold the TMP button. 2. Wait for the device to indicate desired position with a colour: • WHITE - confirmation of entering the menu •...

  • Page 12: 7: Association

    In extreme cases, system response may be de- layed. To add an association (using the FIBARO home Center controller): 1. Go to device options by clicking the icon: 2. Select the „Advanced” tab.

  • Page 13: 8: Z-Wave Range Test

    #8: Z-Wave range test The Flood Sensor has a built in Z-Wave network main controller’s CAUTION range tester. To make Z-Wave range test possible, the de- vice must be added Follow the below instructions to test the main controller’s range: to the Z-Wave control- ler.

  • Page 14: 9: Advanced Parameters

    #9: Advanced parameters The Flood Sensor allows to customize its operation to user’s needs. The settings are available in the FIBARO interface as simple options that may be chosen by selecting the appropriate box. In order to configure the Flood Sensor (using the FIBARO home Center controller): 1.
  • Page 15 Available settings: 0 - acoustic and visual alarms inactive 1 - acoustic alarm inactive, visual alarm active 2 - acoustic alarm active, visual alarm inactive 3 - acoustic and visual alarms active Default setting: Parameter size: 1 [byte] 7. Requested dimming level / roller blind opening level when send- ing turn on / open command to 2nd association group devices Determines the requested “on”...
  • Page 16 ler, according to the parameter 10 settings. Available settings: 1-1000 (each 0.01°C) 50 (0.5°C) 2 [bytes] Default setting: Parameter size: 50. Low temperature alarm threshold The parameter stores a temperature value, below which visual indi- cator blinks with a colour determined by a parameter 61 settings. By default the visual indicator blinks blue.
  • Page 17 63. Temperature indication using LED visual indicator Parameter determines visual indicator’s operation. Setting to 0 turns the temperature LED indication off, saving battery life. Available settings: 0 - visual indicator does not indicate the temperature 1 - visual indicator indicates the temperature (blink) every Temperature Measurement Inter- val (parameter 10, constant current and bat- tery) and Wake up Interval (battery mode)
  • Page 18 76. Alarm signalization reactivation period NOTE Parameter determines a time period after which an alarm will be turned In case a time period back on (in case it was turned off by parameter 75 setting). It will also set in parameter 76 is resend commands to 2nd and 3rd association groups as if the alarm shorter than the one was detected again.

  • Page 19: 10: Specifications

    #10: Specifications Power supply: Battery and/or power supply unit NOTE This product Battery type: 3V, CR123A intended supplied by a certified Supply type: 12–24V DC, LPS or nEC class 2 Power Supply unit marked “Class 2” or Power consumption 0.4W “LPS”...

  • Page 20: 11: Regulations

    All information, including, but not limited to, information regarding the features, functionality, and/or other product specification are subject to change without notice. Fibaro reserves all rights to revise or upda- te its products, software, or documentation without any obligation to notify any individual or entity.
  • Page 21 Declaration of conformity hereby, Fibar Group S.A. declares that FIBARO Flood Sensor is in com- pliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
