Using The Diagnosis Program - Contec RS-232C Serial User Manual

I/o board for pci express 2ch com-2c-pe 4ch com-4c-pe 8ch com-8c-pe

Table of Contents

2. Setup

Using the Diagnosis Program

Starting the Diagnosis Program

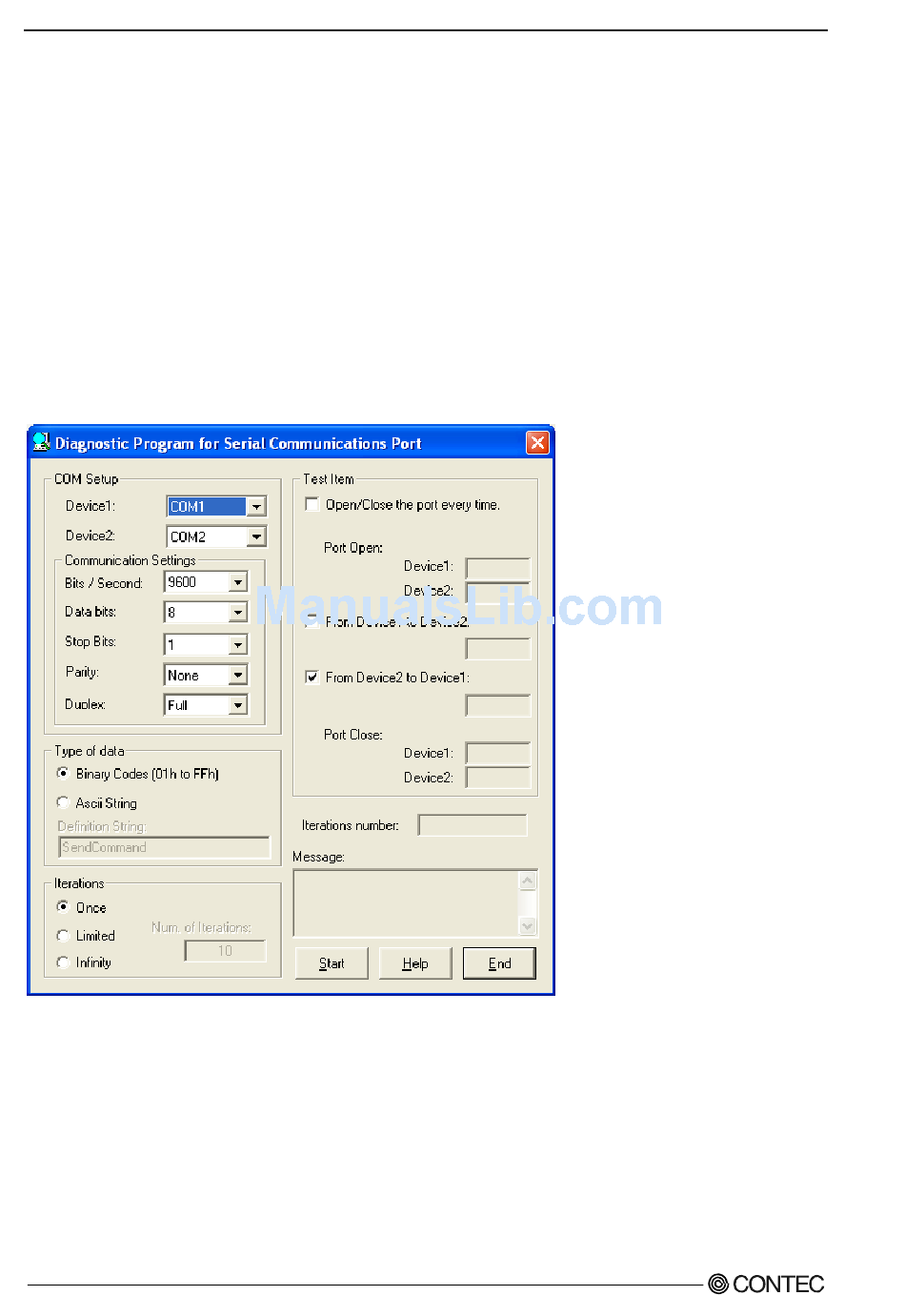

Run\Utility\CommChk\CommChk.exe from the supplied CD-ROM.

Communication Settings

COM Setup: Specify the number of the COM port you wish to test.

If connecting two COM ports via a cross cable, specify the respective COM ports in

[Device1] and [Device2].

When performing loopback communications on a single COM port, set the same port

number in both [Device 1] and [Device 2].

Communication Settings: Specify the [Bits / Second], [Data bits] and other settings you wish to use.
