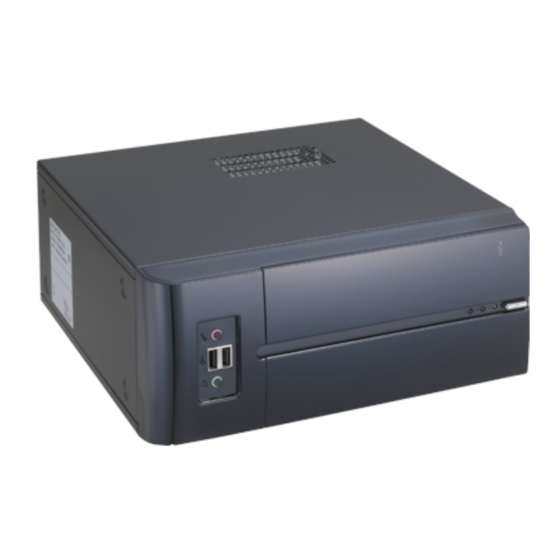

Contec VPC-500P1 User Manual

Fa personal computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FA-PC VPC Series
VPC-500P1
User's Manual
CONTEC CO.,LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VPC-500P1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contec VPC-500P1

Summary of Contents for Contec VPC-500P1

  • Page 1 FA-PC VPC Series VPC-500P1 User’s Manual CONTEC CO.,LTD.

  • Page 2: Check Your Package

    Check Your Package Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. △△△△△ ■Product Configuration List VPC-500P1-△△△△△B...
  • Page 3 (1) No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. (2) CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. The information in this document is subject to change without notice.

  • Page 4: Table Of Contents

    Web Site ............................2 How to Obtain Service ........................2 Liability ............................... 2 Safety Precautions ..........................3 ◆Safety Information........................3 ◆Caution on the VPC-500P1 Series ................... 3 SYSTEM REFERENCE Specification ............................7 Physical Dimensions ........................... 9 HARDWARE SETUP Before Using the Product for the First Time ..................11 Hardware Setup ..........................
  • Page 5 ◆H/W Monitor .......................... 43 ◆Serial Port Console Redirection ..................... 44 Security ............................. 45 Boot ..............................46 Save & Exit ............................48 6. SOFTWARE UTILITY Driver DVD ............................49 Various drivers ..........................50 7. APPENDIX Battery ............................... 51 VPC-500P1 Series User’s Manual...

  • Page 6: Introduction

    ・ Windows Embedded Standard 7 SP1 32bit Japanese / English / Chinese / Korean ・ Windows 7 Professional SP1 32bit Japanese / English ・ Windows 7 Ultimate SP1 32bit Japanese / English / Chinese / Korean VPC-500P1 Series User’s Manual...

  • Page 7: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. How to Obtain Service For replacement or repair, return the device freight prepaid, with a copy of the original invoice.

  • Page 8: Safety Precautions

    ・ When transporting or moving this product, be sure to use the original packaging in which it was shipped from CONTEC or other equivalent packaging in order to prevent vibrations, impacts, and static electricity. ・ Do not modify the product.
  • Page 9 ・ To prevent corruption of files, always shutdown the OS before turning off this product. ・ CONTEC reserves the right to refuse to service a product modified by the user. ・ In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.
  • Page 10 (LAN, USB, serial, analog RGB, HDMI, and line output). ・ This product's specifications allow the device to be rebooted from the BIOS screen during startup. This has no effect on operation after the OS boots. VPC-500P1 Series User’s Manual...
  • Page 11 For the type of ferrite core, refer to the following table (Equivalent types are also available.) Port Name Maker Turn Line out GRFC-6 ■Image diagram Ferrite core Cable 【TURN：1】 CAUTION The object of the standard of this product become only a main body. VPC-500P1 Series User’s manual...

  • Page 12: System Reference

    PCI Express ×4 1slot(2 lanes) Low Profile VPC-500P1-77000B：None Support OS VPC-500P1-77413B：Windows Embedded Standard 7 SP1 32bit Japanese / English / Chinese / Korean VPC-500P1-77129B：Windows 7 Professional SP1 32bit Japanese / English VPC-500P1-77126B：Windows 7 Ultimate SP1 32bit Japanese / English / Chinese / Korean *1 If the display cable is connected after the PC turns on, BIOS is not displayed.
  • Page 13 40 min. each in x, y, and z directions (JIS C60068-2-6 compliant, IEC60068-2-6 compliant) 98m/s2 (10G) / 11ms / half-sine shock for 3 times in x, y, and z directions Impact resistance (JIS C60068-2-27 compliant, IEC60068-2-27 compliant) Grounding Class D grounding, SG-FG / continuity VPC-500P1 Series User’s manual...

  • Page 14: Physical Dimensions

    2. System Reference Physical Dimensions ■VPC-500P1-△△△△△B < Main unit dimensions > Figure 2.1 VPC-500P1-△△△△△B Main unit dimensions VPC-500P1 Series User’s Manual...
  • Page 15 VPC-500P1 Series User’s manual...

  • Page 16: Hardware Setup

    ・ Be sure to connect the keyboard and mouse to it before turning the power on for the first time. ・ Be sure to connect the display before turning the power on. Connecting the display after turning the power on may prevent it from being displayed properly. VPC-500P1 Series User’s Manual...

  • Page 17: Hardware Setup

    ・ Remove only those screws that are explained. Do not move any other screw. ◆Drive Bay Desorption Figure 3.1 Drive Bay Desorption CAUTION Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.The specified tightening torque is 5 - 6kgf⋅cm. VPC-500P1 Series User’s manual...

  • Page 18: Extension Board Installation

    CAUTION Note that even though the ambient temperature is within the specified range, an operational malfunction may occur if there is other device generating high heat; the radiation will influence the product to increase its temperature. VPC-500P1 Series User’s Manual...
  • Page 19 ・ Do not install this product in completely sealed spaces, except when it is possible to adjust the internal temperature using an air conditioner or similar equipment. Temperature increase caused by long-term usage may result in operational malfunction or other problems. VPC-500P1 Series User’s manual...

  • Page 20: Each Component Function

    4. Each Component Function 4. Each Component Function Component Name ■VPC-500P1-△△△△△B < Front View > Figure 4.1 VPC-500P1-△△△△△B Component Name < 1 / 2 > < Rear View > Figure 4.1 VPC-500P1-△△△△△B Component Name < 2 / 2 > VPC-500P1 Series User’s Manual...
  • Page 21 Analog RGB (15pin D-SUB connector) 1 port HDMI HDMI (19pin HDMI TYPE-A connector) 1 port USB3.0 USB3.0 (TYPE-A connector) 1 port 1000BASE-T/100BASE-TX (RJ-45 connector) 1 port Line out (3.5φ stereo minijack) 1 port LINE OUT AC INLET AC100-240V Power input connector VPC-500P1 Series User’s manual...

  • Page 22: Component Function

    Indicates that this product is switched on. ACCESS LED ON (Orange) Indicates that the SATA device is being accessed. ◆Power Switch : POWER SW POWER SW is provided. ◆Reset Switch : RESET SW RESET SW is provided. VPC-500P1 Series User’s Manual...

  • Page 23: Serial Port Interface : Serial

    Connector type 9pin D-SUB connector (male) No.4-40UNC Inch screw threads RS-232C RS-422 RS-485 Pin No. Signal name Pin No. Signal name Pin No. Signal name DATA- DATA+ N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. VPC-500P1 Series User’s manual...

  • Page 24: Analog Rgb Port Interface : Analog Rgb

    This will not affect how the digital display appears. However, change the multi-display settings as necessary. ・ To change the settings from digital output to analog output, change the settings from the standard Windows properties screen. VPC-500P1 Series User’s Manual...

  • Page 25: Hdmi Port Interface : Hdmi

    This will not affect how the digital display appears. However, change the multi-display settings as necessary. ・ To change the settings from digital output to analog output, change the settings from the standard Windows properties screen. VPC-500P1 Series User’s manual...

  • Page 26: Usb3.0 Port Interface : Usb3.0

    USB_GND SSTX- SSTX+ ◆USB2.0 Port Interface : USB2.0 The product is equipped with 2 port for USB2.0 interface. Table 4.8 USB2.0 port connector Connector type TYPE-A connector (female) Pin No. Signal name USB_VCC DATA- DATA+ USB_GND VPC-500P1 Series User’s Manual...

  • Page 27: Lan Port Interface : Lan

    : 100M operation -> Green ON : 1000M operation -> Orange ON ◆Line out Interface : LINE OUT The product is equipped with 1 port for line out. You can plug a headphone or amplifier-integrated speakers into this connector. VPC-500P1 Series User’s manual...

  • Page 28: Bios Setup

    If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON on the system case. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. VPC-500P1 Series User’s Manual...

  • Page 29: Using Setup

    AMI and system manufacturers to ensure maximum performance and reliability. Even changing the chipset settings slightly can result in an unavoidable need for repairs. ◆A Final Note About Setup The information in this chapter is subject to change without notice. VPC-500P1 Series User’s manual...

  • Page 30: Main Menu

    ■Security Set the password to be used to protect the security of the system. ■Boot Configure the settings related to how the system will boot. ■Save & Exit Load/save setup items and exit the setup menu. VPC-500P1 Series User’s Manual...

  • Page 31: Main

    Set the system date. Note that the ‘Day’ System Date Week Day Month / Day / Year automatically changes when you set the date System Time Hour : Minute : Second Set the system time VPC-500P1 Series User’s manual...

  • Page 32: Configuration

    ■SATA Configuration Configure the SATA controller settings. ■USB Configuration Configure the USB controller settings. ■Power Control Configuration Configure the Power control settings. ■TPM Configuration Configure the TPM settings. ■Super IO Configuration Configure the Super IO settings. VPC-500P1 Series User’s Manual...
  • Page 33 ■H/W Monitor View such hardware monitor information as the CPU temperature. ■Serial Port Console Configuration Configure the Serial port console settings. VPC-500P1 Series User’s manual...

  • Page 34: Cpu Configuration

    Active Processor Cores Do not change this setting. Intel Virtualization Disabled Do not change this setting. Enabled Technology Disabled EIST Do not change this setting. Enabled Disabled CPU C6 report Do not change this setting. Enabled VPC-500P1 Series User’s Manual...

  • Page 35: Chipset Configuration

    Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.5 Chipset Configuration Table 5.4 Chipset Configuration Item Option Description Enabled High Precision Timer Configure the high-precision event timer settings. Disabled Disabled Audio Controller Configure the audio controller settings. Enabled VPC-500P1 Series User’s manual...

  • Page 36: Lan Configuration

    Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.6 LAN Configuration Table 5.5 LAN Configuration Item Option Description Disable Launch Legacy PXE Enable Do not change this setting. Auto Enabled Wake On Lan Controller Configure the wake on lan settings. Disabled VPC-500P1 Series User’s Manual...

  • Page 37: Graphics Configuration

    Do not change this setting. Device Disabled Enabled IGD Turbo Enable Do not change this setting. Disabled Auto Primary Display Do not change this setting. 128M 160M 192M DVMT Pre-Allocated Do not change this setting. 224M 256M 288M 320M 352M VPC-500P1 Series User’s manual...
  • Page 38 BIOS display and OS recovery. Can not change this setting. Configure the settings for the port that will be output as the Secondary IGFX Boot HDMI auxiliary display at start-up. Display Can not change this setting. VPC-500P1 Series User’s Manual...

  • Page 39: Pci/Pcie Configuration

    F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.8 PCI/PCIE Configuration Table 5.7 PCI/PCIE Configuration Item Option Description PCI Express Refer to Configuration Table 5.8 VPC-500P1 Series User’s manual...

  • Page 40: Pci Express Configuration

    Speed Gen2 Do not change this setting. (PCI Express Port 2) Gen1 Enabled PCI Express Port 3 Do not change this setting. Disabled Auto Speed Gen2 Do not change this setting. (PCI Express Port 3) Gen1 VPC-500P1 Series User’s Manual...

  • Page 41: Sata Configuration

    Configure the operation settings for SATA port0. Disabled Enabled SATA Port0 HotPlug Do not change this setting. Disabled Enabled Serial-ATA Port 1 Configure the operation settings for SATA port1. Disabled Enabled SATA Port1 HotPlug Do not change this setting. Disabled VPC-500P1 Series User’s manual...

  • Page 42: Usb Configuration

    Do not change this setting. Disabled Disabled EHCI Hand-off Do not change this setting. Enabled USB Mass Storage Disabled Configure the USB storage support settings with BIOS. Enabled Driver Support Refer to USB Configuration Table 5.11 VPC-500P1 Series User’s Manual...

  • Page 43: Usb Configuration

    Do not change this setting. Disabled Enabled USB Port 1 Do not change this setting. Disabled Enabled USB Port 2 Do not change this setting. Disabled Enabled USB Port 3 Do not change this setting. Disabled VPC-500P1 Series User’s manual...

  • Page 44: Power Control Configuration

    Enable or disable the function for automatically turning Disabled Wake system with Fixed on the system at the specified date and time. When Time Enabled enabled, use the following items to set the date and time the system will automatically turn on. VPC-500P1 Series User’s Manual...
  • Page 45 0-23 Sets the time the system will automatically turn on. Wake up Minute 0-59 Sets the minute the system will automatically turn on. Wake up Second 0-59 Sets the second the system will automatically turn on. VPC-500P1 Series User’s manual...

  • Page 46: Tpm Configuration

    Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.14 TPM Configuration Table 5.14 TPM Configuration Item Option Description Disabled Security Device Support Do not change this setting. Enabled Disabled Security Device Support Do not change this setting. Enabled VPC-500P1 Series User’s Manual...

  • Page 47: Super Io Configuration

    Configure the operation settings for serial port 1. Enabled RS232 Configure the operation mode settings for serial UART Mode RS485 HALF DUPLEX port 1. RS485/422 FULL DUPLEX Disabled Serial Port Configure the operation settings for serial port 2. Enabled VPC-500P1 Series User’s manual...

  • Page 48: H/W Monitor

    F4:Save & Exit ESC:Exit Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.16 H/W Monitor (Actual Display May Vary.) Table 5.16 H/W Monitor Item Option Description Disabled Smart System Fan Do not change this setting. Function Enabled VPC-500P1 Series User’s Manual...

  • Page 49: Serial Port Console Redirection

    Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc. Figure 5.17 Serial Port Console Redirection Table 5.17 Serial Port Console Redirection Item Option Description Disabled Console Redirection Do not change this setting. (COM0) Enabled Disabled Console Redirection Do not change this setting. (COM1) Enabled VPC-500P1 Series User’s manual...

  • Page 50: Security

    Enter a password at least 3 characters long twice. To disable the password, enter the Administrator Password entry screen again. CAUTION Be careful to not forget the password. If you forget the password, the product will have to be repaired at an extra cost. VPC-500P1 Series User’s Manual...

  • Page 51: Boot

    Always Force BIOS Option ROM Message Do not change this setting. Keep Current Immediate INT19 Trap Response Do not change this setting. Postponed Do not launch Storage UEFI only Do not change this setting. Legacy only VPC-500P1 Series User’s manual...
  • Page 52 GPT-formatted. Make sure to specify (1) as the boot setting. Booting with (2) will result in non-support. ・ Only devices set as the highest in individual settings like CD/DVD ROM Drive BBS Priorities are listed as selectable under Boot Option #x. VPC-500P1 Series User’s Manual...

  • Page 53: Save & Exit

    Return the settings to their default values. ■Boot Override Configure the settings for temporary booting from a connected device other than that set in Boot Configuration. The bootable devices will be displayed in place of XXXX. VPC-500P1 Series User’s manual...

  • Page 54: Software Utility

    5. BIOS Setup 6. Software Utility This chapter describes the driver DVD included with the VPC-500P1 series. This driver DVD includes drivers and software necessary for the VPC-500P1 series. This driver DVD does not provide Autorun functionality. Install drivers and software manually through Windows Explorer after inserting this driver DVD into the CD/DVD-ROM drive.

  • Page 55: Various Drivers

    Various drivers Install drivers in the "Drivers" folder according to the different steps. VPC-500P1 Series User’s manual...

  • Page 56: Appendix

    : 1g or less ■Removing the battery Remove the battery according to the following figure. Remove the Battery. Figure 6.1 Removing the battery ■Disposing the battery Dispose the removed battery properly as instructed by local government. VPC-500P1 Series User’s Manual...
  • Page 57 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [04122015] Management No. NA04541 03032016_rev2 Parts No. LYTG702...
