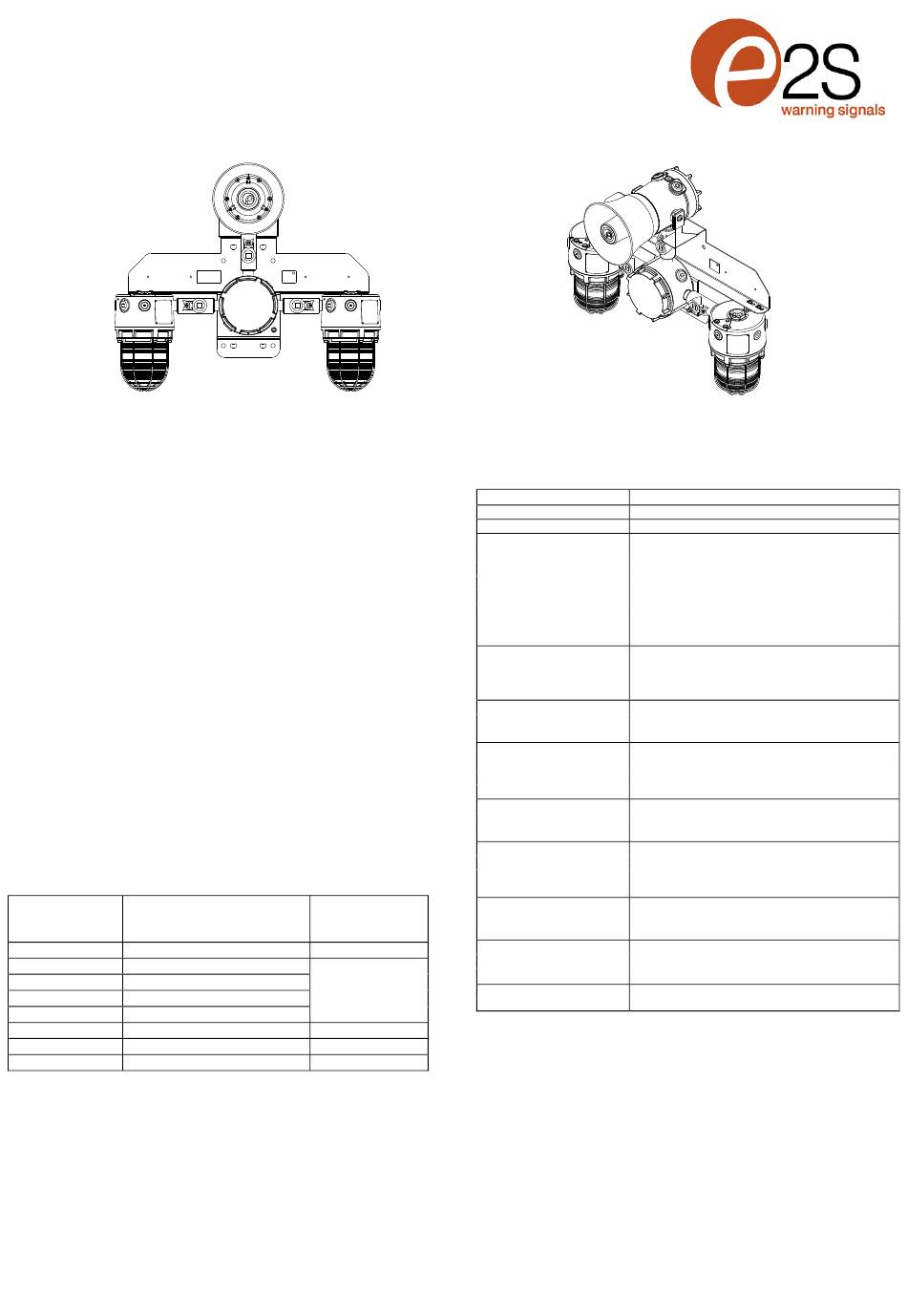

INSTRUCTION MANUAL
D1xC4 Alarm Bar
Dual Beacons & Alarm Horn with Junction Box
1) Warnings
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
2) Rating & Marking Information
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
All individual unit ratings must be suitable for the installation.
3) Type Approval Standards
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
4) Installation Requirements
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
5) Special Conditions of Use
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
Component
Component Description
Part Code
Reference
D1XJ2
Junction Box
D1XB2X05
5J Xenon Strobe Beacon
D1XB2X10
10J Xenon Strobe Beacon
D1XB2X15
15J Xenon Strobe Beacon
D1XB2X21
21J Xenon Strobe Beacon
D1XB2LD2
LED Beacon
D1XS1
Alarm Horn Sounder
D1XS2
Alarm Horn Sounder
Table 1: Product Instruction Manual Reference
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D225-00-001-IS
Document
Number
D191-00-501-IS
D191-00-201-IS
D191-00-401-IS
D190-00-001-IS
D190-00-101-IS
Issue 2
23/02/2023
6) Part Coding
Part Code:
Identifier - Description
Product Type
D1xC4
Junction Box
J2 = Junction Box
Beacon Type
1Y = D1xB2X05
(Add Code for each
2Y = D1xB2X10
Beacon in stack)
3Y = D1xB2X15
4Y = D1xB2X21
5Y = D1xB2LD2
Where Y = Lens Colour, choose from:
A = Amber, B = Blue, C = Clear, G = Green,
M = Magenta, R = Red, Y = Yellow
Sounder Type
S1F = D1xS1 Flare Sounder
S1R = D1xS1 Radial Sounder
S2F = D1xS2 Flare Sounder
S2H = D1xS2H Flare Horn Alarm Sounder
Voltage
DC024 = 24Vdc
AC115 = 115-120Vac 50/60Hz
AC230 = 220-230Vac 50/60Hz
Cable Entries [e]
A = 1 x M20x1.5mm (Adaptor)
B = 1 x 1/2" NPT (Adaptor)
C = 1 x 3/4" NPT
D = 1 x M25x1.5mm (Adaptor)
Stopping Plug / Adaptor
B = Brass
Material [m]
N = Nickel Plated
S = Stainless Steel
Guard / Tag Material [s]
1 = 316 St. Steel Guard & 316 Tag
3 = 316 St. Steel Guard, 316 Tag & Duty Labels
5 = 316 St. Steel Guard, 316 Tag & Duty Labels
attached with steel wire
Product Version [v]
A = IECEx/ ATEX/ SIL2/ UL/ cUL Class I Zone 1
C = UL/ cUL Class Div 1
T = Relay Initiation ATEX / IECEx
Production Option [o]
1 = Standard
W =Special Wiring
X = Custom configuration
R = Red, G = Grey
Assembly Colour [x]
Other colours also possible, contact E2S sales
www.e2s.com
Sheet 1 of 4
Tel: +44 (0)208 743 8880
