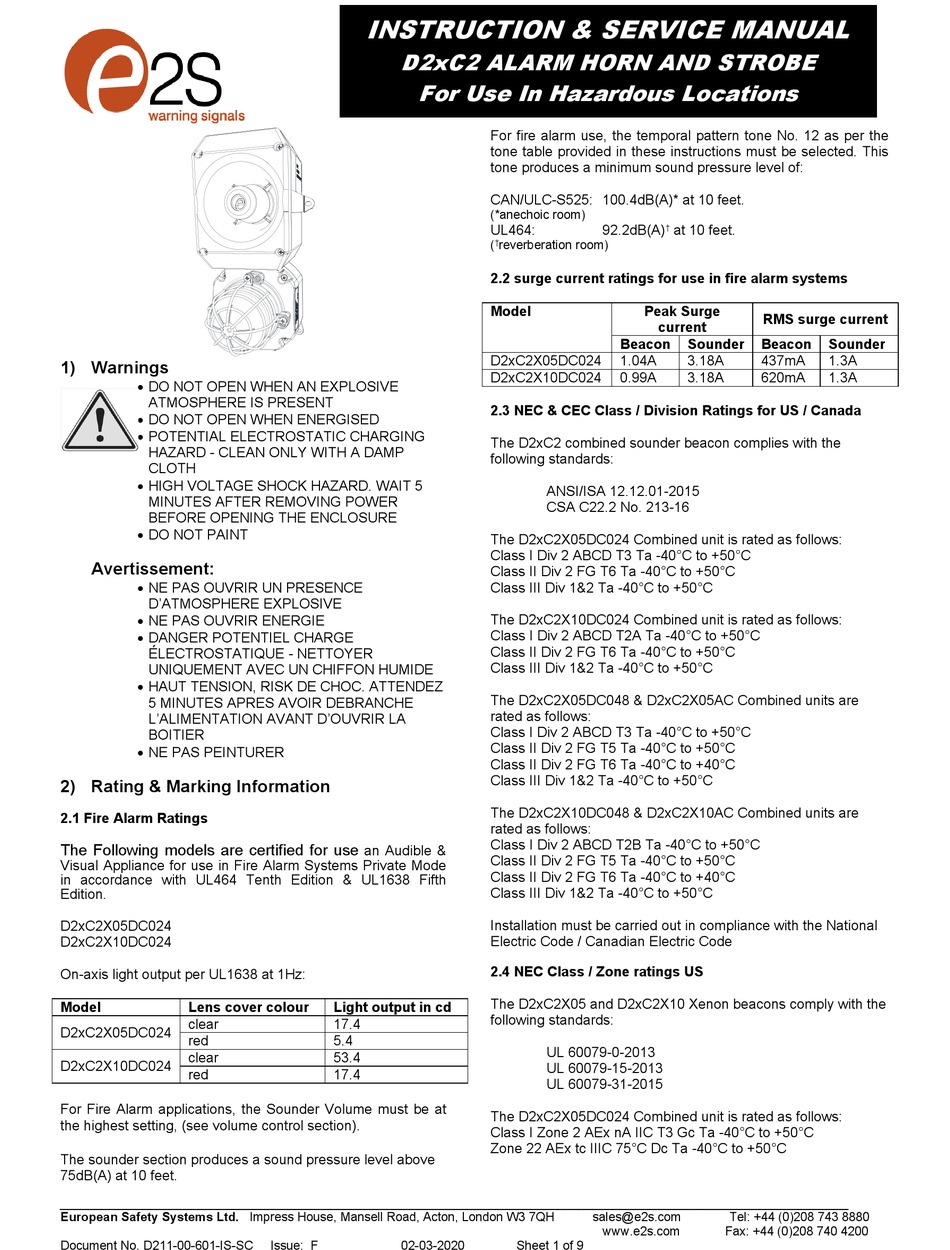

E2S D2 C2X05DC024 Series Instructions/Service Manual

1) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGISED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
 HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
 DO NOT PAINT
Avertissement:
 NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
 NE PAS OUVRIR ENERGIE
 DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
 HAUT TENSION, RISK DE CHOC. ATTENDEZ
5 MINUTES APRES AVOIR DEBRANCHE
L'ALIMENTATION AVANT D'OUVRIR LA
BOITIER
 NE PAS PEINTURER
2) Rating & Marking Information
2.1 Fire Alarm Ratings
The Following models are certified for use
Visual Appliance for use in Fire Alarm Systems Private Mode
in accordance with UL464 Tenth Edition & UL1638 Fifth
Edition.
D2xC2X05DC024
D2xC2X10DC024
On-axis light output per UL1638 at 1Hz:
Model Lens cover colour
clear
D2xC2X05DC024
red
clear
D2xC2X10DC024
red
For Fire Alarm applications, the Sounder Volume must be at
the highest setting, (see volume control section).
The sounder section produces a sound pressure level above
75dB(A) at 10 feet.
__________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-601-IS-SC
INSTRUCTION & SERVICE MANUAL
D2xC2 ALARM HORN AND STROBE
For Use In Hazardous Locations
an Audible &
Light output in cd
17.4
5.4
53.4
17.4
Issue: F 02-03-2020
For fire alarm use, the temporal pattern tone No. 12 as per the
tone table provided in these instructions must be selected. This
tone produces a minimum sound pressure level of:
CAN/ULC-S525: 100.4dB(A)* at 10 feet.
(*anechoic room)
UL464: 92.2dB(A)
†
†
( reverberation room)
2.2 surge current ratings for use in fire alarm systems
Model Peak Surge
current
Beacon
D2xC2X05DC024 1.04A
D2xC2X10DC024 0.99A
2.3 NEC & CEC Class / Division Ratings for US / Canada
The D2xC2 combined sounder beacon complies with the
following standards:
ANSI/ISA 12.12.01-2015
CSA C22.2 No. 213-16
The D2xC2X05DC024 Combined unit is rated as follows:
Class I Div 2 ABCD T3 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
The D2xC2X10DC024 Combined unit is rated as follows:
Class I Div 2 ABCD T2A Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
The D2xC2X05DC048 & D2xC2X05AC Combined units are
rated as follows:
Class I Div 2 ABCD T3 Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
The D2xC2X10DC048 & D2xC2X10AC Combined units are
rated as follows:
Class I Div 2 ABCD T2B Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
Installation must be carried out in compliance with the National
Electric Code / Canadian Electric Code
2.4 NEC Class / Zone ratings US
The D2xC2X05 and D2xC2X10 Xenon beacons comply with the
following standards:
UL 60079-0-2013
UL 60079-15-2013
UL 60079-31-2015
The D2xC2X05DC024 Combined unit is rated as follows:
Class I Zone 2 AEx nA IIC T3 Gc Ta -40°C to +50°C
Zone 22 AEx tc IIIC 75°C Dc Ta -40°C to +50°C
sales@e2s.com
www.e2s.com
Sheet 1 of 9
at 10 feet.
RMS surge current
Sounder Beacon Sounder
3.18A 437mA 1.3A
3.18A 620mA 1.3A
