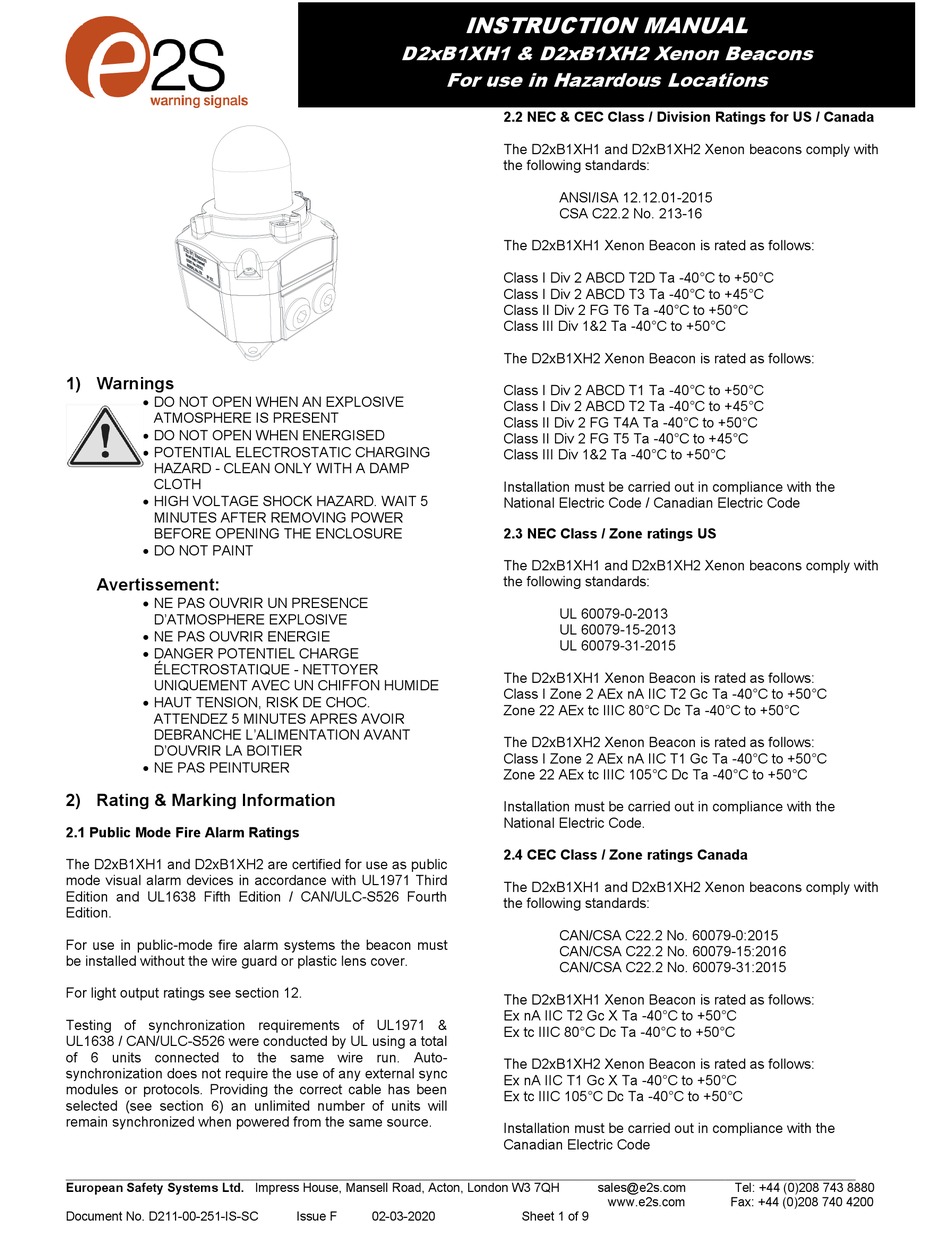

E2S D2xB1XH1 Instruction Manual

1) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGISED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
 HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
 DO NOT PAINT
Avertissement:
 NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
 NE PAS OUVRIR ENERGIE
 DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
 HAUT TENSION, RISK DE CHOC.
ATTENDEZ 5 MINUTES APRES AVOIR
DEBRANCHE L'ALIMENTATION AVANT
D'OUVRIR LA BOITIER
 NE PAS PEINTURER
2) Rating & Marking Information
2.1 Public Mode Fire Alarm Ratings
The D2xB1XH1 and D2xB1XH2 are certified for use as public
mode visual alarm devices in accordance with UL1971 Third
Edition and UL1638 Fifth Edition / CAN/ULC-S526 Fourth
Edition.
For use in public-mode fire alarm systems the beacon must
be installed without the wire guard or plastic lens cover.
For light output ratings see section 12.
Testing of synchronization requirements of UL1971 &
UL1638 / CAN/ULC-S526 were conducted by UL using a total
of 6 units connected to the same wire run. Auto-
synchronization does not require the use of any external sync
modules or protocols. Providing the correct cable has been
selected (see section 6) an unlimited number of units will
remain synchronized when powered from the same source.
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-251-IS-SC
INSTRUCTION MANUAL

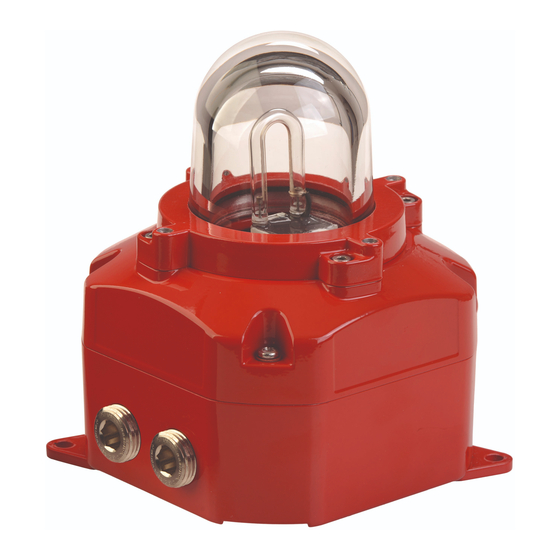

D2xB1XH1 & D2xB1XH2 Xenon Beacons
For use in Hazardous Locations
Issue F 02-03-2020
2.2 NEC & CEC Class / Division Ratings for US / Canada
The D2xB1XH1 and D2xB1XH2 Xenon beacons comply with
the following standards:
ANSI/ISA 12.12.01-2015
CSA C22.2 No. 213-16
The D2xB1XH1 Xenon Beacon is rated as follows:
Class I Div 2 ABCD T2D Ta -40°C to +50°C
Class I Div 2 ABCD T3 Ta -40°C to +45°C
Class II Div 2 FG T6 Ta -40°C to +50°C
Class III Div 1&2 Ta -40°C to +50°C
The D2xB1XH2 Xenon Beacon is rated as follows:
Class I Div 2 ABCD T1 Ta -40°C to +50°C
Class I Div 2 ABCD T2 Ta -40°C to +45°C
Class II Div 2 FG T4A Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +45°C
Class III Div 1&2 Ta -40°C to +50°C
Installation must be carried out in compliance with the
National Electric Code / Canadian Electric Code
2.3 NEC Class / Zone ratings US
The D2xB1XH1 and D2xB1XH2 Xenon beacons comply with
the following standards:
UL 60079-0-2013
UL 60079-15-2013
UL 60079-31-2015
The D2xB1XH1 Xenon Beacon is rated as follows:
Class I Zone 2 AEx nA IIC T2 Gc Ta -40°C to +50°C
Zone 22 AEx tc IIIC 80°C Dc Ta -40°C to +50°C
The D2xB1XH2 Xenon Beacon is rated as follows:
Class I Zone 2 AEx nA IIC T1 Gc Ta -40°C to +50°C
Zone 22 AEx tc IIIC 105°C Dc Ta -40°C to +50°C
Installation must be carried out in compliance with the
National Electric Code.
2.4 CEC Class / Zone ratings Canada
The D2xB1XH1 and D2xB1XH2 Xenon beacons comply with
the following standards:
CAN/CSA C22.2 No. 60079-0:2015
CAN/CSA C22.2 No. 60079-15:2016
CAN/CSA C22.2 No. 60079-31:2015
The D2xB1XH1 Xenon Beacon is rated as follows:
Ex nA IIC T2 Gc X Ta -40°C to +50°C
Ex tc IIIC 80°C Dc Ta -40°C to +50°C
The D2xB1XH2 Xenon Beacon is rated as follows:
Ex nA IIC T1 Gc X Ta -40°C to +50°C
Ex tc IIIC 105°C Dc Ta -40°C to +50°C
Installation must be carried out in compliance with the
Canadian Electric Code
