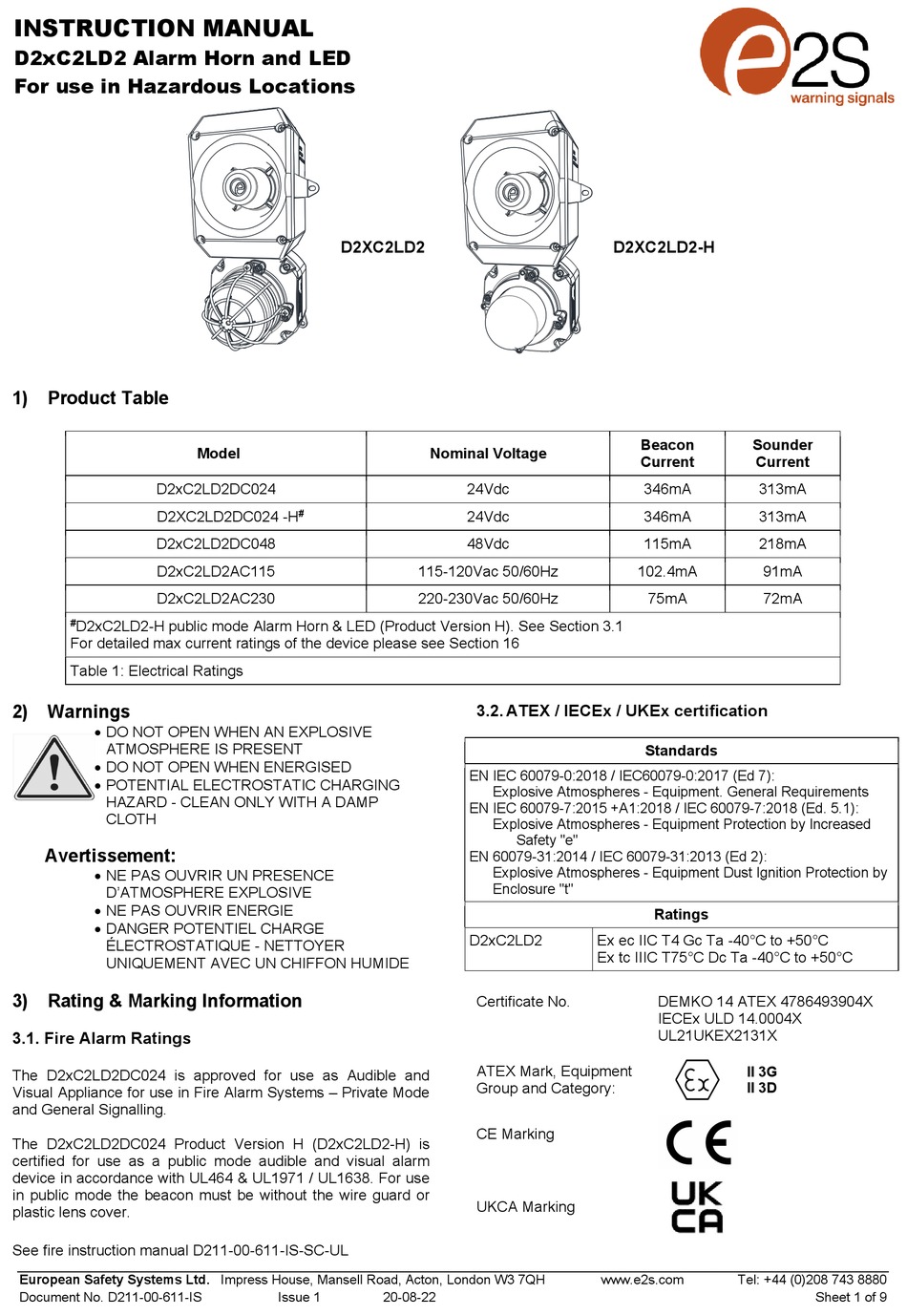

E2S D2xC2LD2 Series Instruction Manual

INSTRUCTION MANUAL

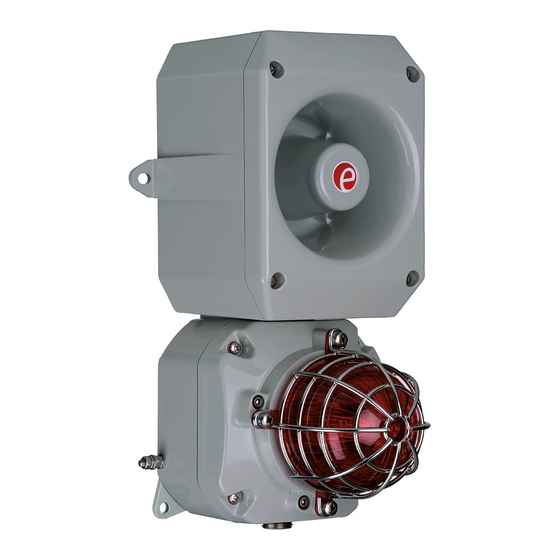

D2xC2LD2 Alarm Horn and LED
For use in Hazardous Locations
1) Product Table
D2xC2LD2DC024
D2XC2LD2DC024 -H
D2xC2LD2DC048
D2xC2LD2AC115
D2xC2LD2AC230
#
D2xC2LD2-H public mode Alarm Horn & LED (Product Version H). See Section 3.1
For detailed max current ratings of the device please see Section 16
Table 1: Electrical Ratings
2) Warnings
 DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
 DO NOT OPEN WHEN ENERGISED
 POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
Avertissement:
 NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
 NE PAS OUVRIR ENERGIE
 DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
3) Rating & Marking Information
3.1. Fire Alarm Ratings
The D2xC2LD2DC024 is approved for use as Audible and
Visual Appliance for use in Fire Alarm Systems – Private Mode
and General Signalling.
The D2xC2LD2DC024 Product Version H (D2xC2LD2-H) is
certified for use as a public mode audible and visual alarm
device in accordance with UL464 & UL1971 / UL1638. For use
in public mode the beacon must be without the wire guard or
plastic lens cover.
See fire instruction manual D211-00-611-IS-SC-UL
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-611-IS
D2XC2LD2
Model
#
Issue 1
Nominal Voltage
24Vdc
24Vdc
48Vdc
115-120Vac 50/60Hz
220-230Vac 50/60Hz
3.2. ATEX / IECEx / UKEx certification
EN IEC 60079-0:2018 / IEC60079-0:2017 (Ed 7):
Explosive Atmospheres - Equipment. General Requirements
EN IEC 60079-7:2015 +A1:2018 / IEC 60079-7:2018 (Ed. 5.1):
Explosive Atmospheres - Equipment Protection by Increased
Safety "e"
EN 60079-31:2014 / IEC 60079-31:2013 (Ed 2):
Explosive Atmospheres - Equipment Dust Ignition Protection by
Enclosure "t"
D2xC2LD2
Certificate No.
ATEX Mark, Equipment
Group and Category:
CE Marking
UKCA Marking
20-08-22
D2XC2LD2-H
Beacon Sounder
Current Current
346mA 313mA
346mA 313mA
115mA 218mA
102.4mA 91mA
75mA 72mA
Standards
Ratings
Ex ec IIC T4 Gc Ta -40°C to +50°C
Ex tc IIIC T75°C Dc Ta -40°C to +50°C
DEMKO 14 ATEX 4786493904X
IECEx ULD 14.0004X
UL21UKEX2131X
II 3G
II 3D
www.e2s.com Tel: +44 (0)208 743 8880
Sheet 1 of 9
