E2S D2xC3 Instruction Manual

INSTRUCTION MANUAL

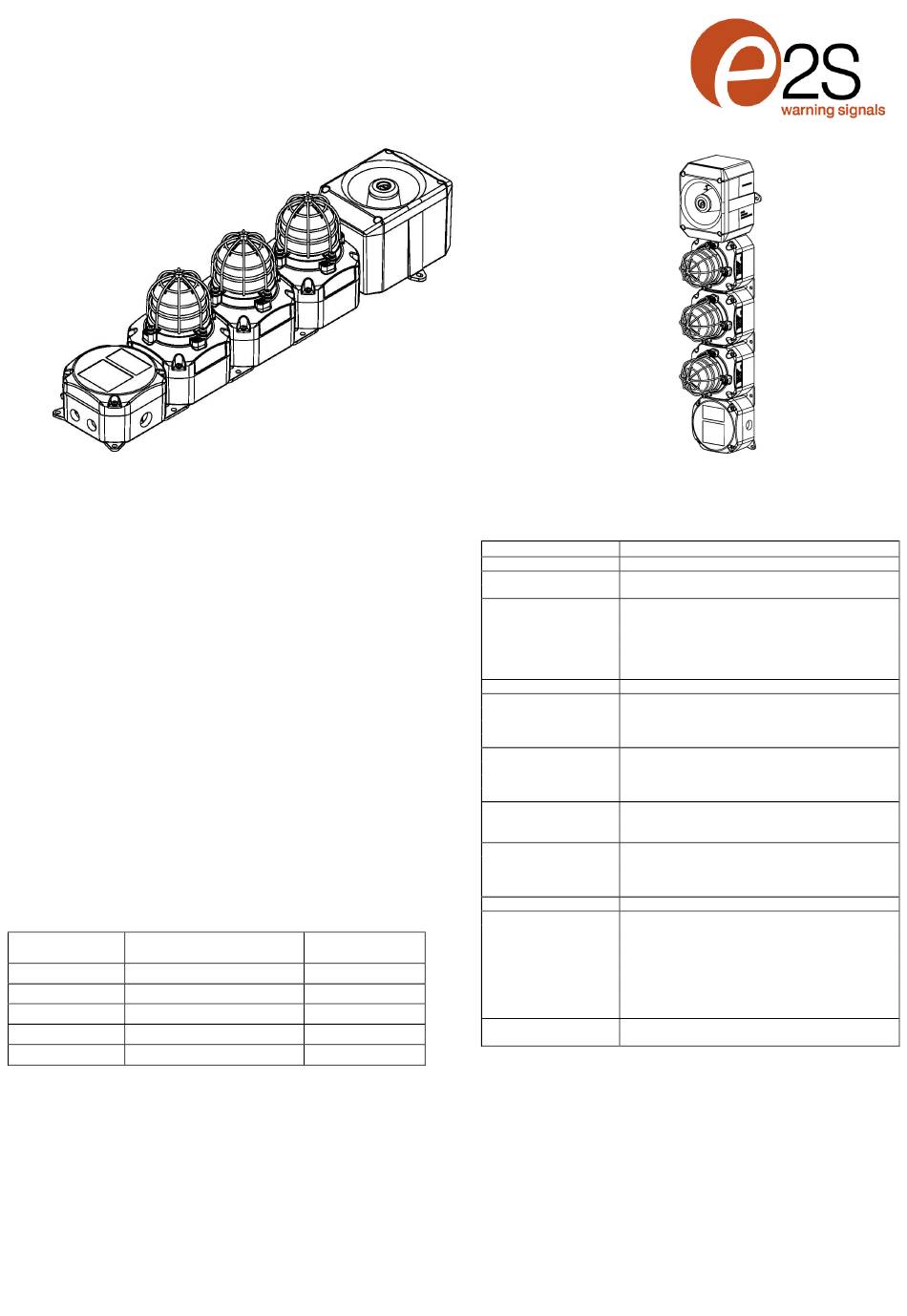

D2xC3 Alarm Bar
3 Beacons & Alarm Horn with Junction Box
1) Warnings
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
2) Rating & Marking Information
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
All individual unit ratings must be suitable for the installation.
3) Type Approval Standards
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
4) Installation Requirements
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
5) Special Conditions of Use
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
Component Component Description
Part Code Ref.
D2xB1X05 5J Xenon Beacon
D2xB1X10 10J Xenon Beacon
D2xB1LD2 Multifunction LED Beacon
D2xJ1 Junction Box
D2xS1 Alarm Horn
Table 1: Product Instruction Manual Reference
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D215-00-158-IS
Document
Number
D211-00-201-IS
D211-00-201-IS
D211-00-401-IS
D211-00-501-IS
D189-00-001-IS
Issue 6 25/02/2023
Beacon 3
Beacon 2
Beacon 1
6) Part Coding
Part Code:
Product Type
Junction Box
Beacon Type
(Add Code for each
Beacon in Alarm Bar)
Sounder
Voltage
Cable Entries [e]
Stopping Plug /
Adaptor Material [m]
Guard / Tag Material
[s]
Product Version [v]
Product Option [o]
Assembly Colour [x]
www.e2s.com
Sheet 1 of 4
Identifier - Description
D2xC3
J1 = Junction Box / Standard
J2 = Junction Box / With mounting plate
1Y = D2xB1X05
2Y = D2xB1X10
5Y = D2xB1LD2
Where Y = Lens Colour, choose from:
A = Amber, B = Blue, C = Clear, G = Green,
M = Magenta, R = Red, Y = Yellow
S1 = D2xS1 Sounder
DC024 = 24Vdc
DC048 = 48Vdc
AC115 = 115-120Vac 50/60Hz
AC230 = 220-230Vac 50/60Hz
A = 2 x M20
B = 2 x 1/2" NPT + 2 x 3/4" NPT
C = 2 x 3/4" NPT (Adaptors) + 2 x 3/4" NPT
D = 2 x M25 (Adaptors)
B = Brass
N = Nickel Plated
S = Stainless Steel
1 = 316 St.Steel Guard & 316 Tag
3 = 316 St.Steel Guard, 316 Tag & Duty Labels
5 = 316 St.Steel Guard, 316 Tag & Duty Labels
attached by steel wire
A = ATEX / IECEx / UL / cUL
1 = Standard Wiring (Positive Switching)
2 = Independent Wiring (Positive Switching)
3 = Alt. Standard Wiring (Negative Switching)
4 = Independent Wiring (Negative Switching)
5 = Beacons & Sounder Linked w/ Line Monitoring
6 = Independent Wiring w/ Line Monitoring
W = Special Wiring
X = Special Configuration
R = Red, G = Grey
Other colours also possible, contact E2S sales
