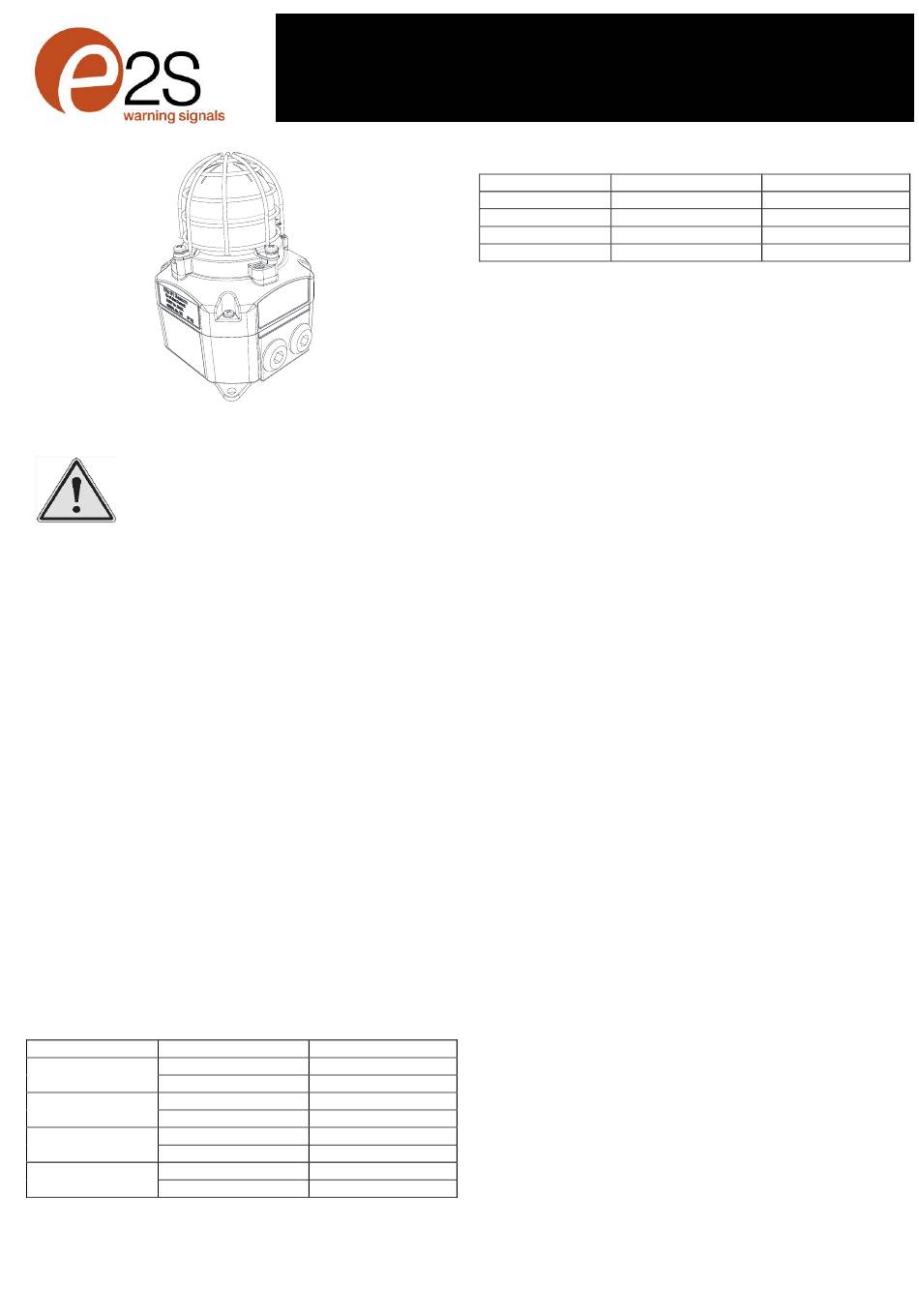

E2S D2xB1X05 Series Instruction Manual

1) Warnings
• DO NOT OPEN WHEN AN EXPLOSIVE
ATMOSPHERE IS PRESENT
• DO NOT OPEN WHEN ENERGISED
• POTENTIAL ELECTROSTATIC CHARGING
HAZARD - CLEAN ONLY WITH A DAMP
CLOTH
• HIGH VOLTAGE SHOCK HAZARD. WAIT 5
MINUTES AFTER REMOVING POWER
BEFORE OPENING THE ENCLOSURE
Avertissement:
• NE PAS OUVRIR UN PRESENCE
D'ATMOSPHERE EXPLOSIVE
• NE PAS OUVRIR ENERGIE
• DANGER POTENTIEL CHARGE
ÉLECTROSTATIQUE - NETTOYER
UNIQUEMENT AVEC UN CHIFFON HUMIDE
• HAUT TENSION, RISK DE CHOC.
ATTENDEZ 5 MINUTES APRES AVOIR
DEBRANCHE L'ALIMENTATION AVANT
D'OUVRIR LA BOITIER
2) Rating & Marking Information
2.1 Fire Alarm Ratings
The Following models are certified as visual alarm devices
for fire alarm use – private mode when used with clear or red
lens covers:
D2xB1X05DC024 / D2xB1X05DC048
D2xB1X10DC024 / D2xB1X10DC048
On-axis light output per UL1638:
Model Lens cover colour
clear
D2xB1X05DC024
red
clear
D2xB1X05DC048
red
clear
D2xB1X10DC024
red
clear
D2xB1X10DC048
red
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D211-00-201-IS-SC

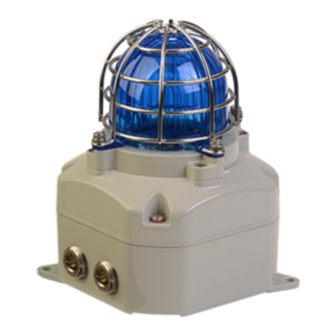

D2xB1X05 & D2xB1X10 Xenon Beacons
For use in Hazardous Locations
Light output in cd
22.2
9.2
30
12
73.8
20.4
82
26
Issue B 27-09-17
INSTRUCTION MANUAL
2.2 surge current ratings for use in fire alarm systems
Model Peak Surge current
D2xB1X05DC024 5.86A
D2xB1X05DC048 12.7A
D2xB1X10DC024 6.2A
D2xB1X10DC048 14.5A
2.3 NEC & CEC Class / Division Ratings for US / Canada
The D2xB1X05 and D2xB1X10 Xenon beacons comply with
the following standards:
ANSI/ISA 12.12.01-2015
CSA C22.2 No. 213-16
The D2xB1X05 Xenon Beacon is rated as follows:
Class I Div 2 ABCD T3 Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
The D2xB1X10 Xenon Beacon is rated as follows:
Class I Div 2 ABCD T2B Ta -40°C to +50°C
Class II Div 2 FG T5 Ta -40°C to +50°C
Class II Div 2 FG T6 Ta -40°C to +40°C
Class III Div 1&2 Ta -40°C to +50°C
Installation must be carried out in compliance with the
National Electric Code / Canadian Electric Code
2.4 NEC Class / Zone ratings US
The D2xB1X05 and D2xB1X10 Xenon beacons comply with
the following standards:
UL 60079-0-2013
UL 60079-15-2013
UL 60079-31-2015
The D2xB1X05 Xenon Beacon is rated as follows:
Class I Zone 2 AEx nA IIC T3 Gc Ta -40°C to +50°C
Zone 22 AEx tc IIIC 95°C Dc Ta -40°C to +50°C
The D2xB1X10 Xenon Beacon is rated as follows:
Class I Zone 2 AEx nA IIC T2 Gc Ta -40°C to +50°C
Zone 22 AEx tc IIIC 95°C Dc Ta -40°C to +50°C
Installation must be carried out in compliance with the
National Electric Code.
sales@e2s.com
www.e2s.com
Sheet 1 of 6
RMS surge current
745mA
1.45A
871mA
780mA
