User Manual
---Apply to WL-R210 Series 3G/4G Router
V1.3
http://www.wlink-tech.com
April, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-R210 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WLINK WL-R210 Series

Summary of Contents for WLINK WL-R210 Series

  • Page 1 User Manual ---Apply to WL-R210 Series 3G/4G Router V1.3 http://www.wlink-tech.com April, 2016...
  • Page 2 Due to product updates or functional upgrading, we may renew the content of this file, and this file only for reference. All statement, information, suggestion.etc in this file does not compose any form of guarantee and we WLINK reserves the right of final explanation. Shenzhen WLINK Technology Company Limited Add：...

  • Page 3: Table Of Contents

    WL-R210 Series Router User Manual Contents 1 Product Introduction ........................4 1.1 Product overview......................4 1.2 Model introduction......................4 1.3 Product Appearance ......................6 1.4 Typical Application Diagram ................... 6 1.5 Features ..........................7 2 Hardware Installation ........................8 2.1 Panel: ..........................8 2.2 LED Status ........................
  • Page 4 WL-R210 Series Router User Manual 3.9 Appendix (For advanced optional features only) ............49 www.wlink-tech.com...

  • Page 5: Product Introduction

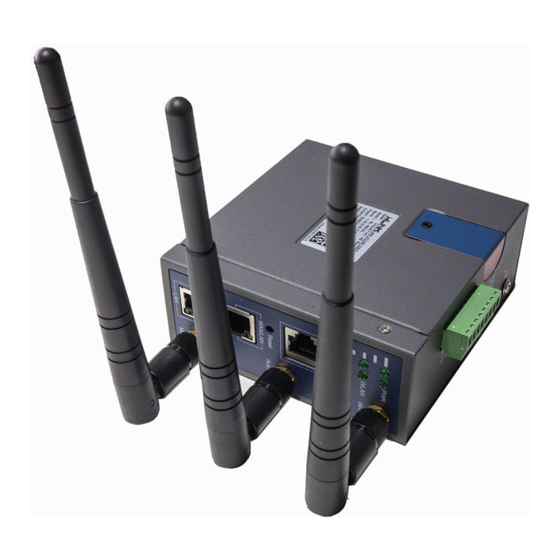

    Model introduction WLINK industrial grade router series have single module / single SIM card, single module / double SIM card, double module / double SIM card design, support multi-band frequency WCDMA, HSPA+, 4G FDD/TDD etc., and downward compatibility to GPRS、EDGE、...
  • Page 6 WL-R210 Series Router User Manual Table 1-1 Router partial model table www.wlink-tech.com...

  • Page 7: Product Appearance

    WLINK 4G/3G Router are widely used in Telecom, economic, advertisement, traffic, environment protection business area. For example, in economic area, WL-R210 Series Router connect server by IPSec & GRE to ensure data security, tiny design makes it easily installed into ATM machine. All these...

  • Page 8: Features

    WL-R210 Series Router User Manual Figure 1-1 Network Topology Features  Various cellular module optional, LTE/HSPA+/EVDO/CDMA2000 optional  Support IEEE802.11b/g/n Wi-Fi AP function, extended support to Wi-Fi terminal, WDS bridging, support WEP, WPA/WPA2 Personal/Enterprise, TKIP/AES, etc., Authenticated encryption mode ...

  • Page 9: Hardware Installation

    WL-R210 Series Router User Manual Hardware Installation This chapter is mainly for installation introduction, there would be some difference between the scheme and real object. But the difference won’t have any influence to products performance. Panel: Table 2-1 WL-R210 Structure WLINK Tech.

  • Page 10: Led Status

    WL-R210 Series Router User Manual Table 2-2 Router Interface Instruction Remark Port USIM Plug type SIM Slot, support 1.8/3V/5V automatic detection. 3G/LTE antenna, SMA connector, 50Ω. Main Aux/GPS Optional for LTE MIMO antenna or GPS Optional antenna ,SMA connector, 50Ω.

  • Page 11: How To Install

    WL-R210 Series Router User Manual silk-screen status Indication Green Blinking Data in transmitting. Green Dark Disconnection. There are some difference in the LED indicator of the router with expanded Wi-Fi, GPS function and single module/double SIM. Dimension Figure 2-2 R210 Series Router Dimension How to Install 2.4.1 SIM/UIM card install...

  • Page 12: Serial Port Connection

    If you want to connect the router via serial port to laptop or other devices, you should prepare a serial port or RJ45 cable, this cable is optional available from WLINK. One end connect to computer serial port, the other end connects to the console port of the router Before connecting, please disconnect any power resource.

  • Page 13: Router Configuration

    WL-R210 Series Router User Manual Router Configuration This Chapter introduces the parameter configuration of the router, the router can be configured via web internet explorer, Firefox, or chrome. Here we take GUIs 7 system and Internet Explorer 9.0 as sample.

  • Page 14: Basic Configuration

    WL-R210 Series Router User Manual User should use the default user name and password when log in for the first time Figure 3-4 User Identify Interface ----END Basic Configuration Different software version have different web configuration interface, here take R210 2.6.0.1 version as example.
  • Page 15 WL-R210 Series Router User Manual Figure 3-5 Router Status GUI 3.2.1 Cellular Network Configure Step 1 Single Click Basic Network-> Cellular, you can modify relevant parameter according to the application. www.wlink-tech.com...
  • Page 16 WL-R210 Series Router User Manual Figure 3-1 Dual SIM GUI Table 3-1 Cellular Instruction Parameter Instruction Enable Enable SIM card dial ICMP check To enable or disable ICMP check rules. Enable the ICMP check and setup a reachable IP address as destination IP. Once ICMP check failed, router will switch SIM card.

  • Page 17: Lan Setting

    WL-R210 Series Router User Manual router will implement fail action as you configured.. The Check IP is an public IP or company server IP address. 【Cellular Traffic Check】 【Check Mode】there are Rx(Receive), Tx(Transmission) and Rx/Tx check modes. 【Rx】 Router will check the 3G/LTE cellular receiver traffic. If no receiver traffic within the defined check interval, the router will implement the specified action reconnect or reboot.
  • Page 18 WL-R210 Series Router User Manual Figure 3-2 LAN Setting GUI Table 3-2 LAN Setting Instruction Parameter Instruction Router IP Address Router IP address, default IP is 192.168.1.1 Subnet Mask Router subnet mask, default mask is 255.255.255.0 DHCP Dynamic allocation IP service, after enable, it will show the...

  • Page 19: Dynamic Dns Setting

    Table 3-3 DDNS Setting Instruction parameter Instruction Default is standard DDNS protocol, for customized protocol, please IP address contact Wlink engineer. Usually, use default IP 0.0.0.0 Auto refresh Set the interval of the DDNS client obtains new IP, suggest 240s or time above Service Select the DDNS service provider that listed.

  • Page 20: Wlan Setting

    WL-R210 Series Router User Manual Figure 3-4 Routing Setting Table 3-4 Routing Setting Instruction Parameter Instruction Destination Router can reach the destination IP address. Gateway Next hop IP address which the router will reach Subnet Mask Subnet mask for destination IP address...
  • Page 21 WL-R210 Series Router User Manual Figure 3-5 WLAN Basic Settings GUI Table 3-5 Basic Setting Instruction Parameter Instruction Enable wireless Enable or Disable the Wireless Wireless mode Support AP, AP+WDS, Bridge, Client, WDS Wireless Network Support Auto, IEEE 11b/g/n selectable...
  • Page 22 WL-R210 Series Router User Manual Figure 3-6 Wireless Client Filter Setting GUI The Wireless Filter enable to set the permitted client or prohibit the specific client to connect the Wi-Fi, However, this feature is invalid for wired connection application. Table 3-6 ”Wireless Client Filter” Setting Instruction...

  • Page 23: Advanced Network Setting

    WL-R210 Series Router User Manual Figure 3-7 Wireless Survey Setting GUI ----End Advanced Network Setting 3.4.1 Port Forwarding Step 1 Please click “Advanced Network > Port Forwarding” to enter the GUI, you may modify the router name, Host name and Domain name according to the application requirement.

  • Page 24: Dmz Setting

    WL-R210 Series Router User Manual 3.4.2 DMZ Setting Step 1 Please click “Advanced Network> DMZ” to check or modify the relevant parameter. Figure 3-9 DMZ GUI Table 3-8 “DMZ” Instruction parameter Instruction Destination The destination address inside the LAN. Address Source If no IP address inside, it will allow all IP address to access.

  • Page 25: Firewall Setting

    WL-R210 Series Router User Manual Figure 3-10 Triggered GUI Table 3-9 “Triggered” Instruction parameter Instruction Protocol Support UDP, TCP, both UDP and TCP Triggered Ports Trigger Ports are the initial LAN to WAN "trigger". Transferred Forwarded Ports are the WAN to LAN ports that are Ports opened if the "trigger"...
  • Page 26 WL-R210 Series Router User Manual Figure 3-11 Firewall Setting GUI Table 3-10 “Firewall” Instruction Parameter Instruction Applies To White list. Blocked Black list. Resources Step 2 Please click ”save” to finish. 3.4.5 Serial App. Setting Step 1 Please click “Advanced Network> Serial App” to check or modify the relevant parameter.
  • Page 27 WL-R210 Series Router User Manual Figure 3-12 Serial App Setting GUI Table 3-11 “Serial App” Instruction Parameter Instruction Serial to TC/IP Support Disable, Server and Client mode. Such as Client. mode Server IP/Port IP address and domain name are acceptable for Server IP...
  • Page 28 WL-R210 Series Router User Manual 3.4.6 UPnp/NAT-PMP Setting Step 1 Please click “Advanced Network> Upnp/NAT-PMP” to check or modify the relevant parameter. Figure 3-13 UPnp/NAT-PMP Setting GUI Step 2 Please click ”save” to finish. 3.4.7 Static DHCP Setting Step 1 Please click “Advanced Network> Static DHCP” to check or modify the relevant parameter.

  • Page 29: Vpn Tunnel

    WL-R210 Series Router User Manual Figure 3-14 Static DHCP Setting GUI Step 2 Please click ”save” to finish. VPN Tunnel 3.5.1 GRE Setting Step 1 Please click “VPN Tunnel> GRE” to check or modify the relevant parameter. Figure 3-15 GRE Setting GUI Table 3-12 “GRE”...
  • Page 30 WL-R210 Series Router User Manual Parameter Instruction Tunnel Destination GRE Remote IP address. Usually a public IP address Keep alive GRE tunnel keep alive to keep GRE tunnel connection. Interval Keep alive interval time. Retries Keep alive retry times. After retry times, GRE tunnel will be re-established.
  • Page 31 WL-R210 Series Router User Manual parameter Instruction Server Address VPN Server IP address. User name As the configuration requested. Password As the configuration requested. Encryption As the configuration requested. Stateless As the configuration requested. MPPE Accept DNS As the configuration requested.
  • Page 32 WL-R210 Series Router User Manual Table 3-14 “ IPSec Group Setup” Instruction parameter Instruction IPSec Support Standard IPSec, GRE over IPSec, L2TP over Extensions IPSec Local Security Defined the IPSec security interface Interface Local IPSec local subnet and mask. Subnet/Mask...
  • Page 33 WL-R210 Series Router User Manual Table 3-15 “ IPSec Basic Setup” Instruction parameter Instruction Keying Mode IKE preshared key Phase 1 DH Select Group1, Group2, Group5 from list. It must be Group matched to remote IPSec setting. Phase 1 Support 3DES, AES-128, AES-192, AES-256...

  • Page 34: Administration

    WL-R210 Series Router User Manual Table 3-16 “ IPSec Advanced Setup” Instruction parameter Instruction Aggressive Default for main mode Mode ID Payload Enable ID Payload compress Compress To enable DPD service ICMP ICMP Check for IPSec tunnel IPSec Custom IPSec advanced setting such as left/right ID.
  • Page 35 WL-R210 Series Router User Manual Figure 3-16 Router Identification GUI Table 3-17 “Router Identification” Instruction Parameter Instruction Router name Default is router, can be set maximum 32 character Host name Default is router, can be set maximum 32 character Domain name...

  • Page 36: Time Setting

    WL-R210 Series Router User Manual 3.6.2 Time Setting Step 1 Please click “Administrator> time” to check or modify the relevant parameter. Figure 3-17 System Configuration GUI If the device is online but time update is fail, please try other NTP Time Server.
  • Page 37 WL-R210 Series Router User Manual 3.6.3 Admin Access Setting Step 1 Please click “Administrator>Admin” to check and modify relevant parameter. In this page, you can configure the basic web parameter, make it more convenient for usage. Please note the “password” is the router system account password.

  • Page 38: Snmp Setting

    WL-R210 Series Router User Manual 3.6.4 Schedule Reboot Setting Step 1 Please click “Administrator>Schedule Reboot” to check and modify relevant parameter. Figure 3-19 Scheduler Reboot Setting GUI Step 2 Please click save iron to finish the setting ----End 3.6.5 SNMP Setting Step 1 Please click “Administrator>SNMP”...
  • Page 39 WL-R210 Series Router User Manual Figure 3-20 SNMP Setting GUI Step 2 Please click save iron to finish the setting ----End 3.6.6 M2M Access Setting (Apply to M2M Management Platform installation application only) Step 1 Please click “Administrator>M2M Access” to check and modify relevant parameter.
  • Page 40 WL-R210 Series Router User Manual Figure 3-21 M2M Access Setting GUI Step 2 Please click save iron to finish the setting ----End 3.6.7 DI/DO Setting Step 1 Please click “Administrator>DI/DO Setting” to check and modify relevant parameter. Figure 3-22 DI/DO Setting GUI 3.6.7.1 DI Configure...
  • Page 41 WL-R210 Series Router User Manual Table 3-18 “DI” Instruction Parameter Instruction Enable Enable DI. Port1 is for I/O1 and Port2 is I/O2. Both I/O1 and I/O2 are DI ports Mode Selected from OFF, ON and EVENT_COUNTER modes. OFF Mode: When I/O connects to GND, it will trigger alarm.
  • Page 42 WL-R210 Series Router User Manual Parameter Instruction switches and counts events according to the ON/OFF status. When LO_TO_HI is selected, the counter value increase when the attached switch is pushed. When HI_TO_LO is selected, the counter value increases when the switch is pushed and released.
  • Page 43 WL-R210 Series Router User Manual Parameter Instruction receiving SMS from the number in phone book. M2M Control: it’s not ready. Alarm Action Digital Output initiates when there is an alarm. Selected from “OFF”, “ON”, “Pulse”. OFF: Open from GND when triggered.
  • Page 44 WL-R210 Series Router User Manual 3.6.8 Configuration Setting Step 1 Please click “ Administrator> Configuration ” to do the backup setting Figure 3-23 Backup and Restore Configuration GUI Restore Default would lose all configuration information, please be careful. Step 2 After setting the backup and restore configuration. The system will reboot automatically.

  • Page 45: System Log Setting

    WL-R210 Series Router User Manual 3.6.9 System Log Setting Step 1 Please click “Administrator> Logging” to start the configuration, you can set the file path to save the log (Local or remote sever). Figure 3-24 System log Setting GUI Step 2 After configure, please click “Save” to finish.

  • Page 46: Debugging Setting

    WL-R210 Series Router User Manual 3.6.10 Firmware upgrade Step 1 Please click “Administrator>firmware upgrade” to open upgrade firmware tab. Figure 3-25 Firmware Upgrade GUI When upgrading, please don’t cut off the power. 3.6.11 System Reboot Step 1 Please click “Administrator>Reboot” to restart the router. System will popup dialog to remind “Yes”...
  • Page 47 WL-R210 Series Router User Manual Figure 3-26 Logs GUI ----End 3.7.2 Ping Setting Step 1 Please click “Debugging>Ping” to check and modify relevant parameter. Figure 3-27 Ping GUI ----End 3.7.3 Trace Setting Step 1 Please click “Debugging>Trace” to check and modify relevant parameter.
  • Page 48 WL-R210 Series Router User Manual Figure 3-28 Trace GUI ----End www.wlink-tech.com...

  • Page 49: Reset" Button For Restore Factory Setting

    WL-R210 Series Router User Manual “Reset” Button for Restore Factory Setting If you couldn’t enter web interface for other reasons, you can also use this way. “Reset” button is near to Console port in WL-R210 panel, This button can be used when the router is in use or when the router is turned on.

  • Page 50: Gps Setting

    WL-R210 Series Router User Manual Appendix (For advanced optional features only) 3.9.1 GPS Setting Step 1 Please click “Advanced Network> GPS” to view or modify the relevant parameter. Figure 3-29 GPS Setting GUI Table 3-21 “GPS” Instruction parameter Instruction GPS Mode...
  • Page 51 WL-R210 Series Router User Manual 2. Example 0001_R081850ac,150904,043215.0,06,2234.248130,N,11356.626179,E,0.0,91.5,1,1.2,9 3. GPS data description Field Name Format Example Description Router ID String 0001_R081850 0001 customizable product router indicator. 081850ac Last 8digits of routers MAC address. gps_date yymmdd 150904 Date in year,month,day gps_time hhmmss.ss...
