- Page 1 User Manual ---Apply to WL-R100 Series Industrial 3G/4G Router V1.0 http://www.wlink-tech.com April, 2016...
- Page 2 Due to product updates or functional upgrading, we may renew the content of this file, and this file only for reference. All statement, information, suggestion.etc in this file does not compose any form of guarantee and we WLINK reserves the right of final explanation. Shenzhen WLINK Technology Company Limited Add：...
-
Page 3: Table Of Contents
2.4 How to Install ........................9 3 Router Configuration ......................... 11 3.1 Local Configure ......................11 3.2 Basic Configuration......................12 3.3 Advanced Network Setting ................... 17 3.4 Firewall ..........................25 3.5 VPN Tunnel ........................26 3.6 Administration ......................... 32 3.7 Debugging Setting ......................40 www.wlink-tech.com... - Page 4 R100 Industrial Cellular Router User Manual 3.8 “RST” Button for Restore Factory Setting ..............43 3.9 Appendix (For advanced optional features only) ............44 www.wlink-tech.com...
-
Page 5: Product Introduction
Model introduction WLINK industrial grade router series have single module / single SIM card, single module / double SIM card, double module / double SIM card design, support multi-band frequency WCDMA, HSPA+, 4G FDD/TDD etc., and downward compatibility to GPRS、EDGE、... -
Page 6: Product Appearance
Typical Application Diagram WLINK 4G/3G Router widely used in Telecom, economic, advertisement, traffic, environment protection business area. For example, in economic area, R100 Series Router connect server by IPSec & GRE to ensure data security, tiny design makes it could installed into ATM machine. All these technology ensured safe and reliable data transmission, and minimize the probability of network disconnection, and maximize the usability of economic business like ATM, POS .etc. -
Page 7: Features
R100 Industrial Cellular Router User Manual Figure 1-1 Network Topology WLINK industrial router is based on mobile wireless public network or private network, build wireless data channel in mature network, to lower down the cost of wireless data transmission and technique. -
Page 8: Hardware Installation

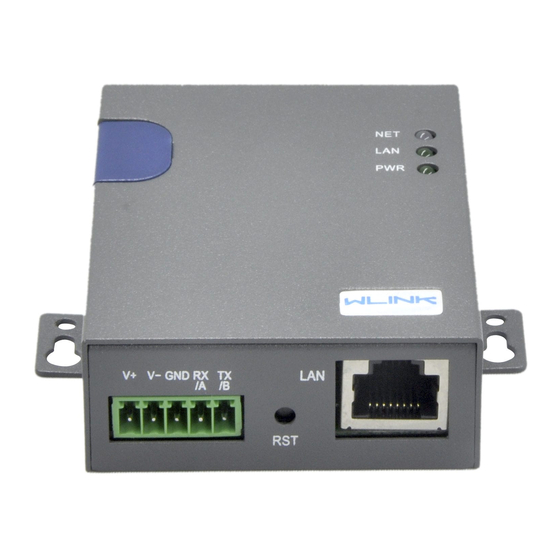

This chapter is mainly for installation introduction, there would be some difference between the scheme and real object. But the difference doesn’t have any influence to products performance. Panel Table 1-1 WL-R100 -Structure WLINK Tech R100 series Front Rear There are some different for Antenna interface and indicator light for the expanded GPS series. -
Page 9: Led Status
Strong Signal Orange Normal Signal Weak Signal Solid light Connected 4G successfully Blinking Dialing quickly(0.5s) Green Solid light Connected Green Blinking Data Sending Green Dark Not connected Green Solid light Router OS is running. Table 2-2 Router LED indictor Status www.wlink-tech.com... -
Page 10: Dimension
R100 Industrial Cellular Router User Manual Dimension Figure 2-2 WL-R100 Series Router Dimension Figure How to Install 2.4.1 SIM/UIM card install If use dual SIM/UIM card router, you may need insert dual SIM before configure it. After installation, please follow below steps to connect the router. -
Page 11: Power Supply
R100 Industrial Cellular Router User Manual Before connecting, please disconnect any power resource of router 2.4.4 Power Supply In order to get high reliability, WLINK Series Router adapt supports wide voltage input range: +7.5V～+32VDC, support hot plug and complex application environment. 2.4.5 Review After insert the SIM/UIM card, connect Ethernet cable and necessary antenna, connect power cable. -
Page 12: Router Configuration
Step 2 Obtain a IP address automatically or set up IP address,192.168.1.xxx(XXX can be any number between 2～254) Step 3 Run an Internet Explorer and visit “http://192.168.1.1/”, to enter identify page. User should use the default user name and password when log in for the first time www.wlink-tech.com... -
Page 13: Basic Configuration
Different software version have different web configuration interface, below take WL-R100 as example. After access the WEB interface, you can check the current status of Router, or modify router configuration via web interface, below is the introduction for the common setting. www.wlink-tech.com... - Page 14 There is Rx/Tx as options. Once no Rx/Tx data, router will router will reconnect/reboot system as options. Connect Mode Keep alive (Auto-online).The router will automatically connect 3G/4G network and keep online. Connect On Demand. Idle offline if no data from LAN to 3G/4G within defined time. www.wlink-tech.com...
- Page 15 The ICMP Check IP is a public IP or company server IP address. 【Cellular Traffic Check】 【Check Mode】there are Rx(Receive), Tx(Transmission) and Rx/Tx check modes. 【Rx】 Router will check the 3G/LTE cellular receiver traffic. If no receiver traffic within the defined check interval, the router will implement the specified action reconnect www.wlink-tech.com...
-
Page 16: Lan Setting
Dynamic allocation IP service, after enable, it will show the IP address range and options of lease IP Address Range IP address range within LAN Lease The valid time Step 2 After setting, please click “save” to finish, the device will reboot. ----End www.wlink-tech.com... -
Page 17: Dynamic Dns Setting
Table 3-3 DDNS Setting Instruction parameter Instruction Default is standard DDNS protocol, for customized protocol, please IP Address contact Wlink engineer. Usually, use default IP 0.0.0.0 Auto refresh Set the interval of the DDNS client obtains new IP, suggest 240s or time above Service Select the DDNS service provider that listed. -
Page 18: Advanced Network Setting
Step 2 Please Click “ Save “ to finish. Advanced Network Setting 3.3.1 Port Forwarding Step 1 Please click “Advanced Network > Port Forwarding” to enter the GUI, you may modify the router name, Host name and Domain name according to the application requirement. www.wlink-tech.com... - Page 19 Step 2 Please click ”save” to finish ----End 3.3.2 Port Redirecting Step 1 Please click “Advanced Network > Port Redirecting” to enter the GUI, you may modify the router name, Host name and Domain name according to the application requirement. www.wlink-tech.com...
-
Page 20: Dmz Setting
The redirecting IP address. Ext. Ports External port for redirection. Description Remark the rule Step 2 Please click ”save” to finish ----End 3.3.3 DMZ Setting Step 1 Please click “Advanced Network> DMZ” to check or modify the relevant parameter. www.wlink-tech.com... - Page 21 If define IP address, it will just allow the defined IP address Restriction to access. Leave Remote Access Step 2 Please click ”save” to finish ----End 3.3.4 Triggered Setting Step 1 Please click “Advanced Network> Triggered” to check or modify the relevant parameter. www.wlink-tech.com...
- Page 22 Port triggering opens an incoming port when your computer is using a specified outgoing port for specific traffic. Step 2 Please click ”save” to finish. ----End 3.3.5 Serial App. Setting Step 1 Please click “Advanced Network> Serial App” to check or modify the relevant parameter. www.wlink-tech.com...
- Page 23 Send heart beat to the defined server to keep router online. Content Meantime, it’s convenient to monitor router from server. Heart beat Heart beat interval time Interval Baud Rate 115200 as default Parity Bit None as default Data Bit 8bit as default Stop Bit 1bit as default www.wlink-tech.com...
- Page 24 Step 1 Please click “Advanced Network> Upnp/NAT-PMP” to check or modify the relevant parameter. Figure 3-10 UPnp/NAT-PMP Setting GUI Step 2 Please click ”save” to finish. 3.3.7 Bandwidth Control Setting Step 1 Please click “Advanced Network> Static DHCP” to check or modify the relevant parameter. www.wlink-tech.com...
- Page 25 Step 1 Please click “Advanced Network> Static DHCP” to check or modify the relevant parameter. Figure 3-12 VRRP Setting GUI Step 2 Please click ”save” to finish. 3.3.9 Static DHCP Setting Step 1 Please click “Advanced Network> Static DHCP” to check or modify the relevant www.wlink-tech.com...
-
Page 26: Firewall
R100 Industrial Cellular Router User Manual parameter. Figure 3-13 Static DHCP Setting GUI Step 2 Please click ”save” to finish. Firewall 3.4.1 IP/URL Filtering Step 1 Please click “Firewall> IP/URL Filtering” to check or modify the relevant parameter. www.wlink-tech.com... -
Page 27: Vpn Tunnel
Support black list and white list Local IP Local IP address for LAN. Address Domain Support Domain filter. Step 2 Please click ”save” to finish. VPN Tunnel 3.5.1 GRE Setting Step 1 Please click “VPN Tunnel> GRE” to check or modify the relevant parameter. www.wlink-tech.com... - Page 28 Keep alive retry times. After retry times, GRE tunnel will be re-established. Description Step 2 Please click ”save” to finish. 3.5.2 VPN Client Setting Step 1 Please click “VPN Tunnel> VPN Client” to check or modify the relevant parameter. www.wlink-tech.com...
- Page 29 MPPE Accept DNS As the configuration requested. Remote Subnet As the configuration requested. Create NAT on As the configuration requested. Tunnel MTU is 1450bytes as default MRU is 1450bytes as default Local IP Defined Local IP address for tunnel www.wlink-tech.com...
- Page 30 IPSec Setting 3.5.3.1 IPSec Group Setup Step 1 Please click “IPSec> Group Setup” to check or modify the relevant parameter. Table 3-14 “ IPSec Group Setup” Instruction parameter Instruction IPSec Support Standard IPSec, GRE over IPSec, L2TP over Extensions IPSec www.wlink-tech.com...
- Page 31 Table 3-15 “ IPSec Basic Setup” Instruction parameter Instruction Keying Mode IKE preshared key Phase 1 DH Select Group1, Group2, Group5 from list. It must be Group matched to remote IPSec setting. Phase 1 Support 3DES, AES-128, AES-192, AES-256 Encryption www.wlink-tech.com...
- Page 32 3.5.3.3 IPSec Advanced Setup Step 1 Please click “IPSec >Advanced Setup ” to check or modify the relevant parameter. Table 3-16 “ IPSec Advanced Setup” Instruction parameter Instruction Aggressive Default for main mode Mode ID Payload Enable ID Payload compress www.wlink-tech.com...
-
Page 33: Administration
Table 3-17 “Router Identification” Instruction Parameter Instruction Router name Default is router, can be set maximum 32 character Host name Default is router, can be set maximum 32 character Domain name Default is empty, support maximum up to 32 character, it is www.wlink-tech.com... - Page 34 R100 Industrial Cellular Router User Manual Parameter Instruction the domain of WAN, no need to configure for most application. Step 2 Please click ”save” to finish ----End www.wlink-tech.com...
-
Page 35: Time Setting
Step 1 Please click “Administrator> time” to check or modify the relevant parameter. Figure 3-17 System Configuration GUI If the device is online but time update is fail, please try other NTP Time Server. Step 2 Please click “save to finish. ----End www.wlink-tech.com... - Page 36 In this page, you can configure the basic web parameter, make it more convenient for usage. Please note the “password” is the router system account password. Figure 3-18 Admin Setting GUI Step 2 Please click save iron to finish the setting ----End www.wlink-tech.com...
-
Page 37: Snmp Setting
Step 1 Please click “Administrator>Schedule Reboot” to check and modify relevant parameter. Figure 3-19 Scheduler Reboot Setting GUI Step 2 Please click save iron to finish the setting ----End 3.6.5 SNMP Setting Step 1 Please click “Administrator>SNMP” to check and modify relevant parameter. www.wlink-tech.com... - Page 38 Figure 3-20 SNMP Setting GUI Step 2 Please click save iron to finish the setting ----End 3.6.6 M2M Access Setting (Apply to M2M management platform installation application only) Step 1 Please click “Administrator>M2M Access” to check and modify relevant parameter. www.wlink-tech.com...
- Page 39 Step 1 Please click “ Administration> Configuration ” to do the backup setting Figure 3-22 Backup and Restore Configuration GUI Restore Default would lose all configuration information, please be careful. Step 2 After setting the backup and restore configuration. The system will reboot automatically. ----End www.wlink-tech.com...
- Page 40 Step 1 Please click “Administrator> Logging” to start the configuration, you can set the file path to save the log (Local or remote sever). Figure 3-23 System log Setting GUI Step 2 After configure, please click “Save” to finish. ----End www.wlink-tech.com...
-
Page 41: Debugging Setting
“Yes” or “NO” before the next step. Step 2 If choose “yes”, the system will restart, all relevant update configuration will be effective after reboot. ----End Debugging Setting 3.7.1 Logs Setting Step 1 Please click “Debugging>Logs” to check and modify relevant parameter. www.wlink-tech.com... - Page 42 Step 1 Please click “Debugging>Logs” to check and modify relevant parameter. Figure 3-26 Ping GUI Step 2 After configure, please click “Save” to finish. ----End 3.7.3 Trace Setting Step 1 Please click “Debugging>Trace” to check and modify relevant parameter. www.wlink-tech.com...
- Page 43 R100 Industrial Cellular Router User Manual Figure 3-27 Trace GUI Step 2 After configure, please click “Save” to finish. ----End www.wlink-tech.com...
- Page 44 The system will be restored to factory. Table 3-18 System Default Instruction Parameter Default setting LAN IP 192.168.1.1 LAN Subnet Mask 255.255.255.0 DHCP server Enable User Name admin Password admin After reboot, the previous configuration would be deleted and restore to factory settings. www.wlink-tech.com...
-
Page 45: Gps Setting
Figure 3-28 GPS Setting GUI Table 3-19 “GPS” Instruction parameter Instruction GPS Mode Enable/Disable GPS Format NMEA and M2M_FMT(WLINK) Server IP/Port GPS server IP and port Heart-Beat If choose M2M_FMT format, heart-beat ID will be packed into GPS data. Interval GPS data transmit as the interval time. - Page 46 Speed over ground, units is km/h. gps_degrees numeric 91.5 Course over ground, unit is degree. gps_FS digit Position Fix Status Indicator, gps_HDOP numeric HDOP, Horizontal Dilution of Precision gps_MSL numeric 97.5 MSL Altitude, units is meter. -- THE END www.wlink-tech.com...
