Before use
,
please read the explanations carefully!

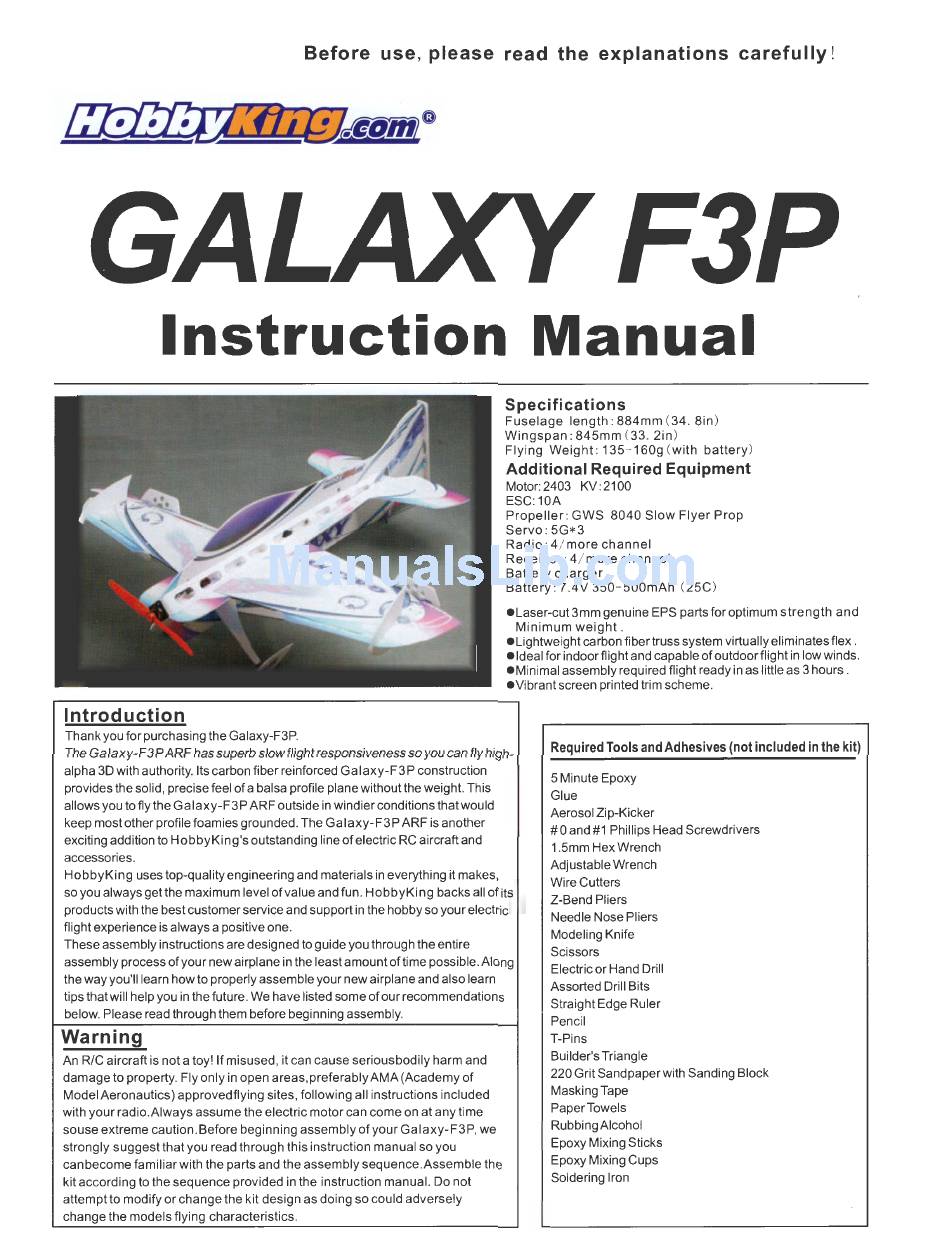

F3P
Instruction Manual
Introduction

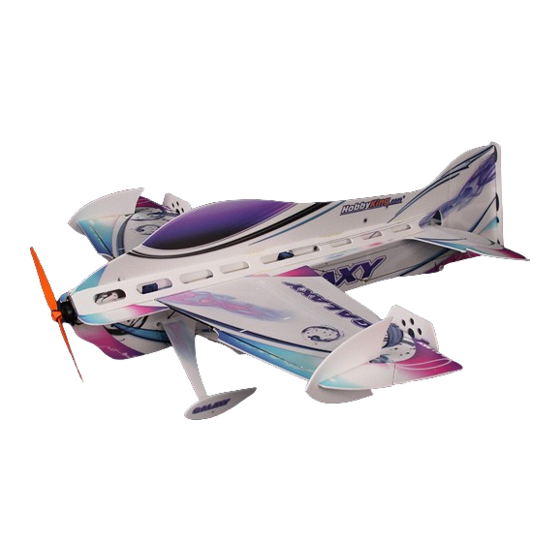

Thank you for purchasing the Galaxy-F3P.
Specifications
Fuselage
length: 884mm
(
34
.
Bin
)
W ingspan
:
845mm
(
33
.
2in
)
Flying Weight
:
135-
160g
(
with
battery)
Additional Required Equipment
Motor:
2403 KV: 2100
ESC:
10A
Propeller: GWS 8040 Slow Flyer Prop
Servo
:
5G
*
3
Rad
io
:
4
/
more channel
Receiver
:
4
/
more
channel
Battery
charger
Battery
:
7.4V
350
-
500mAh
(
25C
)
•Laser-cut 3mm
genuine EPS parts for optimum
strength and
Minimum
weight
.
Lightweight carbon fiber truss system
virtually eliminates flex
.
Ideal
for
indoor
flight and
capable
of outdoor flight
in
low
winds.
Minimal
assembly
required flight ready in
as little as
3 hours
.
•Vibrant screen printed
trim scheme.
The Galaxy-F3P ARF has superb slow flight responsiveness
so you can
fly high-
alpha 3D with
authority.
Its carbon fiber reinforced Galaxy-F3P
construction
provides the solid, precise feel of
a
balsa profile plane without the weight. This
allows you to fly the Galaxy-F3P ARF outside in windier conditions that would
keep most other profile foamies grounded. The Galaxy-F3P ARF
is another
exciting addition
to
HobbyKing's outstanding line of electric RC aircraft
and
accessories.
Required Tools and Adhesives (not included in the kit)
5 Minute Epoxy
Glue
Aerosol Zip-Kicker
#
0
and #1 Phillips Head Screwdrivers
1.5mm Hex Wrench
Adjustable Wrench
HobbyKing uses top-quality engineering and materials
in
everything it
makes,
so you always getthe maximum
level
of value and fun
.
HobbyKing backs all
of
its
products with the best customer
service
and support in the hobby so
your electric
flight experience is always a positive one.
These assembly instructions are designed to guide you through the entire
assembly process of your new airplane in the least amount of time
possible.
Along
the way you'll learn how to properly assemble your new airplane and also learn
tips that will help you in the future. We have listed some of our recommendations
below.
Please read through them before beginning
assembly.
Warning
An R/C aircraft is not a toy! If misused
,
it can
cause
serious bodily
harm
and
damage to
property.
Fly only
in
open
areas
,
preferably
AMA
(Academy of
Model Aeronautics) approvedflying sites
,
following all instructions included
with your
radio
.Always assume the electric
motor can come on
at
any
ti
me
souse extreme
caution
.Before beginning assembly
of your Gala
xy-F3P,
we
strongly suggest that you read through this
instruction
manual
so you
can become familiar with the parts and the assembly
sequence.Assemble the
kit according to the
sequence
provided
in
the
instruction
manual. Do not
attempt to modify or change the
kit
design
as doing so could adversely
change
the models flying
characteristics
.
Wire Cutters
Z-Bend Pliers
Needle Nose Pliers
Modeling Knife
Scissors
Electric
or
Hand Drill
Assorted Drill Bits
Straight Edge Ruler
Pencil
T-Pins
Builder's
Triangle
220 Grit Sandpaper
with
Sanding Block
Masking Tape
Paper Towels
Rubbing Alcohol
Epoxy Mixing Sticks
Epoxy Mixing
Cups
Soldering Iron
