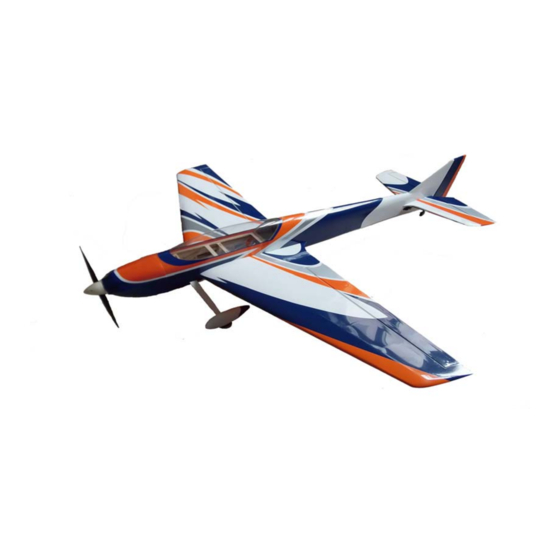

AIRCRAFT SPECIFICATIONS：
Wing Span: 1576mm/62"
Wing Area: 40.05 Sqdm/ 620.8 Sqin
Lenght:1528.7mm/60.19in
Weight: 2300g RTF less battery
RECOMMENDED EQUIPMENT：
Motor: BL4030/10
Radio: 4 channels, 4 servos
Battery: 5S/6S 3800mAh-5000mAh
ESC: 60A-80A
Warning! This model is not a toy.
It is designed for maximum performance. Please seek
advice if one is not familiar with this kind of electric
powered precision model.
Operating this model without prior preparation may cause
in juries.
Remember, safety is the most important thing. Always keep
this instruction manual at hand for quick reference.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HobbyKing Airoso F3A
Summary of Contents for HobbyKing Airoso F3A
- Page 1 AIRCRAFT SPECIFICATIONS： Wing Span: 1576mm/62" Wing Area: 40.05 Sqdm/ 620.8 Sqin Lenght:1528.7mm/60.19in Weight: 2300g RTF less battery RECOMMENDED EQUIPMENT： Motor: BL4030/10 Radio: 4 channels, 4 servos Battery: 5S/6S 3800mAh-5000mAh ESC: 60A-80A Warning! This model is not a toy. It is designed for maximum performance. Please seek advice if one is not familiar with this kind of electric powered precision model.
- Page 2 1. Wing Wings Part List Apply instant glue Cut the covering for installing the Cut the covering for installing the aileron’s servos aileron’s horn Before install the horn needs sanding Apply epoxy glue...
- Page 3 Uses servo draft line Install aileron’s servos Weld push-and-pull pole Complete aileron servos system 2. Stabilizer/Vertical/Tail Wheel Stabilizer Part List Vertical/Tail Wheel Part List...
- Page 4 Cut away the cover film Cut away the wood Apply epoxy glue Drill diameter 3mm hole Before install Apply instant glue horizontal Apply instant glue Apply epoxy glue...
- Page 5 Apply epoxy glue Bend the Tail Wheel Cut away wood install the Tail Wheel Drill diameter 2mm hole Apply instant glue Apply epoxy glue Apply instant glue...
- Page 6 Install elevator servo Apply epoxy glue Install rudder servo Weld elevator and rudder push-and-pull pole Complete elevator servo system Complete rudder servo system...
- Page 7 3. Main Landing Wheel Main Landing Wheel Part List Apply epoxy glue Cut this part away Install main landing wheel Install main landing wheel Install main landing wheel Complete Main Landing Wheel installing...
- Page 8 4. Cowing/ Motor Motor mounting Part List Cut this part away for installing motor Install motor Install motor frame Apply epoxy glue Apply epoxy glue...
- Page 9 Cowing Part List Draw a mark for drill the cowing ’s hole Judging by the mark to drill the cowing ’ Complete cowing install s hole...
