2 -Wire Intercom System
DT591/592 User Manual
DT591
DT592
DT-ENG-591/592-V1 160603

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT591 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fermax DT591

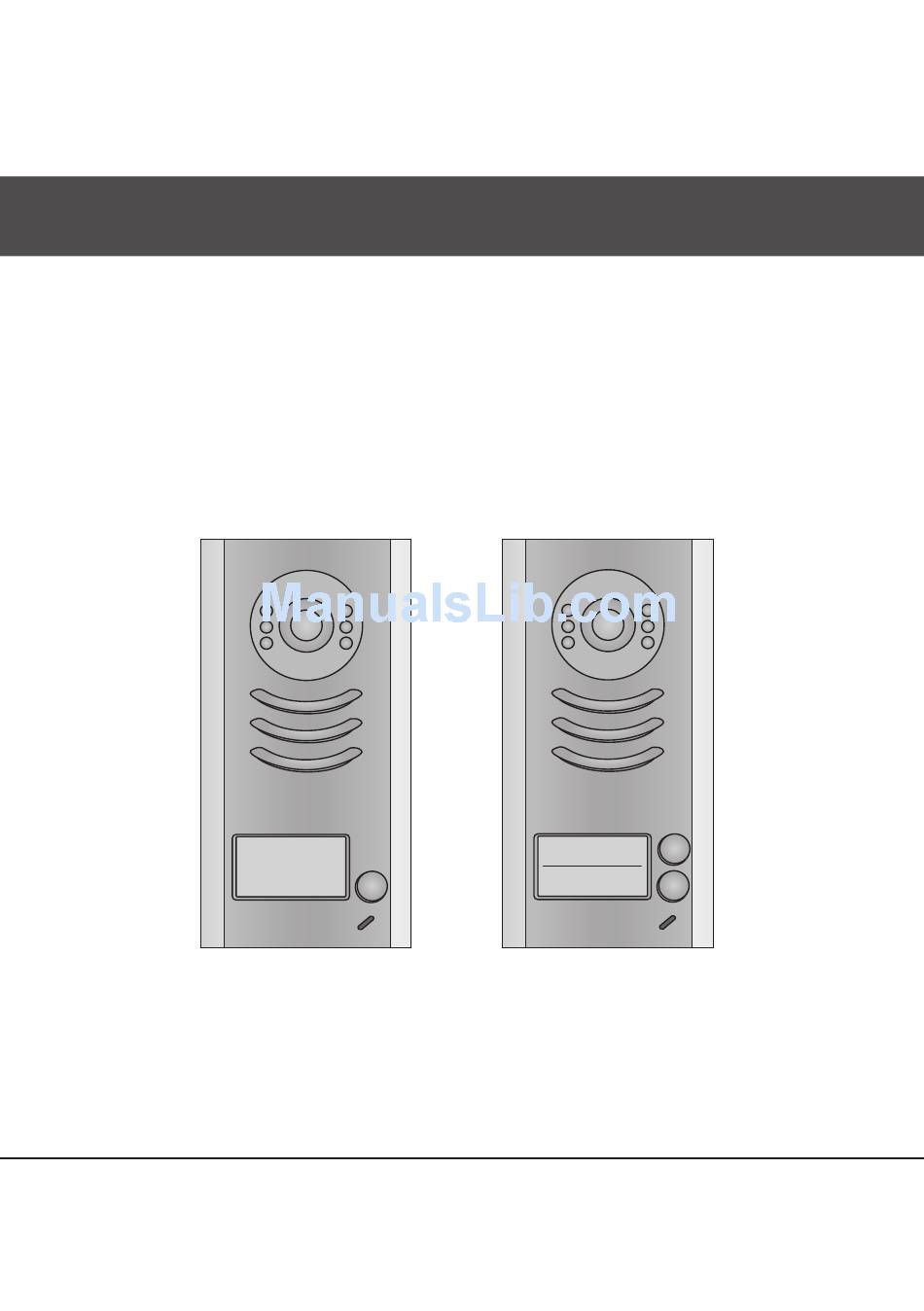

  • Page 1 2 -Wire Intercom System DT591/592 User Manual DT591 DT592 DT-ENG-591/592-V1 160603...
  • Page 2: Table Of Contents

    CONTENTS 1.Parts and Functions..................... 1 2.Terminal Descriptions ..................1 3.Specifications ...................... 2 4.Mounting ......................2 4.1 Mounting Without Rainy Cover ..............2 4.2 Mounting With Rainy Cover ................3 4.3 Placing Name Label ..................3 5.System Wiring and Connections ................. 4 5.1 Basic Connection...................
  • Page 3: Parts And Functions

    1.Parts and Functions Camera Lens Night View LED Speaker Nameplate Call Button Microphone Rainy Cover 3.54 in 0.91 in Note: DT592 has two call buttons. 2.Terminal Descriptions 1 2 3 Lock Control Jumper Doorstation Code DIP MIC adjustment SPK adjustment Main Connect Port S 2 + S - P L S 1 +...
  • Page 4: Specifications

    • To select the lock type: see 5.2.1 , 5.2.2 Lock Control Jumper: • Total 4 doorstations can be supported,see 6.1 Doorstation Code DIP: • To connect the bus line and the electronic locks. Main Connect Port: • BUS: Connect to the bus line, no polarity. •...
  • Page 5: Mounting With Rainy Cover

    4.2 Mounting With Rainy Cover The distance between the top of main unit and rain ≥3mm cover should be not less than 3mm. Rainy cover Rainy cover Main unit Main unit 63-65 in 4.3 Placing Name Label Move the plastic cover away to open the transparent name label cover, insert a name paper, then put the plastic...
  • Page 6: System Wiring And Connections

    5.System Wiring and Connections 5.1 Basic Connection Code=00, DIP6=on DR-30-24 L1 L2 PL S1+ S2+ S- DIP Switches Doorbell Button 1 2 3 4 5 6 Switch 5.2 Electric Lock Connection (NOT RECOMMENDED). See Page 6. Note: NOT RECOMMENDED unless the door lock is less than 250mA. Please see Part 5.2.3 on Page 6 for HOOKING UP A DOOR RELEASE.
  • Page 7: Door Lock Controlled With Dry Contact

    5.2.2 Door Lock Controlled with Dry Contact Note: The external power supply must be used according to the lock. The jumper must be taken off before connecting. Setup the of Monitor for different lock types. Unlock Mode • Power-on-to-unlock type:Unlock Mode=0 (by default) •...
  • Page 8 5.2.3 Hooking Up a Door Release...
  • Page 9: Multi Doorstations Connection

    5.3 Multi Doorstations Connection 4# Camera 3# Camera 2# Camera 1# Camera ID=11 ID=01 ID=10 ID=00 L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S- L1 L2 PL S1+ S2+ S- A B C D DR-30-24 DBC4A1...
  • Page 10: Multi Monitors Connection

    5.4 Multi Monitors Connection 5.4.1 Basic IN-OUT Wiring Mode Code=15 Code=14 Code=0 DR-30-24 ID=00 NOTE:Here we take DT47MG(the monitor) for example.
  • Page 11: With Dbc4A1 Wiring Mode

    5.4.2 With DBC4A1 Wiring Mode Impedance Code=15 Code=14 OFF ON switch Code=13 Code=12 Code=3 Code=2 Impedance OFF ON switch Code=1 Code=0 DR-30-24 ID=00 NOTE:Here we take DT47MG(the monitor) for example.
  • Page 12: Setup

    6.Setup ON(1) OFF(0) 6.1 DIP Switches Settings of Doorstation Total 2 bits on the DIP switches can be configured.The switches can be modified either before or after installation. Bit state Descriptions Default setting, ID = 0(00), set to the first Door Station. ID = 1(10), set to the second Door Station.
  • Page 13 1)Power-on within 5 seconds; Press and hold "B" button for 3 2)Press and hold "B" button for 3 seconds, it will enter the state of seconds, it will enter the setting the ringtone mode setting. state of prepare. Indicator Buzzer Indicator Buzzer beep+,beep...
  • Page 14: Unlock Time Settings

    6.3 Unlock Time Settings The unlock time can be set to 1~30 seconds. The default is 1s. 1)Power-on within 5 seconds; Press and hold "A" button for 3 2)Press and hold "B" button for 3 seconds, it will enter the state of seconds, it will enter the setting the unlock time setting.
  • Page 15: Cables Requirements

    7.Cables Requirements The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the maximum distance which the system can reach. The farest monitor monitor with two or four monitors monitor monitor DBC4A1 When Monitor quantity <...
  • Page 16 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved.
