  • Page 1 DUOX PLUS SKYLINE KITS 4-12W Cod. 970285I...
  • Page 2: Table Of Contents

    DUOX PLUS Telephones ......................9 This document presents the basic concepts to install and program the KIT. For more information download the technical information / datasheets and manuals from FERMAX website by searching for the product reference or the manual code. http://www.fermax.com •...
  • Page 3: Installation

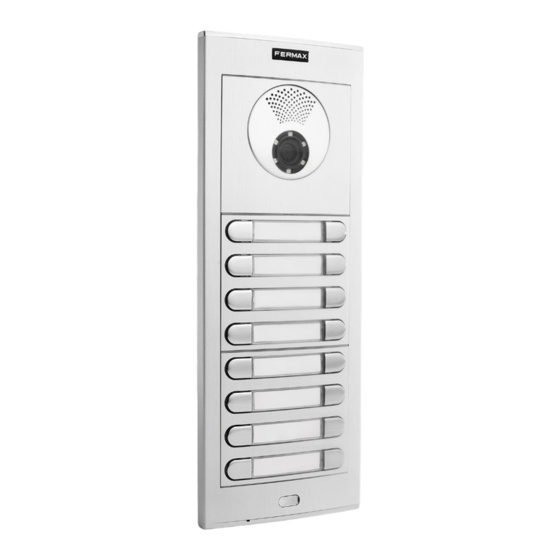

    1 INSTALLATION 1.1 Skyline Panel Assembly Once powered, the panel is automatically configured with the addresses sorted from right to left and from bottom to top. 1.2 Panel Language configuration 0 – Spanish 17 – Persian/Farsi 1 – English 18 – Arabic 2 –...
  • Page 4: Flush Box And Panel Mounting

    DUOX PLUS SKYLINE KITS 4-12L 1.3 Flush Box and Panel Mounting Templates for Skyline Panel cardholder can be found in the following link: https://www.fermax.com/intl-en/tools/cardholder-designs...
  • Page 5: Schematics & Distances

    2 SCHEMATICS & DISTANCES 2.1 Distribution (up to 2 risers) 2.2 Cascade / Daisy Chain (up to 4 risers)
  • Page 6: Distances And Cable Sections

    DUOX PLUS SKYLINE KITS 4-12L 2.3 Distances and Cable Sections Cable Section (2 Wires) Recommended Area (mm²) Diameter (mm) 0.52 1.15 Description Distance max (m) 1 riser 2-4 risers Entry Panel - PSU - First Floor Distance between Floors Connection point - Home Terminal Standard Copper cable: Parallel, Cross cable, UTP, Multi-core cables are compatible with DUOX PLUS system.
  • Page 7: Wiring

    3 WIRING 3.1 Wiring considerations • Up to 6 terminals can be connected to the same connection point • Entry Panel supports the connection of an electric door lock 12VDC up to 250mA (ref: 67501). In case the door lock is AC powered and/or power consumption is higher a dedicated power supply must be installed.
  • Page 8: Entry Panel Wiring Electric Door Lock Wiring Using External Power Supply

    DUOX PLUS SKYLINE KITS 4-12L 3.3 Entry Panel Wiring electric door lock wiring using external power supply...
  • Page 9: Programming

    4 PROGRAMMING 4.1 DUOX PLUS Monitors Press the button to access the "programming menu." Note: A red LED, blinking slowly, indicates that the monitor is not programmed - once the monitor address is programmed, the red LED will turn off. 4.2 DUOX PLUS Telephones The telephone will not function until it has been programmed.
  • Page 10 DUOX PLUS SKYLINE KITS 4-12L FERMAX ELECTRONICA S.A.U Avenida Tres Cruces, 133 46017 Valencia, Spain Email: fermax@fermax.com Website: http://www.fermax.com FERMAX ELECTRONICA S.A.U Avenida Tres Cruces, 133 Telephone number: 96 317 80 00 - 96 317 80 18 / 96 378 88 26 46017 Valencia, Spain –...
