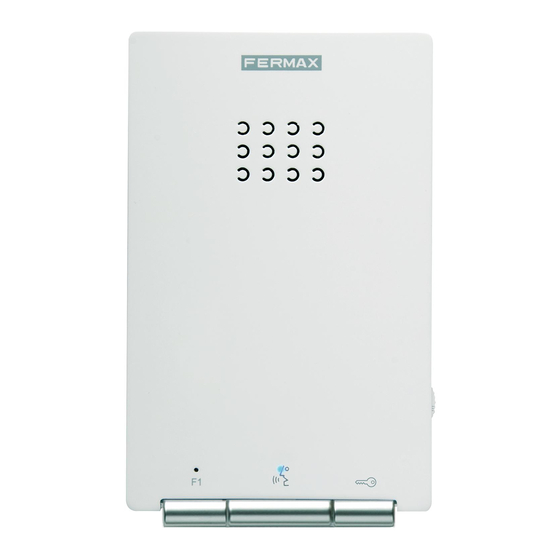

iLoft Duox Telephone
INSTALLATION AND PROGRAMMING MANUAL
INSTALLATION AND PROGRAMMING MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the iLoft DUOX and is the answer not in the manual?

Questions and answers

Related Manuals for Fermax iLoft DUOX

Summary of Contents for Fermax iLoft DUOX

  • Page 1 Duox Telephone INSTALLATION AND PROGRAMMING MANUAL INSTALLATION AND PROGRAMMING MANUAL...
  • Page 2 Fermax Electronica manufactures and develops top class equipment which fulfi l the highest design and technology standards. Your FERMAX telephone will allow you to communicate with the entry panel and open the front door if you wish. We hope you enjoy its range of functions.
  • Page 3 INDEX iLOFT DUOX TELEPHONE Installation Connections Diagrams Description - Buttons - Leds Available Functions Capacities Technical Characteristics Programming the telephone - a) From the Panel - b) From the doorbell Telephone set tings - Selecting ringtones *From Panel *From Guard Unit...
  • Page 4 TELEPHONE installation Page 4...
  • Page 5 CONNECTIONS: Connection Terminals: B, B : DUOX Bus: Power, data and audio. T, -: Connection House entrance "door bell." (P1). A, -: Call extension connection or light and bell activator F1: Button for additional functions. It provides a negative upon being activated. JP1: Line adaptation bridge: •...
  • Page 6 P1 (T, -): You can place an external button to make a call to the "Door bell" (this bell would replace the ding-dong of the home entrance). Notes: - The doorbell can not be changed and is different from those selected for entry panels or guard unit.
  • Page 7 DUOX TELEPHONE DESCRIPTION Red LED Green LED Blue LED Buttons Micro Leds Potentiometer Buttons Door open / guard unit call button (function available depending on type of instal- lation). · While in conversation with the Outdoor Panel (audio activated), pressing it will activate the open door lock-release.

  • Page 8: Led Functions

    - If the telephone is confi gured in “simplex mode”, (press to speak and release to listen), the audio chan- nel will be activated to hear sound at street level. - If making a call from the 0 panel to another home, during the 30 second wait for the home to answer, auto-start with the 0 panel will not be possible.

  • Page 9: Available Functions

    AVAILABLE FUNCTIONS The functions available on the telephone are summarised in the following list: · Guard Unit Call · Opening the door · Call to Guard Unit. · Ringtone selection. · Programming from panel and door bell · Audio connection upon picking up ·...

  • Page 10: Technical Features

    MASTER panel by pressing the SW1 button 3 consecutive times. You can also confi gure it via a code on the keypad. For more information see the DUOX Panel Settings at www.fermax.es. programming from the Doorbell is only available if the telephone has not been previously programmed, that is, if no address is recorded.
  • Page 11 a) Programming a telephone address from the entry panel With the telephone connected and hung-up: 1. The user should start in the "Ringtone Selection" confi guration menu. from the BEEP outdoor panel“. Press and hold the but- ton for 5 seconds until you hear a "beep" then release, a ringtone will sound on the current panel.
  • Page 12 b) Programming the phones address via the doorbell. Note: Only if the phone has not been previously programmed, that is, if no address has been saved. Telephone not yet programmed, red LED blinks. With the telephone connected and hung-up: 1. Press the door bell or short terminals "T" and "-".
  • Page 13 DUOX TELEPHONE SETTINGS Ringtone Selection. The telephone allows you to select different ringtones for calls from the entry panels and calls made from guard unit. Accessing "Ringtone Selection" Mode We can select from 5 ringtones. 1. From the panel: With the telephone in standby and hung-up: 1.
  • Page 14 Exit ringtone selection (standby): BEEP 5. When in the "selecting ringtone from guard unit" if you short BEEP press the button you will hear a double beep and you will exit the menu and return to standby. Note: The last ringtone produced in each menu is saved. Notes: - You can also exit the guard unit ringtone menu from the panel, after inactivity for 10 seconds (storing the last ringtone played).
  • Page 15 2. From this point every time you press the button, the output audio channel will activate (you will hear the telephone on the panel) and a constant blue led will light up. On releasing the button the input audio channel will activate (you will hear the panel on the telephone) and the intermittent blue led will light up.
  • Page 16 Disconnecting a call: Do not disturb mode POTENTIOMETER Notes: - Regulation affects all ringtones generated by the telephone: outdoor panels and entrance doorbells. - To hear the selected setting you can: · make a call from the entry panel. · enter ringtone selection mode. - Call volume regulation does not affect the incoming audio settings.
  • Page 17 LED is blinking it indicates that the reset has completed. ¸ 15" iLOFT DUOX TELEPHONE OPERATIONS Answering a call · Upon pressing the call button, a call tone is produced both on the outdoor panel and the telephone.
  • Page 18 While in simplex conversation mode press the button to speak and release to listen -Push to Talk). · Upon pressing the call to Outdoor Panel button, a call tone is produced both on the outdoor panel and the telephone. · On receiving a call on the telephone the user has 30 seconds to answer. The red led fl...
  • Page 19 Door lock-release When a call is received from the entry panel, you can open the door at any time, by pressing the button. In conversation (audio activated). If picked-up, it can occur during the conversation with an entry panel. The lock is released on the panel that called.
  • Page 20 BEEP Note: - If the receiver is picked-up right after calling the guard unit and before it answers, a busy tone is heard for the next 30 seconds. BEEP F1 (Additional Functions) Ask your installer which function is programmed. - From the telephone you can activate an auxiliary relay (connected to a F1 terminal) for an extra function such as the landing light, alarm activation, etc.
  • Page 21 Page 21...
  • Page 22 Page 22...
  • Page 23 Page 23...
  • Page 24 Avda. Tres Cruces, 133 • 46017 Valencia (Spain) Tel. 96 317 80 00 • Fax 96 377 07 50 Tel. Export: 00 34 96 317 80 02 www.fermax.com• fermax@fermax.com...
