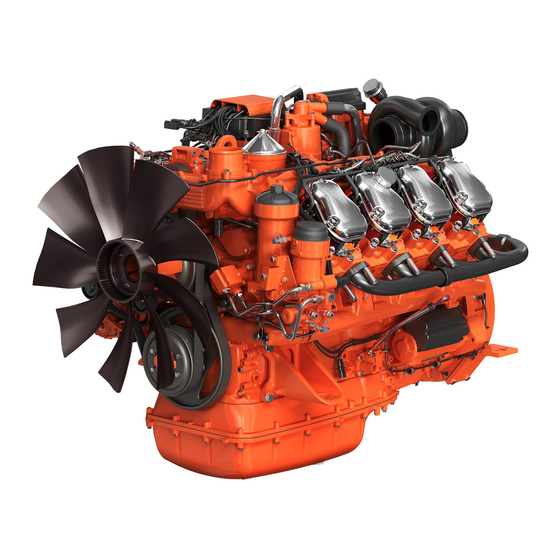

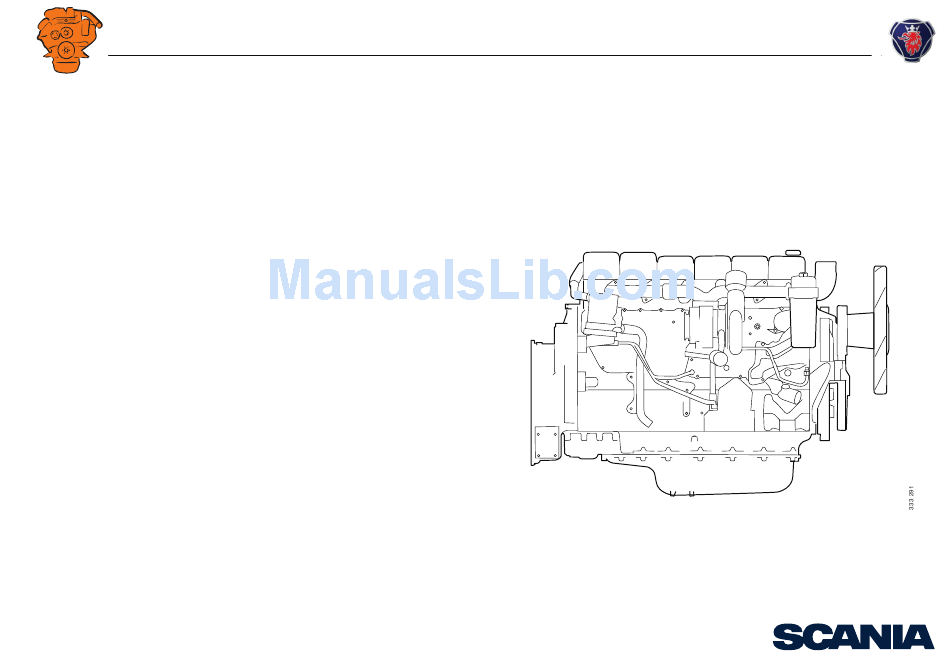

- Page 1 Installation manual Engine Industrial engines DC09, DC13, DC16 OC16 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 2: Table Of Contents
INSTALLATION MANUAL Engine suspension....................3 Torsional oscillation calculations from Scania..........34 Design requirements.................... 3 Flexible engine suspension.................. 4 General tightening torques for screw joints ............35 Rigid engine suspension..................5 Specification of normal tightening torques............35 Permissible installation and operating angles ............. 6 Tightening torques .................... -
Page 3: Engine Suspension
If the angles of inclination are exceeded, lubrication system performance will deteri- orate, which can cause damage to the engine or reduce its service life. There are two standard engine suspension designs: • flexible engine suspension • rigid engine suspension. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 4: Flexible Engine Suspension
The engine bracket and frame or engine bed should be The vertical centre lines should coincide laterally. The upper and lower parts of the insulators should be parallel. parallel longitudinally. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 5: Rigid Engine Suspension
It is also possible to construct flexible engine suspension between the frame and the engine bed to reduce the transmission of vibration to the engine bed. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 6: Permissible Installation And Operating Angles
DC13 12° 12° 25° 30° DC13 With deep centre part 12° 12° 35° 45° DC16, OC16 Deep front without ladder frame 12° 10° 25° 30° DC16 12° 10° 25° 30° 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 7: Flywheel Housings
If it is difficult to determine the size and nature of the load, contact your nearest Sca- nia distributor. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 8: Generator Set Dynamics
Flywheel housing. Adapter. Generator. WARNING! Engine bed. Vibration insulators. The engine lifting eyes are dimensioned for lifting the engine only, not the engine to- gether with connected equipment or frame! 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 9: Accessibility For Maintenance And Repairs
• It must be possible to remove the oil sump in order to renew cylinder liners or pis- tons with the engine in place. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... - Page 10 For gas engines, it must also be easy to carry out maintenance on the following com- ponents: • Spark plug • Flame arrestor • Gas mixer insert • Electric throttles • Gas regulator • Lambda sensor 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 11: Clearances
1. If the oil sump has a special design, these values do not apply. Clearances for DC09 and DC13. Clearances for DC16 and OC16. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 12: Engine Alignment
Relatively large deviations are permissible with flexible couplings. However, align- ment should be as accurate as possible to achieve low vibration and a long service life on the coupling. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 13: Aligning Engine And Shafts
Calculate the angular deviation between the shafts using the values. Location of measurement point Measurement value 12:00 ±0 Measuring angular deviation. 3:00 ± 6:00 ± 9:00 ± 1. + means inwards and - means outwards 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... - Page 14 • If t is positive, shims should be added to the front or removed from the rear. • If t is negative, shims should be added to the rear or removed from the front. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 15 Angular deviation between the shaft centrelines can also be checked using a 0.1 mm feeler gauge. Do this by measuring the distance between the surfaces of the flanges at the outer edges. During measurement, the engine must be tightened onto the engine bed. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 16 Measurement value ment point 12:00 ±0 3:00 ± 6:00 ± 9:00 ± Radial clearance ± 1. + means inwards and - means outwards 2. + means lift and - means press 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 17 The requirements for the accuracy of the alignment can vary depending on the design of the engine installation. If the requirements for accuracy are lower, the permissible deviation may be greater than indicated above. Measuring with free shaft ends. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 18: Power Transmission
Many engine installations require a flexible coupling between the engine and the driven unit to dampen irregularities in the system. Information about suitable flexible couplings can be obtained from your nearest Scania distributor or from the coupling supplier. Carry out a torsional oscillation calculation before selecting a flexible coupling. - Page 19 For heavier operation where large lateral forces arise, such as belt transmissions, Scania recommends using clutches which absorb lateral forces in the main bearings. This type of clutch does not have a support bearing in the flywheel.
-
Page 20: Transmission Types
A different belt tension results in in- creased bearing load and displacement of the centre of the load. The lateral loading can be reduced by e.g. changing the size of the pulley. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... - Page 21 Always use paired belts or V-belts in multi-belt installations. A = Bearing shaft. B = Engine shaft. Steel bearing housing. Pulley with belts. Universal joint or flexible coupling. Flexible coupling. Industrial clutch. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 22: Power Take-Offs
Power take-offs The engines can be supplied with different types of power take-offs for driving units. Note: Only components from Scania are permitted in the belt transmission. Front-mounted power take-offs Example of shaft journal for direct connection of flexible coupling. - Page 23 In order to avoid impermissible radial forces at the front end of the crankshaft when there are many belts in the transmission, the driven units should be positioned so that the forces balance each other out. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 24 Transmissible power DC09, DC16 DC13 1,500 125 kW 188 kW 1,800 151 kW 226 kW 1,900 160 kW 239 kW 2,000 168 kW 251 kW 2,100 176 kW 264 kW 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 25: Side-Mounted Power Take-Offs
If these power take-offs are not loaded, they must be removed. Otherwise, parts from the bearing housing may get into the engine and cause a breakdown. Scania also recommends that SAE B power take-offs facing forwards are removed if they are not to be loaded. - Page 26 600 Nm. Note: The maximum permissible bending torque for all side-mounted power take-offs with SAE B connection is 30 Nm. This applies to all engine types. Overview of side-mounted power take-offs for DC09 and DC13 Power take-offs Direction Connection Rotation Max.
- Page 27 1,500 56 kW 112 kW 1,800 67 kW 134 kW 1,900 71 kW 142 kW 2,000 71 kW 142 kW 2,100 71 kW 142 kW 2,200 71 kW 142 kW 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 28 The power take-off is located on the right of the rear of the engine. Power take-off 2 The power take-off is located low on the right of the rear of the engine, facing for- ward. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 29 Note: When the hydraulic pump is installed, the tank must be positioned higher than the hy- draulic pump for the pump to have an even flow. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 30 Note: When the hydraulic pump is installed, the tank must be positioned higher than the hy- draulic pump for the pump to have an even flow. 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 31: Air Compressor
The figures show how a normal system is made up: Air compressor Safety valve Safety valve Relief pipe Test connection, filling Check valve Four-way safety valve Relief valve Air compressor with air dryer. Air dryer Drain tap Tank 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... -
Page 32: Torsional Oscillations
If no torsional oscillation calculation has been carried out, or one has been carried out with unsatisfactory results, Scania Engines takes no financial or technical responsi- bility for installation problems or engine breakdowns caused by torsional oscilla- tions. -
Page 33: Data For Torsional Oscillation Calculation
The following information is required for the calculation: Engine type designation and classification society. Operating speed and power. The equipment fitted to the front and rear parts of the engine. State Scania part number. Gear ratios. Moment of inertia (j) or rotating mass (GD2) for component couplings, flanges, gears, shafts, propellers, generators etc. -
Page 34: Torsional Oscillation Calculations From Scania
350 Hz in a linear system for the engine speeds in ques- tion. The calculation is based on technical data provided to Scania by the customer or manufacturer for parts forming part of the elastic mass system which are not man- ufactured by Scania. -
Page 35: General Tightening Torques For Screw Joints
Coil). Thread inserts often provide greater strength compared to a directly screwed thread. This creates a stronger screw joint in, for example, aluminium. For this rea- son, thread inserts are used in certain joints in Scania's production. 01:01 Issue 8.0 en-GB... -
Page 36: Tightening Torques
INSTALLATION MANUAL General tightening torques for screw joints Tightening torques Hexagon screws, hexagon socket screws, Torx screws, hexagon nuts Metric thread, coarse pitch Thread Strength class 8.8/8 Tightening torque (Nm) 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden... - Page 37 Strength class 8.8/8 Tightening torque (Nm) 10.2 Thread forming Torx screws and hexagon screws with captive washer Modified metric thread, coarse pitch Thread Class 8 Class 10 Tightening torque (Nm) 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
- Page 38 Plastic pipe with steel fer- Plastic pipe with brass fer- eter greased steel rule and brass or steel nut rule and nut with rubber seal M10x1 M12x1.5 M14x1.5 M16x1.5 M18x1.5 M20x1.5 M24x1.5 M30x2 01:01 Issue 8.0 en-GB © Scania CV AB 2016, Sweden...
-
Page 39: Sticker "Powered By Scania
M14, 8.8 149 Nm Sticker “Powered by Scania” Customers who so desire can order the sticker “Powered by Scania” to attach to the machine. P O W E R E D Machines operated using Scania's industrial and marine engines must be uniformly marked, therefore this is the only sticker which should be attached to the machine containing the engine.
