Scania OC16 Installation Manual

Scania OC16 Installation Manual

Industrial engines fuel system
Hide thumbs Also See for OC16:

Advertisement

Table of Contents

See also: Operator's Manual
Installation manual
Fuel system
Industrial engines
OC16
01:03 OC Issue 3.0 en-GB
© Scania CV AB 2018, Sweden

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OC16 and is the answer not in the manual?

Questions and answers

Related Manuals for Scania OC16

Summary of Contents for Scania OC16

  • Page 1 Installation manual Fuel system Industrial engines OC16 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...

  • Page 2: Table Of Contents

    INSTALLATION MANUAL Changes from the previous issue................3 Fuel hose........................4 Gas regulator ......................4 Shut-off devices......................7 Separating condensation..................8 Safety precautions ....................9 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...

  • Page 3: Changes From The Previous Issue

    The changes are also described below. • Information on measuring the gas regulator supply pressure has been moved to 01:08 Measuring instructions for installation inspection. 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...

  • Page 4: Fuel Hose

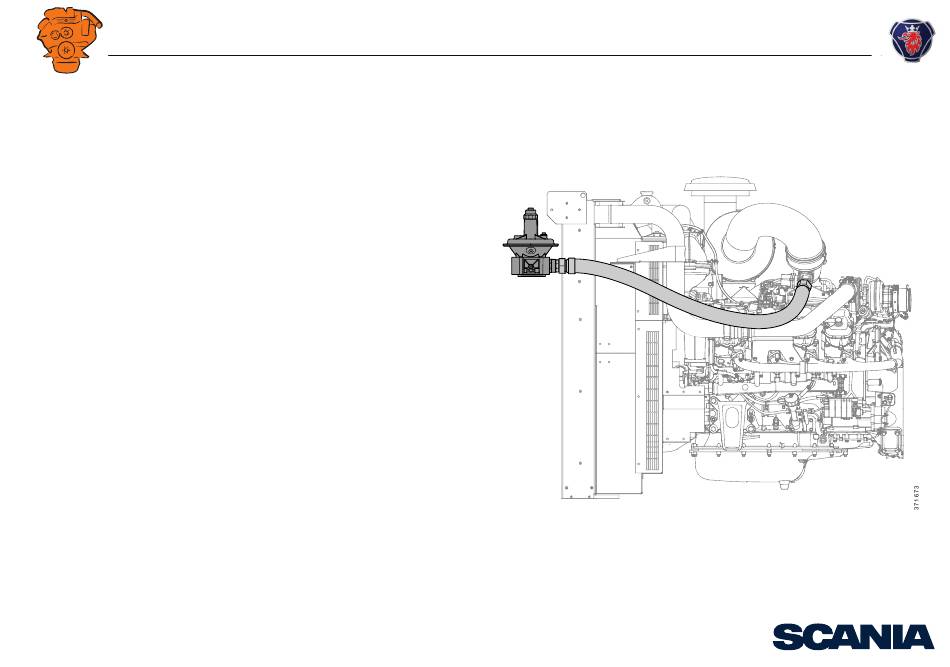

    MANUAL Fuel hose Fuel hose Only the supplied fuel hose (1) from Scania may be used. The fuel hose is 1.5 m long. The length must not be changed. IMPORTANT! No components apart from the fuel hose may be installed between the gas regulator (2) and the gas connection on the engine.
  • Page 5 The gas regulator may be installed vertically or horizontally, but not upside down. Max 90 Max 90 Installation angle for gas regulator. 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...
  • Page 6 INSTALLATION MANUAL Gas regulator Do not cover the ventilation hole (2) of the gas regulator. Bleed nipple. Ventilation hole. 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...

  • Page 7: Shut-Off Devices

    You are normally required to have a shut-off valve with double functions or two Example of gas supply installation. separate shut-off valves with leak testers. Comply with the applicable local laws The components marked with an asterisk are included in the delivery from Scania. and regulations. Manual shut-off cock (mandatory).

  • Page 8: Separating Condensation

    If the fuel is not actively dried off, a condensation separator (1) should be installed upstream of the gas regulator to ensure that no water enters the gas regulator or the electric throttle. Separating condensation in gas supply installation. 01:03 OC Issue 3.0 en-GB © Scania CV AB 2018, Sweden...

  • Page 9: Safety Precautions

    Note: Scania is not responsible for the gas supply system upstream of the gas regulator or the leak test of the gas supply system. When working on the fuel system and handling gas, observe the normal regulations for handling gas: •...
