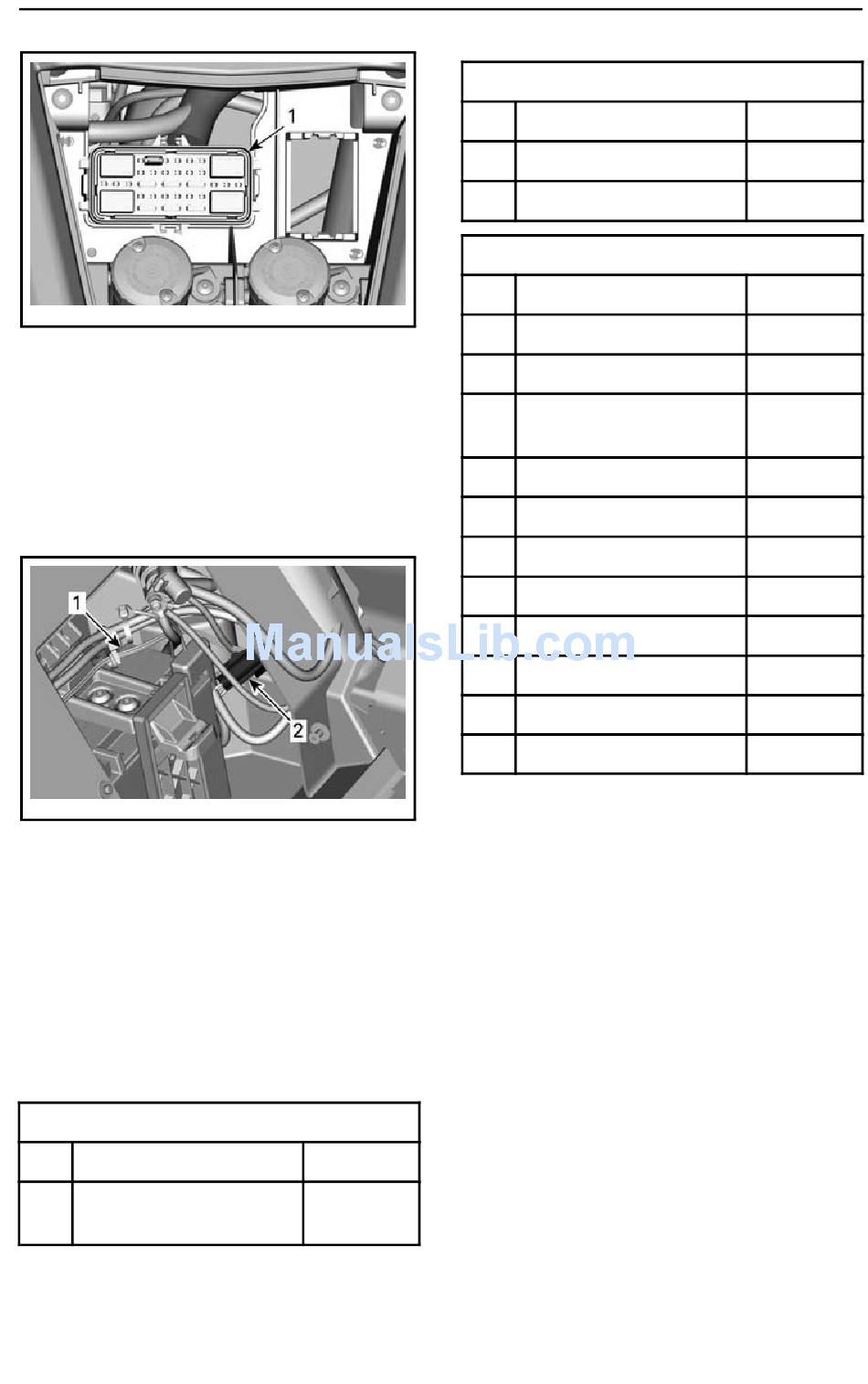

1. Main fuse box
Dynamic Power Steering (DPS) Fuse
The DPS fuse is located near the bat-
tery.
To access the DPS fuse, move the pas-
senger seat completely forward, refer
PASSENGER SEAT
to
219001761-209_a
1. Battery
2. DPS fuse
Fusible Links
The fusible links are on the starter sole-
noid harness.
In the event that a fusible link blows,
see a Can-Am SSV dealer, a repair shop
or the person of your choosing.
Fuse Box Description
DPS FUSE HOLDER
NO DESCRIPTION
Dynamic power
-
steering (DPS)
.
RATING
40 A
_______________
MAINTENANCE PROCEDURES
FUSIBLE LINKS
NO DESCRIPTION
1 Main
2 ACC
MAIN FUSE BOX
NO DESCRIPTION
F4 Gauge/relay
F5 Ignition/injectors
Engine Control
F6
Module (ECM)
F7 2WD/4WD
F8
D.E.S.S. post
F9 Cooling fan
F11

Lights

F12 DC Outlet
F14 Accessories 2
F16 Tail lights
F17 Intercooler fan
NOTE: Fuses are identified inside fuse
box cover.
Lights
Always check light operation after re-
placement.
The headlights and taillights are LEDs
(Light Emitting Diode). This technol-
ogy has proven itself on the reliability.
In the unlikely event they do not work,
have them checked by an authorized
Can-Am SSV dealer, repair shop or per-
son of your choosing.
RATING
16 AWG
16 AWG
RATING
10 A
10 A
10 A
10 A
10 A
25 A
10 A
20 A
30 A
10 A
20 A
