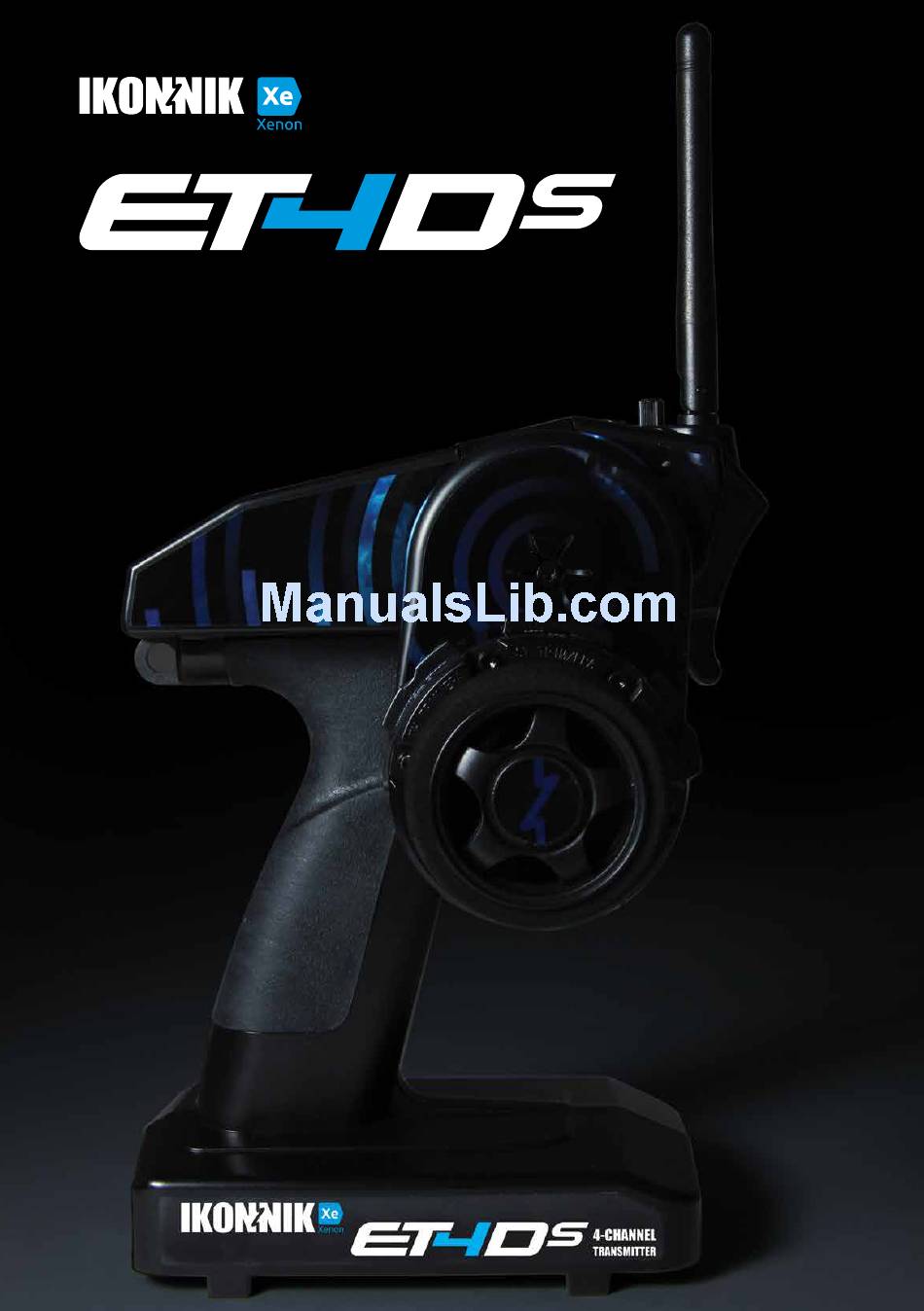

- Page 1 Owner’s Manual & Technical Information...
- Page 2 Legal Entire contents ©2017 IKONNIK RC Before using your product, review all documentation and inspect the product carefully. If for some reason you decide it is not what you wanted, then do not continue with unpacking, setup or operation of your product. Your local hobby dealer cannot accept a product for return or exchange after partaking in actions that produce wear and tear.
-
Page 3: Table Of Contents
Contents Notice ..................4 Precautions................. 4 Introduction ................5 Feature list .................. 6 Identification of parts ..............6 Battery installation ..............8 Pairing the transmitter and receiver ......... 8 Basic operation ................9 Channel reverse (REV) ..............10 Digital trim settings ................10 End Point Adjustment (EPA) .............10 Steering dual rate ................ -
Page 4: Notice
For other adjustments it should be known that hobby grade radio controlled products such as those offered by IKONNIK differ from toy grade in that they are intended to be user-serviceable products where the user can program and maintain their own product. We try our best to ensure the information you need to introduce you to this form of product ownership is available to you though this manual. -
Page 5: Introduction
Introduction As the most advanced 4-channel 2.4GHz radio in the IKONNIK surface range the ET4Ds offers features that are common only in high-end computer transmitters, in particular, an impressive 15-model memory, a blue backlit LCD and intuitive roller button interface. User-friendly, stylish... -
Page 6: Feature List
Feature List • 15 model memory with Pair Safe • 2.4GHz operation avoids conflicts with other users • Easily pairs with vehicles pre-equipped with IKONNIK Xenon technology • Backlit LCD • Roller button interface • Ergonomic trigger and grip angle •... -
Page 7: Identification Of Parts
Identification of Parts... - Page 8 1. The wheel can be re-positioned and / or configured for left-hand use (see page 21 in this manual for details). 2. Throttle Trigger: Controls forward / reverse / brake motion (designed to be operated with index finger). 3. Hand Grip: For holding the transmitter. 4.
-
Page 9: Battery Installation
Battery Installation 4 x AA size alkaline batteries are the standard configuration and recommended for ease of use when getting started. Upgrading to a rechargeable battery pack can be carried out at any time. 1. Remove the battery cover from the transmitter. 2. -
Page 10: Pairing The Transmitter And Receiver
Troubleshooting Guide in the full online manual. Basic Operation The ET4Ds allows you to adjust a variety of settings that can improve the performance and handling of your vehicle. The most basic of these adjustments can be made in two ways, using either the external switches and buttons –... -
Page 11: Channel Reverse (Rev)
Channel Reverse (REV) REV/Pair button The channel reverse function sets the direction of operation for the servo or ESC relative to the transmitter steering and throttle inputs. This function would be used to correct, for example, if turning the transmitter steering wheel right resulted in the model turning left and vice versa. -
Page 12: Steering Dual Rate
Steering EPA Throttle EPA buttons CAUTION: BE CAREFUL TO NOT OVER-EXTEND THE STEERING THROW AS IT CAN CAUSE YOUR SERVO TO OVER-WORK AND OVER-HEAT. • Turn the steering wheel completely to the left and use the ‘ST+’ or ‘ST-’ buttons to adjust the steering angle of the vehicle to maximum (sometimes this will require reducing the travel). -
Page 13: Fail-Safe - Channel 2 (Throttle)
LED Torch Your ET4Ds is equipped with a high intensity LED torch light which can be massively useful when working on your vehicle in low light conditions. Use button (14) to toggle the torch ON / OFF. -
Page 14: Advanced Operation
Advanced Operation The ET4Ds offers a range of programming options that can be activated and adjusted using the LCD / Roller Button interface – 15) 16) (17. Transmitter programming is carried out using the Roller Button (5) and the Back Button (6). - Page 15 Model Press Press Back Press Trim Press Press Back 00% is neutral point. RBU shows travel of RIGHT and BACKWARD. LFU shows LEFT Press Back Press Back Press Back and FOREWARD. When it shows 00%, the roller wheel rolls forward to show RBU,and the roller wheel rolls backward to show LFU, the travel can be expressed by 01% -100% Press...
- Page 16 Press Back Press Press Back Back Back Press Back Press Press Turn Push Forward Press Press Back Back Press Back Press Press Press Press Press Back Press Back Back Back Press Press Press Back Press...
- Page 17 With Mix ON a) potentiometer on top of radio should operate Ch4 on/ off toggle. If turned to max 90- 100 = ON, else OFF b) AUX button by wheel should cycle mix mode IDL- PAR- REV- IDL..Press With Mix OFF Press...
-
Page 18: Memory Reset
Memory Reset The transmitter has two memory reset features. The first is an individual model reset which as it might sound, resets most parameters to their factory default settings without affecting other models in memory. The second is a full factory reset which restores all parameters to their factory default settings and removes all paired receivers from memory. -
Page 19: Calibrating Escs
Rechargeable NiMH Rechargeable batteries can be used in two forms, loose AA size NiMH battery cells that are inserted into the included battery holder, or assembled AA size NiMH battery packs. For both forms, be sure to follow the manufacturer’s care and use instructions. -
Page 20: Using Your Transmitter For The First Time
apply brakes. However some ESCs are configured to go immediately into reverse. Check with your ESC owner’s manual for specific operation details. CAUTION: ALWAYS TEST YOUR ABILITY TO REACH AND APPLY FULL BRAKE PRIOR TO TESTING FORWARD THROTTLE • Slowly pulling the transmitter trigger back towards the handle will make the vehicle accelerate forward. -
Page 21: General Care
vehicle travels in a straight line while the transmitter wheel remains in the center location (“hands-off”). General Care • Always use clean, dry cloth or soft bristle brush to clean your equipment. • Never use chemical cleansers to avoid damage to the sensitive electronics and plastics. -
Page 22: Storage And Disposal
range and damage the antenna. • Ensure the antenna is not being pinched by the set screw that holds the antenna tube in place. Storage and Disposal Storage • Always store all equipment in a cool dry place when not in use. •... - Page 23 Appendix A: Changing from Right- to Left-hand Configuration The ET4 wheel module was engineered to be versatile and accommodate a wide range of users. With the included components you have the option to position the wheel module in many positions to best suit your own ergonomics.
- Page 24 5. Gently pull up on the wheel mount following the angle of the arrows on the side where you grip. Use caution to not pull too hard and unplug the wires that become exposed. Tip: At this point you could simply remove the drop-down module if you desire to use the wheel in the high position, then continue to swapping left-right configuration or reinstall in previous configuration.
-
Page 25: Warranty Information
European directives. This product’s design fulfils the protective aims of the European Community relating to the safe operation of this equipment. For a copy of the Declaration of Conformity, please visit: www.ikonnik-rc.com/support Disposal Electrical equipment marked with the crossed out wheelie bin symbol must not be disposed of in household waste, but must be taken to a specialist disposal or recycling system. - Page 26 This warranty does not cover breakage due to abuse, improper break-in, improper setup, or improper operation. We at IKONNIK RC have made every effort in component design, material selection and assembly to make our products as durable as possible.
- Page 27 Australia Warranty Information IKONNIK Radio Control Transmitter 60 Day Warranty Model Engines (Aust.) Pty. Ltd. warrants this product to be free from defects in materials or workmanship for 60 days from the date of purchase and will repair, replace or refund the purchase should the product prove to be defective.
- Page 28 This warranty information relates to goods supplied on a wholesale basis by Model Engines (Aust.) Pty. Ltd. to Australian Retailers. The warranty complies with Australian regulatory requirements and supersedes all warranty information from the original manufacturer. Distributed in Australia by: Model Engines (Aust.) Pty.
- Page 29 Scan this QR code with your smartphone for more information on the Ikonnik ET4. www. IKONNIK-RC.com 0554-002 (REV A)
