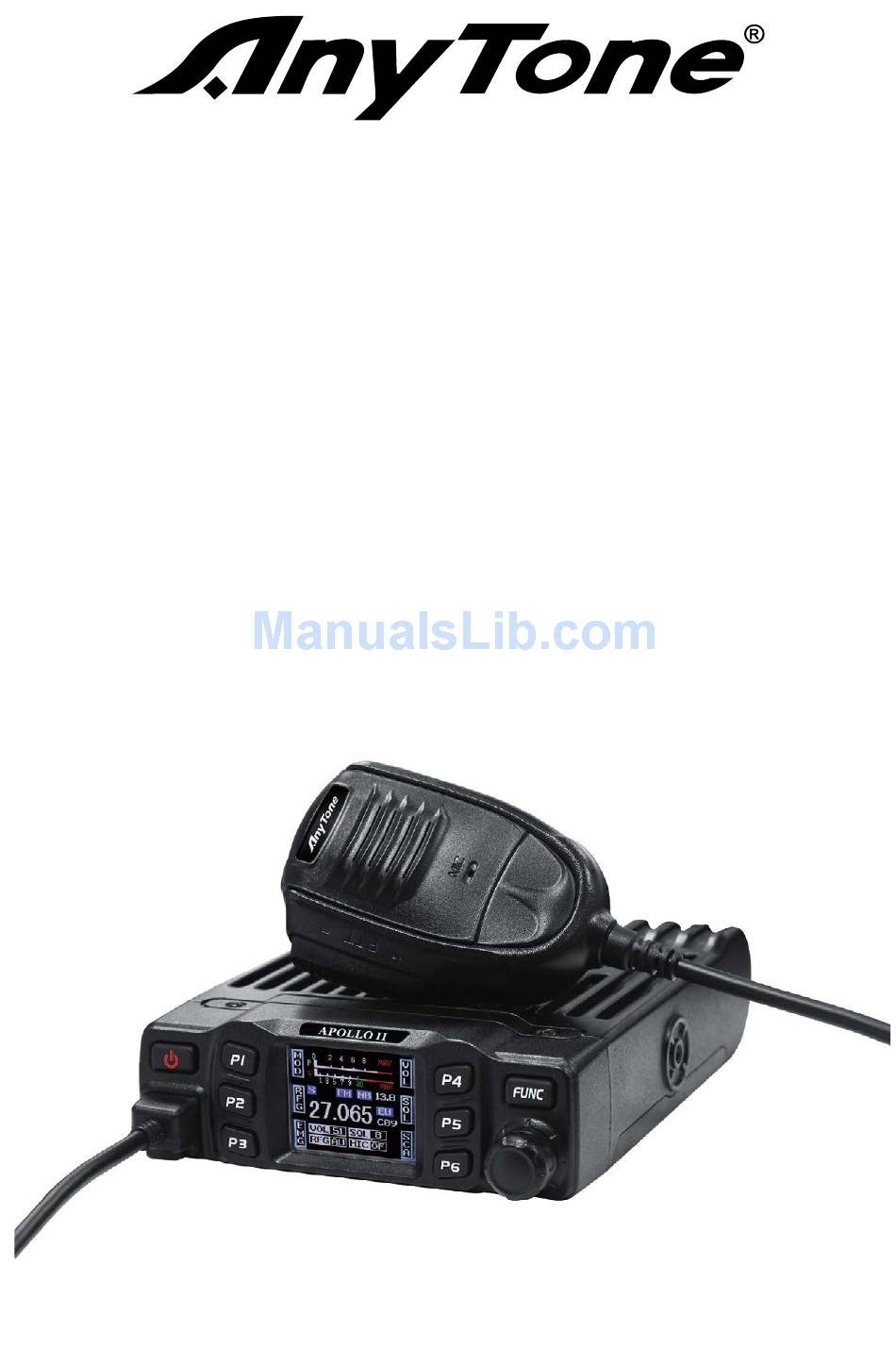

  • Page 1 Apollo II Instruction Manual...
  • Page 2 This appliance is marked with the symbol for selective sorting of waste electrical and electronic equipment. This means that this product must be removed by means of a selective collection system according to European Directive 2012/19 / EU either in order to be recycled or dismantled to reduce any impact on the environment.

  • Page 3: Table Of Contents

    CONTENTS FUNCTIONS AND CHARACTERS ..............1 STANDARD ACCESSORIES ................2 OPTIONAL ACCESSORIES ................2 INSTALLATION ....................2 Microphone Connection ................2 Antenna Connection ..................3 Power Connection ..................3 Fuse Replacement ..................3 Intall Microphone Hanger ................4 Intall External Speaker ................. 4 GETTING ACQUAINTED ..................
  • Page 4 There may be some restrictions for the use of this equipment in any country of the European Union. For more information consult your dealer or telecommunication authorities.

  • Page 5: Functions And Characters

    1. FUNCTIONS & FEATURES ● FTF LCD display ● 12/24V voltage(4W version only) ● Full alloy body for heat radiation ● Programmable keypad ● CTCSS/DCS (optional) ● Wireless microphone control(optional) ● Cell-phone APP control (optional) ● AM/FM multi norms ● Flexible menu and programming software ●...

  • Page 6: Standard Accessories

    2. STANDARD ACCESSORIES FUNC Radio Microphone Install bracket Pads Screws Microphone Hanger Adjusting screws non-slip mat Fuse(5A 250V) 3. OPTIONAL ACCESSORIES 8 ohm speaker PC cable 4. INSTALLATION Choose a idea location to install the radio. 1. Mark the location for screws by intall racket. 2.

  • Page 7: Microphone Connection

    4.01 Microphone connection 1. Plug microphone connector into jack. 2. Pull on the dustproof cover for microphone connector. FUNC FUNC 4.02 Antenna connection » Never press PTT before install the antenna, it might burn the transistor. 1. Screw on the antenna into antenna jack. 2.

  • Page 8: Fuse Replacement

    4.04 Fuse replacement This radio adopt 5A, 250V fuse 1. Open the fuse holder 250V FUSE IN-LINE FUSE HOLDER 2. Replace the fuse and screw on the holder. IN-LINE FUSE HOLDER IN-LINE IN-LINE FUSE FUSE HOLDER FUSE HOLDER 4.05 Intall Microphone hanger 1.

  • Page 9: Getting Acquainted

    5. GETTING ACQUAINTED 5.01 Front Panel FUNC Functions Power On/Off/Mute Programmable Key 1 Programmable Key 2 Programmable Key 3 Programmable Key 4 Programmable Key 5 Programmable Key 6 Function Menu key Microphone Jack Channel Switch/Push key/ Key lock 5.02 Rear Panel EXT SP NO.

  • Page 10: Microphone

    5.03 Microphone Channel Down Channel UP Connector Microphone cable 6. KEY FUNCTION OPERATION 6.01 1. Short press key, the radio emit a prompt and LCD display on. 2. Power off radio: hold key, until LCD display off. 3. when radio is powered on, short press key, LCD displays AUDIO: MT, the radio volume will mute.
  • Page 11 6.03 1.Short to switch between 3 groups of self define funciton keys. 2.Long press to enter background function menu. 6.04 [P1]~[P6] This radio has 6 self define keys , each key can set 3 functions. P1~P3 matching the 3 function display in left side LCD, P4~P6 matching the functions display in the right side of the LCD;...
  • Page 12 6.08 VOL: Volume level control 1.Short press key to choose programmed function group. 2.Short press the programmable key which allocated as VOL function, LCD displays VOL: 3.Turn channel switch to adjust volume level. 4.Press [PUSH] key or key to store setting and exit. 6.09 SQL~ASQ: Short press: Squelch level control 1.Short press...
  • Page 13 6.12 MEM~STORE: Short press: use memory channel 1.Short press key to choose programmed function group. 2.Short press the programmable key which allocated as MEM function to enter memory channel, turn channel switch to choose memory channels. 3.Short press it again to store setting and exit. Long press: Memory channel store position 1.Choose a channel 2.Short press...

  • Page 14: Background Function Menu Operation

    6.16 RB: RB function 1.Short press key to choose programmed function group. 2.Short press the programmable key which allocated as RB function, LCD displays RB:XX. 3.Short press it again or turn channel switch to choose RB group 4.Press [PUSH] key or key to store setting and exit.
  • Page 15 7.02 TOT: Time out timer 1.Enter FUNC MENU, choose NO. 2 function menu. 2.Press [PUSH] key to enter function setting, the chosen menu value in LCD will turn to green color. 3.Turn channel switch to choose wanted setting. This radio has OFF~30Min, total 30minutes available.
  • Page 16 7.07 RFG: RF gain 1.Enter FUNC MENU, choose NO. 7 function menu. 2.Press [PUSH] key to enter function setting, the chosen menu value in LCD will turn to green color. 3.Turn channel switch to choose wanted level, This radio has AU. OFF~30 total 12 levels available.
  • Page 17 7.12 AOP: Automatic power on 1.Enter FUNC MENU, choose NO. 12 function menu. 2.Press [PUSH] key to enter function setting, the chosen menu value in LCD will turn to green color. 3.Turn channel switch to choose wanted setting. ON: Turn on Automatic power on. OFF: Turn off Automatic power on.

  • Page 18: Public Data Function Menu Operation

    8. PUBLIC DATA FUNCTION MENU OPERATION How to enter public menu: 1.Long press key to enter main MENU interface. 2.Short press key, key or channel switch to move cursor, to choose menu group. (Note: short press key can fast turn page) 3.Press [PUSH] key to enter PUD MENU .

  • Page 19: Channel Function Menu Operation

    9. CHANNEL FUNCTION MENU OPERATION How to enter channel menu: 1.Long press key to enter main MENU interface. 2.Short press key, key or Turn channel switch to move cursor, to choose menu group.(Short press key can fast turn page). 3.Press [PUSH] key enter channel menu . 4.Short press key, key or Turn channel switch to move cursor to choose wanted...

  • Page 20: Dtmf Encode Setting

    10. DTMF ENCODE SETTING How to enter DTMF encode setting: 1.Long press key to enter main MENU interface. 2.Short press key, key or Turn channel switch to move cursor, to choose menu group.(Short press key can fast turn page). 3.Press [PUSH] key to enter DTMF MENU . 4.short press key, key or Turn channel switch to move cursor to choose wanted...

  • Page 21: Self-Define Key Setting

    10.05 DELAY: #. delay time setting 1.Enter DTMF MENU, choose NO. 5 function menu. 2.Press [PUSH] key to enter function setting, the chosen menu value in LCD will turn to green color. 3.Turn channel switch to choose group, This radio has 0~1000ms total 4 levels available. 4.Press [PUSH] key or key to confirm and exit.

  • Page 22: Specifications

    12. SPECIFICATIONS GENERAL Modulation Mode AM/FM 26.565 ~ 27.99125MHz (FM) By country of use Frequency Range 26.965 ~ 27.405MHz (FM) Spain 26.965 ~ 27.405MHz (AM) Frequency Tolerance ±5.0ppm Input Voltage 12/24V Dimensions(in mm) 124(W) x 163(D) x 39(H) Weight Approx.670g Ferquency Control PLL Synthesizer Operating Temperature Range...
  • Page 24 Qixiang Electon Science & Technoloyg Co.,Ltd.
