  • Page 1 Qixiang Electon Science & Technoloyg Co.,Ltd. www.anytone.net A1.190716...

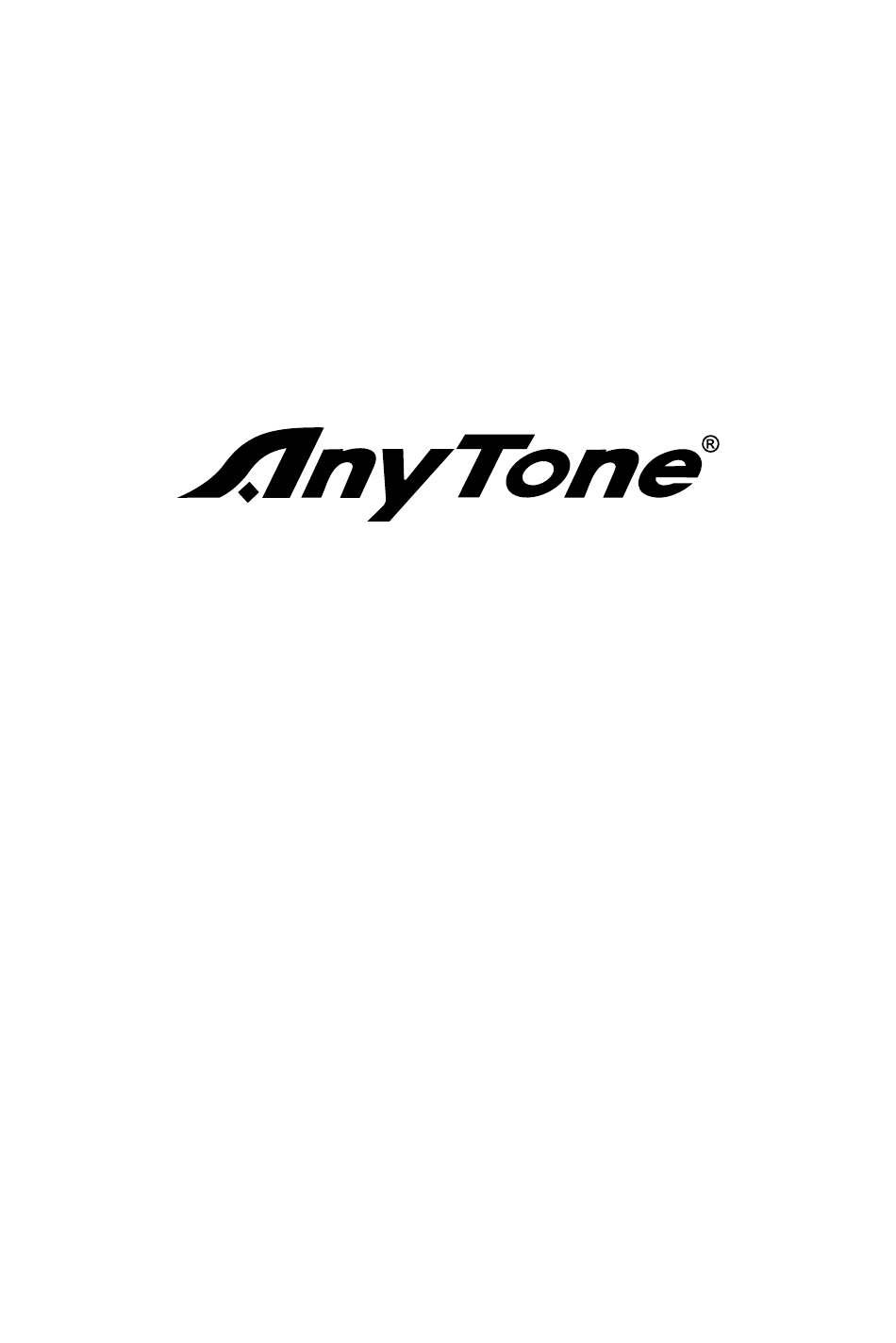

  • Page 2 AT-500M 10 METER RADIO Instruction Manual...

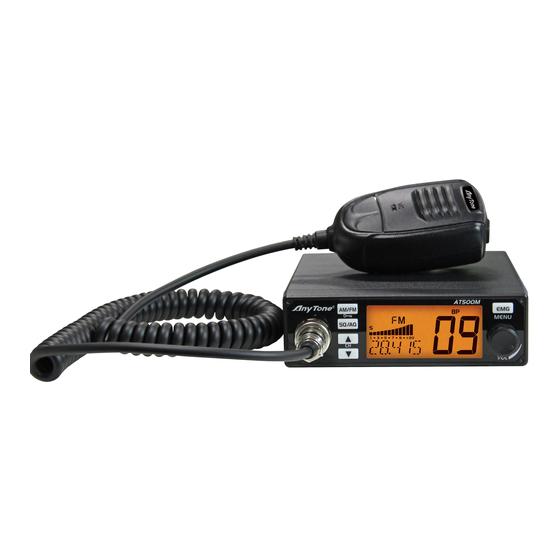

  • Page 3: Know About This Radio

    1. KNOW ABOUT THIS RADIO AM/FM MENU SQ/AQ EXT.SP POWER Mode/Keypad lock Squelch control, SQ, ASQ switch key Microphone Jack Channel up selector Channel down selector Emergency channel Power On/Off Volume control External speaker Jack Antenna Jack Down Connector Microphone cable AT-500M...
  • Page 4 SCAN FUNCTION RB FUNCTION NB FUNCTION DUAL-WATCH FUNCTION BEEP SOUND TOT FUNCTION HI-CUT FUNCTION EMG CALL SUIT DYMATIC AND ELECTRONIC MICROPHONE BACKLIGHT BRIGHTLESS ADJUSTABLE -5KHZ FUNCTION OFFSET FUNCTION KEY LOCK FUNCTION CTCSS/DCS CODE ( OPTIONAL) BUILT IN 12/24V CONVERTOR (OPTIONAL) AT-500M...
  • Page 5 Hold [UP]/[DN] can fast change ASQ level. Short press or wait for 10 seconds to store and exit. Long press key again to turn on SQL function. Note: The higher ASQ level selected, the stronger signal required to open speaker and hear the calling. AT-500M...
  • Page 6 3.7 Scan Function ................... Hold [UP ]/[DN] for over 5 seconds, when you hear /di di/, scan started. Short press [UP ]/[DN] key to change scan direction. Short press [AM]/[FM] to change mode, short press EMG or [PTT] to exit scan. AT-500M...
  • Page 7 Short press microphone [ UP ] or [ DN ] or to choose menu to be. Short press key to enter function setting parameter of the chosen function, the parameter blinks on LCD. Short press microphone [ UP ] or [ DN ] or to choose wanted setting. AT-500M...
  • Page 8 Microphone type Default: EL Note: Speak into microphone and watch the S-meter to choose wanted mic gain . 1~9: total 9 levels VOX Sensitivity Default: 3 1~9: Total 9 levels VOX Time Default: 4 , 1~9 Talkback level control Default: AT-500M...
  • Page 9 Default: OR Level 1~6 Backlight brighless Default: 4 , 1~10Min Time out timer Default: 1 :turn on -5KHz function :turn off -5KHz function Frequency Default: -5KHz function Note: This function is only valid for radio operating in HAM mode. AT-500M...
  • Page 10 LCD. Short press microphone [ UP ] or [ DN ] or to choose the frequency band. Note: This frequency band selection is valid only when the radio work in HF model or HAM model. AT-500M...
  • Page 11 Short press microphone [ UP ] or [ DN ] or to choose reset function memu, LCD displays Short press key to enter menu selection, falshes in the LCD. Long press key key until LCD only displays Release key, the radio automatically reseted. AT-500M...

  • Page 12: Specification

    1st 10.695MHz IF Frequencies 2nd 455KHz Less than 10dB change in audio Automatic Gain Control(AGC) Output for inputs from 10 to 50000uV Squelch less than 1uV Audio Output Power 2Watts at 8Ω less than 10% distortion Frequency Response 300-3000Hz AT-500M...
  • Page 13 Any adjustments to your radio must be made by qualified technicians. WARNING: MODIFICATION OF THIS DEVICE TO RECEIVE CELLULAR RADIOTELEPHONE SERVICE SIGNALS IS PROHIBITED UNDER FCC RULES AND FEDERAL LAW. AT-500M...
