  • Page 1 - Радиостанции Anytone в России - www.anytone.net A1.181016 www.anyradio.ru...

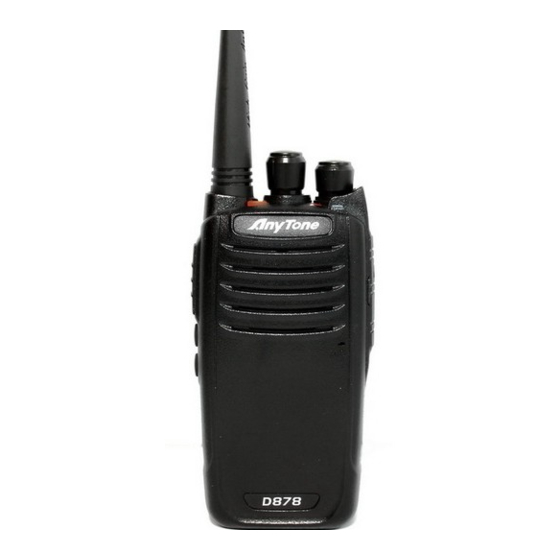

  • Page 2 - Радиостанции Anytone в России - AT-D878U Аналогово-цифровая DMR радиостанция Руководство пользователя DIGITAL MOBILE RADIO ASSOCIATION D878 www.anyradio.ru...
  • Page 3 - Радиостанции Anytone в России - www.anyradio.ru...
  • Page 4 - Радиостанции Anytone в России - THANK YOU! Thank you very much for choosing our Digital DMR and Analog two way radio. This radio adopts the latest advances in technology, providing reliable communication in today’s demanding communication environment. This radio offers both DMR digital and analog communication, introduces innovative DMR digital processing system to achieve high-audio quality and digital encryption.

  • Page 5: Table Of Contents

    - Радиостанции Anytone в России - CONTENTS 1.UNPACKING AND CHECKING THE EQUIPMENT ......1 1.1 Supplied Accessories ..............1 1.2 Standard Accessories ..............2 1.3 Optional Accessories ..............2 2.BATTERY INFORMATION .............. 3 2.1 Charging the Battery Pack ............3 2.2 Charger Supplied ...............
  • Page 6 - Радиостанции Anytone в России - 7.RESET................... 17 8.TROUBLE SHOOTING GUIDE ............. 18 9.ON-LINE SERVICE AND SUPPORT ..........19 SAFETY ................... 20 EU DECLARATION OF CONFORMITY .......... 22 10.TECHNICAL SPECIFICATIONS ..........23 www.anyradio.ru...

  • Page 7: Unpacking And Checking The Equipment

    - Радиостанции Anytone в России - 1. UNPACKING AND CHECKING THE EQUIPMENT Unpack the radio carefully. We recommend that you identify the items listed in the following table before discarding the packing materials. If any items are missing or have been damaged during shipment, please contact the carrier or the dealers immediately.

  • Page 8: Standard Accessories

    - Радиостанции Anytone в России - 1. UNPACKING AND CHECKING THE EQUIPMENT Standard Accessories Antenna* Li-ion Battery Pack Charger AC Adaptor QB-44L(2100mAh) or QBC-45L QPS-17 QA-11UV QB-44HL(3100mAh) Belt Clip Wrist strap Instruction Manual BC-05 * Note: For frequency band of antenna, please refer to label indicated in the bottom of the antenna.

  • Page 9: Battery Information

    Use Caution with the Li-ion Battery Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as AnyTone cannot be held responsible for any accident caused by modifying the battery.

  • Page 10: How To Charge

    - Радиостанции Anytone в России - 2. BATTERY INFORMATION WARNING: » When keys, ornamental chain or other electric metals contact the battery terminal, the battery may become damage or injure a human. If the battery terminals are short circuited it will generate a lot of heat.

  • Page 11: Normal Charging Tips

    - Радиостанции Anytone в России - 2. BATTERY INFORMATION e. Charging Process Charging Status Indicator Status Standby (Self-examine lights red None 1second when power on) Charging Lights red for about 3 hours (Charge in a constant current) Fully charged Lights green (Charge in a constant voltage) f.

  • Page 12: How To Store The Battery

    - Радиостанции Anytone в России - 2. BATTERY INFORMATION » Trickle charging (Pre-Charging Mode) time cannot last beyond 30 minutes. If the indicating lamp still blinks red after 30-minute trickle-charging, it means that the charger cannot charge the battery correctly. Please check whether the battery or charger is damaged.

  • Page 13: Preparation

    - Радиостанции Anytone в России - 3. PREPARATION Installing / Removing the Battery Match the two bottom grooves of the battery pack with the corresponding guides on the back of the radio and then push it. To remove the battery pack, slide the release latch at the top away from the battery and remove the pack away from the transceiver.

  • Page 14: Installing / Removing The Belt Clip

    - Радиостанции Anytone в России - 3. PREPARATION Installing / Removing the Belt Clip Installing the Belt Clip: Place the belt clip above the corresponding holes on the back of the radio, and screw it into place clockwise with the two supplied screws.

  • Page 15: Radio Overview

    - Радиостанции Anytone в России - 4. RADIO OVERVIEW Channel Switch Antenna POWER/VOL Emergency Alarm LED Status Indicator Key (PF3) Speaker MIC Input PTT Button Speaker/Mic Jacks [PF1] top Key [PF2] bottom Key AT-D878U Digital DMR and Analog UHF Two Way Radio...

  • Page 16: Status Indications

    - Радиостанции Anytone в России - 4. RADIO OVERVIEW Status Indications The top LED will help you to identify the current radio status. LED Indication Status Flashes Red Low battery voltage Constant Red Transmitting Constant Green Analog Receiving Constant Cyan...

  • Page 17: Basic Operations

    - Радиостанции Anytone в России - 5. BASIC OPERATIONS Power on the Radio Turn on the radio by turning the [Power/Volume] switch clockwise till a click is heard, and the LCD displays will show a start-up message, and you will hear a beep after 7 seconds.

  • Page 18: Emergency Alarm

    - Радиостанции Anytone в России - 5. BASIC OPERATIONS Emergency Alarm Press top orange Alarm key to turn alarm function, then press this key again to return. Man Down Alarm In CPS - Public - Alarm Setting,check on the "Man Down" alarm box, it will enable the Man Down Alarm function.

  • Page 19: Programmable Functions

    - Радиостанции Anytone в России - 6. PROGRAMMABLE FUNCTIONS Top orange key, PF1 and PF2 key are programmable in CPS, it allows you assign the key as short, Long1 or Long2 function. 1)Short : Press the programmed key to activate the assigned function.
  • Page 20 - Радиостанции Anytone в России - 6. PROGRAMMABLE FUNCTIONS Emergency Alarm Press the programmed key to start or exit the emergency alarm. Emergency alarm should be set up in CPS-Public-Alarm Setting first. Record Switch Enable/disable the recording function. The radio is with standard 30hours recording for RX/TX communication in digital mode.
  • Page 21 - Радиостанции Anytone в России - 6. PROGRAMMABLE FUNCTIONS Stay at the selected number, press PTT to talk and start recording, release PTT to end recording. It will allow you make 25records. This function is only valid in digital channel.
  • Page 22 - Радиостанции Anytone в России - 6. PROGRAMMABLE FUNCTIONS Status Info Report (22) Press the programmed key to turn on/off the function. The status information will be transmitted when the function is on. This function is only valid in digital channel.

  • Page 23: Reset

    - Радиостанции Anytone в России - 7. RESET Power off the radio firstly. Then power it on while holding the [PTT] and the [PF1] button below the PTT at the same time. Release the keys until the indicator lights blue color.

  • Page 24: Trouble Shooting Guide

    - Радиостанции Anytone в России - 8. TROUBLE SHOOTING GUIDE Problems Solutions A. Battery pack may not be installed properly. Remove the battery pack The radio cannot be switched and install it again. on or no display after being B. Battery power may be insufficient.

  • Page 25: On-Line Service And Support

    Warning Notes Every effort has been made to ensure that the information in this document is complete, accurate, and up to-date. Anytone Radio assumes no responsibility for the results of errors beyond its control. The manufacturer of this equipment also cannot guarantee that changes in the equipment made by non-authorized users will not affect the information in it.

  • Page 26: Safety

    • Do not keep the radio with the antenna very close to, or touching exposed parts of the body, while transmitting. Anytone radios will perform best, if you speak 2-4 inches away from the microphone and the radio is vertical.
  • Page 27 - Радиостанции Anytone в России - SAFETY • Handle the battery properly. Never place the LI-ion battery in your pocket or purse with loose coins. This could result in short circuiting the battery. • Be certain that your power source matches the rating listed for the supplied battery charger (AC adapter).

  • Page 28: Eu Declaration Of Conformity

    - Радиостанции Anytone в России - 10. TECHNICAL SPECIFICATIONS General Frequency Range 400-480MHz (U) Channel Capacity 256 channels Channel Spacing 25KHz (Wide Band) ,12.5KHz (Narrow Band) Phase-locked Step 5KHz, 6.25KHz Operating Voltage 7.4V DC ±20% /(2100mAh) Frequency Stability ±2.5ppm Operating Temperature -20℃~ +55℃...
  • Page 29 - Радиостанции Anytone в России - European Users should note that operation of this unit in Transmit mode requires the operator to have a valid Amateur Radio Licence from their respective Countries Amateur Radio Licencing Authority for the Frequencies and Transmitter Power levels that this Radio transmits on. Failure to comply may be unlawful and liable for prosecution.
