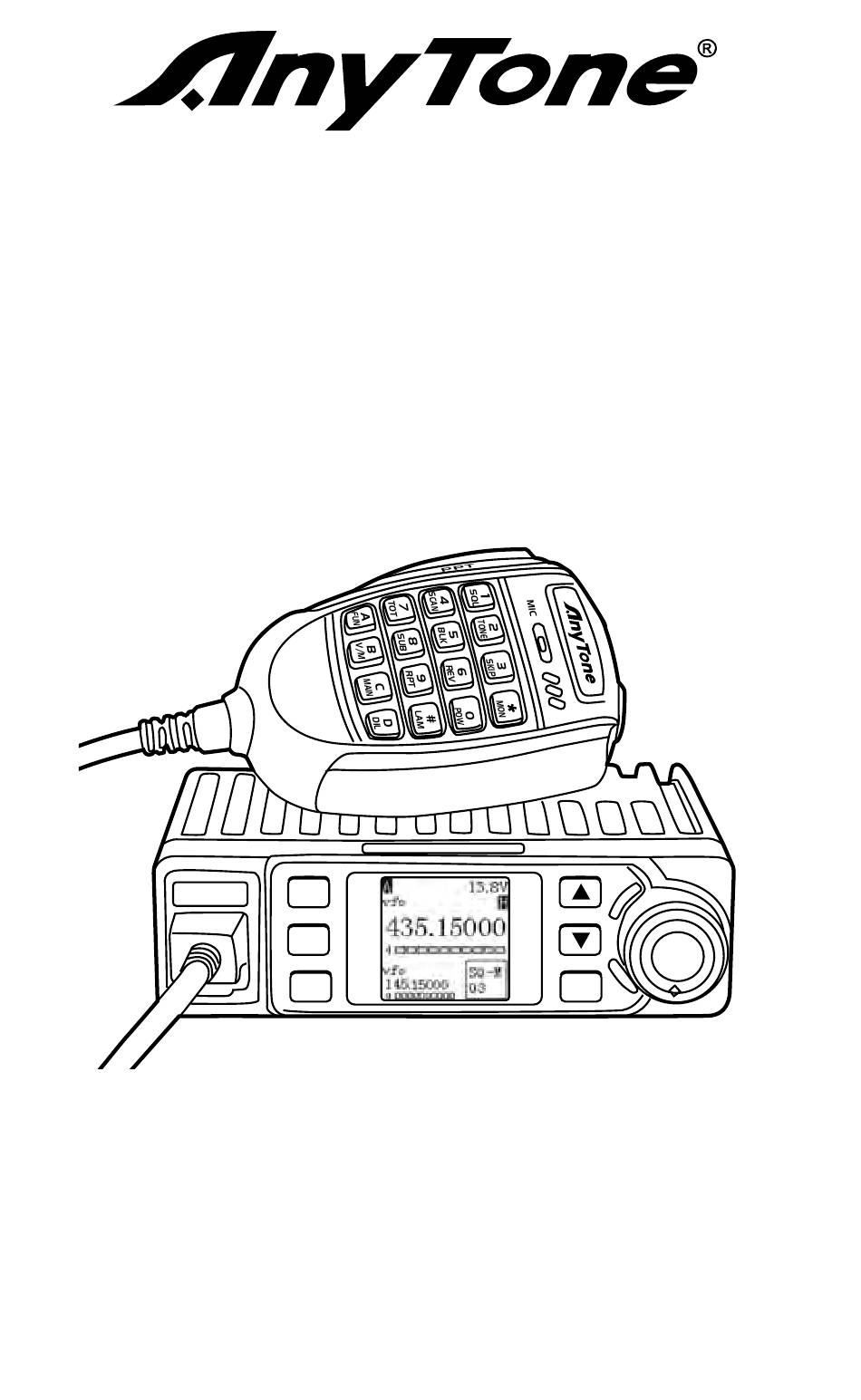

  • Page 1 AT-779UV 779UV MAIN Instruction Manual www.qxdz.cn...
  • Page 2 1. WARNING Qixiang Electon Science & Technoloyg Co.,Ltd. This device complies with Part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

  • Page 3: Standard Accessories

    GMRS Frequency List: 2. ACCESSORIES 2.1 Standard Accessories TONE SKIP SCAN MAIN 779UV MAIN Microphone Transceiver Mobile Bracket Adjusting screws non-slip mat Fuse(10A 250V) Screws Pads manual...

  • Page 4: Getting Acquainted

    3. GETTING ACQUAINTED 3.1 Front panel VFO/Channel mode switch Down Main channel Indicator 779UV MAIN Monitor Menu Programming port/ microphone jack Power on, volume switch 3.2 Rear panel Antenna jack External speaker jack Ω　 Note: To get the best range from the external whip antenna(50 )should be used. Ant:Tx GMRS, Rx:136-174&400-490Mhz, 0dBi .

  • Page 5: Basic Operations

    4. BASIC OPERATIONS 4.1 Switching the Power On/Off 1. Turn the Volume knob clockwise to turn on the radio, the radio LCD will display programmed text and emit a beep sound . 2. Power Off: Turn volume knob anti-clockwise until hear " c lick" to turn off the radio. 4.2 Adjusting the Volume Turn volume knob clockwise to increase colume and anti-clockwise to reduce it.
  • Page 6 4. BASIC OPERATIONS 4.7 Receiving Choose a receiving channel or frequency for receiving call, if the RX signal is week, hold front panel key or microphone key to monitor weak signal. When the RX icon and field strength flashes, but can not hear the calling, it means »...

  • Page 7: Shortcut Operation

    4. SHORTCUT OPERATION Press microphone key and then press number key TO fast enter following functions, 【PTT】 【UP】/【DN】 then press key to choose value. presss key or key to Store. Function list Function name Combination Key Squelch level setting Optional signaling setting Scan Skip Scan Busy channel lockout...

  • Page 8: Function Setting

    5. FUNCTION SETTING 5.1 By Front Panel Key 1. Press key to enter main menu. 2. Press key or key to choose function. Press key to choose value. 4. Press key or key to store and exit. » When setting DCS code, key is for switch between positive and inverse code.
  • Page 9 5. FUNCTION SETTING Function name Value Busy channel Lock OFF、REPEATER、BUSY Channel name TX OFF ON、OFF Scramber 1~11、edit、OFF Compander ON、OFF NC(Noise reduction) ON、OFF 1~100, 5Tone Press PTT to transmit 2Tone 1~32, Press PTT to transmit FREQ、VOLT、OFF Sub channel display ON、OFF Key beep 1~30Min、OFF Time out timer 50ms~500ms...
  • Page 10 6. SPECIFICAITONS GENERAL 144-146MHz , 430-440MHz Europe version: TX/RX: Frequency Range USA version: 467.55-467.725MHz TX/RX: TX/RX: 462.5625-462.725MHz 136-174MHz , 400-490MHz 25K (Wide Band) 12.5K (Narrow band) Europe version: Channel Spacing USA version: 12.5K 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20 Phase-locked Step KHz,25KHz,30KHz,50KHz DC 13.8V±15% Operating Voltage CTCSS/DCS/5Tone/2Tone/DTMF Squelch Carrier/...
