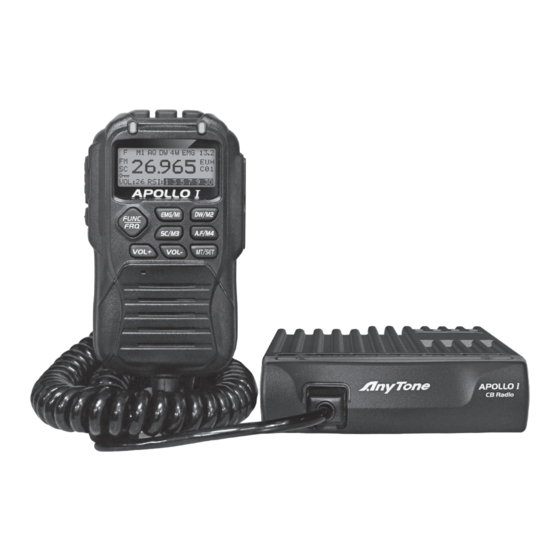

AnyTone APOLLO I Operating Instructions Manual
  1. Manuals
  2. Brands
  3. AnyTone Manuals
  4. Radio
  5. APOLLO I
  6. Operating instructions manual

AnyTone APOLLO I Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Qixiang Electon Science & Technoloyg Co.,Ltd.
www.qxdz.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APOLLO I and is the answer not in the manual?

Questions and answers

Related Manuals for AnyTone APOLLO I

Summary of Contents for AnyTone APOLLO I

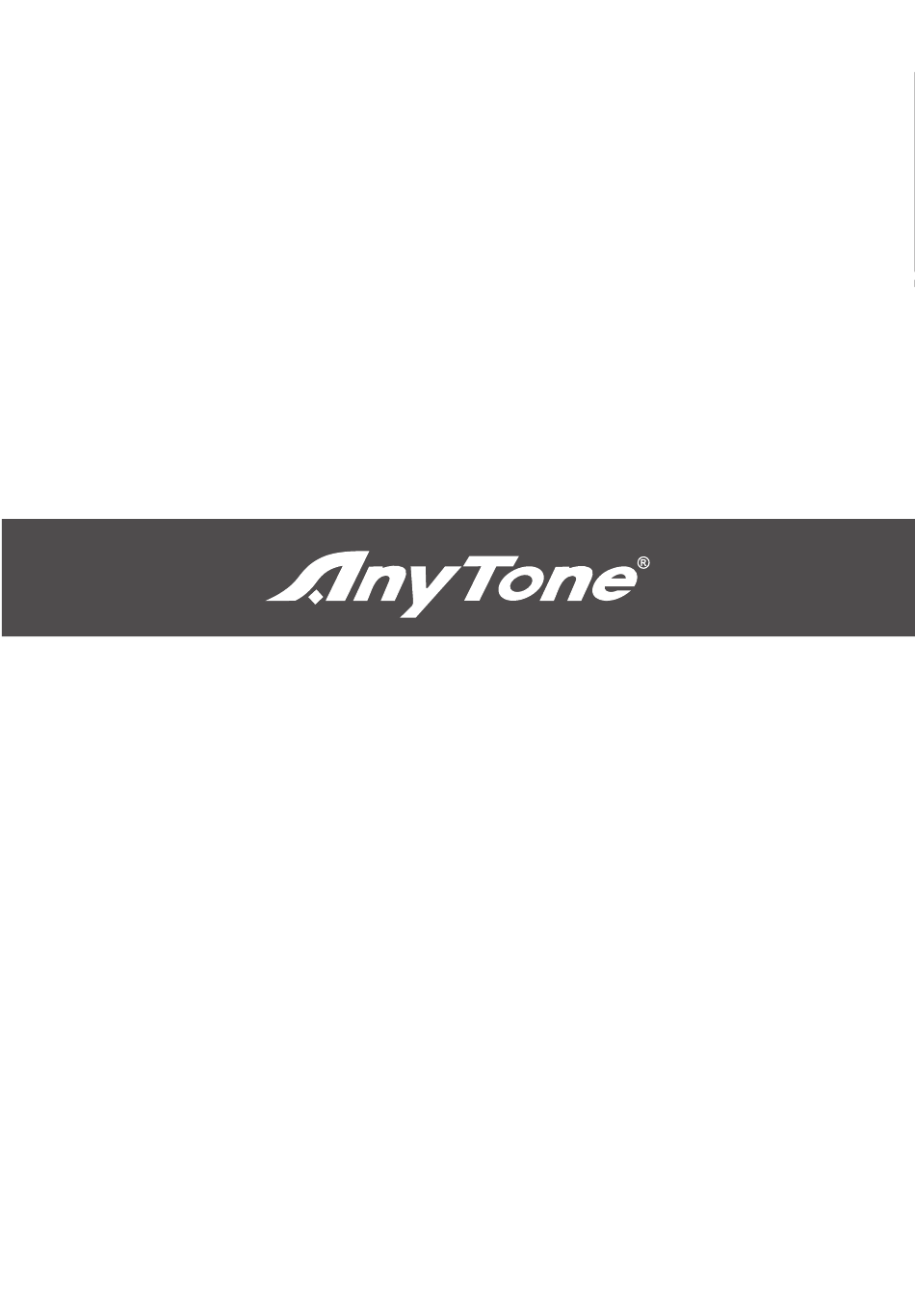

  • Page 1 Qixiang Electon Science & Technoloyg Co.,Ltd. www.qxdz.cn...
  • Page 2 APOLLO I CB RADIO Operating Instructions...

  • Page 3: Table Of Contents

    CONTENTS FUNCTIONS AND CHARACTERS ............1 ACCESSORIES ..................2 INSTALLATION ..................2 Microphone connection ................2 Antenna connection ..................3 Power connection ..................3 Fuse replacement ..................3 Intall Microphone hanger ................4 Intall external speaker .................. 4 Install earphone ................... 4 Install Remote PTT cable................4 KNOW ABOUT THIS RADIO ..............5 HOW TO USE THIS RADIO ..............6 Power on radio .....................

  • Page 4: Functions And Characters

    FUNCTIONS AND CHARACTERS Full Aluminum body offer best heat radiation ■ Remote control microphone with Wide angle Dot matrix LCD ■ Multiple norms: EU, EUH, CE, UK, PL,E1, I2, DE, DEH ■ 3 color display : Blue, Purple, Orange ■ Dual watch ■...

  • Page 5: Accessories

    ACCESSORIES Screws for bracket Pads for bracket Adjusting knobs Fuse(2A,250V) Hanger Screws for hanger Pads INSTALLATION Choose a idea location to install the radio. 1. Mark the location for screws by intall racket. 2. Fix the bracket by screws. 3. Fix radio base into install bracket and lock by adjusting knobs. Microphone connection 1.

  • Page 6: Antenna Connection

    Antenna connection Note: Never press PTT before install the antenna, it might burn the transistor. 1. Screw on the antenna into antenna jack. 2. To make full use of this radio, it is necessary to locate the antenna in a well grounded place, and well adjust the SWR.

  • Page 7: Intall Microphone Hanger

    Intall Microphone hanger 1. Choose idea location and mark for screw point. 2. Fix the hanger by the srews in accessory list. Intall external speaker This radio adopt 4-8 ohm, 4 W external speaker. 1. Install the external speaker in idea location. 2.

  • Page 8: Know About This Radio

    KNOW ABOUT THIS RADIO FUNC/FRQ Function menu / frequency mode EMG/ M1 EMG CH9 and CH19, or program with second function DW/M2 Dual watch, or program with second function SC / M3 Channel scan, or program with second function AF / M4 AM/FM selection, or program with second function VOL+、Squelch level + Increase volume or Squelch level...

  • Page 9: How To Use This Radio

    HOW TO USE THIS RADIO Power on radio 1. Hold key until LCD light on. Note : When the radio in on, Hold key until LCD light off, the radio will power off. 2. Adjust squelch level until you can hear background noise, refer to Page 7 about Squelch level setup.

  • Page 10: Volume Control (1-28 Levels, Default Level 26)

    Volume control ( 1-28 levels, Default level 26 ) 1. Press SQ/VOL key repeatedly,until LCD display VOL: XX XX stands for volume level. 2. Short Press key to choose wanted volume level. 3. Hold can fast increase volume level, hold can fast decrease volume level.

  • Page 11: Lcd Display

    LCD display Dot matrix LCD display for channel number, frequency and operations. Dual watch 1W/4W: Power level M1-M4: storage location CH9/19 Current Voltage Func FM/AM Mode Working norm Scan Current channel Keypad lock icon Volume level, SQ:11 Squelch level RX signal strength, PWR: TX signal strength.

  • Page 12: Time Out Timer

    Time Out Timer 1. Short Press key, F Icon appear and flashes. 2. Short Press key to enter Menu. 3. Repeatly short press key until LCD displays TOT: XXXX 4. Press to adjust the TOT time. 5. Short press any other key to confirm and exit. LCD color 1.

  • Page 13: Keypad Lock

    Keypad lock 1. To avoid wrong operation of keys, you can hold key to lock the keypad. 2. the LCD displays 3. repeat the above function to unlock the keypad. Frequency mode 1. Hold for over 5 seconds, the display will change to frequency mode.

  • Page 14: Dw Channels

    DW channels Two channels need be pre-stored for dual watch function. 1. Short Press key, F Icon appear and flashes. 2. Short Press key to enter Menu. 3. Repeatly short press key until LCD displays DW0: XX 4. Press to choose first channel for 5.

  • Page 15: Norms And Frequency

    Norms and Frequency Band ID Country Europe Europe CEPT Poland Italy/Spain Italy Germany Germany AM=1W AM=4W AM=4W AM=4W AM=4W AM=1W AM=4W Power FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W FM=4W CH-01 26.965 26.965 26.965 27.60125 26.960 26.965 26.965 26.965 26.565 CH-02 26.975...

  • Page 16: Specification

    Specification GENERAL Modulation Mode AM/FM Frequency Range 26.965-27.405Mhz Frequency Tolerance 0.005% Input Voltage 13.2V Dimensions(in mm) 112mm(L) x 143mm(W) X 30mm (H) Weight 785g Ferquency Control PLL Synthesizer Operating Temperature Range -20° C TO + 55° C Transmit 1.4A MAX Current Drain Receive Squelched 0.4A...
