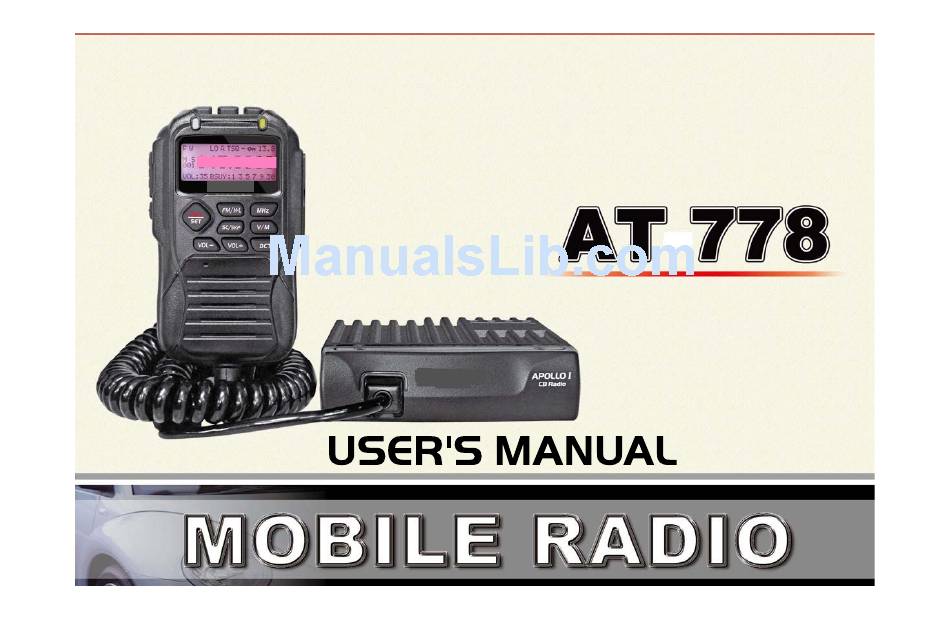

  • Page 1 FCC ID:T4KAT778U...
  • Page 2 Nice Housing, Stoutness & Stability, Advanced and Reliable functions, Perfect & Valuable. AT 778 mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality. NOTE Models Apply To This Manual: AT778 Mobile radio AT-778 Mobile Radio Applicable Software: QPS778...
  • Page 3 If an abnormal odor or smoke is detected coming from the transceiver, turn OFF the power immediately. Contact an Anytone service station or your dealer. Do not transmit with high output power for extended periods; the transceiver may overheat.

  • Page 4: Table Of Contents

    CONTENTS ..........1 Transmitting Optional Signaling ............13 Channel Edit ..................13 Supplied Accessories/Optional Accessories.....2 Channel Delete ................13 Supplied Accessories............... 2 Shortcut Operations.............14 Squelch Off/Squelch Off Momentary..........14 ..............3 Squelch Level Setup ................ 14 Mobile Installation ................3 DC Power Cable Connection ............4 Frequency/Channel Scan ..............
  • Page 5 CONTENTS Squelch Level .................. 27 Band-width Selection ............... 20 Optional Signaling ................27 TX OFF Setup.................. 21 Scan Skip ..................28 Frequency/Channel Scan ............... 28 Busy Channel Lockout ..............21 Busy Channel Lockout ..............28 Editing Channel Name ..............21 Reverse TX/RX ................
  • Page 6 New and Innovative Features AT 778 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues company philosophy of innovation and practicality. More functions as follows: There are Amateur operation mode and Professional operation mode for option.

  • Page 7: Supplied Accessories/Optional Accessories

    Supplied Accessories Supplied Accessories After carefully unpacking the transceiver, identify the items listed in the table below. We suggest you keep the box and packaging. Transceiver Microphone (QHM-03) DC Power Cable with User Manual (with DTMF keyboard) Fuse Holder(QPL-01)

  • Page 8: Mobile Installation

    Initial Installation Determine the appropriate angle of the transceiver, using the 3 screw Mobile installation hole positions on the side of the mounting bracket. To install the transceiver, select a safe, convenient location inside your vehicle that minimizes danger to your passengers and yourself while the vehicle is in motion.

  • Page 9: Dc Power Cable Connection

    Initial Installation DC Power Cable Connection Locate the power input connector as close to the transceiver as possible. Mobile Operation Black The vehicle battery must have a nominal rating of 12V. Never connect the transceiver to a 24V battery. Be sure to use a 12V Connect the DC power cable to the transceiver's power supply vehicle battery that has sufficient current capacity.
  • Page 10 Initial Installation Use the supplied DC power cable to connect the transceiver to a To turn on the unit, press the power switch manually while it is illuminated. (While ignition key is at ACC or ON position) regulated power supply. When the ignition key is turned to ACC or ON position with the Do not substitute a cable with smaller gauge wires.

  • Page 11: Power Supply Voltage Display

    Initial Installation REPLACING FUSES If the fuse blows, determine the cause, then correct the problem. After the problem is resolved, replace the fuse. If newly installed fuses continue to blow, disconnect the power cable and contact your autho- rized dealer or an authorized servi- mobile radio mobile radio...

  • Page 12: Accessories Connections

    Initial Installation Accessories Connections Microphone For voice communications, connect a microphone equipped with an External Speaker 8-pin modular plug into the modular socket on the front of the main If you plan to use an external speaker, choose a speaker with an supplied microphone hanger in an appropriate location using the mono (2-conductor) plug.

  • Page 13: Front Panel

    Getting Acquainted Front panel Press key until key. NO. KEY FUN/SET V/M/MW Stores data into channels MHz/SHIFT Sets offset direction and offset frequency TS/DCS/LOCK Sets Keypad lock function SQL/D Compander mode on/off Press NO. KEY NO. KEY Pow(Power) Power on/Off Pow(Power) Reset to factory default settings V/M/MW...

  • Page 14: Rear Panel

    Getting Acquainted Rear panel NO. KEY Squelch level. In channel mode. Indicates the channel number in channel mode. Channel skip. Decimal point Indicates the decimal point of frequency and the Decimal point scanning function. Indicates the frequency or memory name. Signal is being received or monitor.

  • Page 15: Microphone

    Getting Acquainted microphone MIC Connector Diagram(in the front view of connector) NO. KEY Increase frequency, channel number or setting value. DOWN Decrease frequency, channel number or setting value. Press the PTT (Push-TO-Talk) key to transmit. Number Key Input VFO frequency or DTMF dial out etc.. D T M F O N / Switches between DTMF dialing or function operating.

  • Page 16: Working Mode (Amateur Transceiver Or Professional Transceiver)

    WORKING MODE (AMATEUR TRANSCEIVER OR PROFESSIONAL TRANSCEIVER) According to practical application, you can set the radio works as Amateur Transceiver mode or Professional Transceiver mode. There This mode shows only frequency on are also 2 levels operation menu to set functions as you need. It is easy the display.

  • Page 17: Basic Operations

    Basic Operations frequency in screen will be auto-hidden. In this status, turn selector Switching The Power On/Off knob or Microphone [ ] key will increase or decrease According to the option selected during installation frequency quickly by 1MHz step. Press the switch or turn the ignition key to Under channel mode, you can change the current channel to the ACC (speed up) or ON (startup) position to power...

  • Page 18: Transmitting Tone-Pulse

    Basic Operations Please hold the microphone approximately 2.5-5.0cm from your lips , Channel Delete and then speak into the microphone in your normal speaking voice to Under channel mode, turn selector knob to select channel which get best timbre. you want to delete. Press and hold [PTT] key, LED lights RED and power intensity showed in Press key and...

  • Page 19: Shortcut Operations

    Shortcut Operations In VFO mode, press for 1s to squelch off/squelch off momeNTARY enter into frequency scan. key programmed as Squelch Off or Squelch Off Momentary to Turn selector knob or press Microphone monitor the weak signal. ] key to change scan direction. Squelch Off: Press key to disable squelch, press Press any key except...

  • Page 20: Ctcss Scan

    Shortcut Operations When LCD appears icon, it means Compander (Decrease the background noise and ENHANCE current channe can be set with DCS AUDIO CLARITY) encode and decode together, turn selector knob or press Microphone's [ ] to select Compander function will decrease the background noise and enhance desired DCS encode and decode.

  • Page 21: Offset Direction And Offset Frequency Setup

    Shortcut Operations KEYPAD LOCKOUT Offset Direction and offset frequency setup Avoiding unintentional operation, this function will lock main keys, all Repeater receives a signal(UP-LINK) on one frequency and re-transmits keys except key are invalid. on another frequency(DOWN-LINK). The difference between these two Press key until LCD displays frequencies is called the offset frequency.

  • Page 22: Transmitting Edited Dtmf Tones In The Auto-Dialer Memory

    Shortcut Operations Turn selector knob to choose group you desired. Total:16 group, 01-16. Press key to enter into editing of current group, press MIC's numeric keys to set your desired data. The display scrolls when the 7th digit is entered. The numbers 0-9, --, A-D, * and # can be stored up to a total of 23 digits.

  • Page 23: General Setting

    General Setting features such as ANI, PTT ID, group call, remotely stun, remotely kill, Press and hold key for over 2s to enter general setting menu. waken,...etc.. The signalling edition must be done through programming Press to select the desired function option. software.

  • Page 24: Sending 2-Tone Call

    General Setting Press directly to transmit the pre-stored 5-Tone signaling. Press key to choose No.04 menu, LCD displays "5TON XX", "XX" In 5Tone signaling mode, press for 2s until LCD displays indicates the group in the list. "AN---", turn selector knob to select desired digit(caller ID). In this Turn selector knob to select the desired sending 5TONE group, mode, press Press PTT to transmit selected group.

  • Page 25: Band-Width Selection

    General Setting Press and hold key for over 2s to enter general setting menu. Press key to choose No.06 menu, LCD displays "SPK--SQ". Turn selector knob to select the desired combination. If select "SQ", it indicates you can hear the calling from caller when receive a matching carrier.

  • Page 26: Tx Off Setup

    General Setting RL: Enable BTLO, transmitting is inhibited when current channel TX OFF SETUP receives a matching carrier but dis- Disable this function, it is invalid to press PTT, current channel only matching CTCSS/DCS. Press [PTT] works in RX mode. to emit error voice prompt and back to receiving status.

  • Page 27: Talk Around

    General Setting Press key to choose No.12 Press key to choose No.14 menu, LCD displays " ". menu, LCD displays " ". Turn selector knob to select the desired Turn selector knob to select the desired setting. setting. Enable compander Enable Frequency Reverse Disable Frequency Reverse.

  • Page 28: Radio's 5Tone Self Id Enquiry

    General Setting menu, LCD displays "D--XXX", "XXX" is radio's DTMF SELF ID. TOT (Time-out timer) Press The time-out timer limits the amount of transmitting time. When you reach the time limit which has been programmed by your dealer, your transmission will be cut off. In order to transmit again, you must release Radio's 5TONE SELF ID ENQUIRY PTT button to reset the timer.

  • Page 29: Dtmf Transmitting Time

    General Setting Press Auto power off after 1h Auto power off after 2h Press , then turn selector knob also can select the desired Disable Auto power off squelch level. If the transceiver has set at higher squelch level, it may fail to hear Press the calling.

  • Page 30: Pilot Frequency

    General Setting menu, LCD displays "LAMP--25". Press key to choose No.26 menu, LCD displays Turn selector knob to select the desired LCD backlight brightness " ". 1-32 total 32 level backlight brightness. Turn selector knob to select the desired Press mode.

  • Page 31: Address List

    General Setting Address list Press and hold key for over 2s to enter general setting menu. You store desired ID and corresponding ID name in address list. The Press key to choose No.29 LCD displays ID corresponding name if radio received ANI calling and menu, LCD displays "RESTORE".

  • Page 32: Microphone Operation

    Microphone Operation Switches between VFO and channel mode In standby, press key to switch between channel mode and Frequency mode (VFO). Short Calling In standby, press to transmit the selected DTMF/2TONE/5TONE in current channel. :In standby, press , LCD displays DTMF data and group.

  • Page 33: Scan Skip

    Microphone Operation Press [ ] to select the desired value. displays " ", it indicates 5Tone function Enable BCLO, Carrier lockout, transmitting is inhibited when enable. current channel receives a matching carrier; press [PTT] to emit error voice prompt. This function can be temporarily used in channel mode. Once the Enable BTLO, transmitting is inhibited when current channel radio is turned off or switched to another channel, the temporary receives a matching carrier but dis-matching CTCSS/DCS.

  • Page 34: Tot (Time-Out Timer)

    Microphone Operation TOT (Time-out timer) Talk Around By Talk Around function, you can directly communicate with other radios The time-out timer limits the amount of transmitting time. When you reach the time limit which has been programmed by your dealer, your in your group in case the repeater is not activated or when you are out of transmission will be cut off.

  • Page 35: Lcd Backlight

    Microphone Operation LCD Backlight In standby status, press , then press LCD displays "LAMP- XX". Press [ ] to select desired backlight brightness(1-32 levels).

  • Page 36: Long-Distance Anti-Theft Alarm

    Long-distance Anti-theft Alarm This function is mainly use for simple anti-theft alarm device in vehicles. When the alarm cable QL-01(A) or QL-01(B) is removed from the When the transceiver be removed in an improper manner, the transceiver will emit and transmit alarming and background voice to system and and will alarm as programmed.

  • Page 37: Cable Clone

    Cable Clone This feature will copy the programmed data and parameters in the master unit to slave units. It copies the parameters and memory program settings. Press and hold key, then press key to enter into cloning mode, LCD displays " CLONE".

  • Page 38: Xp System)

    Programming Software Installing and Starting (in windows XP system) Double click "QPS778 setup.exe", then follow the installing instruction. Install USB Cable Driver Programme (As pic 1) Click start menu in computer, under "ALL PROGRAMS" menu, choose and click "USB To Com port" in QPS778 program, install "USB To Com port"...
  • Page 39 Specifications...
  • Page 40 Specifications...

  • Page 41: Attached Chart

    Attached Chart 50 groups CTCSS Tone Frequency(Hz) 1024 groups DCS Code. 67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1 69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6 71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8 74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3 77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1...
  • Page 42 Attached Chart N is positive code, is negative code, total: 232groups.
  • Page 43 SAFETYTRAININGINFORMATION Your radio generators RF electromagnetic energy during Qixiang Electron Science & Technology Co.,Ltd. transmit mode.This radio is designed for and classified as“Occupational Use Only”,meaning it must be used only during the course of employment by individuals aware of the hazards,and the ways To Minimize Such hazards. This radio is NOT intended for use by the“General Population”...
  • Page 44 INFORMATION RF exposure limits. A proper antenna is the antenna supplied with this manufacturer for use with this radio. This radio generates RF electromagnetic energy during transmission. DO NOT transmit for more than 50% during the time of employment This radio is designed for and classified as “Occupational Use Only”, meaning it must be used only during the course of employment by (50% duty cycle or less).
