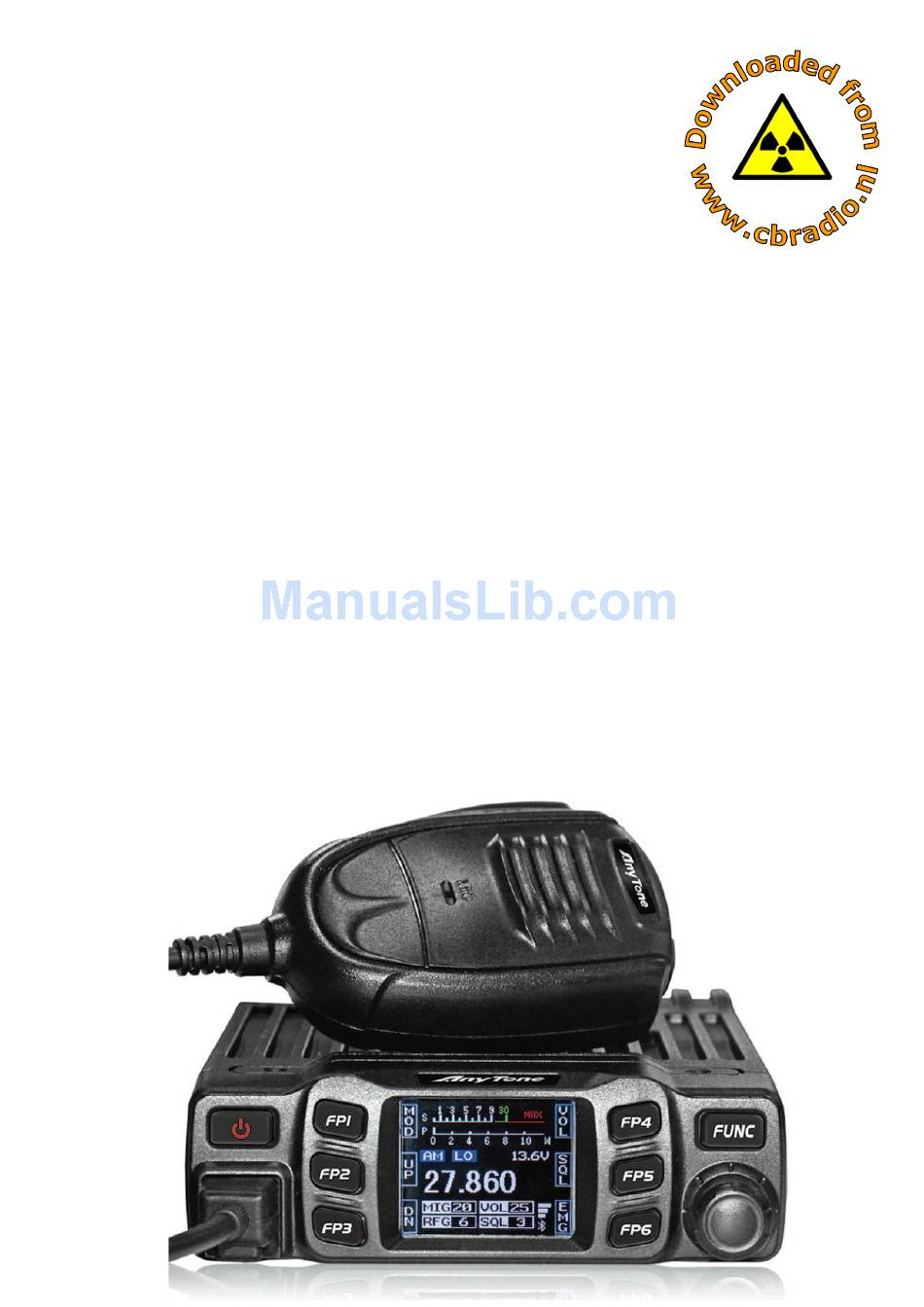

APOLLO II
◆ FTF LCD display
◆ 12/24V voltage（4W version only）
◆ full alloy body for heat radiation
◆ Programmable keypad
◆ CTCSS/DCS (optional）
◆ Wireless microphone control(optional）
◆ Cell-phone APP control (optional）
◆ AM/FM multi norms
◆ Flexible menu and programming software
◆ DTMF
◆ SQ, ASQ
◆ SQ, ASQ open/close value setting
◆ RF Gain
◆ Scan
◆ Dual watch
◆ Programmable RB
◆ CH9/19
◆ NB
◆ HI-CUT
◆ Voltage protection
◆ 8 memory channel
◆ TOT
◆ Backlight control
◆ Automatic power on
◆ Keypad lock

Advertisement

loading
Need help?

Need help?

Do you have a question about the Apollo II and is the answer not in the manual?

Questions and answers

Related Manuals for AnyTone Apollo II

Summary of Contents for AnyTone Apollo II

  • Page 1 APOLLO II ◆ FTF LCD display ◆ 12/24V voltage（4W version only） ◆ full alloy body for heat radiation ◆ Programmable keypad ◆ CTCSS/DCS (optional） ◆ Wireless microphone control(optional） ◆ Cell-phone APP control (optional） ◆ AM/FM multi norms ◆ Flexible menu and programming software ◆...

  • Page 2: Key Function

    A. Key function: 1. Power on radio: short press【 】key, the radio emit a prompt and LCD display on. 【 】key 2. Power off radio: hold【 】key, until LCD display off. 3. fast mute: when radio is powered on, short press【 】key, LCD displays AUDIO:MT, the radio volume will mute.
  • Page 3 VOL: Volume level control 1、 short press【FUNC】key to choose programmed function group. 2、 short press【FPX】key which allocated as VOL function, LCD displays VOL: XX. 3、 Turn channel switch to adjust volume level. 4、 Press【PUSH】key or 【FUNC】key to store setting and exit, or wait 10s to automatically store setting and exit.
  • Page 4 In channel mode, Long press 【FPX】key which allocated as SCA function to add or delete channel from scan list. 1. When the LCD displays“1S1”means current channel is in scan list. 2. When the “1S1”disappear, means current channel is deleted from scan list. Note: this function is same as the channel menu 2 control.
  • Page 5 CAL: transmit DTMF code 1、 short press【FUNC】key to choose programmed function group. 2、 short press【FPX】key which allocated as CAL function. 3、 short press it again or turn channel switch to choose code. 4、 Press【PUSH】key or 【FUNC】key to store setting and exit, or wait 10s to automatically store setting and exit.
  • Page 6 B. Function menu control: How to enter function menu: 1、 Long press【FUNC】key to enter SELECT MENU interface. 2、 short press 【 FP4】 key. 【FP6】 key or turn channel switch to move cursor, to choose menu, （Note: short press【FP5】key will fast turn menu page）. 3、...
  • Page 7 available. 4、 Press【PUSH】key or【FP3】key to confirm and exit.. 5. SQL: Squelch level 1、 Enter FUNC MENU, choose NO. 5 function menu. 2、 Press 【PUSH】 key to enter function setting, the chosen menu value in LCD will turn to green color. 3、...
  • Page 8 to green color. 3、 Turn channel switch to choose wanted setting. This radio has 1/2/3. 1/2. 2/3. 1/3 total 4 combinations available. 4、 Press【PUSH】key or【FP3】key to confirm and exit.. 10. SCM: scan method 1、 Enter FUNC MENU, choose NO. 10 function menu. 2、...
  • Page 9 1、 Enter FUNC MENU, choose NO. 14 function menu. 2、 Press 【PUSH】 key to enter function setting, the chosen menu value in LCD will turn to green color. 3、 Turn channel switch to choose wanted setting. ON: Turn on Automatic power on. OFF: Turn off Automatic power on.
  • Page 10 NO. LCD display Function detail Setting details FM: Turn on FM mode. A/FM AM/FM switch AM: Turn on AM mode. Default: FM OFF: Turn off NB function.. XXX NB on/off ON: Turn on NB function.. Default: ON OFF: Turn off HI-CUT function.. XXX HI-CUT on/off ON: Turn on HI-CUT function..
  • Page 11 DTMF code.. Default: OFF OFF: Press CALL key will not transmit DTMF code.. CALL XXX Call setting 1~16: Press CALL key to transmit DTMF code.. Default: OFF Note: Only when current channel has store DMTF group, the Call setting will work （Refer to DTMF MENU setting）...
  • Page 12 valid for single channel only, ON: The public setting is valid for all channels. Default: OFF ADD: Current channel add into scan list Scan add/delete SCAN DEL: current channel delete from setting scan list Default: ADD When PD is on, the following menu is hiding, when PD is OFF, the following menu will appear.

  • Page 13: Encode Setting

    Long press 【 PUSH】 key to choose wanted setting: CTC: 67.0Hz~250.3Hz, total 38 groups. DCS: D023N~D754N, total 104 CTCSS/DCS groups. encode setting Default: OFF: Turn off CTCSS/DCS encode. Long press 【 PUSH】 key to confirm and exit.. Note: This is function is optional. OFF: Turn off busy channel lock function..
  • Page 14 Default: OFF OFF: Press CALL key will not transmit DTMF code.. CALL XXX Call setting 1~16: Press CALL key to transmit DTMF code.. Default: OFF Note: Only when current channel has store DMTF group, the Call setting will work （Refer to DTMF MENU setting） E.
  • Page 15 3. FIR-T: First digit time setting 1、 Enter DTMF MENU, choose NO. 3 function menu. 2、 Press 【PUSH】 key to enter function setting, the chosen menu value in LCD will turn to green color. 3、 Turn channel switch to choose group, This radio has 0~1000ms total 11 levels available.
  • Page 16 OFF: When transmitting DTMF code, LCD not display corresponding setting. 4、 Press【PUSH】key or【FP3】key to confirm and exit.. Self –define key setting: 1、 Long press【FUNC】key to enter main MENU interface. short press 【FP4】 key. 【FP6】 key or Turn channel switch to move cursor, to choose menu group.（short press【FP5】key can fast turn page）.
