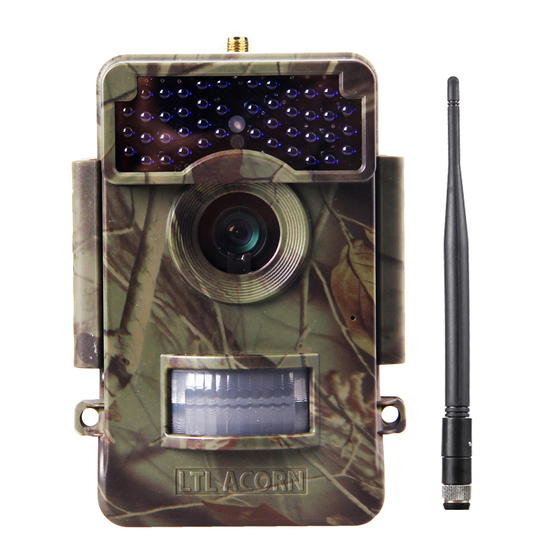

Infrared digital scouting camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
LTL ACORN
Infrared Digital Scouting Camera
Ltl-5511 MG/WMG
720P Video
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ltl-5511 MG and is the answer not in the manual?

Questions and answers

Related Manuals for Ltl Acorn Ltl-5511 MG

Summary of Contents for Ltl Acorn Ltl-5511 MG

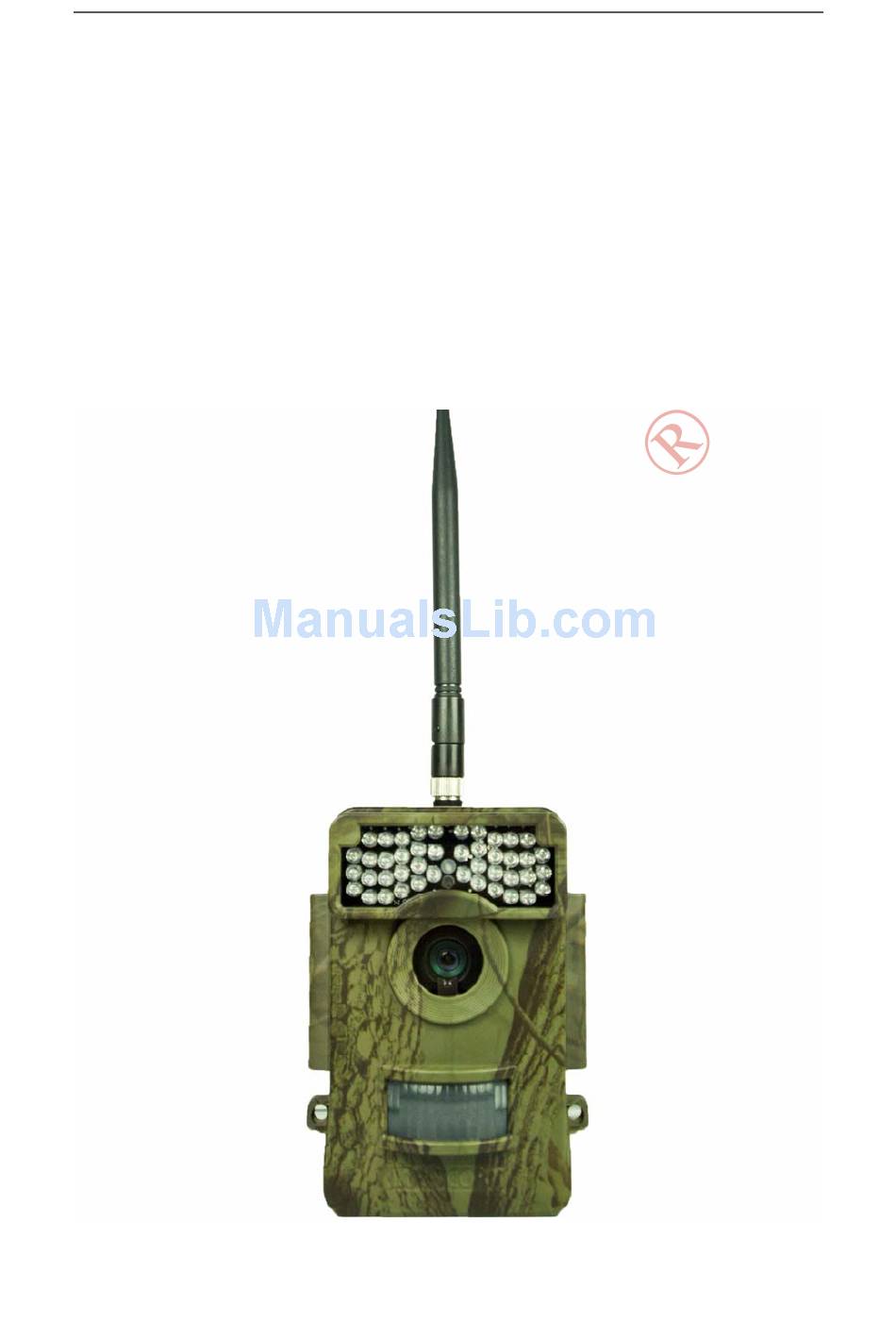

  • Page 1 ® LTL ACORN Infrared Digital Scouting Camera Ltl-5511 MG/WMG 720P Video USER’S MANUAL...

  • Page 2: Table Of Contents

    Version: Ltl-5511M-01 TABLE OF CONTENTS General Information ........................1 1.1 Features ..........................1 1.2 Application .......................... 2 1.3 Illustration ........................... 2 Quick Start ............................6 2.1 Load Batteries ........................6 2.2 Insert SD Card ........................6 2.3 Enter Test Mode ........................7 2.4 Enter Live Mode .........................

  • Page 3: General Information

    6 months with 12 ×AA batteries).  LTL ACORN unique two horizontal PIR patented design comes up with a 100° angle of induction, makes our camera activated in advance and gets ready to shoot, this split-second process could be short as 0.2 second.

  • Page 4: Application

     Users can configure the Camera on the computer, or directly on the built-in TFT screen.  Advanced Remote Cellular Technology transmits images to your cell phone and/or email account constantly at lower battery consumption and shorter transmission time, compared to similar products on the market. ...
  • Page 5 Figure 1.1: Front View of Ltl-5511MG - 3 -...
  • Page 6 Figure 1.2: Bottom View of Ltl-5511M The camera provides the following connections for external devices: USB 2.0 port, SD card slot, TV out jack, and external DC power in jack. The 3-way Power/Mode Switch is used to select the main operation modes: OFF, ON and TEST. To power up the camera, install four NEW high-performance alkaline or lithium AA batteries in the camera.
  • Page 7 Figure 1.3: Back View of Ltl-5511M and Front View of Battery Box CAUTION: If you are not using the camera for an extended period of time, it is highly recommended to remove the batteries from the camera to avoid possible acid leak that may damage the camera and void the warranty.

  • Page 8: Quick Start

    QUICK START 2.1 Load Batteries To install batteries on the camera (Part # Ltl-5511M ), please follow the instructions below.  Follow direction of arrow, push left slip switch, it will pop out.  Install 4 AA batteries. Make sure the polarity matches the sign on the cover. ...

  • Page 9: Enter Test Mode

    Figure 2-2 Attention: Please switch the camera to OFF mode before loading or removing batteries/ SD card. 2.3 Enter Test Mode Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like a regular digital camera, or enter the Menu to set up parameters.
  • Page 10 PIR sensors, it is the region where camera is ready to shoot. Through the test, you can find the best place to mount the LTL ACORN camera. In general, it is recommended to place the camera 3 to 6 feet (1 to 2 meters) above the ground.

  • Page 11: Enter Live Mode

    1.3 to 5 plus seconds. Our LTL ACORN scouting camera has an impressive 1 second trigger time. Ltl-5511MG infrared camera is our latest product with new patented design of two horizontal Pyroelectric Infrared Radial (PIR) Sensors .
  • Page 12 .While our LTL ACORN scouting camera can catch the complete picture. Enhance the capacity of resisting disturbance. Since the camera would be influenced by different levels of electromagnetic interference in different environment. Our LTL ACORN scouting...

  • Page 13: Advanced Settings

    ADVANCED SETTINGS The LTL ACORN trail camera comes with preset manufacturer settings. You can change the settings to meet your requirements. Please make sure the camera is in the TEST mode. 3.1 Parameter Settings Press “MENU” key to enter/exit the menu. Press...
  • Page 14 also refer to the Interval parameter. AVI 10 s, optional Videos are in AVI format that can be Video Length from 1s to 60s played back on most media players. 1 Min, optional from Select the length of time that the camera Interval 0S to 60M will wait from when the last picture was...

  • Page 15: File Format

    Off, On Select On to assign a serial number to Serial NO each camera you have. You can use the combination of 4 digits (0~9) and/or alphabets (A~Z) to record the location in the photos (e.g. YSP1 for Yellow Stone Park).

  • Page 16: Set Up Camera On Pc

    Or insert the SD card into the computer (a SD card reader may be needed). Get enclosed CD from gift box and run on computer (an external disc drive would be needed if the computer without disc drive) to find Setup.exe. Or download from LTL ACORN’s website: http://www.ltlacorn.cn/about/downloaden.html (Download→ Classification→ PC Setup→Setup.exe) The following Setup.exe illustration:...
  • Page 17 Set up the camera based on your own need. Please refer to Section 3.1 Parameter Settings in Advanced Settings to find detailed explanations for each setting. Set up the camera based on your need. Click on to retrieve the computer time. Click on to choose the directory to save your settings, usually under the root directory of the SD card (You need to insert the SD card in the SD card reader and plug it in your...
  • Page 18 Then, click on . A message window will pop out as below. You can also use the manufacturer default settings by clicking on if needed. A file named menu.dat will be created and saved in the directory you just selected. If you selected a directory other than the SD card, you need to move the menu.dat file to the root directory of the SD card before inserting the card into camera.

  • Page 19: Set Up Mms Function On Pc

    3.4 Set up MMS Function on PC On the main menu, Select Ltl 5511MG and press MMS Setup. - 17 -...
  • Page 20 An important first step is to determine the format of the files that the camera will send you. On the right of the first row where it says MMS Status, choose among three options: “VGA”, “SMS”, and “OFF”.  VGA: the camera will send 640×480 pictures to your phone or e-mail account ...
  • Page 21 --Auto or Manual. Choose Auto (recommended), then select the country and the Mobile Phone Network Operator (MPNO). With Auto setup, the URL, APN, Gateway, and Port sections will be in gray. You would only need to input the phone number and/or email address you’d like to receive MMS pictures.

  • Page 22: Set Up Smtp Function On Pc

    Click on and back to main menu. Retrieve the SD card and insert it in the camera. Switch to the TEST position to enter the TEST mode. Message“Updated setup.dat Successfully” show up on the TFT display, indicating the setup file has been successfully installed on the camera.
  • Page 23 For the camera to send pictures, SMTP status must be set to “VGA”. “SMS” indicates sending texts and “OFF” means nothing will be sent. In Auto mode, first select country and operator. In Manual mode, you fill in APN / Account / Password.
  • Page 24 Under SMS remote control, the value ranges from “0”to “off” and denotes the frequency the camera wakes up to either receive or execute the commands. “0” indicates that the camera will wake up and search for commands automatically every 10 minutes, and send feedback once it receives them.

  • Page 25: Mms Remote Control & Table Of Command Code

    Or download the SMS Remote Control APP from LTL ACORN’s website (www.ltlacorn.cn) to send SMS commands, please refer to the Instruction of SMS Remote Control APP for operation details.
  • Page 26 Order Code Value Example Meaning Code Mode: camera (0), video (1), camera+ video (2) 01*1# Set to video mode Image size: 12MP (0), 5MP (1), 1.3MP (2) 02*1# Video size: 720P (0), VGA (1),QVGA (2) 03*1# Number of Pictures per Trigger: 1 photo (0), 2 04*2# 3 photos photos (1), 3 photos (2)

  • Page 27: View Local Mpno Name And Signal Strength On Tft Lcd Screen

    and search for text message commands. Whether or not the camera takes a picture and Camera takes a sends it back to you once text commands are picture and sends received: Off (0), On (1) 60*1# it back upon This code works under CAMERA, VIDEO and command.

  • Page 28: Camera Working With Mms

    Some U.S. AT&T customers will see a six-digit number (310410), instead of the operator’s symbol, next to the signal bars. It is normal. If a code other than the MPNO symbol shows up on the screen, it indicates something is wrong. Specifically, ...
  • Page 29 need pre-paid balance in the account.) The SIM card is not password-protected.  The signal is sufficiently strong in the field. The recipient’s phone number and/or email account is entered correctly. It is recommended that you take the receiving phone with you and perform a test on site.

  • Page 30: Ltl-5511Mg/Wmg Products

    Ltl-5511MG/WMG PRODUCTS 4.1 Ltl-5511MG/WMG Consists of Two Parts: 1. Ltl-5511M Camera 2. Ltl-MM3 Battery Box (With MMS-module) 4.2 Models for Purchase: Ltl-5511M Camera Ltl-MM3 Battery Box - 28 -...

  • Page 31: Important Information

    IMPORTANT INFORMATION 5.1 Prevent From Short-Circuits There are 5 electric contacts above the TFT LCD screen on the camera and 5 above the battery compartment of the battery box. To avoid short circuit or damage to the camera, please NEVER contact these electric contacts with any metallic materials.

  • Page 32: Power Supply And Battery Box

    5.2 Power Supply and Battery Box Ltl-5511MG camera can work on up to 12 voltages. 4xAA batteries in the camera, 4xAA batteries (Or 8xAA alkaline batteries. Or 2 cells of 18650 size lithium battery) in the battery box (Batteries must lean to one side without empty in the middle), and the external power supply form a three-path parallel circuit.

  • Page 33: Firmware Upgrades

    FIRMWARE UPGRADES 6.1 Firmware Upgrades The manufacturer reserves the right to upgrade the camera and the firmware. Follow the steps below to implement the upgrades:  Back up the contents on the SD card on your computer  Install batteries and the SD card in the camera. ...

  • Page 34: Warranty Information

    We take great pride in our products. We always stand behind our promises. We provide leading warranty term and service. Every LTL ACORN trail camera comes with a limited times warranty. We guarantee our trail cameras to be free of defects in materials and workmanship under normal...

  • Page 35: Appendix I Technical Specifications

    Appendix I: TECHNICAL SPECIFICATION Item Parameters Ltl-5511MG Ltl-5511WMG 5 Mega Pixels Color CMOS Image Sensor FOV=55°; Auto IR-Cut Lens FOV=100°; Auto IR-Cut Lens 850nm LED IR Flash 940nm LED (black flash) 2.36〞TFT LCD ; 16.7M Color LCD Screen 6 Keys Operation Keypad SD Card (8MB ~16GB)
  • Page 36 4 digits(0~9) and/or Device Serial alphabets(A~Z) set by yourself; On/Off , Programmable; Time Lapse 0 Second ~ 23 hours 59 minutes and 59 seconds VGA = 640x480; SMS = Text Options Msg.; OFF Programmable “0” = Unlimited; 1 ~ 99/Day Numbers 1 ~ 3 Phone Numbers MMS Phone...
  • Page 37 -22°F ~+158°F/-30°C ~+70°C Operation Temperature 5% ~ 95% Operation Humidity FCC & CE & RoHS Certificate - 35 -...

  • Page 38: Appendix Ii Package Contents

    Appendix II: PACKAGE CONTENTS Part Name Quantity (Ltl-5511MG) Quantity (Ltl-5511WMG) Digital Camera Ltl-MM3 MMS-Module Battery Box AV Cable USB Cable Strap External DC Cable (optional) Warranty Card User’s Manual ATTENTION: BATTERY IS NOT INCLUDED IN OUR PACKAGE. - 36 -...

  • Page 39: Appendix Iii Instruction For Installing Battery Box

    Appendix III: INSTRUCTION FOR INSTALLING BATTERY BOX 1. Below pictures are 3 different battery installations (Do not mix lithium battery with AA alkaline battery) - 37 -...
  • Page 40 2. Combine the two parts 3. Hook camera body with two lock buckles on side of battery box - 38 -...

  • Page 41: Appendix Iv Instruction For Installing Camera With Battery Box

    4. Snap on lock buckles Appendix IV: INSTRUCTION FOR INSTALLING CAMERA WITH BATTERY BOX 1. Mount on tripod The camera can be mounted on a 1/4" tripod. Fix the camera to tripod by screw up the nut, and then adjust shooting angle. - 39 -...
  • Page 42 2. Mount on tree trunk Fits holes on battery box with four tiny plastic bolts can avoid cameras being slipped off from tree and loose. Then across stripe holes with a strap, mount the camera on tree trunk. Besides, to avoid cameras being stolen and damaged, use a chain and lock to keep it safe if possible.
