Unit Parts - Pioneer Inverter+ WAS Series Owner's Manual

Unit Specifications and Features

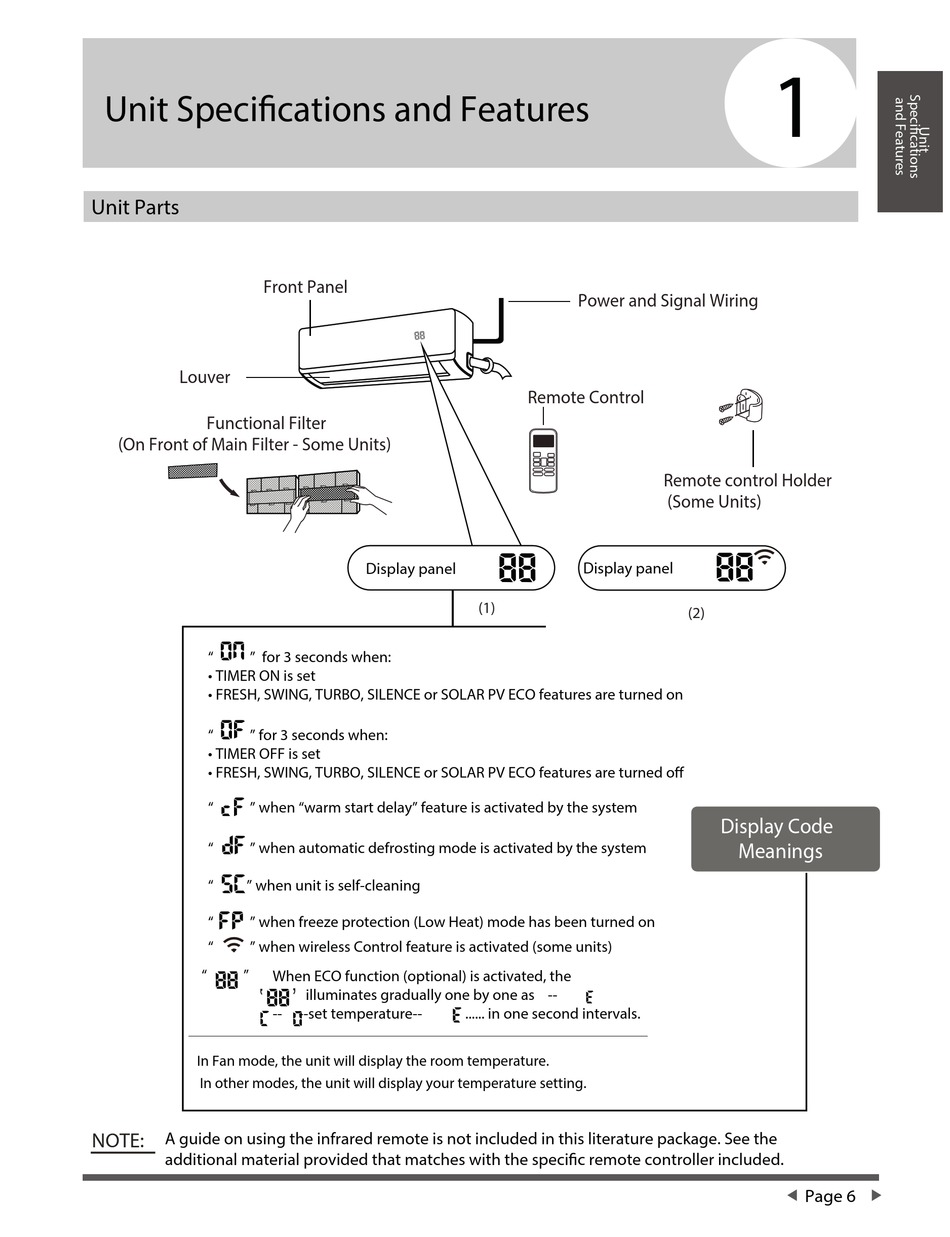

Unit Parts

Front Panel
Louver
Functional Filter
(On Front of Main Filter - Some Units)
" " for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned on
" " for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, SILENCE or SOLAR PV ECO features are turned off
" " when "warm start delay" feature is activated by the system
" " when automatic defrosting mode is activated by the system
" " when unit is self-cleaning
" " when freeze protection (Low Heat) mode has been turned on
" " when wireless Control feature is activated (some units)
,
" "
In Fan mode, the unit will display the room temperature.
In other modes, the unit will display your temperature setting.
NOTE:
A guide on using the infrared remote is not included in this literature package. See the
additional material provided that matches with the specific remote controller included.
Display panel
,
When ECO function (optional) is activated, the
illuminates gradually one by one as --
-- --set temperature--
Power and Signal Wiring
Remote Control
Display panel
(1)
...... in one second intervals.
1
Remote control Holder
(Some Units)
(2)
Display Code
Meanings

Page 6

