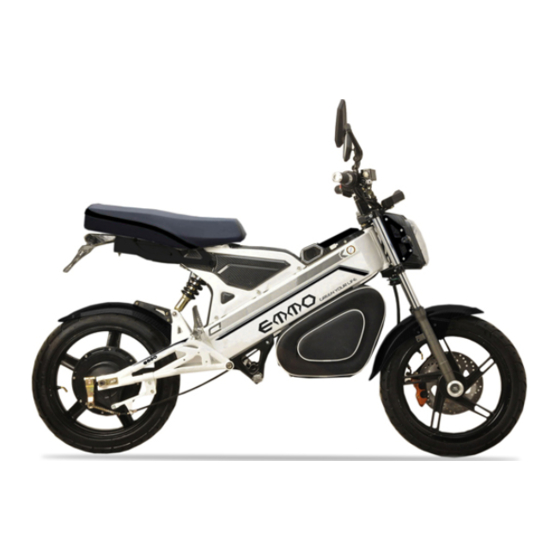

EMMO Steel Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

1 |

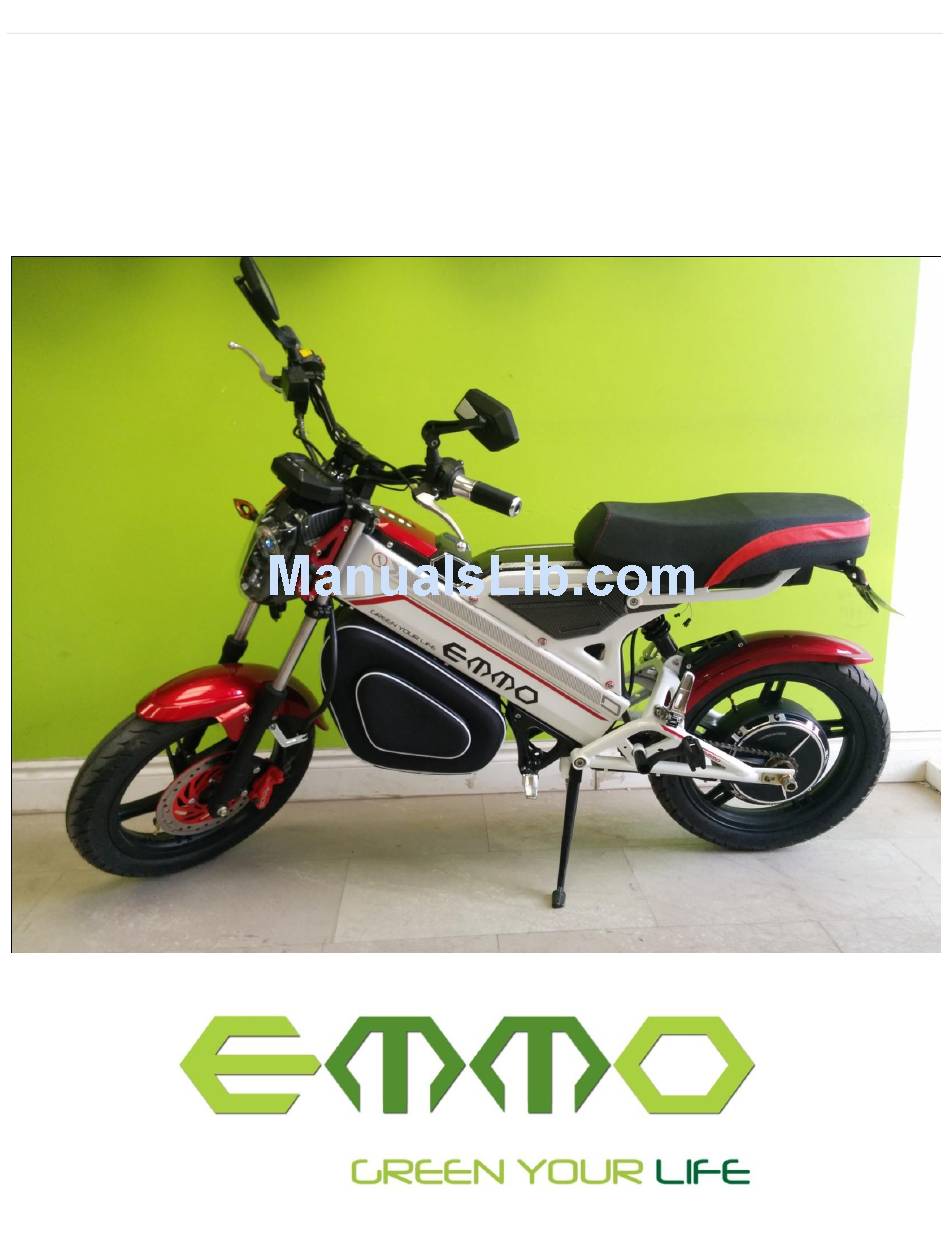

P a g e
Emmo Steel
Owner's Manual
T. Lac V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Steel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMMO Steel

Summary of Contents for EMMO Steel

  • Page 1 P a g e Emmo Steel Owner’s Manual T. Lac V 1.0...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-6 Brakes……………………………………………………………………………………………………………………...7 Kickstand………………………………………….……………………………………………………………………..8 Pedals………………………………………………………………………………………………………………………9 Greasing Bike Chain and Rear Drum Brakes………………………..…….………………………..…10 Front Drum Brakes and Tubeless Tires……………………….…………………………………………11 Circuit Breaker…………………………………………………………………………………………….………...12 Ignition and Seat Lock……………………………………………………………………..……………………..13 Remote Controller………………………………………...……………………………………………………….14 Right and Left Side of the Handlebar and Throttle………………………...………………….15-16 Dashboard……………………………………….………………………………………………….…………………17 MP3 Controls...…………………………………...……………………………………………………………18 E-bike Registration/Contact Information……………………………………………………..…19-20...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e Specifications Red/White, Blue/White, Black/White Color: Dimension (LxWxH): 164cm x 70cm x 95cm 78cm Seat Height: Wheel Size: Front/Back 80/90/14 Net Weight: 105 kg 32 km/h Maximum Speed: Travel Range: 60-70km 5 – 10 Hours Charging Time: Climbing Angle: 25 Degrees 220kg...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Type of Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet(Male plug), and the other into the charger port(Female plug). 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 10 HOURS. *DO NOT CHARGE THE E-BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY (i.e.

  • Page 7: Brakes

    P a g e Rear Brake (left side) Front Brake (right side) To activate the rear brake, the rider can pull this lever. To activate the front brake, the rider can pull this lever. Note: When either brake is activated, all power to the motor will be disconnected (safety design). Always use the back brake first, then the front brakes.(adjust this depending on what brakes are available on the bike)

  • Page 8: Kickstand

    P a g e Side Stand The side stand is similar to other bicycles – flick it downwards such that it sticks out, as shown in the picture, then lean it to the left.

  • Page 9: Pedals

    P a g e Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up.(change if necessary) WARNING! The law requires all e-bikes to have pedals installed. If the pedals are off, the vehicles will be considered a motorcycle which does not follow the same regulations as e-bikes.

  • Page 10: Greasing Bike Chain And Rear Drum Brakes

    10 | P a g e Drum Brakes (Rear) and Tire. Note: Remember to grease the chains once a Turning this nut tightens or loosens the brake. month. Clockwise tightens the brakes while counter Please also make sure that the back wheel is not clockwise loosens the brakes.

  • Page 11: Front Drum Brakes And Tubeless Tires

    Disc Brakes (front) and Tubeless Tires The Emmo Steel is assembled with front disc brakes, as opposed to drum brakes, and tubeless tires. These brakes are virtually maintenance free; the only maintenance required is the replacement of the fluid every 10,000km. They are also stronger, more resistant to wear and tear, and last longer than the opposing drum brakes.

  • Page 12: Circuit Breaker

    12 | P a g e Circuit Breaker The circuit breaker controls the power running through the bike from the battery. When the switch is on, power flows throughout the bike and all functions work. When the switch is off, power does NOT flow through the bike, and none of the electrical aspects will work on the bike.

  • Page 13: Ignition And Seat Lock

    13 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn counter clockwise, from the off position. This locks the handlebar when it is turned half way to the left. (The handlebar must be turned half way to the left before the key will turn).

  • Page 14: Remote Controller

    14 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the „unlock‟ button on the remote. Lock Unlock This button arms the bike. When the bike is This button unlocks the bike.

  • Page 15: Right And Left Side Of The Handlebar And Throttle

    15 | P a g e Light Switch Throttle This switch controls the amount of lightning When the throttle is turned on your bike. When the switch is pushed to backwards (toward the rider) it the right, no extra lights are turned on. (Only makes the e-bike move forward.
  • Page 16 16 | P a g e High/Low Beam Switch Pushing the switch to the right activates the high beams for the front headlights, pushing it to the left deactivates the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 17: Dashboard

    17 | P a g e Left turning signal light Right turning signal High Beam indicator Speedometer light This light turns on when This light turns on when This shows the speed the left turning signal is This light turns on when the high beam for the head you are going once the pressed...

  • Page 18: Mp3 Controls

    The light on the bike will flash when not paired and will stay solid when paired with a device. Built in Blu-tooth Speaker The Steel is equipped with a built in Blu tooth speaker. When the bike is turned on the speaker will turn on as well.

  • Page 19: E-Bike Registration/Contact Information

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...
  • Page 20 P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
