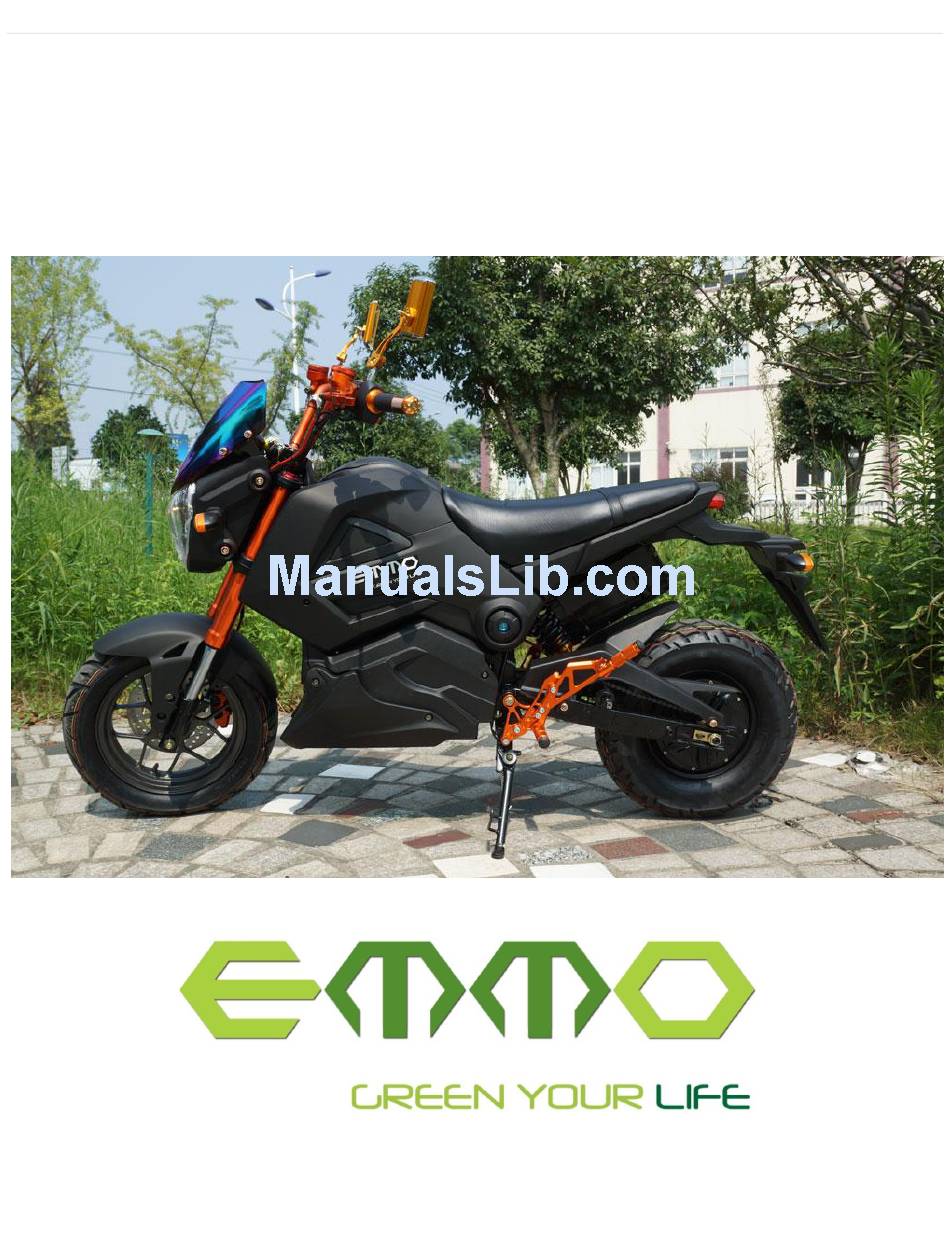

1 |
P a g e
Emmo Knight GTS
Owner's Manual
T. Lac V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Knight GTS and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO Knight GTS

Summary of Contents for EMMO Knight GTS

  • Page 1 P a g e Emmo Knight GTS Owner’s Manual T. Lac V 1.0...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-6 Brakes……………………………………………………………………………………………………………………...7 Kickstand………………………………………….……………………………………………………………………..8 Pedals……………………………………………………………………………………………………………………9 Greasing Bike Chain and Rear Drum Brakes………………………..…….………………………..…10 Front Drum Brakes and Tubeless Tires……………………….…………………………………………11 Seat Removal..........................12-13 Circuit Breaker…………………………………………………………………………………………….………...14 Ignition......……………………………………………………………………..……………………..15 Remote Controller………………………………………...……………………………………………………….16 Right and Left Side of the Handlebar and Throttle………………………...………………….17-18 Dashboard……………………………………….………………………………………………….…………………19 E-bike Registration/Contact Information……………………………………………………..…20-21...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    50-60km Travel Range: 3 – 10 Hours Charging Time: Climbing Angle: 35 Degrees Load Capacity: 400kg EMMO GTS 500W (Super Torque Motor) Motor: Battery: 72V/20Ah GEL SLA Charger: AC100-120V, Smart Charger (Battery maintained while charging) Front Brake: Disc Brake Disc Brake...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Type of Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet(Male plug), and the other into the charger port(Female plug). 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 10 HOURS. *DO NOT CHARGE THE E-BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY (i.e.

  • Page 7: Brakes

    P a g e Rear Brake (left side) Front Brake (right side) To activate the rear brake, the rider can pull this lever. To activate the front brake, the rider can pull this lever. Note: When either brake is activated, all power to the motor will be disconnected (safety design). Always use the back brake first, then the front brakes.(adjust this depending on what brakes are available on the bike)

  • Page 8: Kickstand

    P a g e Side Stand The side stand is similar to other bicycles – flick it downwards such that it sticks out, as shown in the picture, then lean it to the left. WARNING! When the Side Stand is engaged the throttle is deactivated.

  • Page 9: Pedals

    P a g e Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up.(change if necessary WARNING! The law requires all e-bikes to have pedals installed. If the pedals are off, the vehicles will be considered a motorcycle which does not follow the same regulations as e-bikes.

  • Page 10: Greasing Bike Chain And Rear Drum Brakes

    10 | P a g e Disk Brakes (Rear) and Tire. Note: Remember to grease the chains once a month. This bike features a hydraulic disk brake system that adjusts by itself, no maintenance is required. Please also make sure that the back wheel is not We recommend 40 PSI for the back and to check over tighten after adjustment.

  • Page 11: Front Drum Brakes And Tubeless Tires

    Disc Brakes (front) and Tubeless Tires The Emmo Knight GTS is assembled with front disc brakes, as opposed to drum brakes, and tubeless tires. These brakes are virtually maintenance free; the only maintenance required is the replacement of the fluid every 10,000km.

  • Page 12: Seat Removal

    12 | P a g e Seat Lock Unlocking the Seat To take the seat off of this bike you must first While holding the key in the twisted position, gently lift the insert your key on the left side of the bike and seat up from the back just above the tail light.
  • Page 13 13 | P a g e Removing the Seat While gently pushing down on the middle of the seat, pull the rear of the seat directly backwards away from the bike at the same time until the seat comes off the bike. If the seat still does not come off, move the seat back and forth while still pulling backwards.

  • Page 14: Circuit Breaker

    14 | P a g e Circuit Breaker The circuit breaker controls the power running through the bike from the battery. When the switch is on, power flows throughout the bike and all functions work. When the switch is off, power does NOT flow through the bike, and none of the electrical aspects will work on the bike.

  • Page 15: Ignition

    15 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn counter clockwise, from the off position. This locks the handlebar when it is turned half way to the left. (The handlebar must be turned half way to the left before the key will turn).

  • Page 16: Remote Controller

    16 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the „unlock‟ button on the remote. Lock Unlock This button arms the bike. When the bike is This button unlocks the bike.

  • Page 17: Right And Left Side Of The Handlebar And Throttle

    Note: Some versions of the (The amount of speed that the turns on. When the switch is pushed to the Knight GTS have these speeds rider gets depends on how far the left, the head-lights, tail-lights, and reversed. (i.e. 3 is the fastest, 1 throttle is pulled).
  • Page 18 18 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 19: Dashboard

    19 | P a g e Left turning signal light Right turning signal light Speedometer This light turns on when This light turns on when the This shows the speed the left turning signal is right turning signal is you are going at once pressed pressed the bike is running.

  • Page 20: E-Bike Registration/Contact Information

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...
  • Page 21 P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
