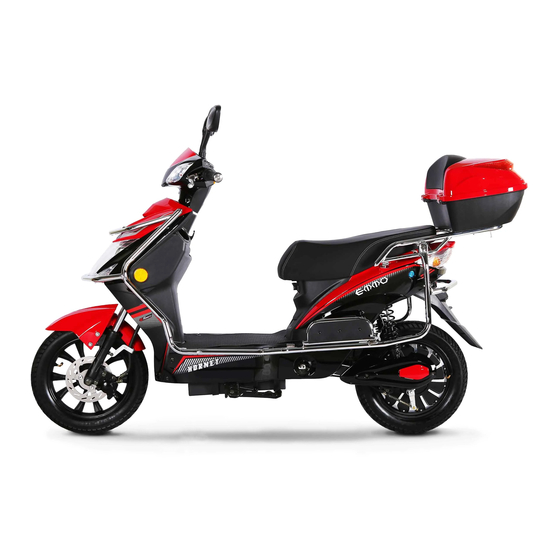

EMMO Hornet Owner's Manual

E-bike
Hide thumbs
Table of Contents

Advertisement

Quick Links

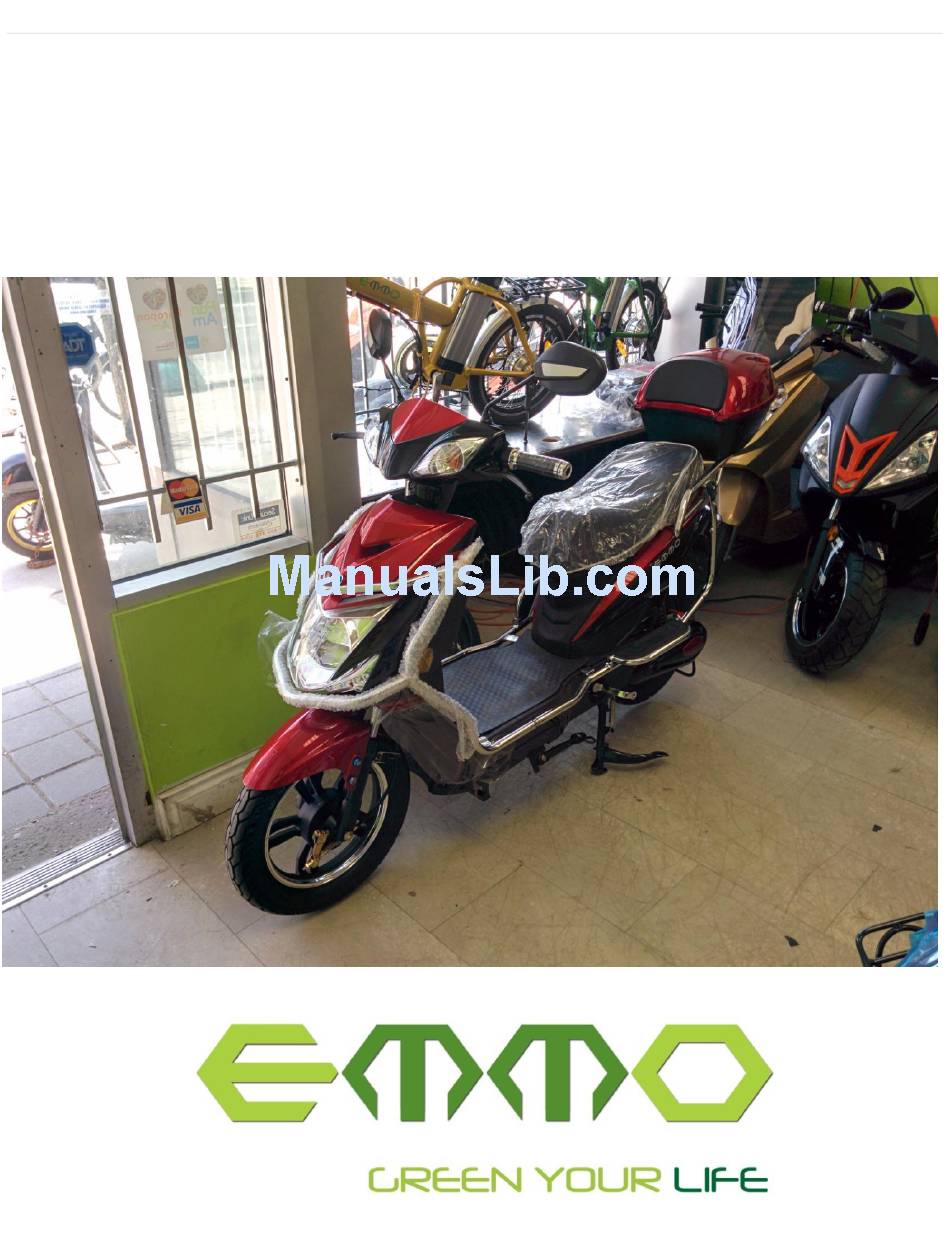

1 |
P a g e
Emmo Hornet
Owner's Manual
T. Lac V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hornet and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO Hornet

Summary of Contents for EMMO Hornet

  • Page 1 P a g e Emmo Hornet Owner’s Manual T. Lac V 1.0...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-6 Brakes……………………………………………………………………………………………………………………...7 Kickstand………………………………………….……………………………………………………………………..8 Pedals………………………………………………………………………………………………………………………9 Greasing Bike Chain and Rear Drum Brakes………………………..…….………………………..…10 Front Drum Brakes and Tubeless Tires……………………….…………………………………………11 Circuit Breaker…………………………………………………………………………………………….………...12 Ignition and Seat Lock……………………………………………………………………..……………………..13 Remote Controller………………………………………...……………………………………………………….14 Right and Left Side of the Handlebar and Throttle………………………...……………...….15-16 Dashboard……………………………………….………………………………………………….…………………17 Registration/ Contact Information …………………………....………………..………..18/19...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e Specifications Red /Black, Black, Blue/Black Color: Dimension (LxWxH): 184cm x 63cm x 112cm Wheel Size: 16″/3.0″ Tubeless 100 kg Net Weight: 32 km/h Maximum Speed: Travel Range: 50-60km 3 – 8 Hours Charging Time: 25 Degrees Climbing Angle: Load Capacity: 250kg...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Type of Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet (male end), and the other into the charger port(female end). 1. Take one end of the charger(female end) and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e Lead Acid Battery Charger WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E- BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING...

  • Page 7: Brakes

    P a g e Rear Brake Front Brake To activate the rear brake, the rider can pull this lever. To activate the front brake, the rider can pull this lever. Note: When either brake is activated, all power to the motor will be disconnected. Always use the back brake first, then the front brakes.

  • Page 8: Kickstand

    P a g e Side Stand Centre Stand The side stand is similar to other bicycles – flick it The centre kick stand is better used for all situations. In downwards such that it sticks out, as shown in the picture, order to engage the kickstand, apply pressure with your then lean it to the left.

  • Page 9: Pedals

    P a g e Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up.(change if necessary WARNING! The law requires all e-bikes to have pedals installed. If the pedals are off, these vehicle will be considered a motorcycle which does not follow the same regulations as e-bikes.

  • Page 10: Greasing Bike Chain And Rear Drum Brakes

    10 | P a g e Disk Brakes (Rear) and Tire. Note: Remember to grease the chains and sprocket once a month. This bike features a hydraulic disk brake system that adjusts by itself, no maintenance is required. Please also make sure that the back wheel is We recommend 40 PSI for the back and to check not over tighten after adjustment.

  • Page 11: Front Drum Brakes And Tubeless Tires

    11 | P a g e Drum Brake (front) and Tubeless Tires This nut adjusts the tightness of the front brake. Turning it clockwise tightens the brake, while turning it counter clockwise loosens the brake. The tubeless tires are extremely difficult to puncture, so that chance of getting a flat tire is next to zero.

  • Page 12: Circuit Breaker

    12 | P a g e Circuit Breaker The circuit breaker controls the power running through the bike from the battery. When the switch is flicked on, power flows throughout the bike and all functions work. When the switch is flicked off, power does NOT flow through the bike, and none of the electrical aspects will work on the bike.

  • Page 13: Ignition And Seat Lock

    13 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn to the counter clockwise, from the off position. This locks the handlebar when it is turned half way to the left.

  • Page 14: Remote Controller

    14 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the „unlock‟ button on the remote. Lock Unlock This button arms the bike. When the bike is This button unlocks the bike.

  • Page 15: Right And Left Side Of The Handlebar And Throttle

    15 | P a g e Light Switch This switch controls the amount of lightning Throttle on your bike. When the switch is pushed to This is the throttle, turning it the right, no extra lights are turned on. (Only towards the rider accelerates the brake lights work) When the switch is in the bike.
  • Page 16 16 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 17: Dashboard

    17 | P a g e Power Gauge Speedometer This meter demonstrates the remaining amount of electricity This shows the speed available in your battery. H you are going at once indicates High energy and L the bike is running. indicates Low energy.

  • Page 18: Registration/ Contact Information

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...
  • Page 19 P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
