1 |
P a g e

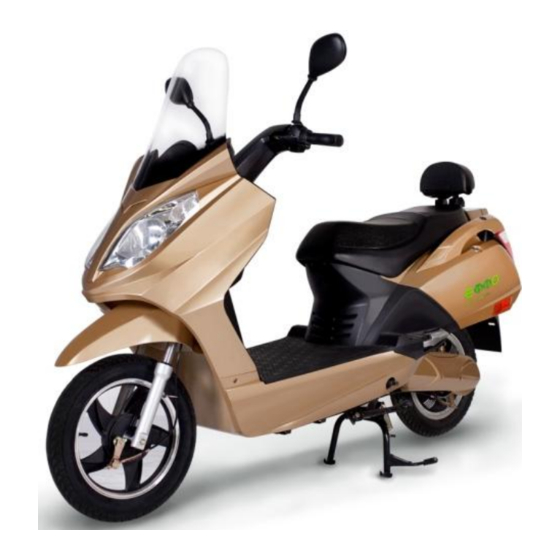

Emmo E-bike
GENERIC
Owner's Manual
Version 1.0, J. Lu, M. Wu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-bike GENERIC and is the answer not in the manual?

Questions and answers

Related Manuals for EMMO E-bike GENERIC

Summary of Contents for EMMO E-bike GENERIC

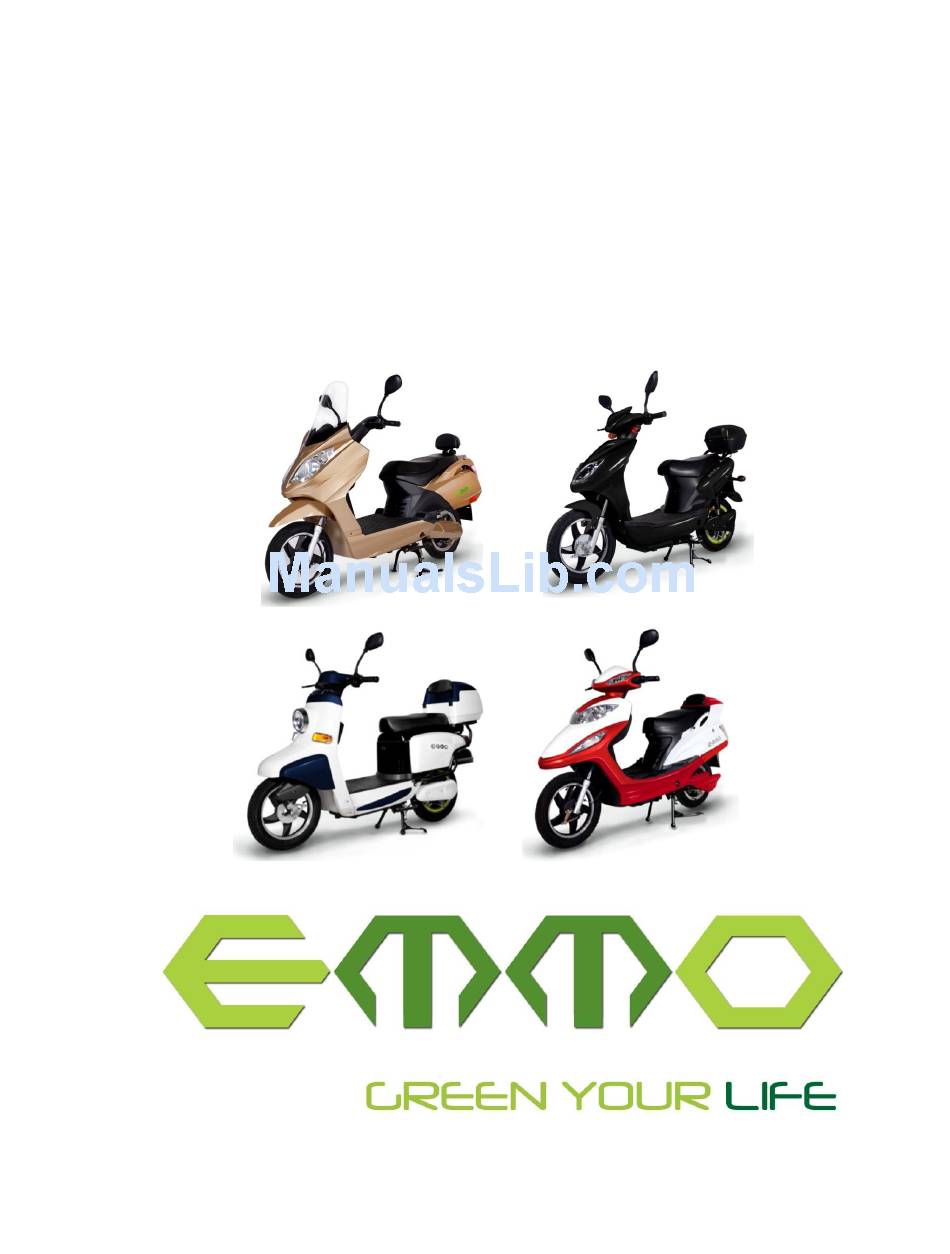

  • Page 1 P a g e Emmo E-bike GENERIC Owner’s Manual Version 1.0, J. Lu, M. Wu...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-9 Brakes and Tire Pressure……………………………………….………..…….………………………………10 Kickstand………………………………………….……………………………………………………………………11 Pedals and Chain…………………………………………………………………...……………………………….12 Seat and Circuit Breaker………………………………………………………………………………………...13 Ignition…………………………………………………………………………………………………………………..14 Remote Controller………………………………………...……………………………………………………….15 Right Side of the Handlebar and Throttle……………………………………………………………….16 Left Side of the Handlebar……………………………………………………………………….……………..17 Dashboard……………………………………….………………………………………………….…………………18 E-bike Registration…………………………………...……………………………………………………………19 Contact Information……………………………………………………………………………………..………..20...

  • Page 3: E-Bike Mto Label

    P a g e E-bike MTO Label WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    P a g e General Specifications Colour: A variety of colours are available, please check www.emmo.ca. Dimension (LxWxH): Dimensions vary, please check www.emmo.ca. 16″/3.0″ Wheel Size: Net Weight: 85 kg (X), 75kg (Sabre, H5, GT5), 70kg (Alien) Maximum Speed: 32 km/h...

  • Page 5: Charging Your E-Bike

    P a g e Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e Lead Acid Battery Charger WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E- BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE CHARGER, AND WILL RESULT IN THE CHARGER DAMAGING THE BATTERY.
  • Page 7 P a g e Charging the Bike (Lithium Battery) Charging the battery is done from the charger port located on the battery itself. The charger is separated into two different parts: A cable with one end that goes into a 110V power outlet, and the other end that goes into the charger box itself, the charger box with a cable that plugs into the bike (page 8).
  • Page 8 P a g e Lithium Battery Charger After plugging the separate cable into the charger box, plug the charger into the charger port on the bike. The LED1 light should turn red when the charger box is connected to the bike.
  • Page 9 P a g e Charging the Battery Directly/Taking the Battery Out Removing Battery from the Bike To remove the battery from the bike, first unlock the locks on the battery box (Some models may have two locks, some have one). Removing the battery from the bike by pulling up on the handles provided, and then remove the power cable connected to the battery box.

  • Page 10: Brakes And Tire Pressure

    10 | P a g e Brakes and Tire Pressure Front Brake When this lever is pulled towards the rider, the front brake activates. Back Brake When this lever is pulled towards the rider, the back brake activates. Tighten Brakes Turning this nut (shown by the white arrow) tightens or loosens the brake.

  • Page 11: Kickstand

    11 | P a g e Side Stand The side stand is similar to other bicycles – flick it downwards such that it sticks out, as shown in the picture, then lean it to the left. Centre Stand The centre kick stand is better used for all situations. In order to engage the kickstand, apply pressure with your foot downwards and gently lift the bike upwards, NOT BACKWARDS.

  • Page 12: Pedals And Chain

    12 | P a g e Bike Chain Remember to grease the chains once a month. Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up. WARNING! The law requires all e-bikes to have pedals installed. If the pedals are off, these vehicles will be considered a motorcycle which does not follow the same regulations as e-bikes.

  • Page 13: Seat And Circuit Breaker

    13 | P a g e WARNING! FOR LEAD ACID BATTERY: In the winter time, fully charge the bike and turn the circuit breaker off for proper battery maintenance. Turn it back on once a month and fully charge the battery to ensure maximum battery life.

  • Page 14: Ignition

    14 | P a g e Key Positions in Ignition 1. This is the ‘on’ position. This position is reached when the key is turned to the right, from the off position. The bike will turn on, and all functions on the handlebars will work.

  • Page 15: Remote Controller

    15 | P a g e Lock Note: If the bike is This button locks turned on using the the bike. When the remote start, it can bike is locked, any only be turned off physical movement using the ‘unlock’ or vibrations to the button on the bike will cause the...

  • Page 16: Right Side Of The Handlebar And Throttle

    To go at the vehicle’s maximum speed, leave it pushed out. Note: Only available on the EMMO GX500, X, and the GT5. Horn Pushing this button sounds the horn.

  • Page 17: Left Side Of The Handlebar

    17 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Flicking the button downwards causes the passing signals to flicker.

  • Page 18: Dashboard

    18 | P a g e Speedometer This shows the speed you are going at once the bike is running. Power Gauge This meter demonstrates the remaining amount of electricity available in your battery. H indicates High energy and L indicates Low energy. Note: When you first turn on your e-bike, the battery life meter needle will go immediately to high (H) and will drop to its accurate level once...

  • Page 19: E-Bike Registration

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp □Other________________...

  • Page 20: Contact Information

    Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca __________________________________________________________________________________________________ If you have further questions, please contact us at: 438 Spadina Avenue, Toronto ON Toll Free: 1 888 510 3666 Tel: (416) 792-3227 Fax: (416) 792-6736 Email: info@emmo.ca...
