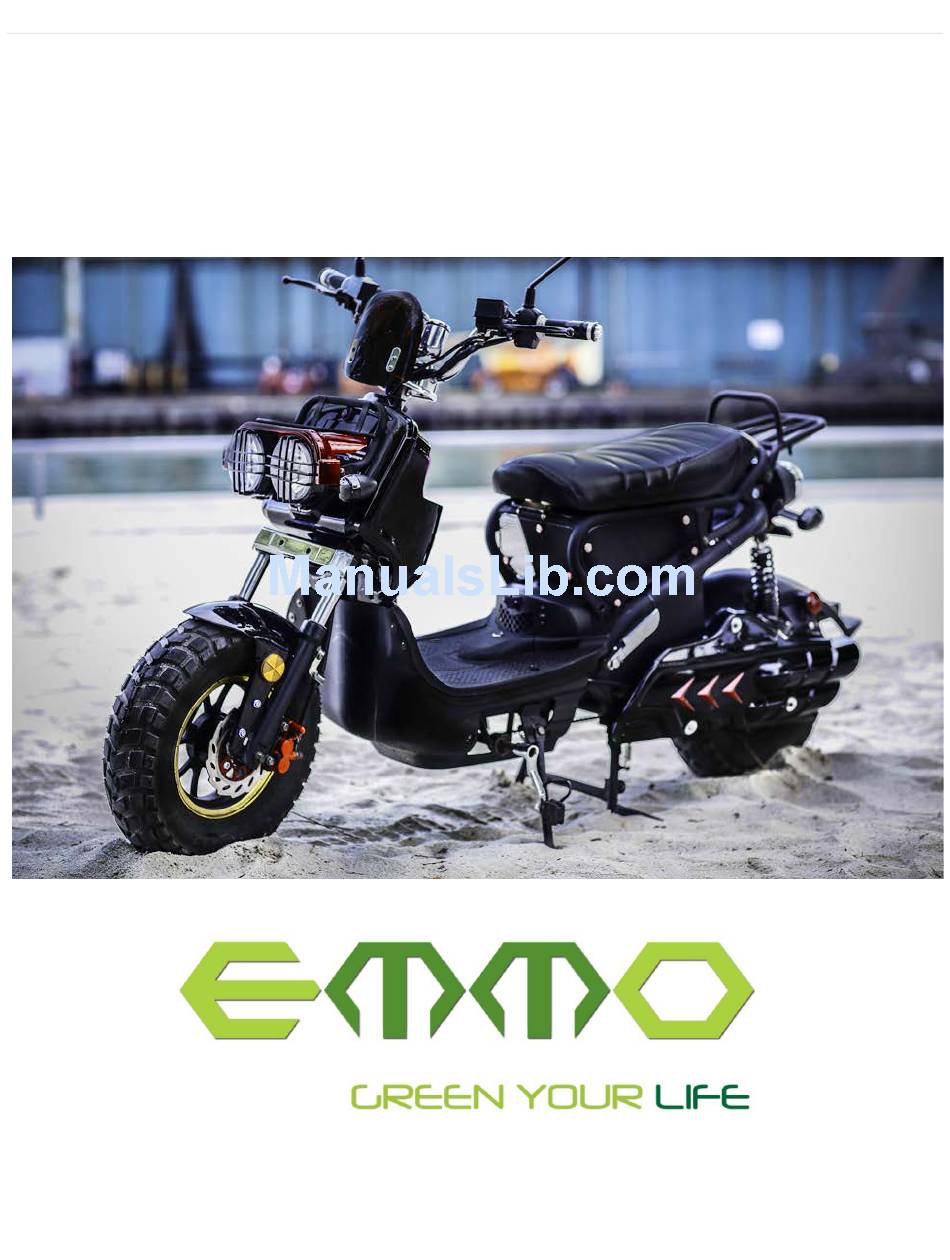

1 |
P a g e
Emmo Monster
Owner's Manual
T. Lac V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monster and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMMO Monster

Summary of Contents for EMMO Monster

  • Page 1 P a g e Emmo Monster Owner’s Manual T. Lac V 1.0...

  • Page 2: Table Of Contents

    P a g e Table of Contents E-bike MTO Label……………………………………………………………………………………………………..3 Specifications…………………………………………………………………………………..……………………….4 Charging Your E-bike……………………………………………………………………………….……………5-6 Brakes……………………………………………………………………………………………………………………...7 Kickstand………………………………………….……………………………………………………………………..8 Pedals………………………………………………………………………………………………………………………9 Greasing Bike Chain and Rear Drum Brakes………………………..…….………………………..…10 Front Drum Brakes and Tubeless Tires……………………….…………………………………………11 Circuit Breaker…………………………………………………………………………………………….………...12 Ignition and Seat Lock……………………………………………………………………..……………………..13 Remote Controller………………………………………...……………………………………………………….14 Right and Left Side of the Handlebar and Throttle………………………...………………….15-16 Dashboard……………………………………….………………………………………………….…………………17 MP3 Controls...…………………………………...……………………………………………………………18 E-bike Registration/Contact Information……………………………………………………..…19-20...

  • Page 3: E-Bike Mto Label

    E-bike MTO Label P a g e WARNING! Please make sure this MTO label is on your e-bike. If this label is not present, please ask your dealer to put one on. All electric bicycles are required to have this sticker on the bike for it to be a legal vehicle.

  • Page 4: Specifications

    Specifications P a g e Black Color: Dimension (LxWxH): 208cm x 76cm x 125cm Wheel Size: 10'' x 4.5'' 105 kg Net Weight: 32 km/h Maximum Speed: Travel Range: 60-70km Charging Time: 5 – 10 Hours 30 Degrees Climbing Angle: Load Capacity: 300kg Motor:...

  • Page 5: Charging Your E-Bike

    Charging the Bike (Type of Battery) P a g e There are two different plugs on your charger: one end that goes into an 110V power outlet(Male plug), and the other into the charger port(Female plug). 1. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) 2.
  • Page 6 P a g e WARNING! *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 10 HOURS. *DO NOT CHARGE THE E-BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE BATTERY, CAUSING DAMAGE TO THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY (i.e.

  • Page 7: Brakes

    P a g e Rear Brake (left side) Front Brake (right side) To activate the rear brake, the rider can pull this lever. To activate the front brake, the rider can pull this lever. Note: When either brake is activated, all power to the motor will be disconnected (safety design). Always use the back brake first, then the front brakes.(adjust this depending on what brakes are available on the bike)

  • Page 8: Kickstand

    P a g e Side Stand Centre Stand The side stand is similar to other bicycles – flick it The centre kick stand is better used for all situations. In downwards such that it sticks out, as shown in the picture, order to engage the kickstand, apply pressure with your then lean it to the left.

  • Page 9: Pedals

    P a g e Foldable Bike Pedals To fold the bike pedals, push the pedal inwards and lift up.(change if necessary WARNING! The law requires all e-bikes to have pedals installed. If the pedals are off, the vehicles will be considered a motorcycle which does not follow the same regulations as e-bikes.

  • Page 10: Greasing Bike Chain And Rear Drum Brakes

    10 | P a g e Disk Brakes (Rear) and Tire. Note: Remember to grease the chains once a month. This bike features a hydraulic disk brake system that adjusts by itself, no maintenance is required. Please also make sure that the back wheel is not We recommend 40 PSI for the back and to check over tighten after adjustment.

  • Page 11: Front Drum Brakes And Tubeless Tires

    Disc Brakes (front) and Tubeless Tires The Emmo Monster is assembled with front disc brakes, as opposed to drum brakes, and tubeless tires. These brakes are virtually maintenance free; the only maintenance required is the replacement of the fluid every 10,000km. They are also stronger, more resistant to wear and tear, and last longer than the opposing drum brakes.

  • Page 12: Circuit Breaker

    12 | P a g e Circuit Breaker The circuit breaker controls the power running through the bike from the battery. When the switch is on, power flows throughout the bike and all functions work. When the switch is off, power does NOT flow through the bike, and none of the electrical aspects will work on the bike.

  • Page 13: Ignition And Seat Lock

    13 | P a g e Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in, and then turn counter clockwise, from the off position. This locks the handlebar when it is turned half way to the left. (The handlebar must be turned half way to the left before the key will turn).

  • Page 14: Remote Controller

    14 | P a g e Note: If the bike is turned on using the remote start, it can only be turned off using the ‘unlock’ button on the remote. Lock Unlock This button arms the bike. When the bike is This button unlocks the bike.

  • Page 15: Right And Left Side Of The Handlebar And Throttle

    Note: Some versions of the (The amount of speed that the turns on. When the switch is pushed to the Monster have these speeds rider gets depends on how far the left, the head-lights, tail-lights, and reversed. (i.e. 3 is the fastest, 1 throttle is pulled) dashboard light are turned on.
  • Page 16 16 | P a g e High/Low Beam Switch Pushing the switch up activates the high beams for the front headlights, pushing it down deactivate the high beams (make sure the light switch is on first). Turning Signals Horn Pushing the switch to either the left or Pushing this button sounds the right positions will turn on the horn.

  • Page 17: Dashboard

    17 | P a g e High Beam indicator Odometer Speedometer This light turns on when This counter keep track This shows the speed the high beam for the head of how many kilometres you are going at once light is activated the bike has traveled the bike is running.

  • Page 18: Mp3 Controls

    18 | P a g e On/Off Power Light Pushing this button This light indicates whether or not the turns the speakers speakers are on. The light is on when on or off. the speaker is on and the light is off when the speaker is off Disabled Functions Mp3/FM...

  • Page 19: E-Bike Registration/Contact Information

    Motor Number: E-bike Model and Colour: Store Location: Customer Name: Home Address: Phone Number: E-mail: Survey: How did you find out about Emmo Inc.? (Please select the options that apply) □ Returning Customer □Family/Friend □Passing by Store □Kijiji □TERA □Google □Yelp...
  • Page 20 P a g e Thank you for Choosing Connect With Us! Stay tuned for updates regarding new e-bike models, special deals and more! Official Website: www.emmo.ca www.facebook.com/EmmoCanada info@emmo.ca Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca...
