Page 1 EMMO EMMO MERONA E-BIKE MERONA E-BIKE OWNER'S MANUAL...
Page 2 Preface An Important Message From EMMO Thank you for choosing EMMO. Congratulations on your purchasing of a new MERONA. This document is intended as a short introduction to your new e-bike. It contains essential safety, performance and service information.Please read and understand this manual fully before assembling and riding your bike. Be sure to watch the offical Emmo MERONA assembly video available at https://emmo.ca/pages/e-bike-assembly-guide.
Page 4: Table Of Contents
Contents About This Manual �� About EMMO �� Rules and Regulations �� Safety Disclaimer �� Description �� Schematic Diagram .................................. 13 Side View �� Handlebar Attachments �� Speedometer �� Operation Guide�� How to Turn on the Bike ................................18 Key Ignition/Steering Lock �� 18 Seat ��...
Page 5 Right Switches ................................... 25 Left Switches ..................................... 26 Throttle ...................................... 27 Speed Govenor ..................................28 Storage ...................................... 29 Tail box �� Multimedia Controls .................................. 30 Charger ...................................... 32 Lead Acid Charger �� Lithium Charger �� Battery ....................................... 45 Battery Safety Precautions �� 45 Disposal ��...
Page 6 Pedal ......................................52 Lights ......................................53 Headlight �� Tail light & Brake Light �� Signal Lights �� Cleaning / Lubricating the Chain ............................... 56 Tire Pressure ..................................... 57 Serial Number .................................... 59 Frame Number �� 59 Motor Number �� 60 Checking List Before Riding ..............................
Page 7: About This Manual
About This Manual This document is intended as a short introduction to your new e-bike. It contains important safety, performance and service information. Read and understand it along with the information provided during the on-delivery instructions before using the product. Pay special attention to the safety messages as shown here, and keep the manual handy for future reference.
Page 8: About Emmo
–to take you further, with less effort and more fun� Driven by our vision of inspiring more people to lead a greener lifestyle, Emmo strives to give our riders’ the best experience possible�...
Page 9: Rules And Regulations
Rules and Regulations According to Canada’s Motor Vehicle Safety Regulations ( MVSR ). A qualified e-bike (defined as Power Assist Bicycle) must meet the following requirements: • The e-bike must have operable pedals • Upper wattage limit for the motor is 500W •...
Page 10 Rules and Regulations Useful links: E-Bike Regulations in Ontario: https://www.ontario.ca/page/riding-e-bike E-Bike Regulations in British Columbia: https://www.bclaws.gov.bc.ca/civix/document/id/complete/statreg/151_2002 E-Bike Regulations in Alberta: http://www.transportation.alberta.ca/content/doctype45/production/mopedpowerbikes.pdf E-Bike Regulations in Manitoba: https://web2.gov.mb.ca/laws/statutes/ccsm/h060e.php E-Bike Regulations in Saskatchewan: https://www.sgi.sk.ca/motorcycle/-/knowledge_base/motorcycle-handbook/power-assisted-bicycles1 E-Bike Regulations in Quebec: https://saaq.gouv.qc.ca/en/road-safety/modes-transportation/electric-bike E-Bike Regulations in New Brunswick: https://www2.gnb.ca/content/gnb/en/services/services_renderer.200814.Motor_Vehicle_Registration.html...
Page 11 E-Bike Regulations in Nova Scotia: https://novascotia.ca/just/regulations/regs/mv18786.htm E-Bike Regulations in Prince Edward Island: hhttps://www.princeedwardisland.ca/en/information/transportation-and-infrastructure/power-assisted-bicycles E-Bike Regulations in Newfoundland and Labrador: https://www.assembly.nl.ca/legislation/sr/annualstatutes/RSN1990/H03.c90.htm Know and obey all relevant local laws It is your responsibility to research and understand relevant laws where you ride your bike� Such laws may cover required helmets and safety gear, required lights and reflectors, required hand signals, where you can legally ride a bike (bikes and ebikes may have different restrictions), how fast you can go, what (if any) cargo or passengers you can carry, rider age, and more�...
Page 12: Safety Disclaimer
Safety Disclaimer This manual contains important safety, performance and service information. Read and understand it along with the information provided during the on-delivery instructions before using the product, and keep it for reference. Ensure that you comprehend all instructions and safety notes/ warnings. WARNING: Ensure the bike FITS you properly before use�...
Page 13 & charger to any big shocks� • Charge the battery only with the charger that was supplied with the e-bike supplied by an official EMMO dealer� • DO NOT use the battery & charger for other purposes�...
Page 14 In no event shall EMMO be responsible for any direct, indirect or consequential damages, including without limitation, personal injury, property damage, or economic losses, whether based on contract, warranty,...
Page 15: Description

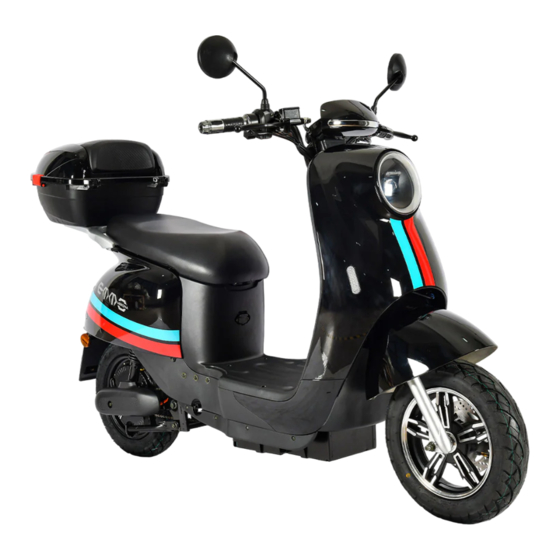

Description 1. Schematic Diagram a� Side View Headlight Handbag Hook Storage Compartment Charging Port Side Kickstand Centre Stand Seat Cushion Tail Box Tail Light Front Signal Light Front Fender Front Shocks Front Wheel Rear Signal Light Rear Shocks Rear Fender Chain Cover Rear Wheel...
Page 16: Handlebar Attachments
Description 1. Schematic Diagram b� Handlebar Attachments Rear View Mirrors Dashboard Left Brake Lever Left Grip Audio System Controls Left Switch Housing Storage Compartment Right Brake Lever Throttle Right Switch Housing Ignition Handbag Hook...
Page 17 Description 1. Schematic Diagram c� Dashboard...
Page 18: Speedometer
Description 1. Schematic Diagram c� Dashboard Lights up when the bike has problems� Refer to page 17 for details� Warning Lights Lights up when the bike is ready for operation� Flashes green when the turning signal switch is silde to the left� This arrow Left Turning Signal remains flashing until the turning signal is canceled�...
Page 19 Description 1. Schematic Diagram c� Speedometer Warning Lights Motor Failure Motor is out of order. Throttle Failure Throttle is out of order. Controller Failure Controller is out of order. Handbrake is applied (brake sensor is activated)/ Brake sensor is out of Brake Sensor Failure order.
Page 20: How To Turn On The Bike
Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock Power Off Power On C, D Steering Lock (push) Seat Lock This is a four-position switch that is located on the body: • Power Off • Power On •...
Page 21 Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock POWER POWER To turn on the bike: • Insert the key. • Follow the marking on the ignition, turn the key to the right to turn on the bike.
Page 22 Operation Guide 1. How to Turn on the Bike a� Key Ignition/Steering Lock To lock the steering: • Turn the ignition off� • Turn the handlebar all the way to the left� • Follow the marking on the igntion, push the key TURN THE HANDLEBAR in and turn the key anti-clockwise�...
Page 23 Operation Guide 1. How to Turn on the Bike b� Seat OPEN THE SEAT To Open the Seat: • Insert the key to the ignition. • Turn the key anti-clockwise (don't push the key)� • The seat will pop up when unlocked�...
Page 24 Operation Guide 1. How to Turn on the Bike b� Seat To Lock the Seat: • On the bottom of the seat cushion, locate the seat lock hook (U shape bracket)� • Close the seat� • Gently push the seat cushion down at the position of the seat lock hook� •...
Page 25 Operation Guide 1. How to Turn on the Bike c� Remote Press the button once to activate the Lock Button anti-theft alarm system. Press the button once to cancel the Unlock/Cancel Button alarm or to turn off the bike if the bike is turned on with the remote.
Page 26: Circuit Breaker
• Close the seat� WARNING: DO NOT The wires inserted into the circuit breaker could have high voltage output� touch any bare wires� If you have any concern, contact your EMMO dealer for assistance�...
Page 27: Right Switches
Operation Guide 2. Right Switches The switch housing on the handlebar hold these switches that control the lights, signals, horn and etc.. (Off) Parking Press to turn on and off parking Brake brakes (On) (Off) Slide the lever to toggle between (Daytime Running Lights different light modes.
Page 28: Left Switches
Operation Guide 3. Left Switches High Beam & Press to toggle between high beam and low beam. Low Beam Left Turning Slide the switch to the left to activate. Press the center Signal button to cancel. Right Turning Slide the switch to the right to activate. Press the center Signal button to cancel.
Page 29: Throttle
Operation Guide 4. Throttle The throttle controls the speed of the e-bike. As shown below, twist the throttle towards you to operate. HIGH SPEED MEDIUM SPEED SPEED • Twist the throttle towards yourself to go. • Use the speed mode Switch to toggle between the speed settings. (High/Mid/Low) NOTICE: •...
Page 30: Speed Govenor
Operation Guide 5. Speed Governor The speed governor restricts the maximum speed of the e-bike. By default, it is activated. This will limit the e-bike to low speed mode, maxing out at 32km/h. To enable the speed governor: • Open the seat (Refer to page •...
Page 31: Storage
Operation Guide 6. Storage a� Tail box Unlock the tail box: 1� Open the latches on both sides of the box. 2� Insert the key to the lock, then turn the key counter- clockwise to unlock. Lock the tail box: 1�...
Page 32: Multimedia Controls
Operation Guide 7. Multimedia Controls Previous Song/ MP3: Press to go back to the previous song. Hold to lower the volume. Channel FM Radio: Press once to switch to the previous channel on the list. Volume Down MP3: Press to Play/Pause the song. FM Radio: Press to switch between exhaust mode and FM Radio mode when the FM Mode Switch Radio is on.
Page 33: Charger
Operation Guide 8. Charger a� Lead Acid Charger Front Label Charging Indicator Charger Specification Label Charging Plug...
Page 34 Operation Guide 8. Charger a� Lead Acid Charger A. Front Label The front label contains brief information of the voltage and capacity of the battery that the charger should be used for (more details are included in the specification label on the back of the charger). •...
Page 35 Operation Guide 8. Charger a� Lead Acid Charger B. Charging Indicator Charging Indicator Explanation: • During normal charging, red light keeps on. • The indicator will turn green when the battery is fully charged. NOTICE: If the charger gets warm during regular use, this is a normal response and is no cause for concern�...
Page 36 8. Charger a� Lead Acid Charger C. Charger Specification Label WARNING WARNING: It is your responbility to make sure that you are charging your e-bike with the correct charger� Contact your EMMO dealer if you have any questions or concerns�...
Page 37 Operation Guide 8. Charger a� Lead Acid Charger D. Charging Plug How to charge: • The charging port is located beneath the seat. (Refer to "side view", on page 13.) • Open the charging port lid and plug in the charger. •...
Page 38: Lithium Charger
Operation Guide 8. Charger b� Lithium Charger Charging Indicator Charger Specification Label Power Cord Socket Power Cord Charging Plug...
Page 39 Operation Guide 8. Charger b� Lithium Charger A. Chagring Indicator Charging Indicator Explanation: • During normal charging, red light keeps on. • The indicator will turn green when the battery is fully charged. NOTICE: If the charger gets warm during regular use, this is a normal response and is no cause for concern�...
Page 40 Operation Guide 8. Charger b� Lithium Charger B. Charger Specification Label WARNING: It is your responbility to make sure that you are charging your e-bike with the correct charger� Contact your EMMO dealer if you have any questions or concerns�...
Page 41 Operation Guide 8. Charger b� Lithium Charger C. Power Cord Socket D. Power Cord Connecting the charger: • Plug the device connector C of the power cable into the device socket D on the charger. • Before using the charger, plug the power cord C to the power cord socket D. WARNING: DO NOT plug the power cord directly to the bike/battery�...
Page 42 Operation Guide 8. Charger b� Lithium Charger E. Charging Plug How to charge: • The charging port is below the front of the seat. (Refer to "side view", on page 10.) • Open the charging port lid and plug in the charger. •...
Page 43 Operation Guide 8. Charger b� Lithium Charger How to Remove the Underseat Battery and Charge it off the Bike I� Open the seat, switch off the II� Disconnect the power plug. III� Take out the battey from the bike. circuit breaker. (Red) NOTICE: Only one circuit breaker can be engaged at once�...
Page 44: Battery
Operation Guide 8. Charger b� Lithium Charger How to Remove the Battery and Charge it off the Bike V� Connect the charger with power IV� Connect the charging plug with battery. supply.
Page 45 Charging Precautions WARNING: • You must use the compatible charger (approved by EMMO) to charge the battery. • DO NOT submerge or allow the charger to become submerged in water or any liquid. • DO NOT use the charger if the cord becomes frayed, has expose solution or wires or shows any damage.
Page 46: Battery Safety Precautions
Operation Guide 9. Battery a� Battery Safety Precautions • Be sure to use the original/compatible battery (approved by EMMO). Using batteries from other brands may lead to severe accidents. • Inspect the battery for any damage, leaking, overheating or smoking.
Page 47 NOTICE • Used batteries must be treated as hazardous waste� • Batteries must be disposed of in accordance with the the regulations set forth by your local government/organizations. • In case of uncertainty, contact EMMO customer service department�...
Page 48: Storage & Maintenance
Operation Guide 9. Battery c� Storage & Maintenance • For storage, please disconnect the battery from the bike and charge the battery on a regular basis (at least once a month). • Battery packs and chargers need to be stored in a clean, dry, ventilated place, avoid contact with corrosive material, and keep them away from heat and fire.
Page 49: Stand
Operation Guide 10. Stand a� Side Kickstand How to use the side kickstand: • Kick the side stand down and gently lean the bike on the side kickstand. • Make sure it is stable before you leave your bike. NOTICE: It is recommended to use the centre stand (next section) for long term storage�...
Page 50 Operation Guide 10. Stand b� Centre Stand II� Keep your balance, grab the III� And grab the rear rack at the I� Stand on the left side of the bike. The centre stand is under the handlebar. same time. swing arm.
Page 51 Operation Guide 10. Stand b� Centre Stand IV� Step on the centre stand peg V� While keeping your balance, step VI� To get the bike off the centre down on the peg firmly and lift stand, put your right foot in front firmly with your right foot.
Page 52 Both side kickstand and centre stand should be kicked up before you ride the bike� • Be careful when using the centre stand� If you find it difficult to use the centre stand, visit your EMMO dealer for a more detailed demonstration on how to use the centre stand� NOTICE: •...
Page 53: Pedal
Operation Guide 11. Pedal PUSH How to fold the pedals: • Push the pedal from the side (as shown). • Fold the pedal up while you continue pushing from the side.
Page 54: Lights
Operation Guide 12. Lights a� Headlight The headlight assembly has multiple operation modes - high beam, low beam and daytime running light, to accommodate your needs under different conditions.
Page 55: Tail Light & Brake Light
Operation Guide 12. Lights b� Tail light & Brake Light The tail light increases your visibility to others at night/under dark conditions. The brake light signals to the traffic behind you that your E-bike is slowing down so that they can adjust their speed accordingly.
Page 56 Operation Guide 12. Lights c� Signal Lights The built-in turning signals give the nearby traffic a better insight of your intended route.
Page 57: Cleaning / Lubricating The Chain
Operation Guide 13. Cleaning / Lubricating the Chain How to Clean the Chain: • Put the bike on the service stand lean the bike on the stand. • Locate the chain on the right side of the bike, near the rear wheel hub. •...
Page 58: Tire Pressure
Operation Guide 14. Tire Pressure It is recommended to check the tire pressure on a regular basis to keep things at their best working conditions. 35 PSI II� Remove the valve cap. III� Use an air pump with gauge I� Locate the valve on the rim. to adjust the tire pressure to 35 PSI.
Page 59 Operation Guide 14. Tire Pressure • Riding comfort • Travel distance WARNING: • MUST inflate the tire to the recommended tire pressure before the first ride.Failure to do so may damage your bike and void your warranty� • DO NOT over-inflate, as this could damage the tire or wheel�...
Page 60: Serial Number
Operation Guide 15. Serial Number a� Frame Number Locate the VIN cover in the panel facing driver. Find the Frame Number: • Use a flat head screwdriver to remove the VIN cover. • You will find the Frame Number engraved on the frame. •...
Page 61: Motor Number
Operation Guide 15. Serial Number b� Motor Number Located on the motor. EN140MKM0009 The motor number could be located at the following locations: • Location 1: On the motor cover plate. • Location 2: Behind the sprocket on the motor.
Page 62: Checking List Before Riding
Riding Guide 1. Checking List Before Riding • Whether the handlebar is stable and flexible when turning. • Whether the right and left switches on the handlebar can work properly or not. • Whether the throttle can work properly or not. •...
Page 63: Warranty Policy
Any warranty is extended to the original owner with the original purchase paperwork. This portion does not cover the purchase of parts or the purchase of products sold by Emmo Inc that is not an electric bike, electric scooter ebike, electric motorcycle style ebike, electric mobility scooter, kick-style electric scooter, or ride-on toy.
Page 64 Please note the damage on the shipper’s Bill of Delivery prior to signing off on the shipment� Shipping damage is not covered by Emmo Inc if you choose your own shipping method or freight forwarder� The cost of shipping will not be covered under warranty unless Emmo Inc agrees in writing to cover the shipping cost�...
Page 65 • For repairs that are done on items that are not from Emmo Inc, only a 7-day Parts Warranty will be included� Emmo Inc is not responsible for items modified from its intended use or purpose resulting in damage to the ebike or injury to the customer or third party�...
Page 66 Leave us a review By sharing your experience with EMMO, you can extend your warranty for an extra 3 months for FREE� Your review will help us to continue providing great products and services, and help others understand how EMMO can make their life greener.
Page 67 Contact Us LOCATION EMMO Mississauga EMMO Toronto 1224 Dundas St E, Unit 6 438 Spadina Ave, Unit 2 Mississauga, ON L4Y 2C5 Toronto, ON M5T 2G8 Canada Canada EMMO Vaughan Toronto Service Center 1750 Steeles Avenue West, Unit 15-17 8 Oxford Street...
