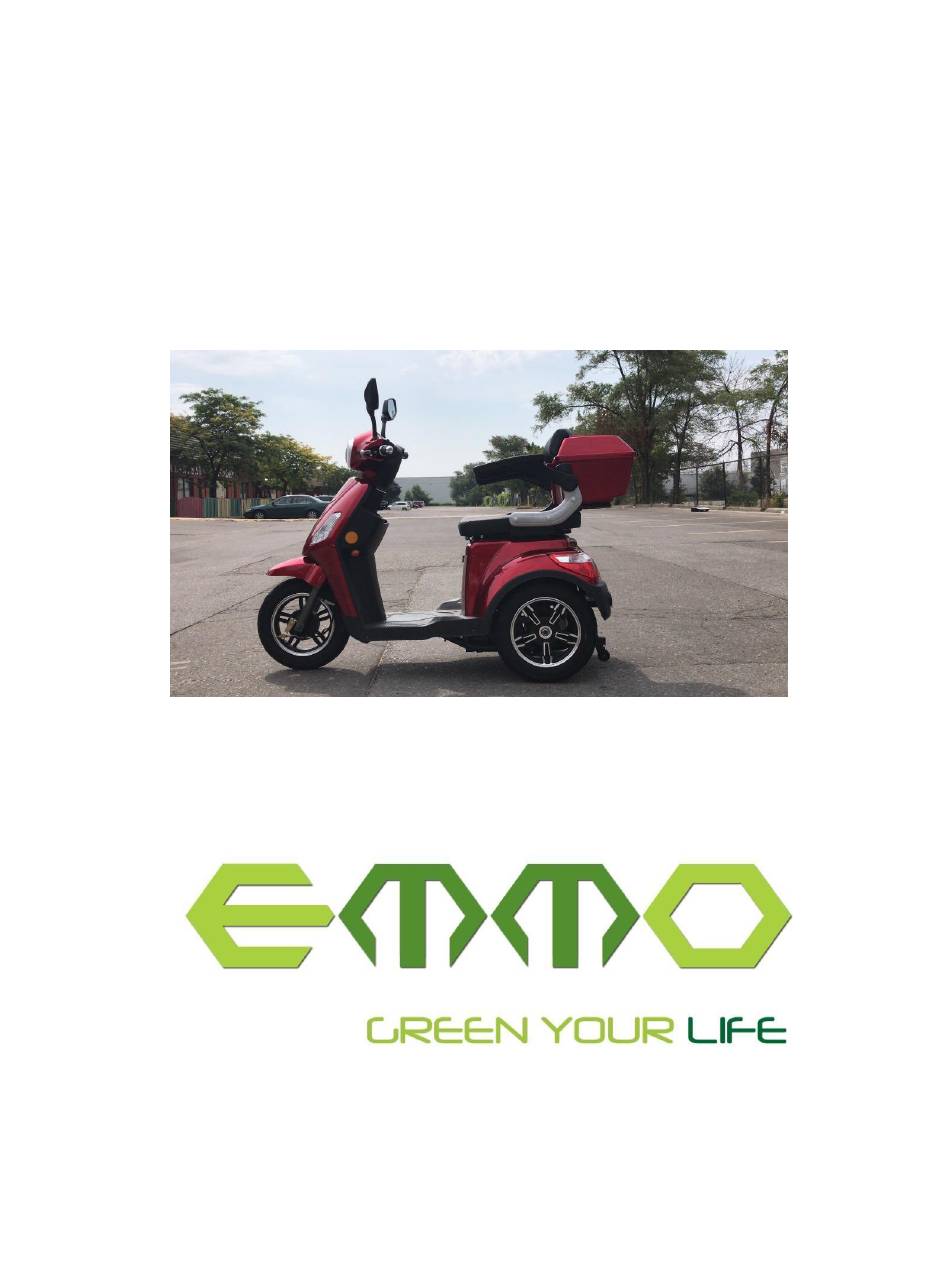

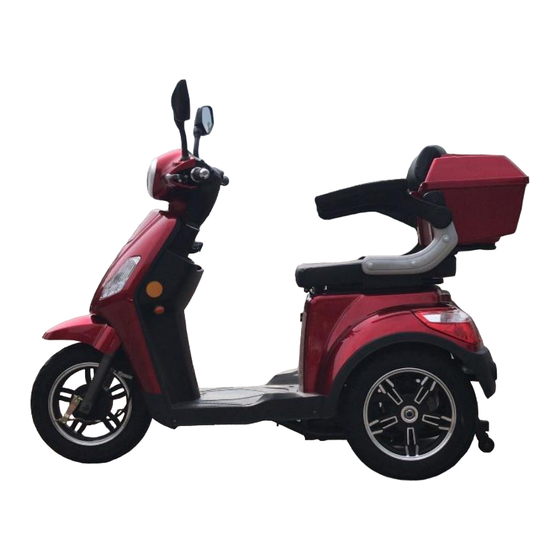

- Page 1 Emmo T345 MOBILITY SCOOTER Owner’s Manual...
-
Page 2: Table Of Contents
Contents A Message from MTO ....................1 Safety ..........................2 Specifications........................ 3 Charging the Bike ......................4 Charging the Bike (Lead Acid Battery) ..............5 Features ......................... 7 Keys ..........................11 Riding Instructions ..................... 12 Speedometer ....................... 14 60 Second check and Service ..................15 E-Bike Registration .................... -
Page 3: A Message From Mto
A Message from MTO Personal Mobility Devices (Motorized Wheelchairs and Medical Scooters) Do not require registration, license plates, driver's license or vehicle insurance. Persons operating motorized wheelchairs are treated in the same way as pedestrians. Wheelchairs can be driven by muscular power or other types of power and are designed for and used by people whose mobility is limited by one or more conditions or functional impairments. -
Page 4: Safety
Safety When operating the T345 please make sure you adhere to the following: Always check your mirrors and blind spots when operating the vehicle. Turn on headlights when in need of additional visibility. Make sure that your battery power is sufficient before you go out to ride Obey all laws of the road. -
Page 5: Specifications
Specifications Color Blue; Dark Red; Silver Special Features 24V/45Ah Lead Acid Battery, Dual Speeds 10″ x 3.0″ Tubeless Tire Tire Size Gross Weight 90 kg Dual Speed Forward Max 8 or 15km/h; Backward 4km/h Travel Range Up to 55 km* 3 –... -
Page 6: Charging The Bike
Charging the Bike WARNIN *CHARGING THE E-BIKE SHOULD TAKE A MAXIMUM OF 8 HOURS. *DO NOT CHARGE THE E- BIKE FOR MORE THAN 12 HOURS. OVERCHARGING WILL OVERHEAT THE CHARGER AND WILL RESULT IN THE CHARGER DAMAGING THE BATTERY. *MAKE SURE TO FULLY CHARGE THE E-BIKE ONCE A MONTH DURING LONG PERIODS OF INACTIVITY... -
Page 7: Charging The Bike (Lead Acid Battery)
Charging the Bike (Lead Acid Battery) There are two different plugs on your charger: one end that goes into an 110V power outlet, and the other into the charger port. Take one end of the charger and plug it into the charger port located on the bike (Please make sure that it is fully plugged in) Plug the other end of the charger into the power outlet. - Page 8 Gear Switch This lever changes the gear on the bike; it affects the movement of the bike. When the lever is pushed upwards, the bike can be pushed forwards and backwards. In this position, if the bike is turned on, the throttle will not move the bike.
-
Page 9: Features
Additionally, air rarely escapes from these tires. Note: The back wheels for the T345 run on an electronic brake system; the wheels only move when the throttle is being used. When the throttle is released, the back wheels will slowly come to a stop. (The axle controlling the... - Page 10 Key Positions in Ignition 1. This is the handlebar lock position. This position is reached when the key is pushed in and turned to the left, from the off position. This locks the handlebars when they are turned all the way to the left. (The handlebars must be turned all the way to the left before the key will turn.) 2.
- Page 11 Seat Adjustments Picture 1 and 2 shows that you can adjust the arm directly. Picture 3 shows that pulling this lever up allows for the seat to be adjusted. (Back and forth)
- Page 12 NOT flow through the bike, and none of the electrical aspects will work on the bike. To open the storage space beneath the T345 seat, insert your key into this key slot, turn to right and lift the seat.
-
Page 13: Keys
11 / Keys The EMMO T345 comes with two style keys Bigger key: This key works for the ignition and open the seat. Smaller key: This key works for the tail box. -
Page 14: Riding Instructions
12 / Riding Instructions Turning Signals High/Low Beam Switch Pushing the switch to either Pushing the switch up the left or right positions will activates the high beams for turn on the respective Brakes (silver part): Pull that the front headlights, pushing front/rear turning signals. - Page 15 13 / Throttle Make sure that you are properly situated on the unit. Once the vehicle is on (you will see that the dashboard is lit up). Use the throttle on the right hand to rotate towards you. Throttle: Rotate that towards you to drive.
-
Page 16: Speedometer
14 / Speedometer The T345 features a digital LED display to show your speed travel time and more. Speed - Your current speed that you are traveling in KM/h Battery / Voltage reading - Shows how much power you have. 8 Bars means it has a full battery. -
Page 17: 60 Second Check And Service
Make sure your mirrors are tightly secured and adjusted as needed to see behind you. Service For all technical service please contact us at 1-888-217-1217 for help or visit us online at emmo.ca We recommend that you don’t try to fix things yourself and that you should have a trained... -
Page 18: E-Bike Registration
16 / E-B ike Registration Once you have purchased an Emmo E-bike, please register your vehicle with us to validate your warranty. In order to register your e-bikes, please follow the steps listed below: Fill out the following form: Invoice Number:... - Page 19 Any laws/regulations regarding “E-bikes” can be found on the Ministry of Transportation website: www.mto.gov.on.ca If you have further questions, please contact us at: 438 Spadina Avenue, Toronto ON Toll Free: 1 888 510 3666 Tel: (416) 792-3227 www.emmo.ca Email: info@emmo.ca...
