66

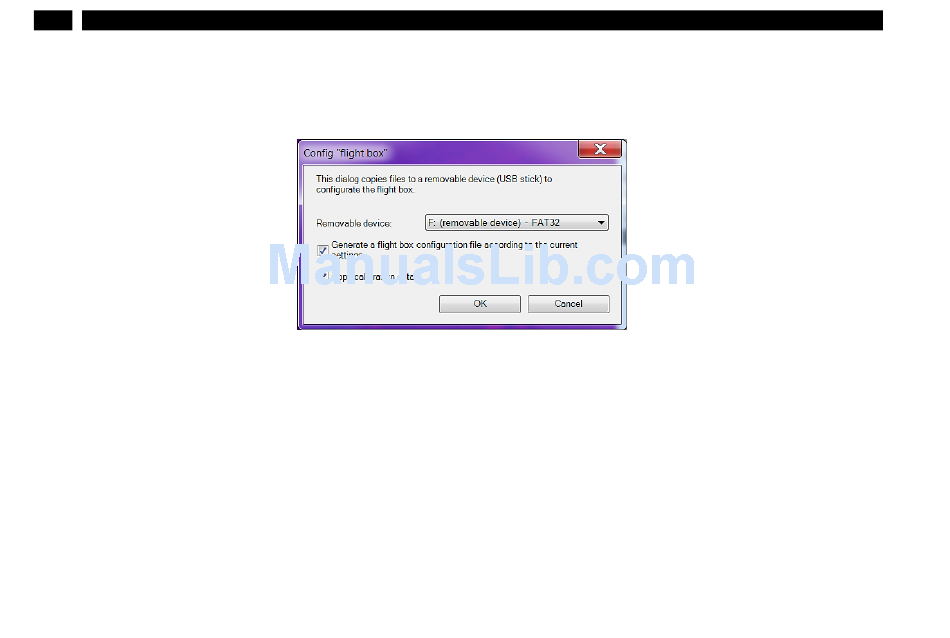

2/ Use PIConnect software to copy automatically the correct calibration files corresponding to the PI
camera currently connected to this PC: Menu "Tools/ Extended/ Config Recording box, check "Copy
calibration data" and select the USB flash memory where you want to copy these files.
Press OK.
Plug this USB stick to the Recording box, connect the PI camera SNxxxxxxxx to an USB 3.0 port (blue)
and power ON the system.
The calibration files are automatically loaded to the system and the infrared image is displayed showing
that the calibration files are in use.
This installation process has to be done only once per camera running with this Recording box.
