Installation
3.1
Physical installation
The PI 400 LW/ 450 LW / 640 LW are equipped with two metric M4 thread holes on the bottom side (6
mm depth) and can be installed either directly via these threads or with the ¼'' photo tripod mount (also
on bottom side). The separate PI camera sensing head can be mounted on the stabilization platform of a
drone together with a visual camera (in the picture: GoPro camera). The Recording box can be mounted
separately in different directions using the supplied and pre-assembled mounting bricks.

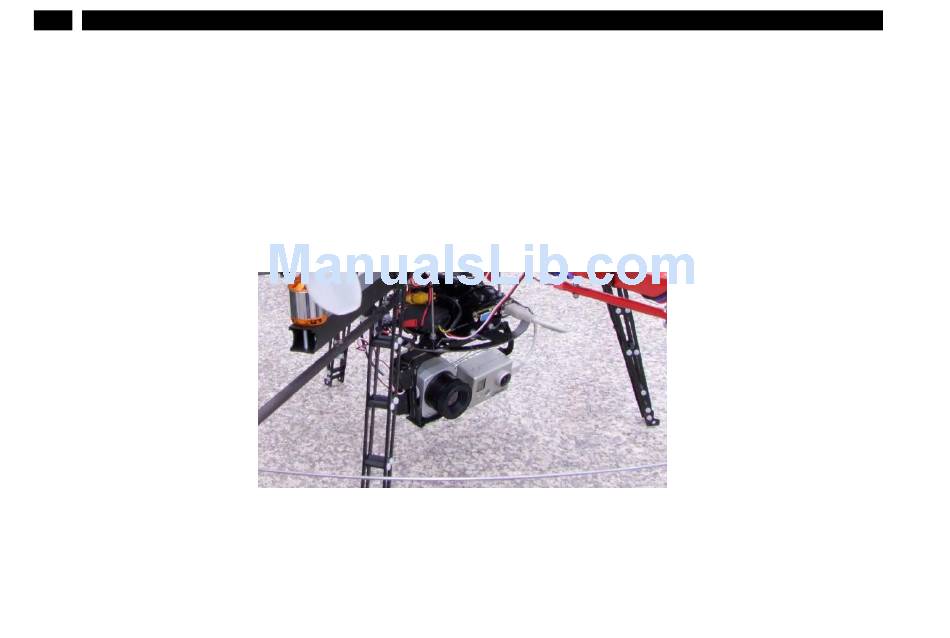

Figure 4: PI LightWeight on a drone together with a GoPro HD camera
