64
5.3

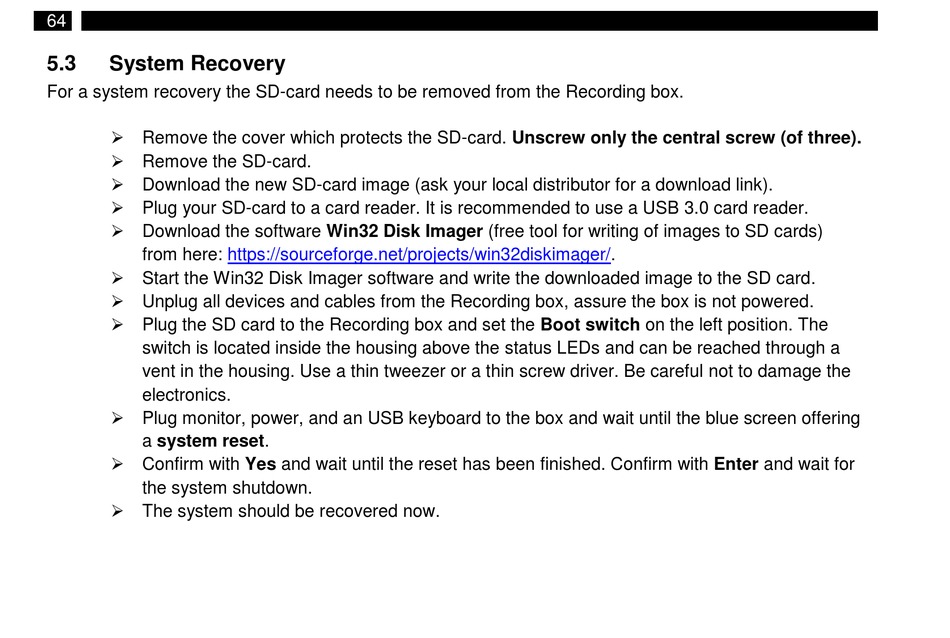

System Recovery

For a system recovery the SD-card needs to be removed from the Recording box.
 Remove the cover which protects the SD-card. Unscrew only the central screw (of three).
 Remove the SD-card.
 Download the new SD-card image (ask your local distributor for a download link).
 Plug your SD-card to a card reader. It is recommended to use a USB 3.0 card reader.
 Download the software Win32 Disk Imager (free tool for writing of images to SD cards)
from here: https://sourceforge.net/projects/win32diskimager/.
 Start the Win32 Disk Imager software and write the downloaded image to the SD card.
 Unplug all devices and cables from the Recording box, assure the box is not powered.
 Plug the SD card to the Recording box and set the Boot switch on the left position. The
switch is located inside the housing above the status LEDs and can be reached through a
vent in the housing. Use a thin tweezer or a thin screw driver. Be careful not to damage the
electronics.
 Plug monitor, power, and an USB keyboard to the box and wait until the blue screen offering
a system reset.
 Confirm with Yes and wait until the reset has been finished. Confirm with Enter and wait for
the system shutdown.
 The system should be recovered now.
