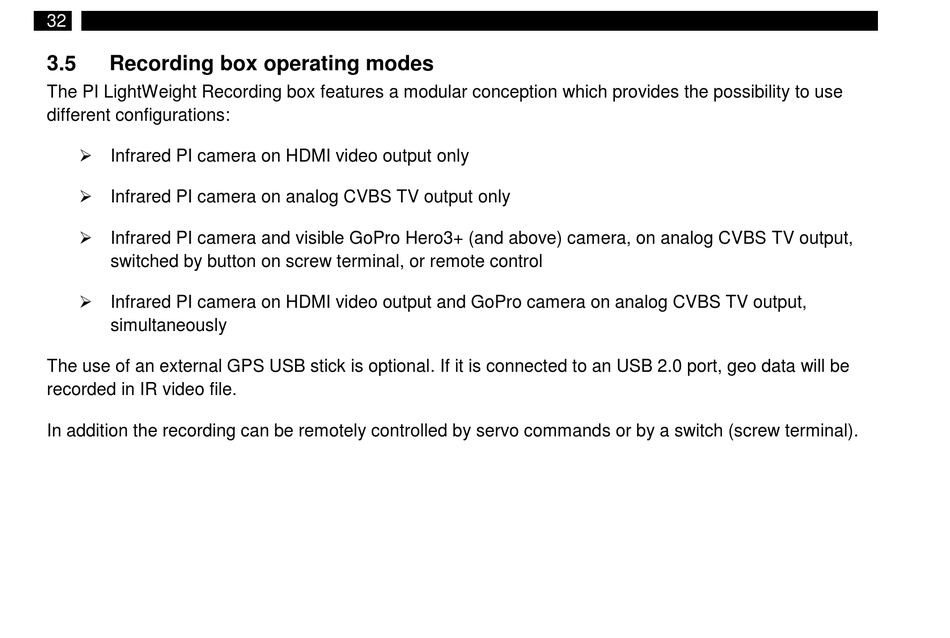

Recording box operating modes

The PI LightWeight Recording box features a modular conception which provides the possibility to use
different configurations:
 Infrared PI camera on HDMI video output only
 Infrared PI camera on analog CVBS TV output only
 Infrared PI camera and visible GoPro Hero3+ (and above) camera, on analog CVBS TV output,
switched by button on screw terminal, or remote control
 Infrared PI camera on HDMI video output and GoPro camera on analog CVBS TV output,
simultaneously
The use of an external GPS USB stick is optional. If it is connected to an USB 2.0 port, geo data will be
recorded in IR video file.
In addition the recording can be remotely controlled by servo commands or by a switch (screw terminal).
